(1 PC) OR3T80-7PS208-DB LUCENT FPGA, 484 CLBS, 116000 GATES SQFP2-208
Tax included.

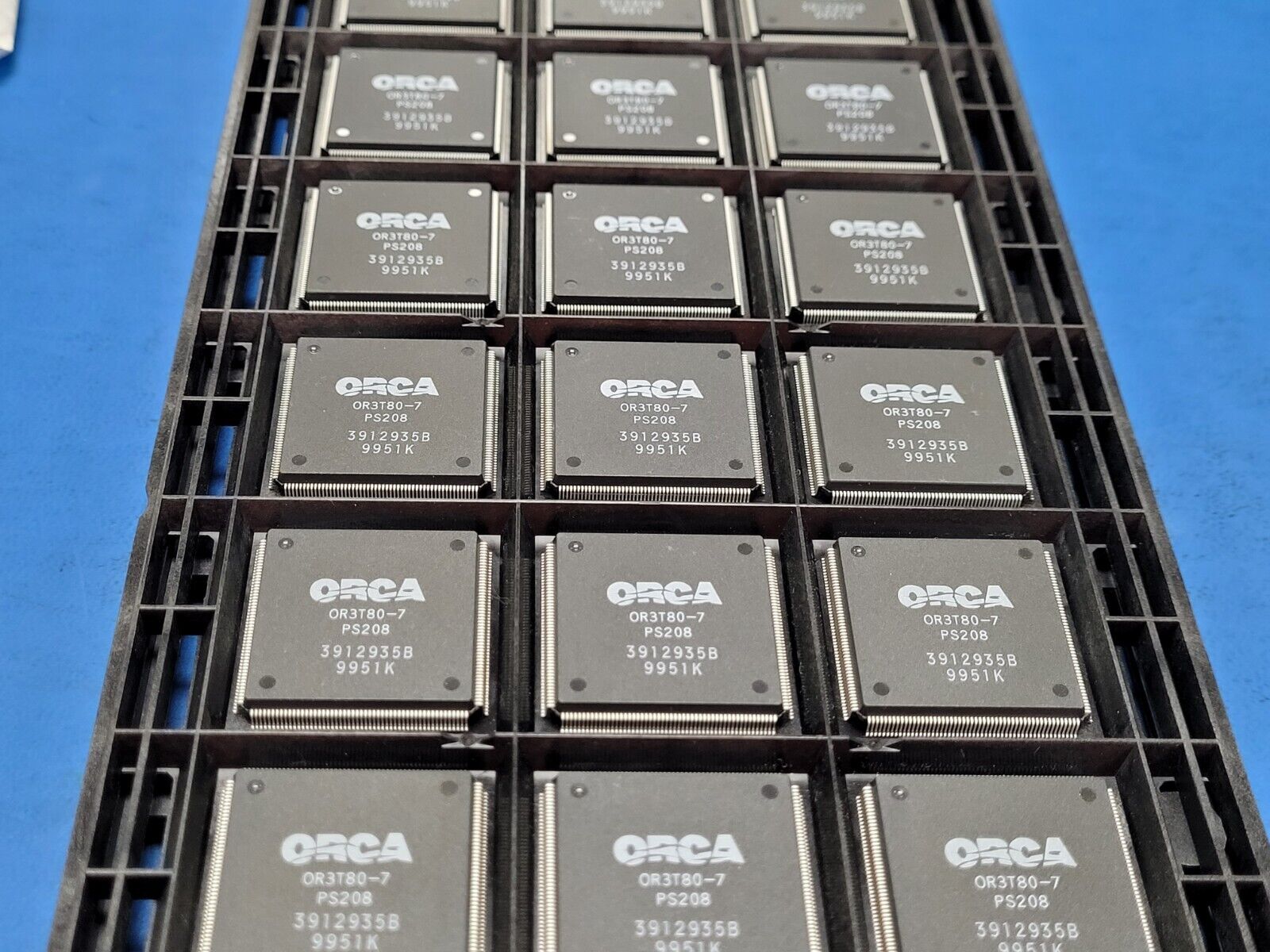

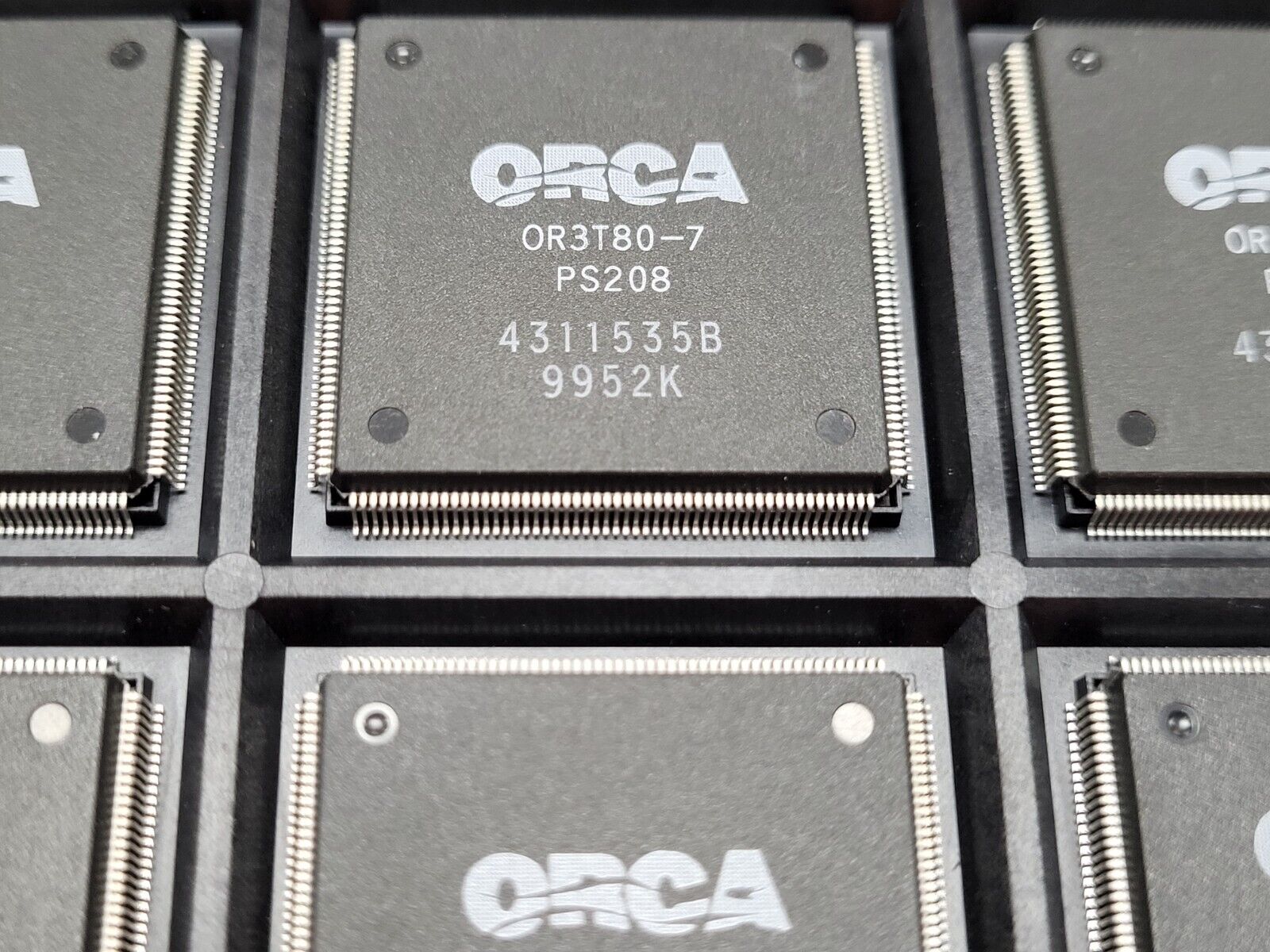

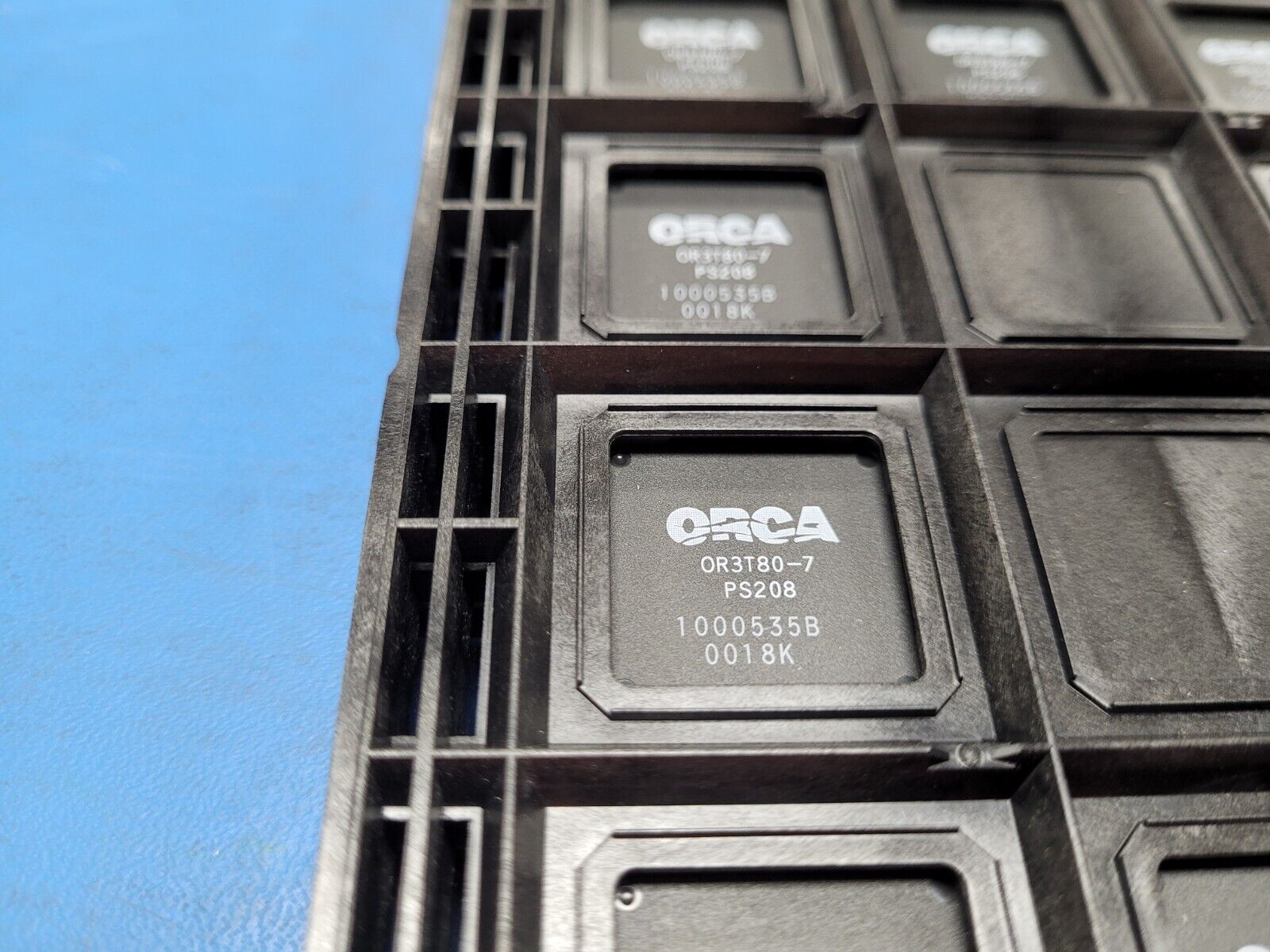

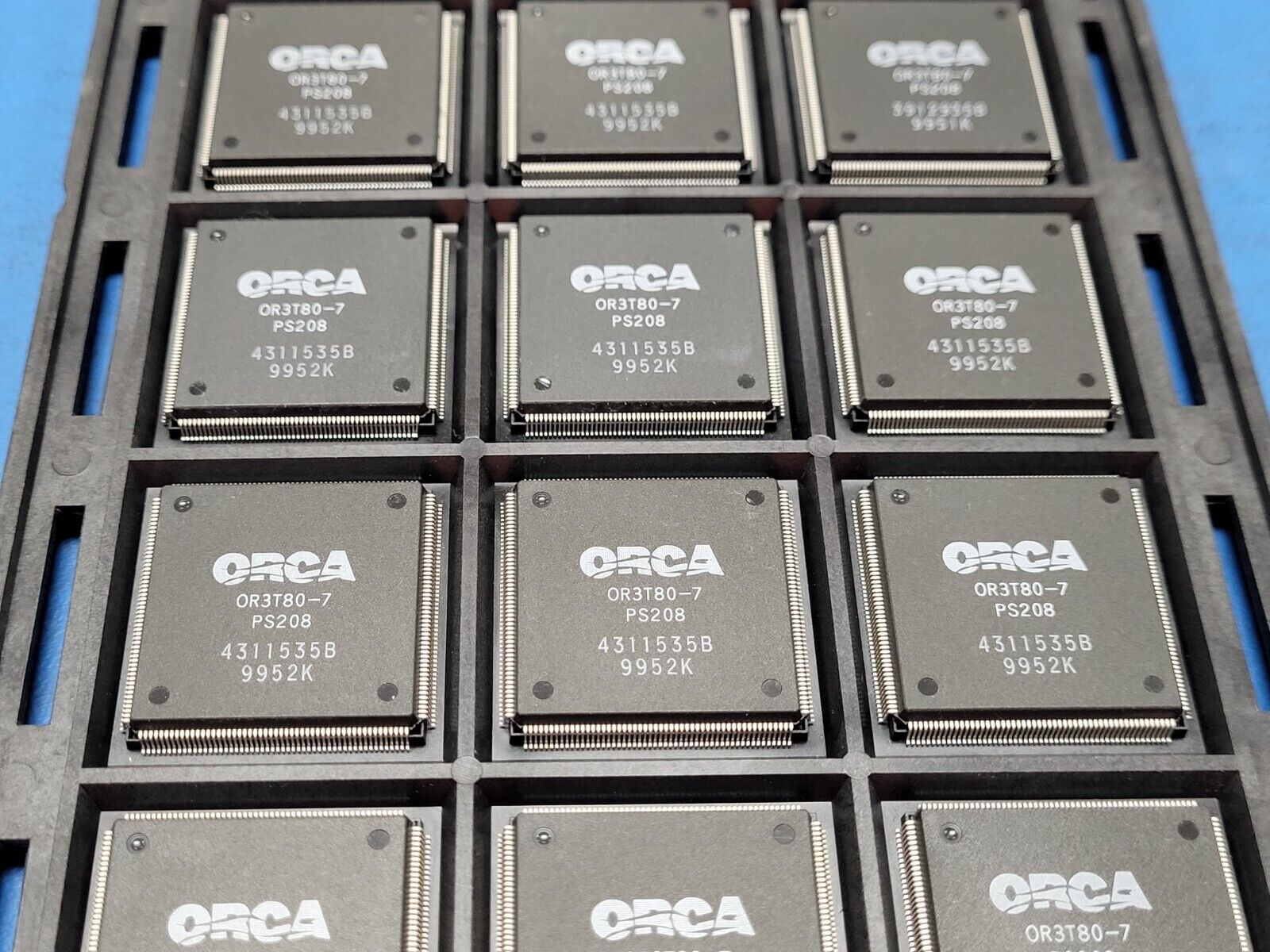

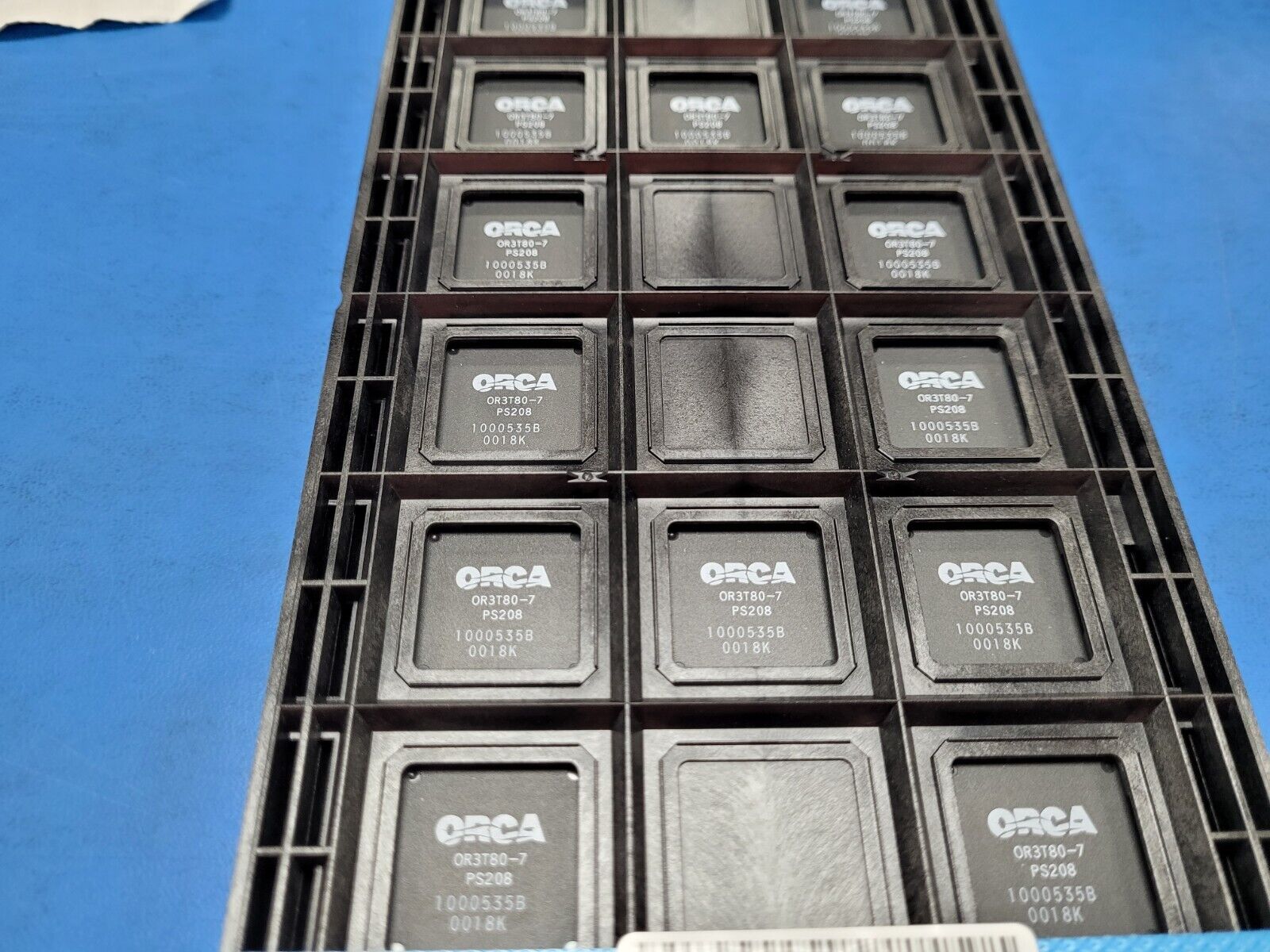

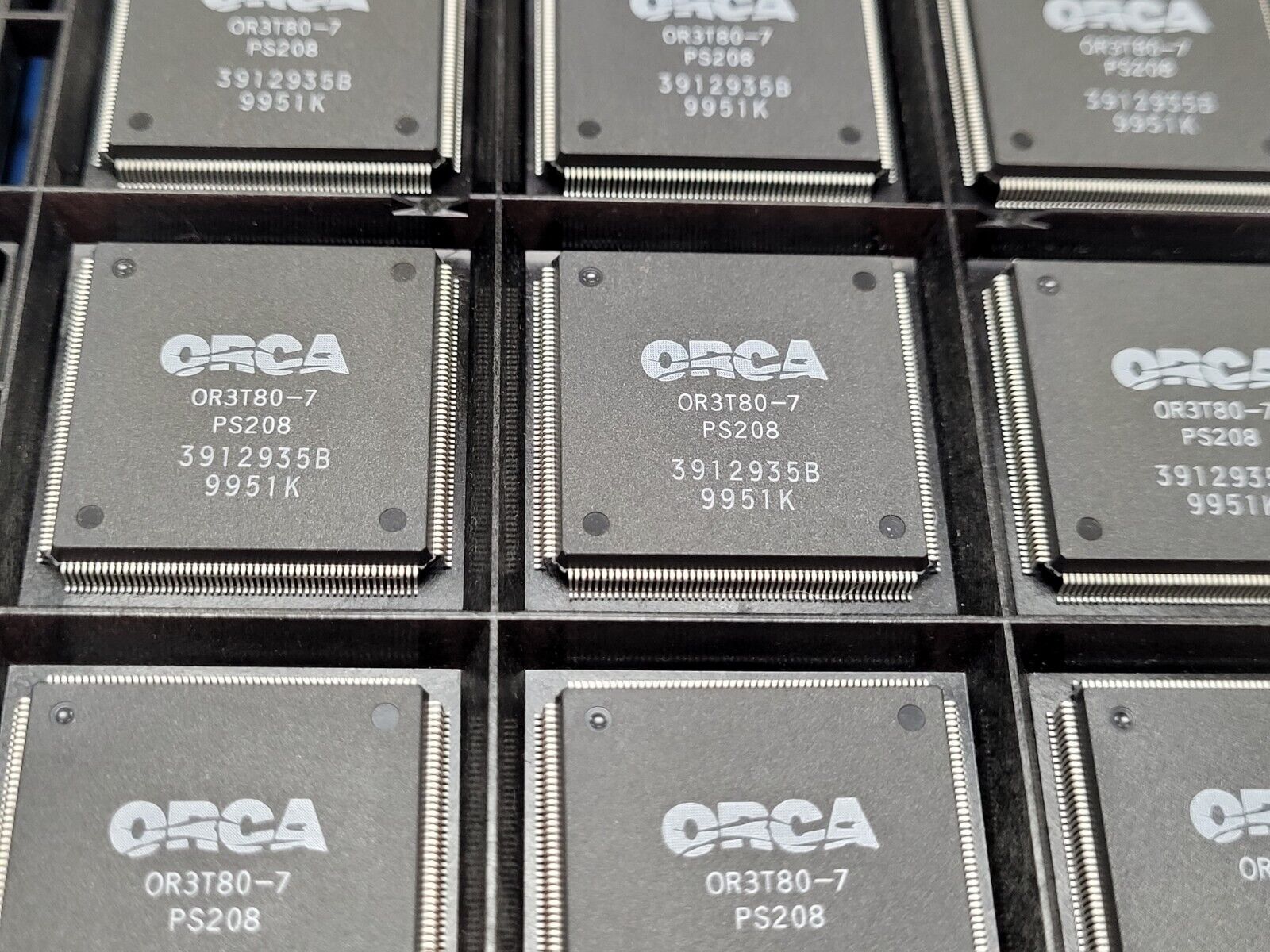

THIS IS FOR (1 PC) OF OR3T80-7PS208-DB BY LUCENT
FPGA, 484 CLBS, 116000 GATES
Mfr Package Description PLASTIC, SQFP2-208
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Combinatorial Delay of a CLB-Max 1.05 ns
JESD-30 Code S-PQFP-G208
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of CLBs 484.0
Number of Equivalent Gates 116000.0
Number of Inputs 167.0
Number of Logic Cells 3872.0
Number of Outputs 167.0
Number of Terminals 208
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 484 CLBS, 116000 GATES
Package Body Material PLASTIC/EPOXY
Package Code HFQFP
Package Equivalence Code HQFP208,1.2SQ,20
Package Shape SQUARE
Package Style FLATPACK, HEAT SINK/SLUG, FINE PITCH
Peak Reflow Temperature (Cel) 225
Power Supplies 3.3
Qualification Status Not Qualified
Seated Height-Max 4.1 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 28.0 mm
Width 28.0 mm
