(1 PC) OR2T26A-4BA352I LSI 576 CLBs 27600 Gates 10MHz 2304-Cell CMOS PBGA352
Tax included.

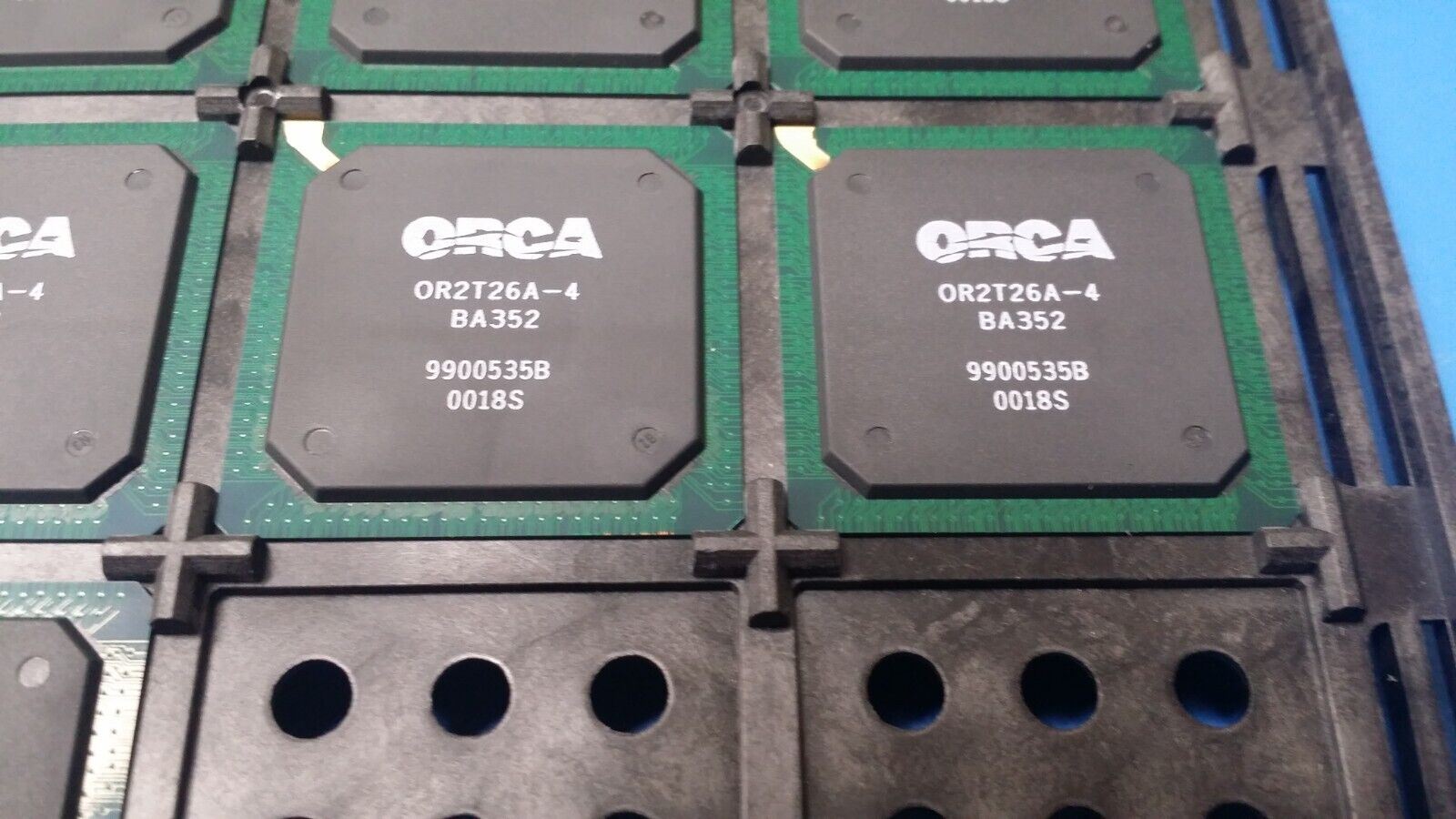

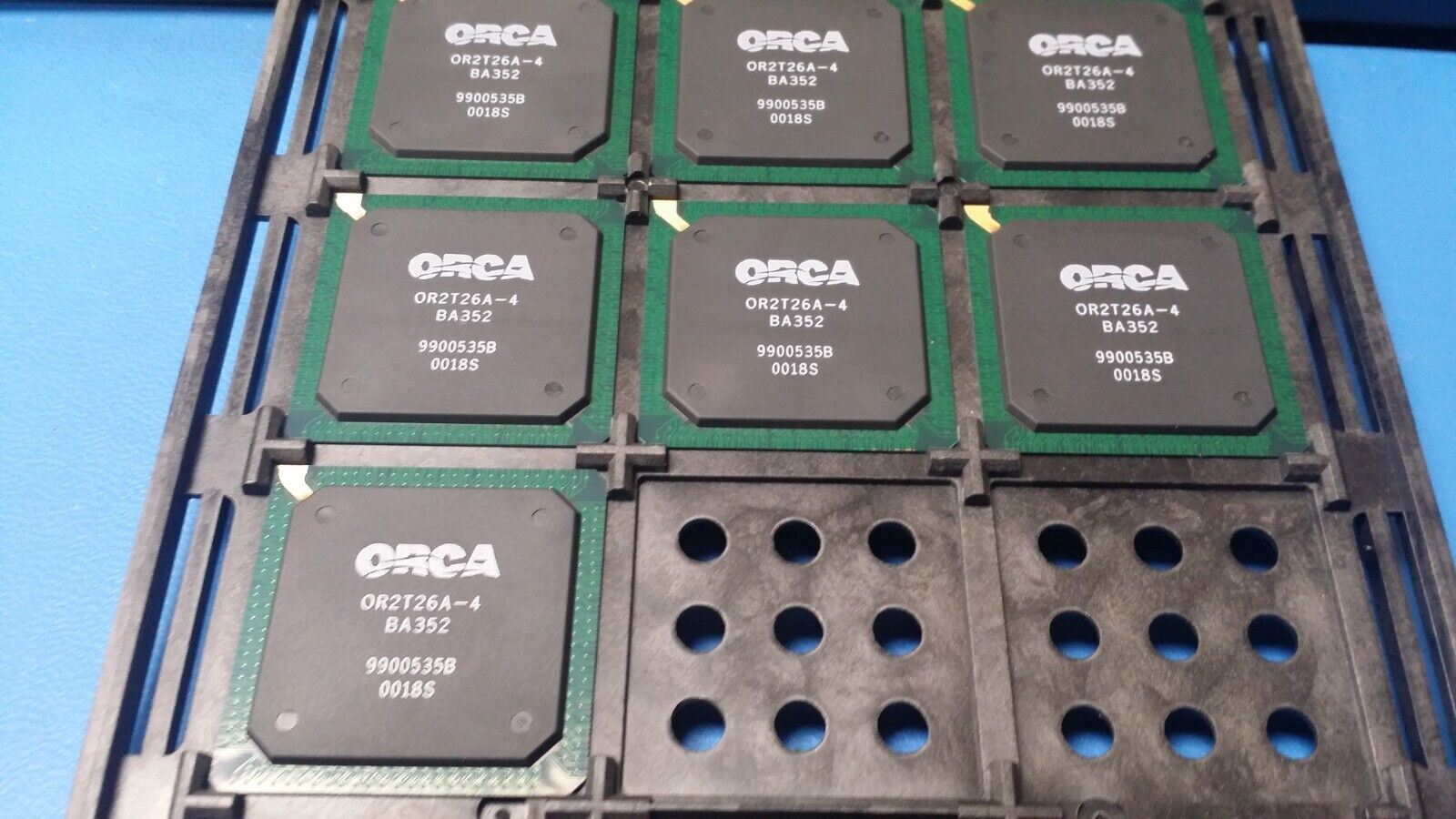

THIS IS FOR (1 PC) OF OR2T26A-4BA352I BY LSI
576 CLBs 27600 Gates 10MHz 2304-Cell CMOS PBGA352
Part #: OR2T26A-4BA352I
Part Category: Programmable Logic ICs
Manufacturer: LSI Logic Corporation
Description: Field Programmable Gate Array, 576 CLBs, 27600 Gates, 10MHz, 2304-Cell, CMOS, PBGA352
Mfr Package Description PLASTIC, BGA-352
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 10.0 MHz
Combinatorial Delay of a CLB-Max 2.1 ns
JESD-30 Code S-PBGA-B352
JESD-609 Code e0
Number of CLBs 576.0
Number of Equivalent Gates 27600.0
Number of Inputs 286.0
Number of Logic Cells 2304.0
Number of Outputs 286.0
Number of Terminals 352
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 576 CLBS, 27600 GATES
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA352,26X26,50
Package Shape SQUARE
Package Style GRID ARRAY
Power Supplies 3.3
Qualification Status Not Qualified
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD

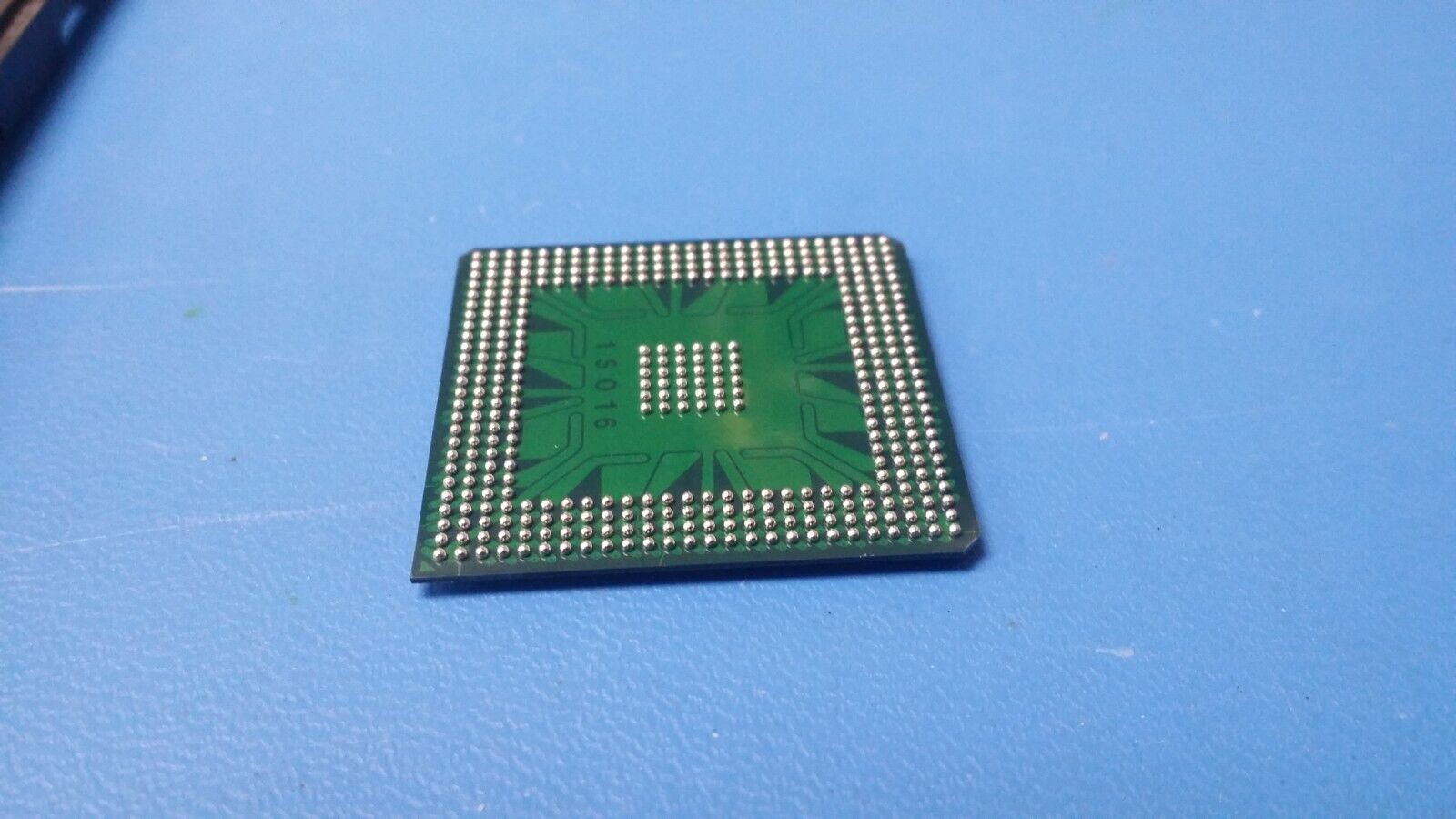

Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Additional Feature TYP. GATES = 27600 TO 63600
