(1 PC) OP27AJ8/883C OP Amp Single GP Añ22V 8-Pin CDIP
Tax included.

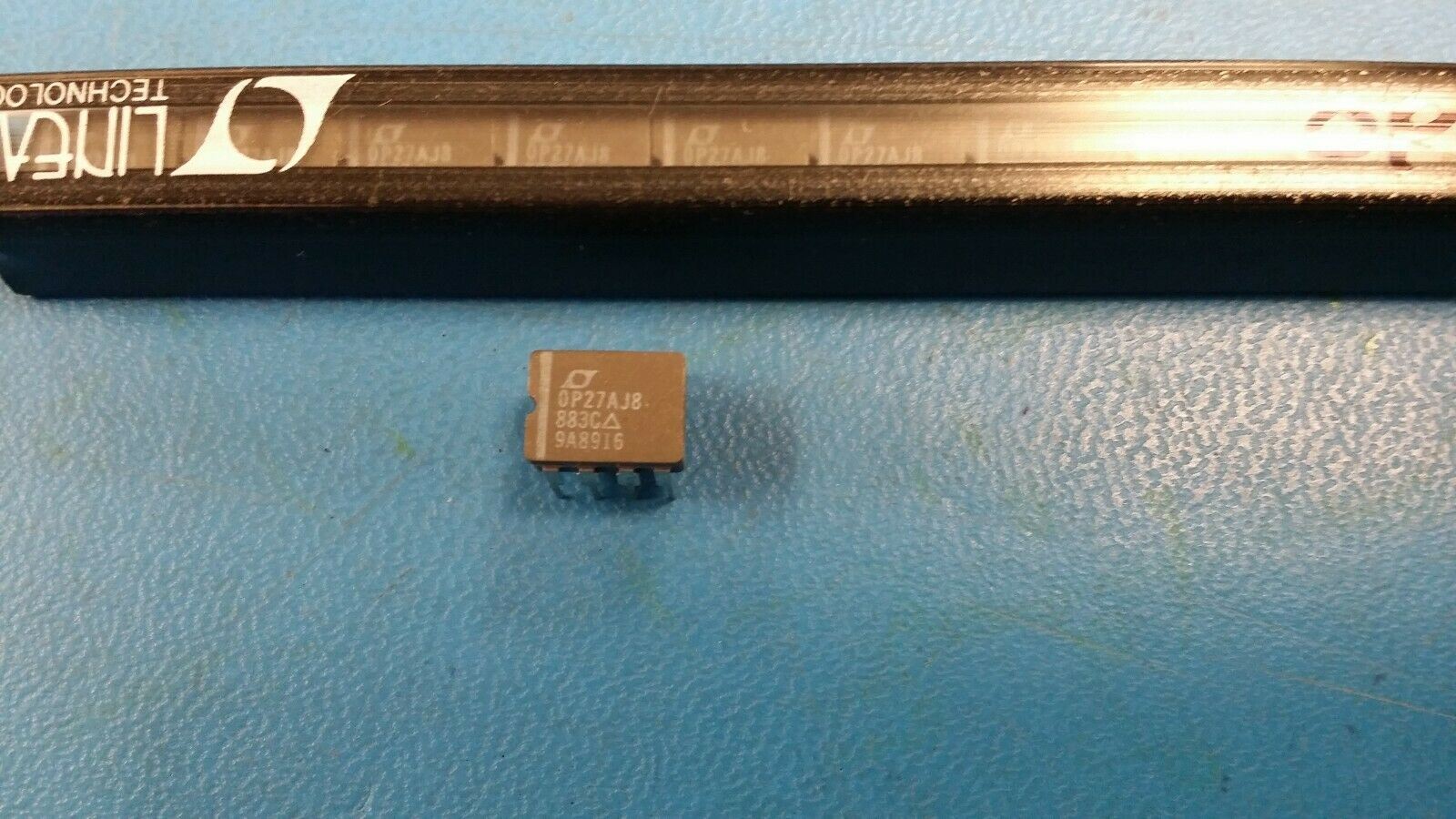

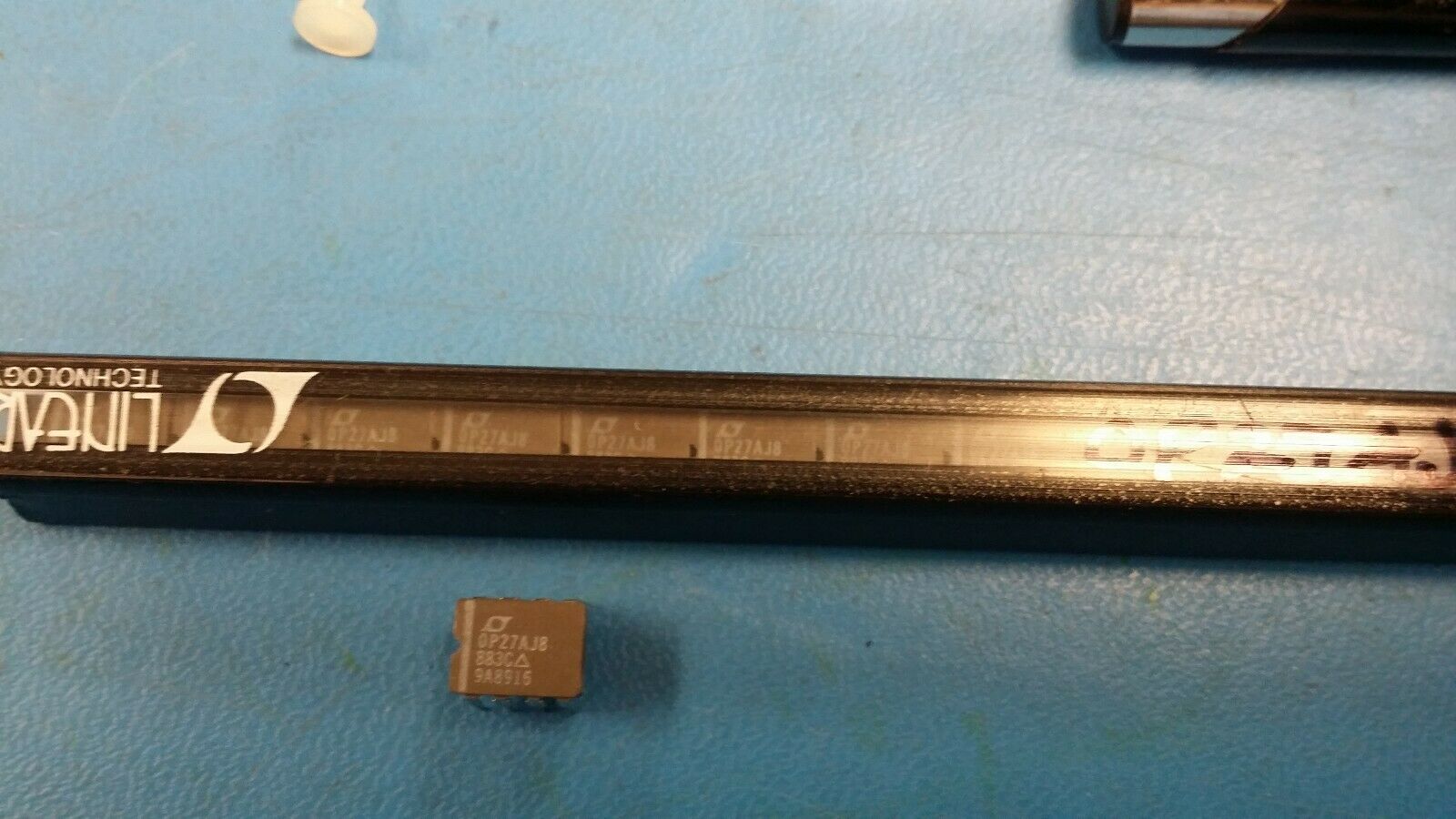

THIS LISTING IS FOR (1 PC) OF OP27AJ8/883C BY LT
OP Amp Single GP Añ22V 8-Pin CDIP
Part #: OP-27AJ8/883
Part Category: Amplifiers
Manufacturer: Linear Technology Corporation
Description: Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8
Manufacturer: Linear Technology Corporation
Description: Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8
| Mfr Package Description | HERMETIC SEALED, CERAMIC, DIP-8 |
| Status | Discontinued |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.06 µA |
| Bias Current-Max (IIB) @25C | 0.04 µA |
| Common-mode Reject Ratio-Nom | 122.0 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 60.0 µV |
| JESD-30 Code | R-GDIP-T8 |
| JESD-609 Code | e0 |
| Low-Offset | YES |
| Neg Supply Voltage Limit-Max | -22.0 V |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Screening Level | MIL-STD-883 |
| Seated Height-Max | 5.08 mm |
| Slew Rate-Nom | 2.8 V/us |
| Slew Rate-Min | 1.7 V/us |
| Sub Category | Operational Amplifier |
| Supply Voltage Limit-Max | 22.0 V |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Total Dose | MIL-STD-883 |
| Unity Gain BW-Nom | 8000.0 kHz |
| Voltage Gain-Min | 250000.0 |
| Width | 7.62 mm |
