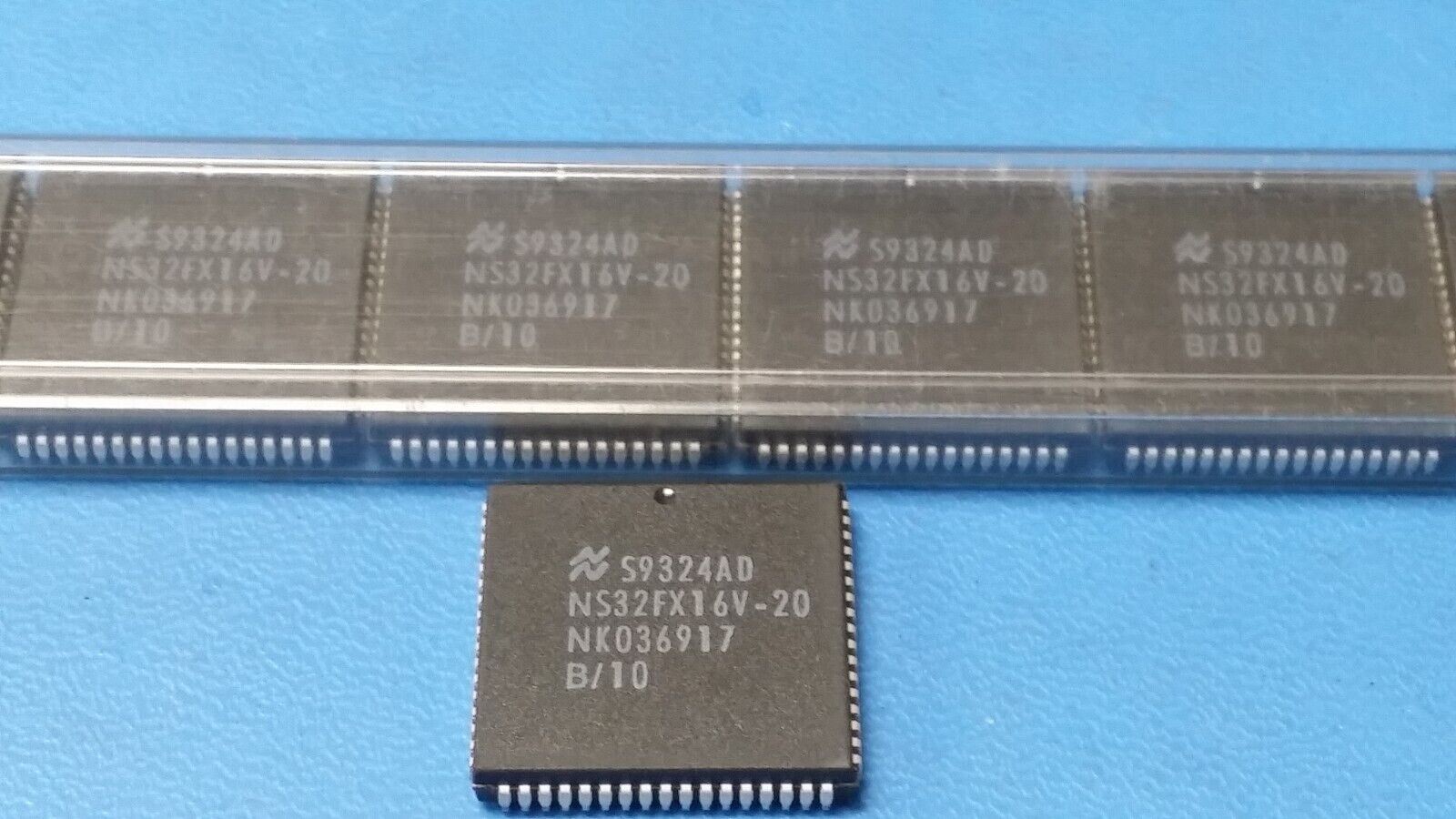

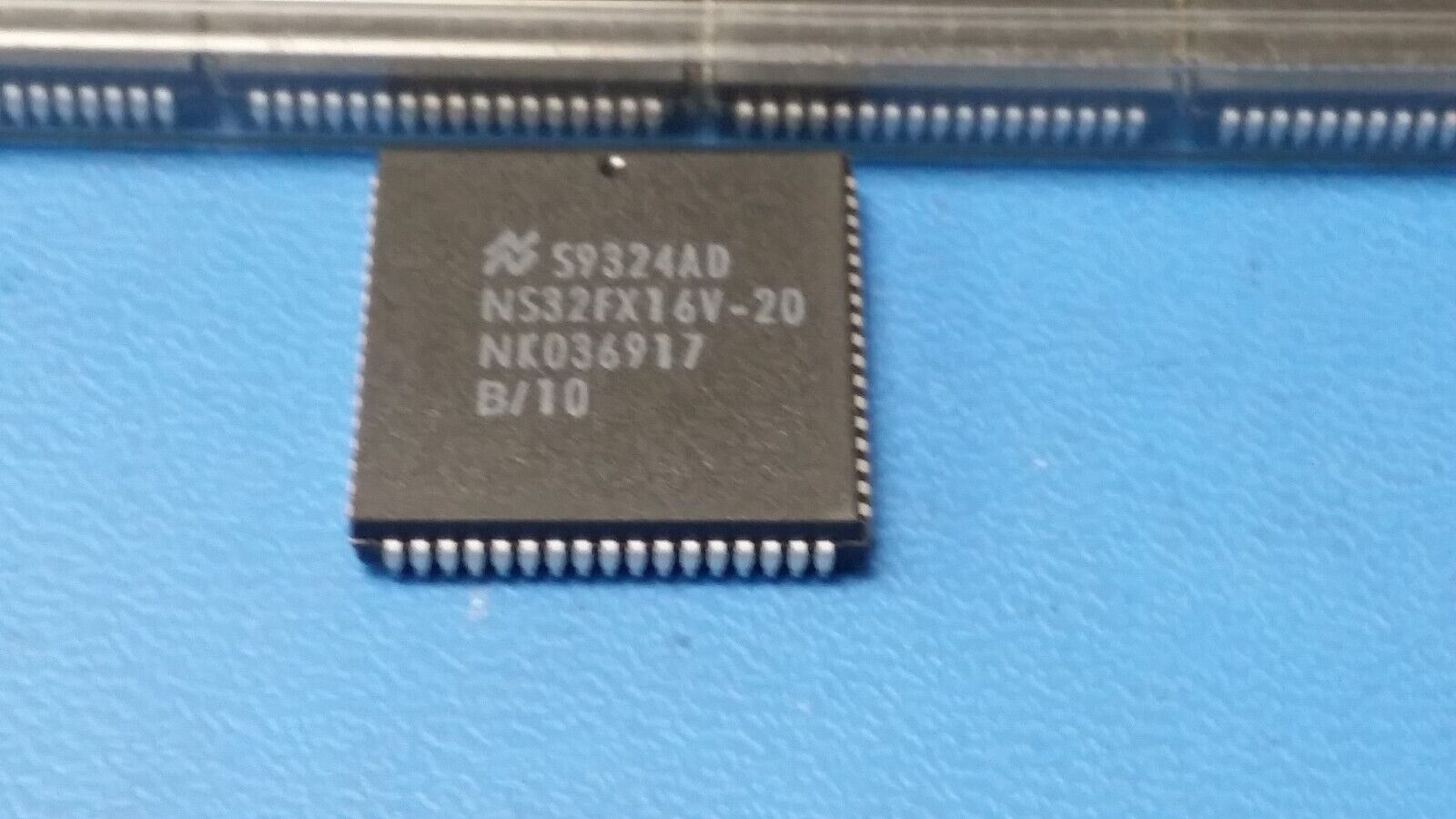

(1 PC) NS32FX16V-20 NSC, Mixed Signal Processor, 16-Ext Bit, 40MHz, CMOS, PLCC68
Tax included.
THIS IS FOR (1 PC) OF NS32FX16V-20 BY NSC
Mixed Signal Processor, 16-Ext Bit, 40MHz, CMOS, PLCC68
Part #: NS32FX16V-20
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: (NSC) NOW Texas Instruments High-Performance Analog
Description: Mixed Signal Processor, 16-Ext Bit, 40MHz, CMOS, PQCC68
Mfr Package Description PLASTIC, LCC-68
Status Discontinued
Address Bus Width 24.0
Barrel Shifter NO
Boundary Scan NO
Clock Frequency-Max 40.0 MHz
External Data Bus Width 16.0
Format FIXED POINT
Integrated Cache NO
Internal Bus Architecture SINGLE
JESD-30 Code S-PQCC-J68
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 2.0
Number of Serial I/Os 0.0
Number of Terminals 68
Number of Timers 0.0
On Chip Data RAM Width 8
On Chip Program ROM Width 0.0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC68,1.0SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 384
Seated Height-Max 5.08 mm
Sub Category Graphics Processors
Supply Current-Max 240.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 24.23 mm
Width 24.23 mm
