(1 PC) NM27LV020BVE250 NSC OTP ROM, 256KX8, 200ns, CMOS, PLCC-32
(1 PC) NM27LV020BVE250 NSC OTP ROM, 256KX8, 200ns, CMOS, PLCC-32
(1 PC) NM27LV020BVE250 NSC OTP ROM, 256KX8, 200ns, CMOS, PLCC-32
(1 PC) NM27LV020BVE250 NSC OTP ROM, 256KX8, 200ns, CMOS, PLCC-32

(1 PC) NM27LV020BVE250 NSC OTP ROM, 256KX8, 200ns, CMOS, PLCC-32

Tax included.
Only 50 left!

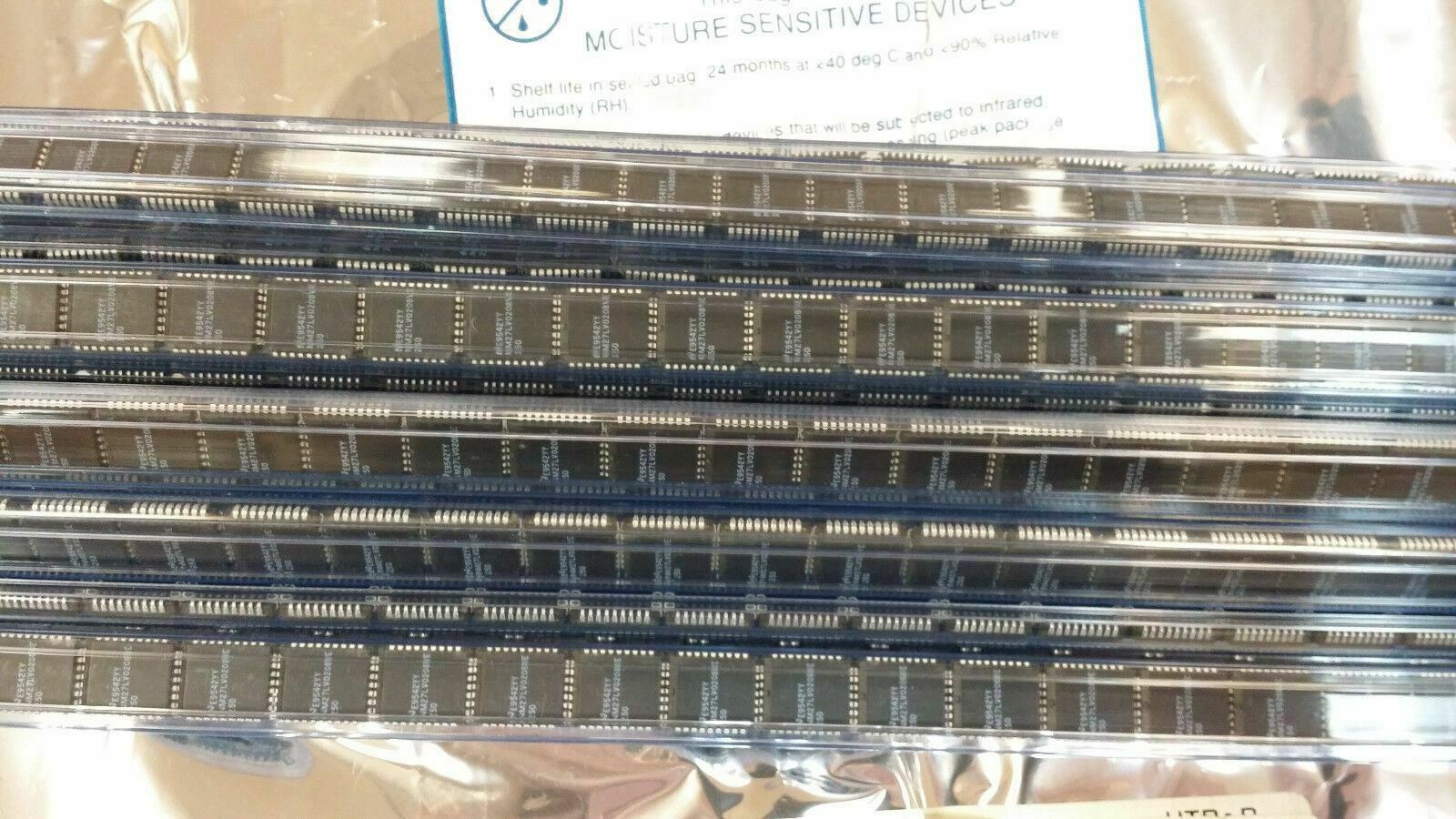

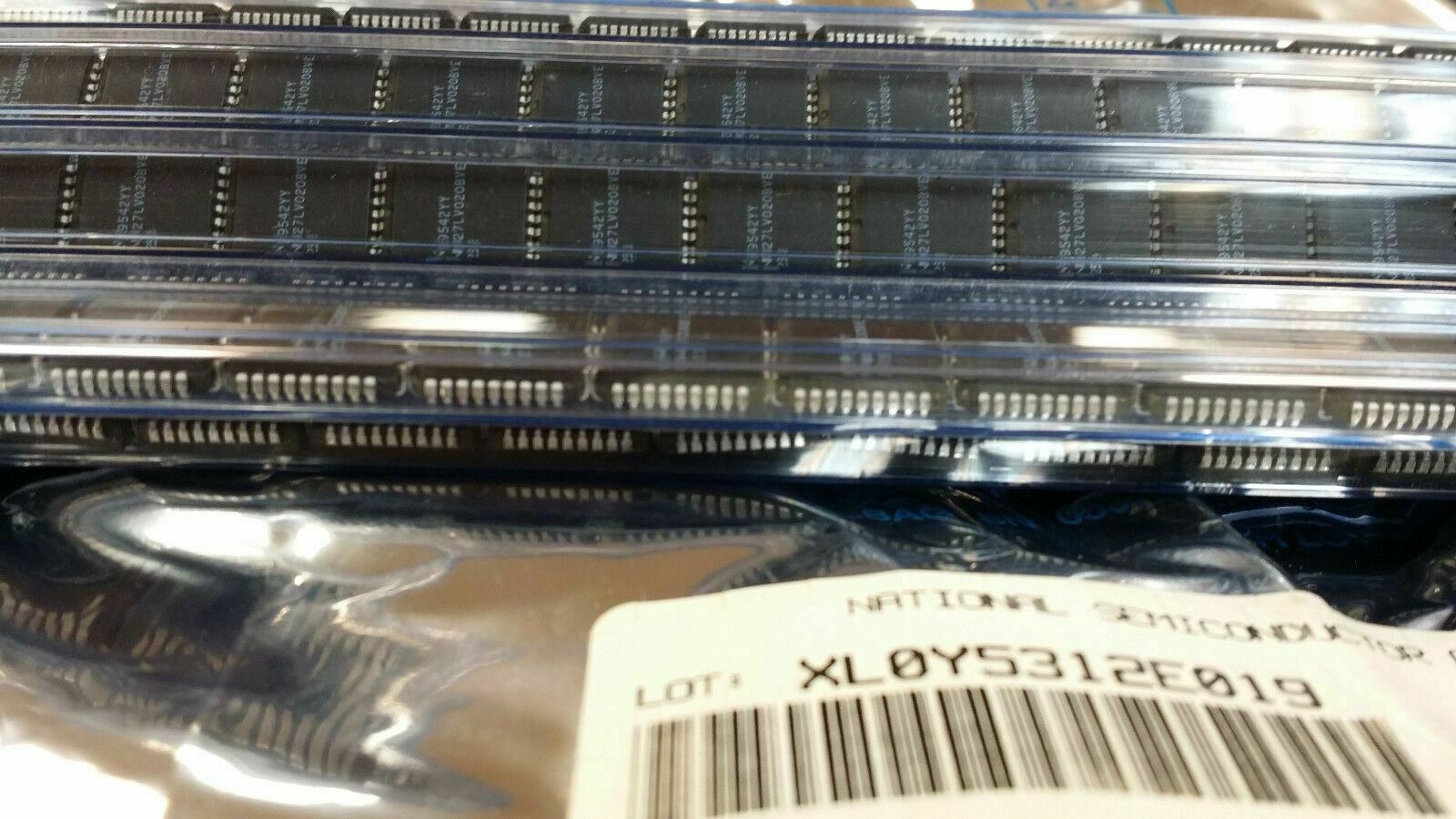

THIS LISTING IS FOR (1 PC) OF NM27LV020BVE250 BY NSC
2 MEG(256k x 8)250NS(OTP) Low Voltage EPROM PLCC32

Status Discontinued
Sub Category OTP ROMs
Access Time-Max 250.0  ns
I/O Type COMMON
JESD-30 Code R-PQCC-J32
JESD-609 Code e0
Memory Density 2097152.0  bit
Memory Width 8
Number of Terminals 32
Number of Words 262144.0  words
Number of Words Code 256K
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Organization 256KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Qualification Status Not Qualified
Standby Current-Max 5.0E-5  Amp
Supply Current-Max 0.015  Amp
Supply Voltage-Nom (Vsup) 3.3  V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position QUAD
