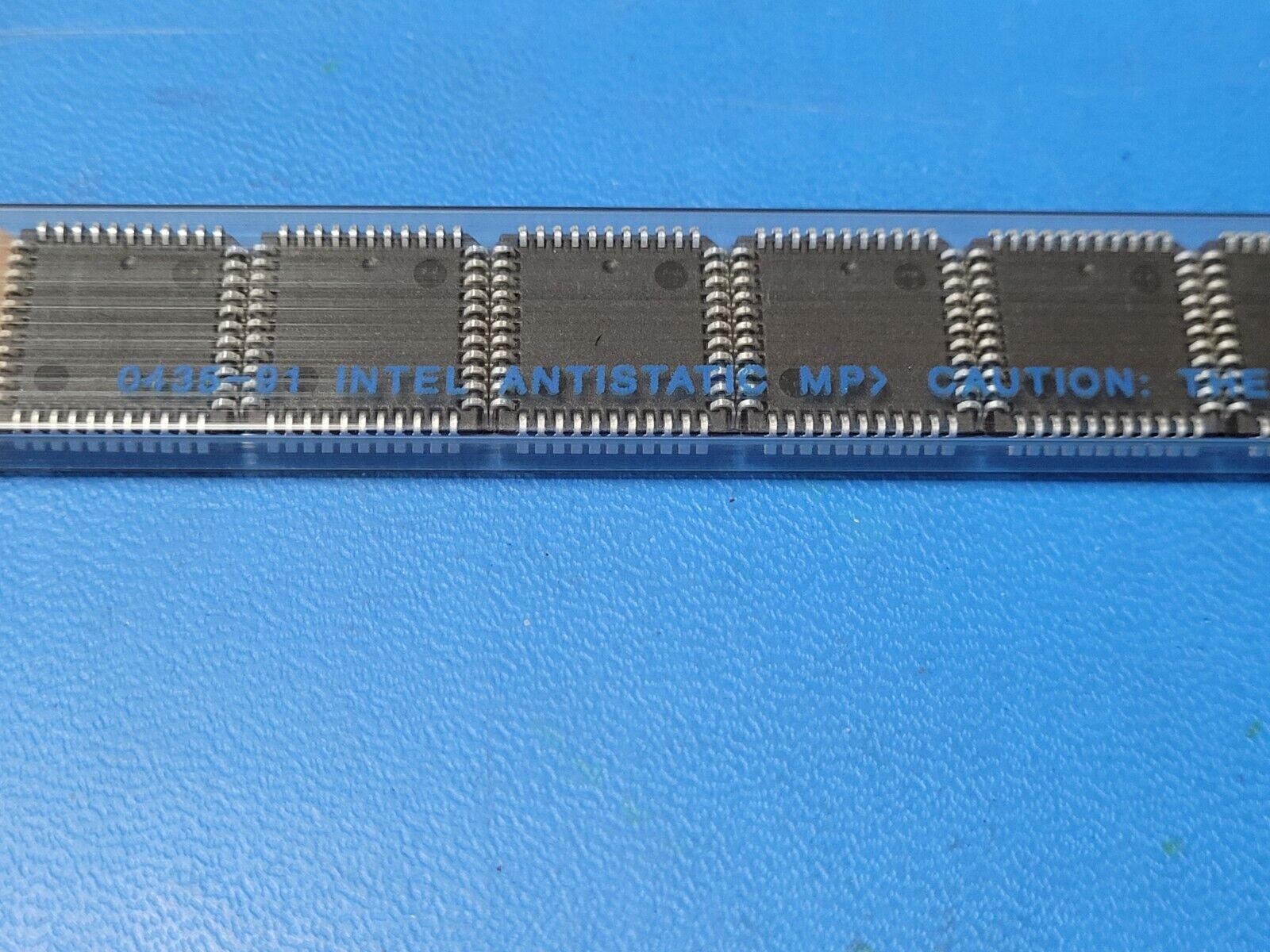

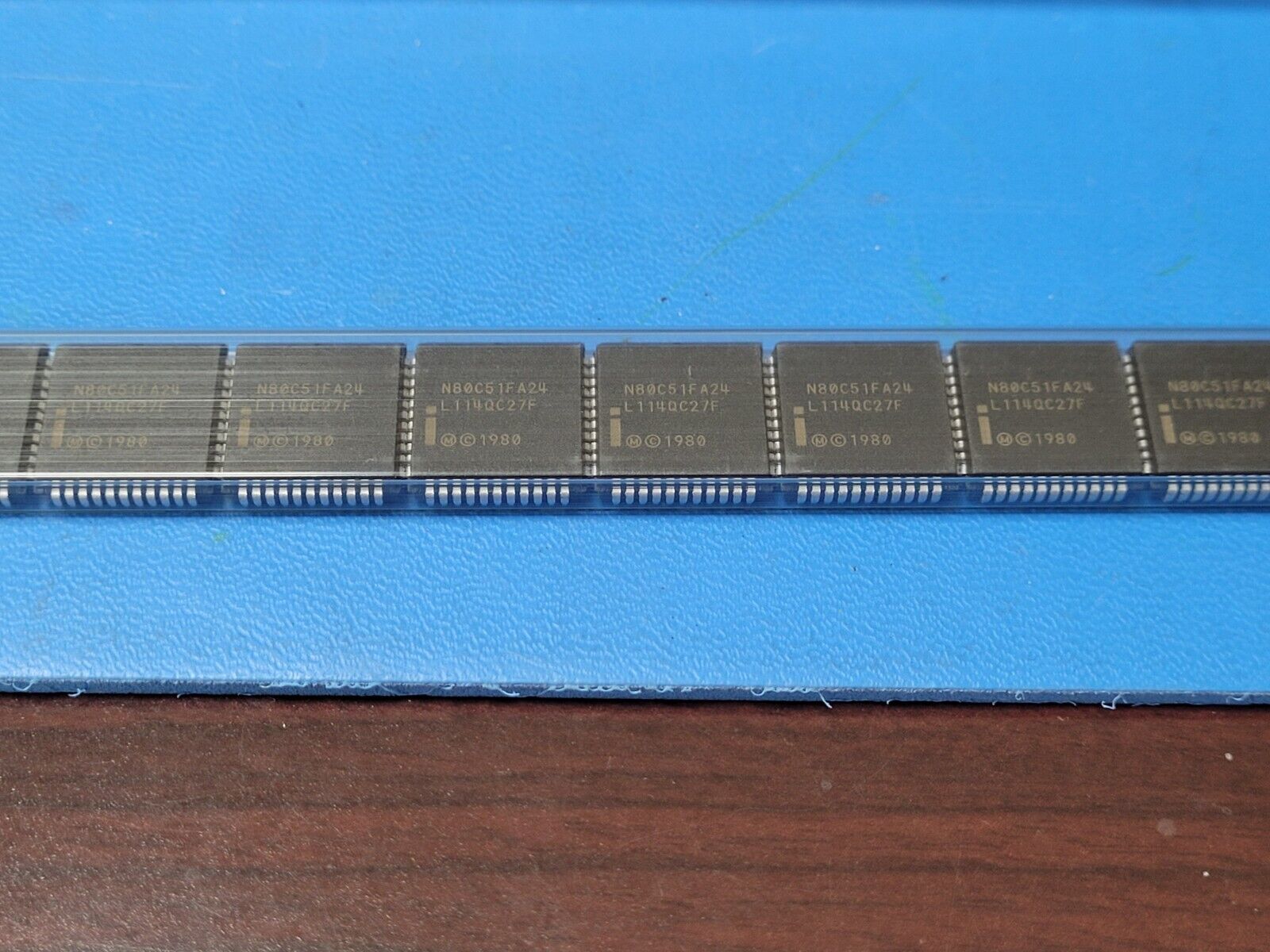

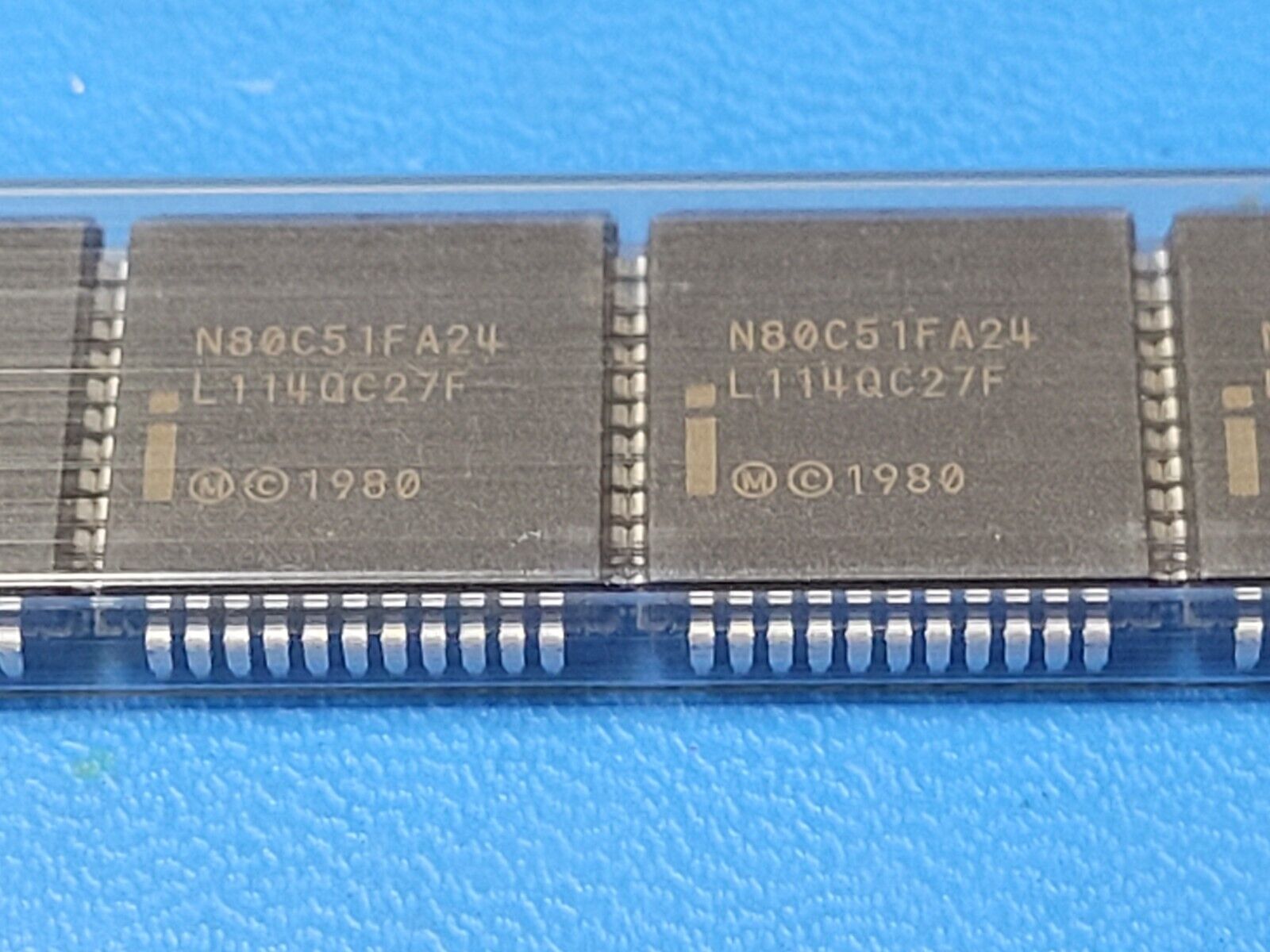

THIS IS FOR (1 PC) OF N80C51FA-24 BY INTEL

Microcontroller, 8-Bit, 8051 CPU, 24MHz, CMOS, PLCC44

Part #: N80C51FA-24

Part Category: Microprocessors/Microcontrollers/Peripheral ICs

Manufacturer: Intel Corporation

Description: Microcontroller, 8-Bit, 8051 CPU, 24MHz, CMOS, PQCC44

Mfr Package Description PLASTIC, LCC-44

REACH Compliant Yes

Status Discontinued

ADC Channels NO

Address Bus Width 16.0

Bit Size 8

Clock Frequency-Max 24.0 MHz

CPU Family 8051

DAC Channels NO

DMA Channels NO

External Data Bus Width 8.0

JESD-30 Code S-PQCC-J44

Number of I/O Lines 32.0

Number of Terminals 44

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Package Body Material PLASTIC/EPOXY

Package Code QCCJ

Package Equivalence Code LDCC44,.7SQ

Package Shape SQUARE

Package Style CHIP CARRIER

Power Supplies 5

PWM Channels YES

Qualification Status Not Qualified

RAM (bytes) 256.0

Seated Height-Max 4.57 mm

Speed 24.0 MHz

Sub Category Microcontrollers

Supply Current-Max 56.0 mA

Supply Voltage-Nom 5.0 V

Supply Voltage-Min 4.0 V

Supply Voltage-Max 6.0 V

Surface Mount YES

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Form J BEND

Terminal Pitch 1.27 mm

Terminal Position QUAD

Length 16.5862 mm

Width 16.5862 mm
