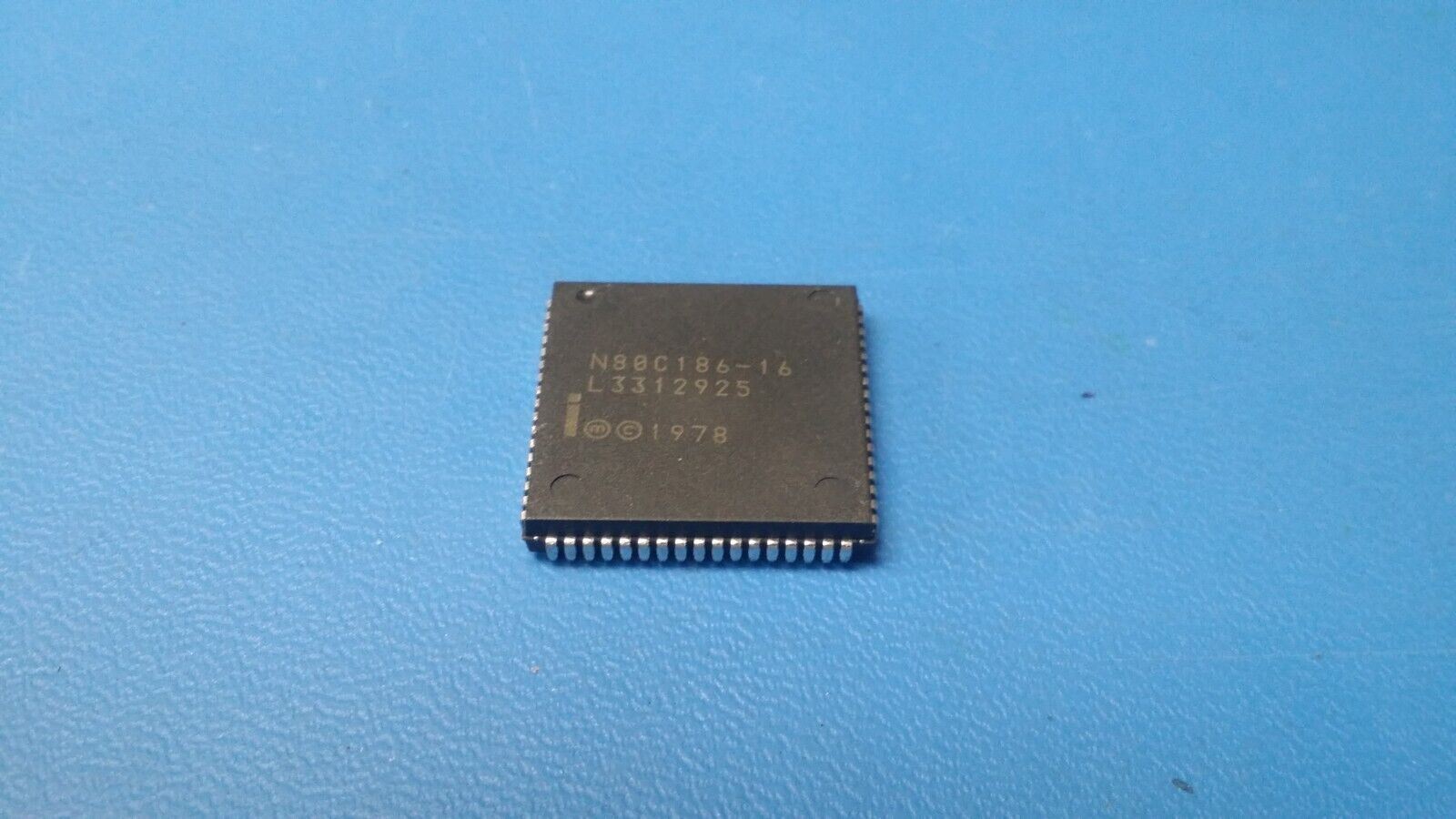

(1 PC) N80C186-16 INTEL Microprocessor, 16-Bit, 16MHz, CMOS, PLCC68
Tax included.
THIS IS FOR (1 PC) OF N80C186-16 BY INTEL
Microprocessor, 16-Bit, 16MHz, CMOS, PLCC68
Part #: N80C186-16
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: INTEL
Description: Microprocessor, 16-Bit, 16MHz, CMOS, PQCC68
Mfr Package Description PLASTIC, LCC-68
Status Discontinued
Address Bus Width 20.0
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 32.0 MHz
External Data Bus Width 16.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-J68
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 2.0
Number of External Interrupts 5.0
Number of Serial I/Os 0.0
Number of Terminals 68
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC68,1.0SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 4.572 mm
Speed 16.0 MHz
Sub Category Microprocessors
Supply Current-Max 80.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 24.2062 mm
Width 24.2062 mm
Additional Feature DRAM REFRESH CONTROL UNIT; PROGRAMMABLE INTERRUPT CONTROLLER
