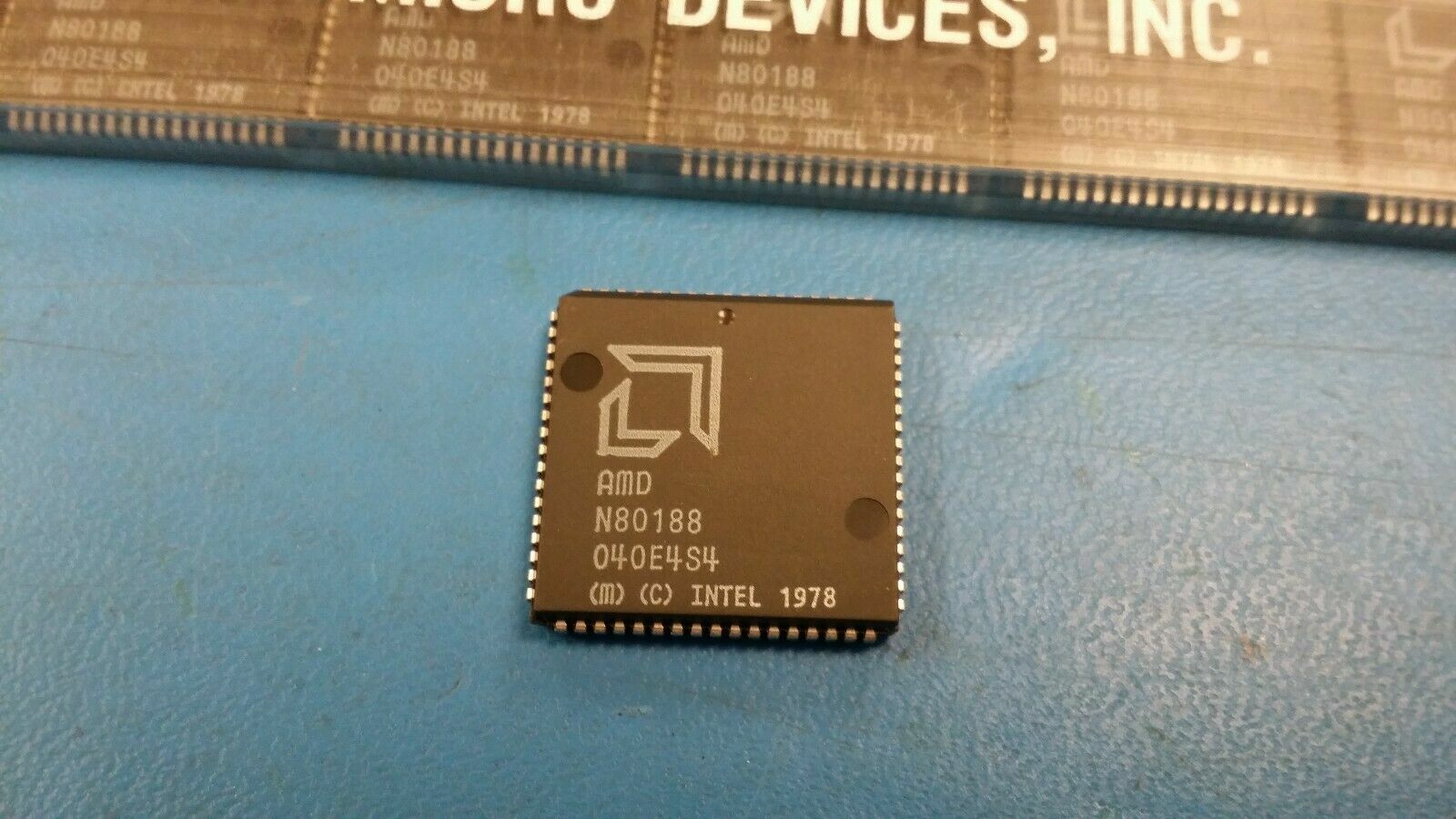

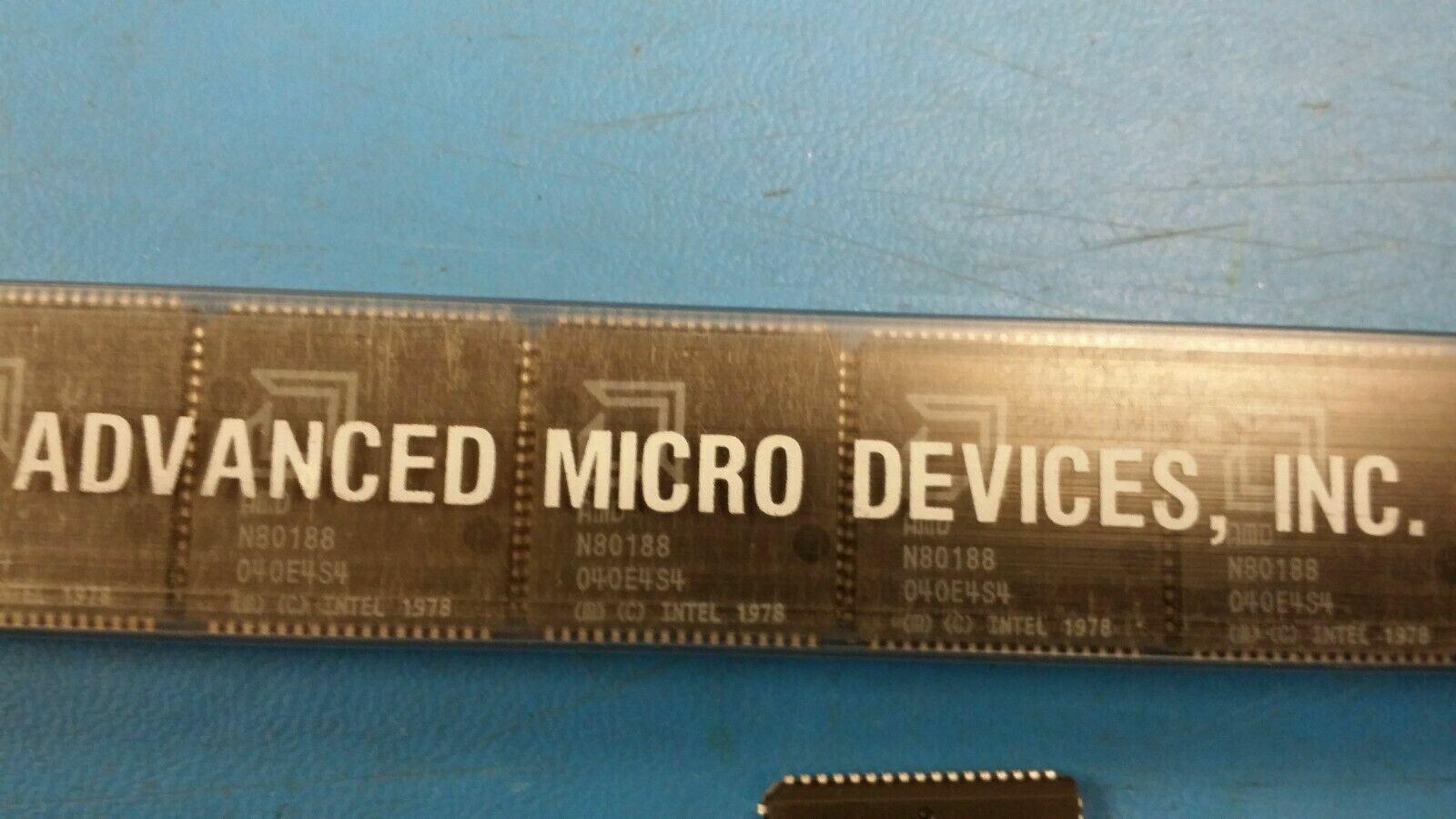

(1 PC) N80188 AMD Microprocessor, 16-Bit, 8MHz, MOS, PLCC68
Tax included.
THIS LISTING IS FOR (1 PC) OF N80188 BY AMD
Microprocessor, 16-Bit, 8MHz, MOS, PLCC68
Part #: N80188
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: Microprocessor, 16-Bit, 8MHz, MOS, PQCC68
Mfr Package Description PLASTIC, LCC-68
Status Discontinued
Address Bus Width 20.0
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 16.0 MHz
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-J68
JESD-609 Code e0
Low Power Mode NO
Number of DMA Channels 2.0
Number of External Interrupts 5.0
Number of Serial I/Os 0.0
Number of Terminals 68
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC68,1.0SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 4.3815 mm
Speed 8.0 MHz
Sub Category Microprocessors
Supply Current-Max 500.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology MOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 24.2062 mm
Width 24.2062 mm
