(1 PC) MS35058-31 Toggle Switch, SPDT, Alternate, 20A, 28VDC, Lever Actuator
Tax included.

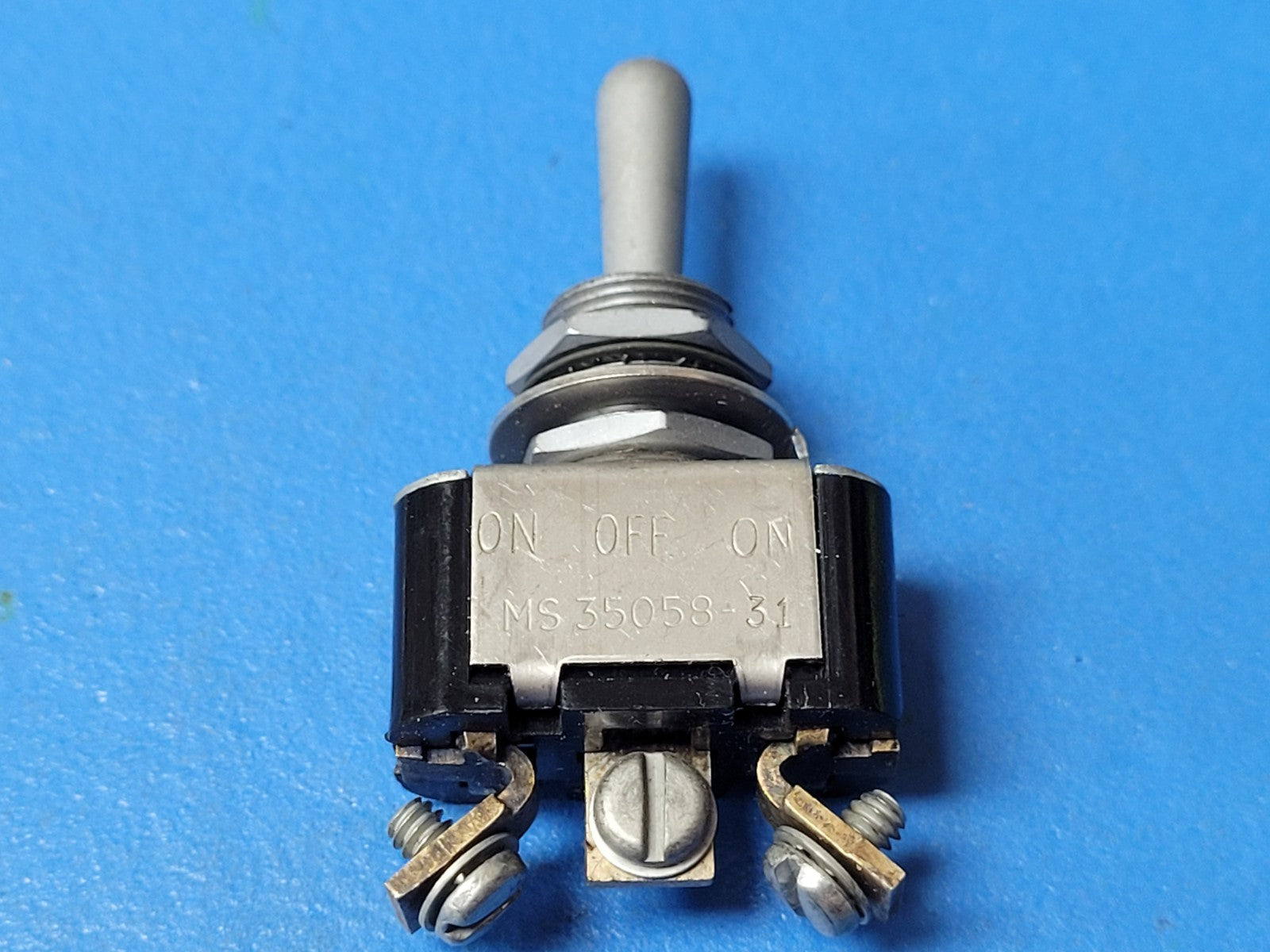

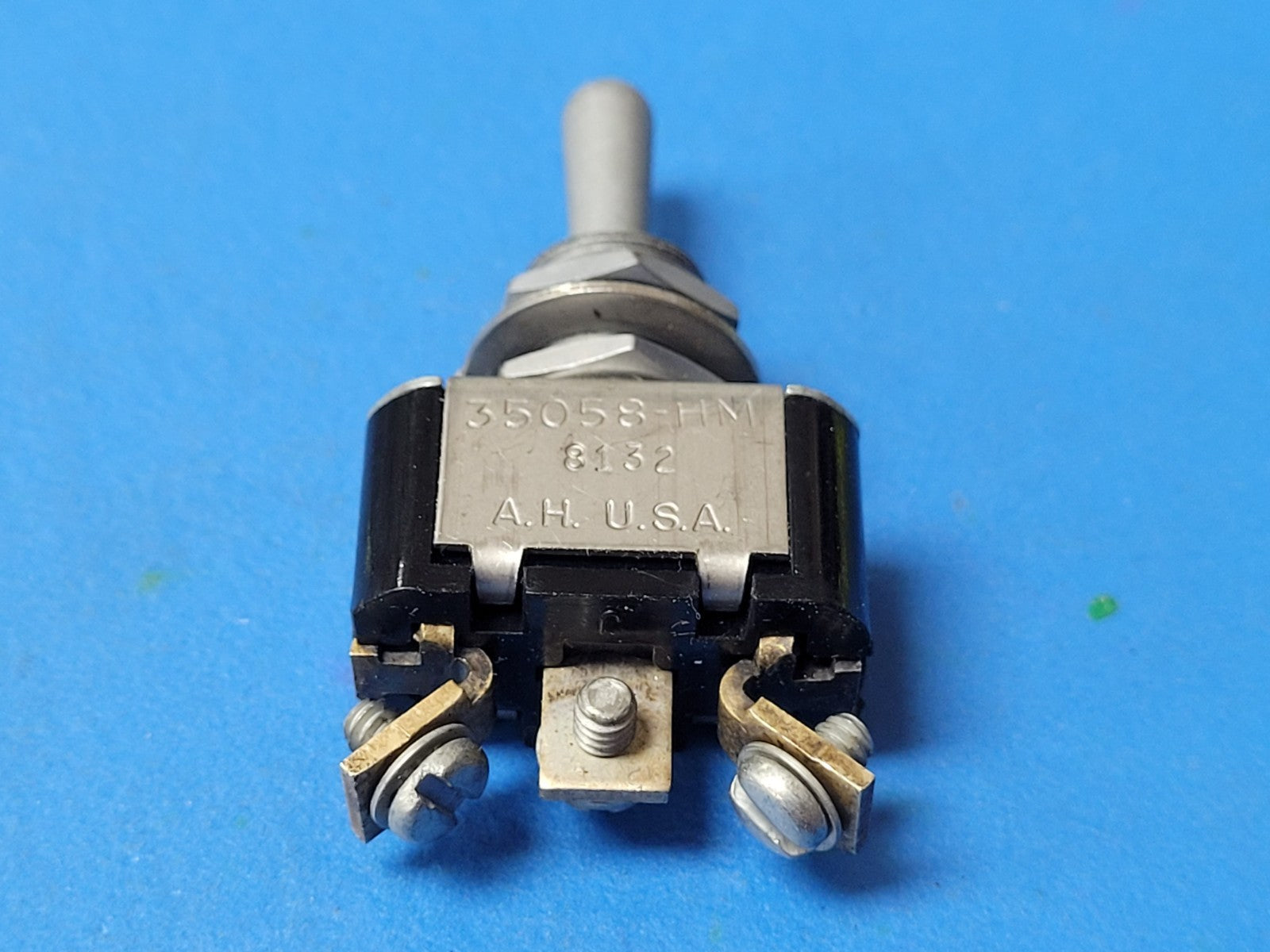

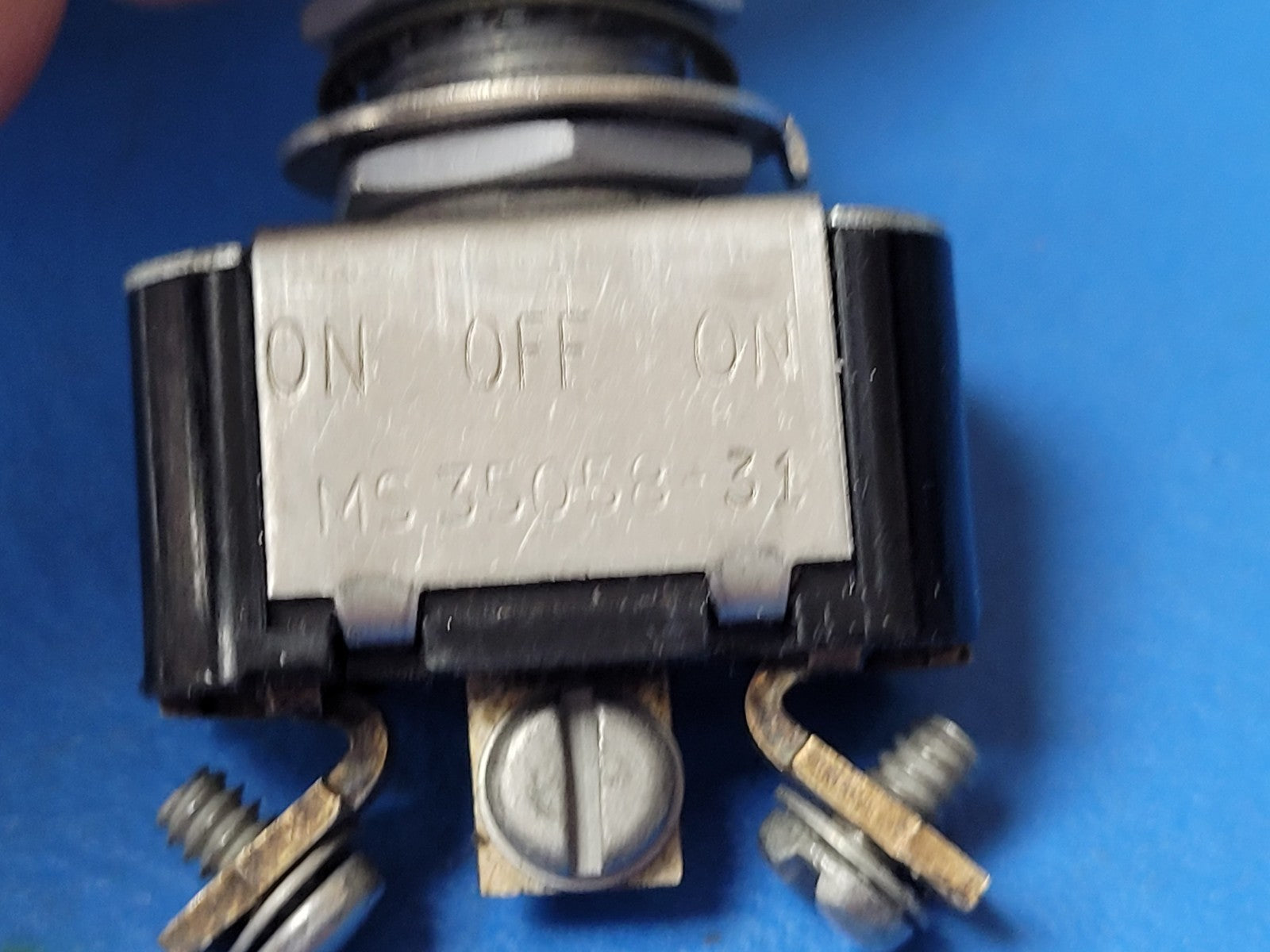

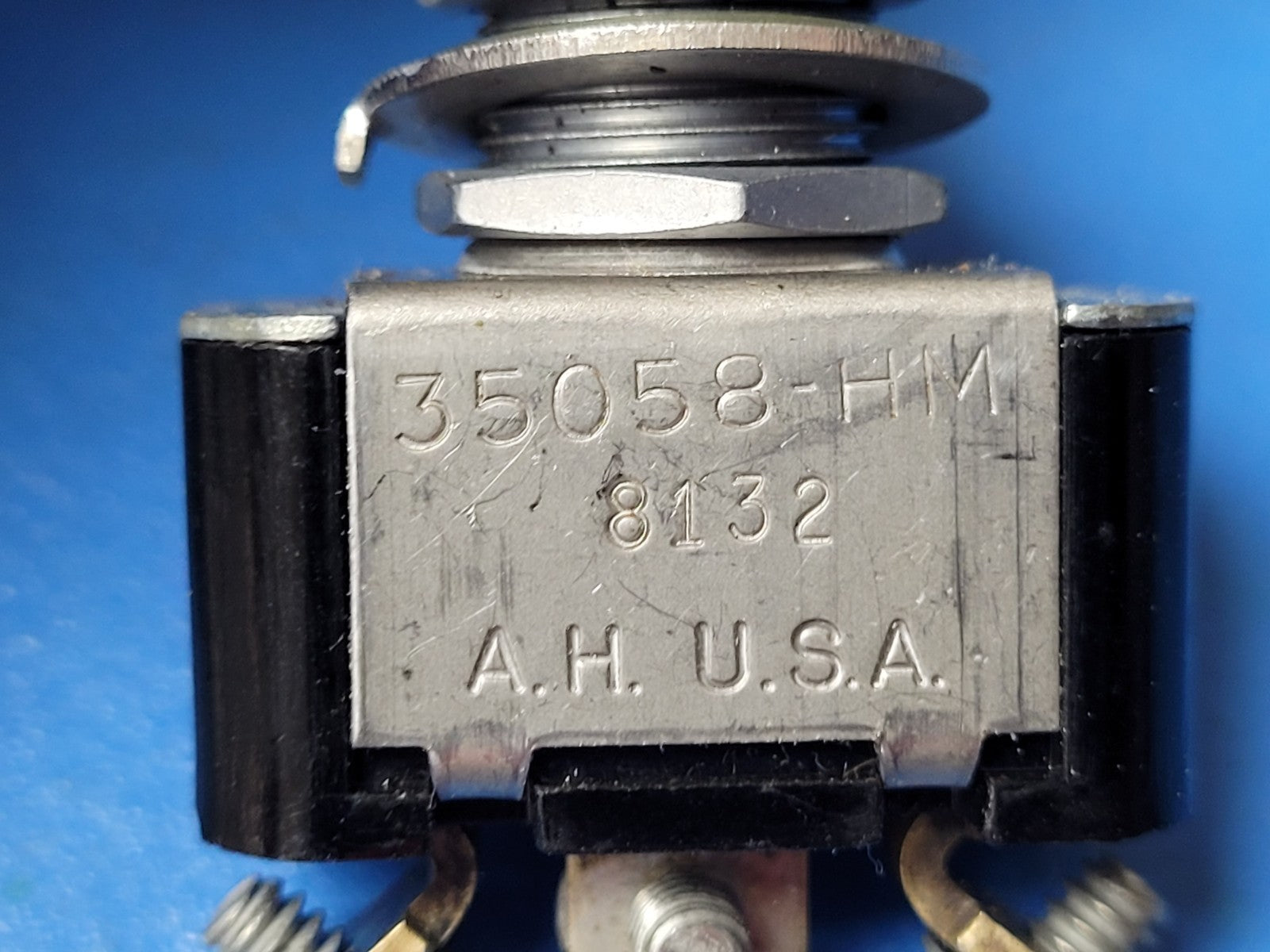

THIS IS FOR (1 PC) OF MS35058-31 BY ARROW HART
Toggle Switch, SPDT, Alternate, 20A, 28VDC, Lever Actuator
Actuator Type LEVER
Body Breadth (mm) 15.7500
Body Height (mm) 26.4200
Body Length or Diameter (mm) 28.4500
Contact Current(DC)-Max (A) 20.00000000
Contact DC Max Rating R Load 20A@28VDC
Contact Voltage(DC)-Max (V) 28.00000000
Illumination NON-ILLUMINATED
J-STD-609 Code e3
Mounting Feature PANEL MOUNT-THREADED
Operating Temperature-Max (Cel) 66
Operating Temperature-Min (Cel) -18
Switch Action ALTERNATE
Switch Function SPDT
Switch Type TOGGLE SWITCH
Terminal Finish TIN
Termination Type SCREW
