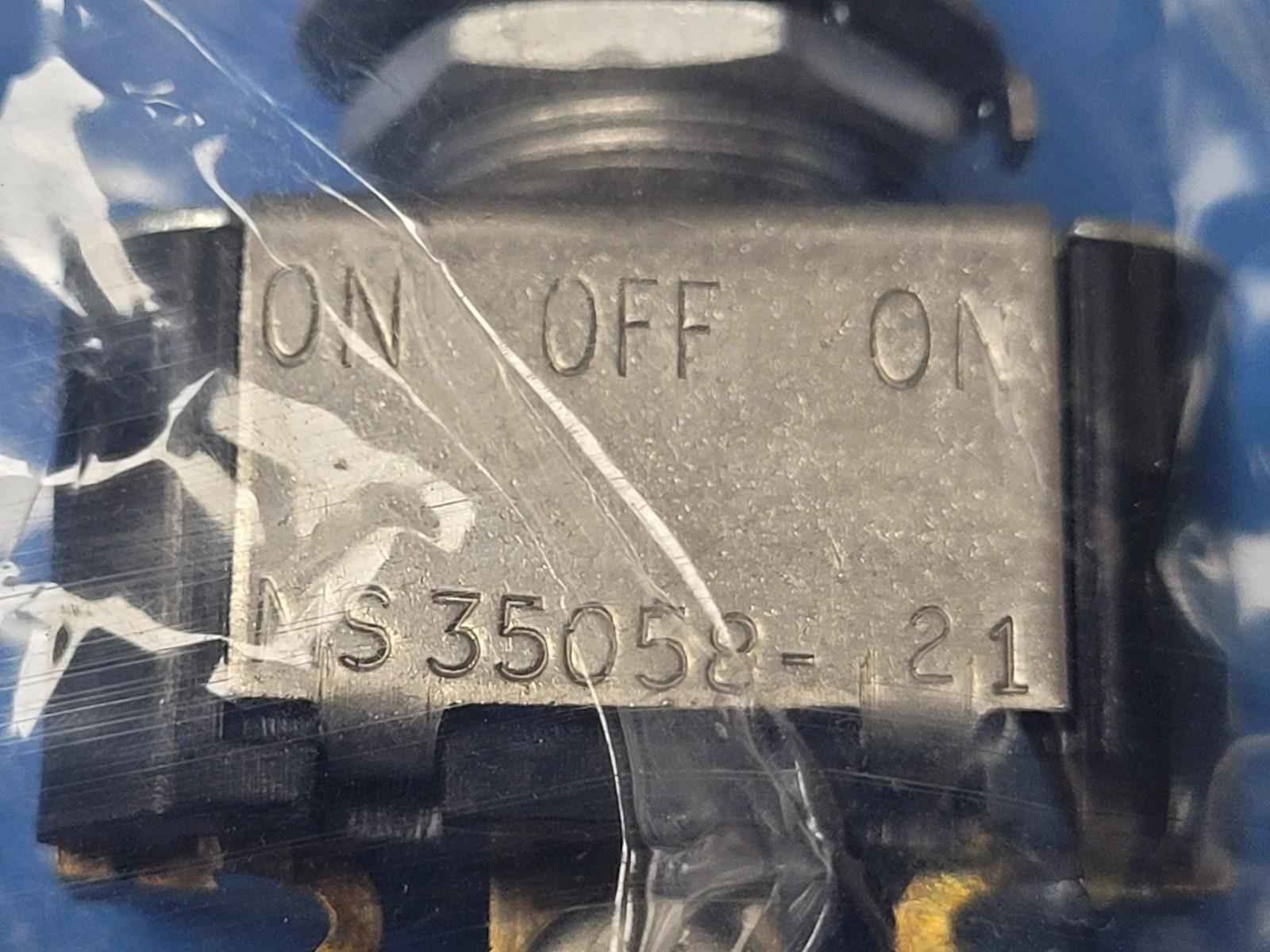

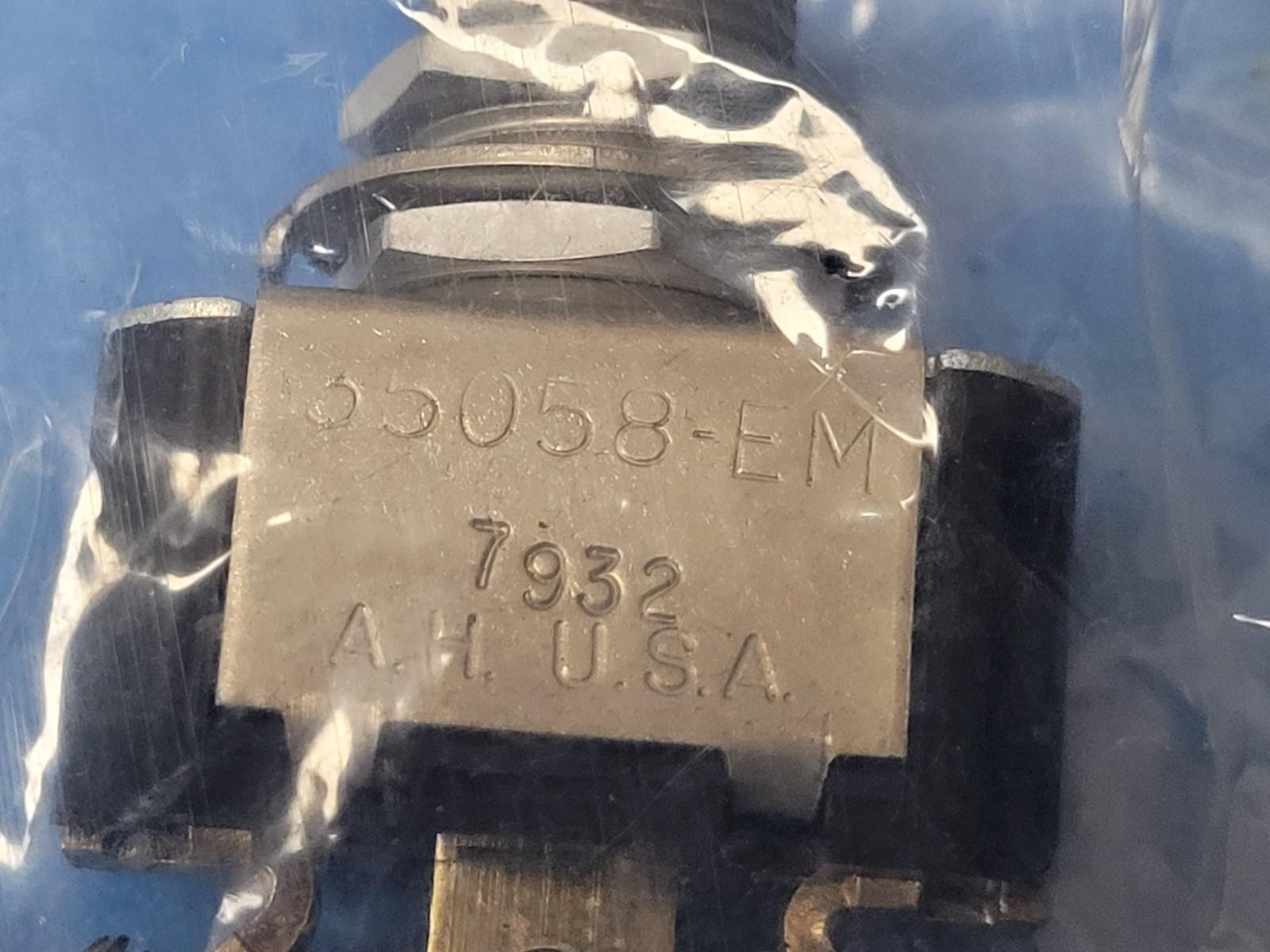

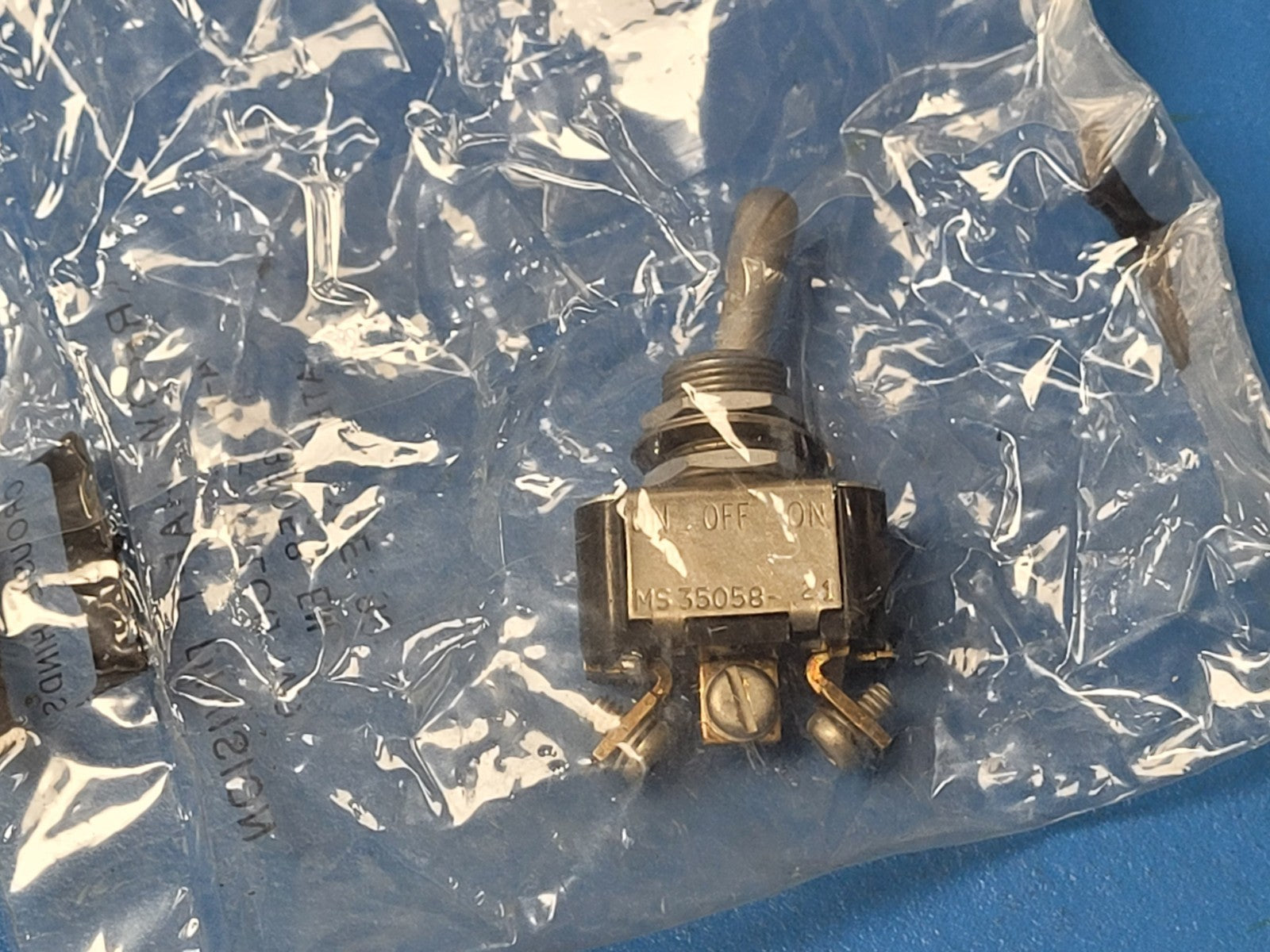

(1 PC) MS35058-21 CROUSE Toggle Switch, SPDT, On-off-on, Latched, 25A, 28VDC
Tax included.
THIS IS FOR (1 PC) OF MS35058-21 BY CROUSE
Toggle Switch, SPDT, On-off-on, Latched, 25A, 28VDC
REACH Compliant Yes
Status Active
Switch Type TOGGLE SWITCH
Actuator Type LEVER
Body Breadth 15.75 mm
Body Height 26.42 mm
Body Length or Diameter 28.45 mm
Contact AC Max Rating R Load 10A@115VAC
Contact Current(AC)-Max 10.0 A
Contact Current(DC)-Max 25.0 A
Contact DC Max Rating R Load 25A@28VDC
Contact Function ON-OFF-ON
Contact Voltage(AC)-Max 115.0 V
Contact Voltage(DC)-Max 28.0 V
JESD-609 Code e3
Mounting Feature PANEL MOUNT-THREADED
Operating Temperature-Min -18.0 Cel
Operating Temperature-Max 66.0 Cel
Switch Action LATCHED
Switch Function SPDT
Terminal Finish TIN
Termination Type SCREW
