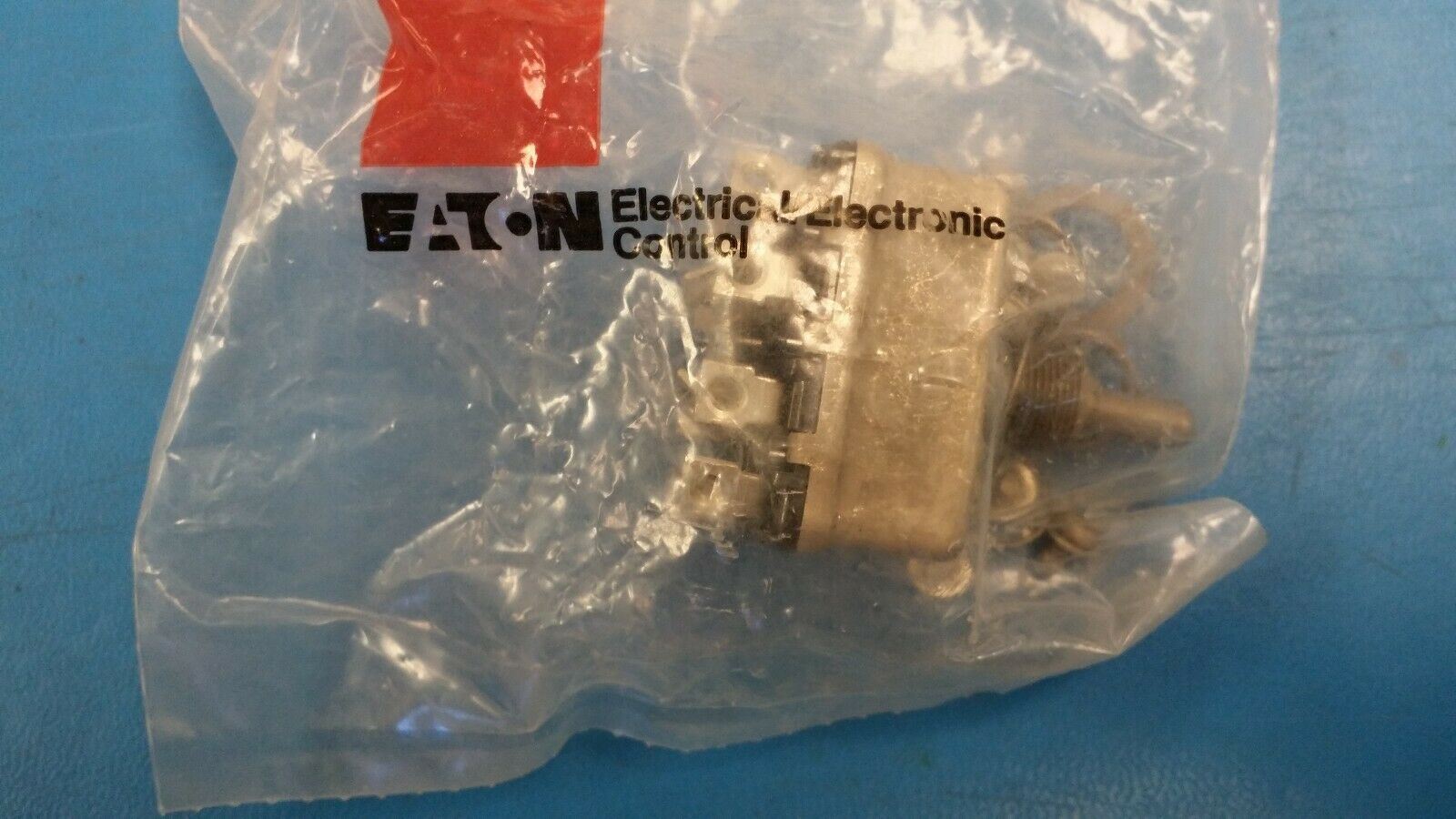

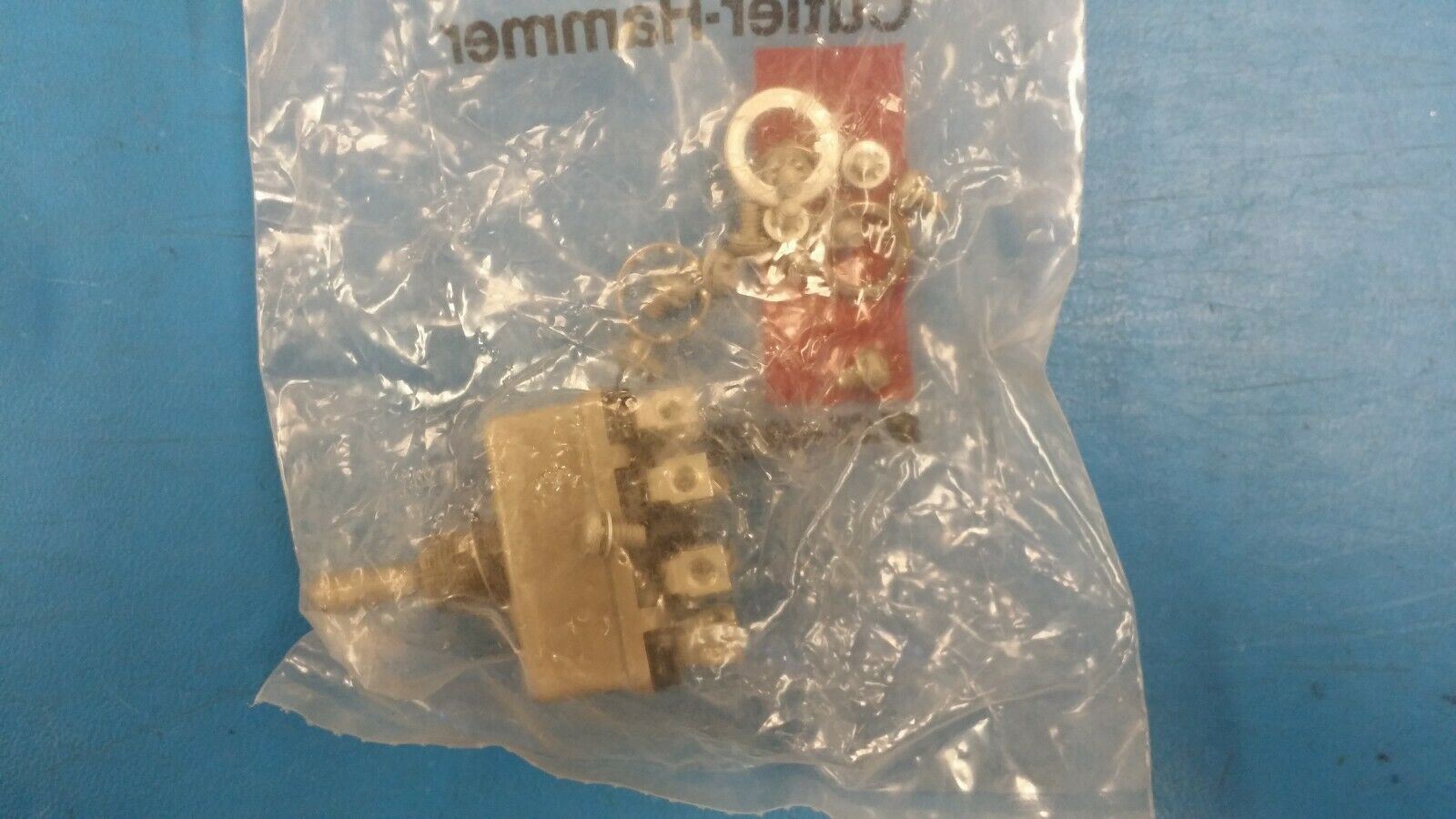

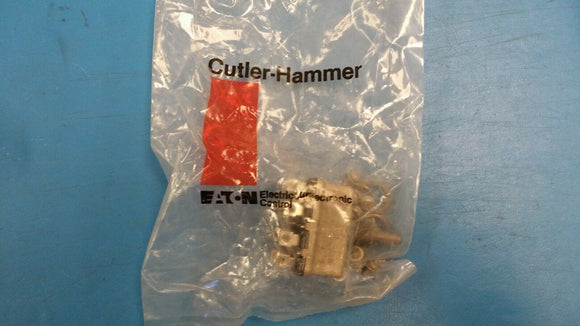

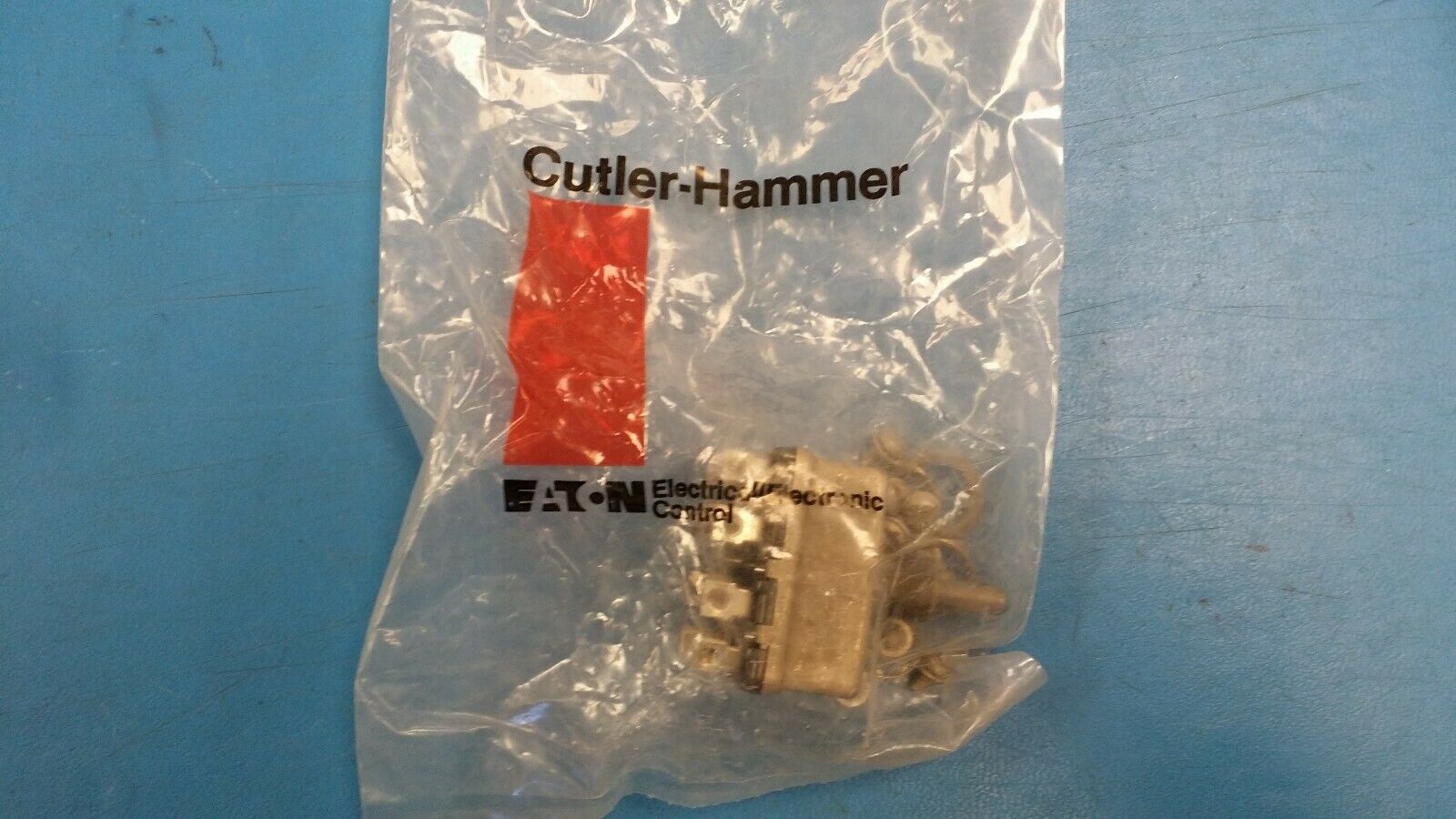

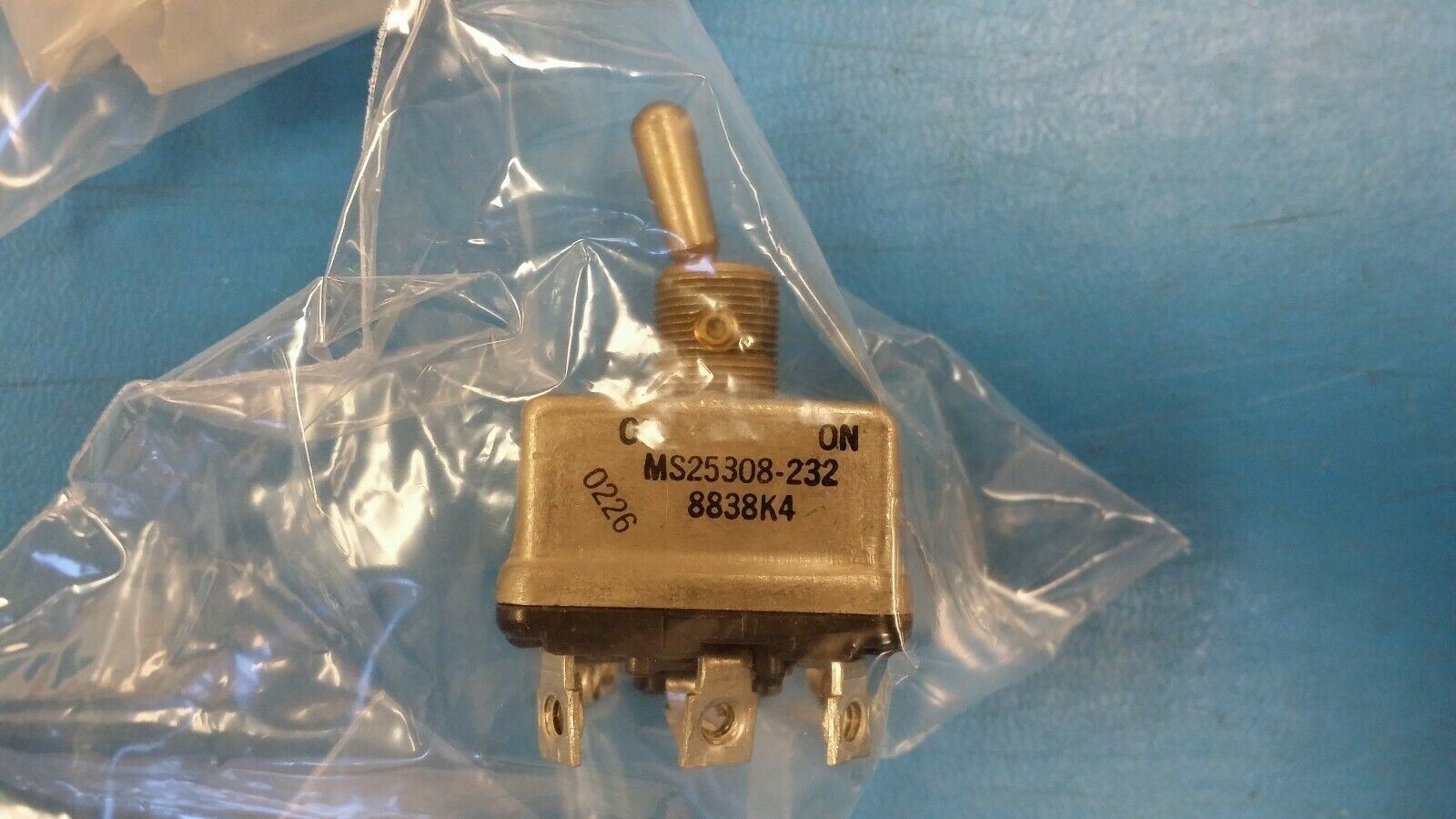

(1 PC) MS25308-232 8838K4 EATON Toggle Switch, 4PDT, On-on, Latched, 25A, 28VDC
Tax included.
THIS LISTING IS FOR (1 PC) MS25308-232 8838K4 EATON
Toggle Switch, 4PDT, On-on, Latched, 25A, 28VDC
Part #: MS25308-232
Part Category: Switches
Manufacturer: Eaton Corporation
Description: Toggle Switch, 4PDT, On-on, Latched, 25A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded
REACH Compliant Yes
Status Active
Switch Type TOGGLE SWITCH
Actuator Length 0.687 inch
Actuator Type LEVER
Body Breadth 33.93 mm
Body Height 33.73 mm
Body Length or Diameter 42.82 mm
Bushing Length 0.469 inch
Contact AC Max Rating I Load 15A@115VAC
Contact AC Max Rating R Load 25A@115VAC
Contact Current(AC)-Max 25.0 A
Contact Current(DC)-Max 25.0 A
Contact DC Max Rating R Load 25A@28VDC
Contact Function ON-ON
Contact Voltage(AC)-Max 115.0 V
Contact Voltage(DC)-Max 28.0 V
Electrical Life 20000.0 Cycle(s)
Manufacturer Series MS25308
Mounting Feature PANEL MOUNT-THREADED
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 71.0 Cel
Sealing ENVIRONMENTALLY SEALED
Switch Action LATCHED
Switch Function 4PDT
Termination Type SCREW
