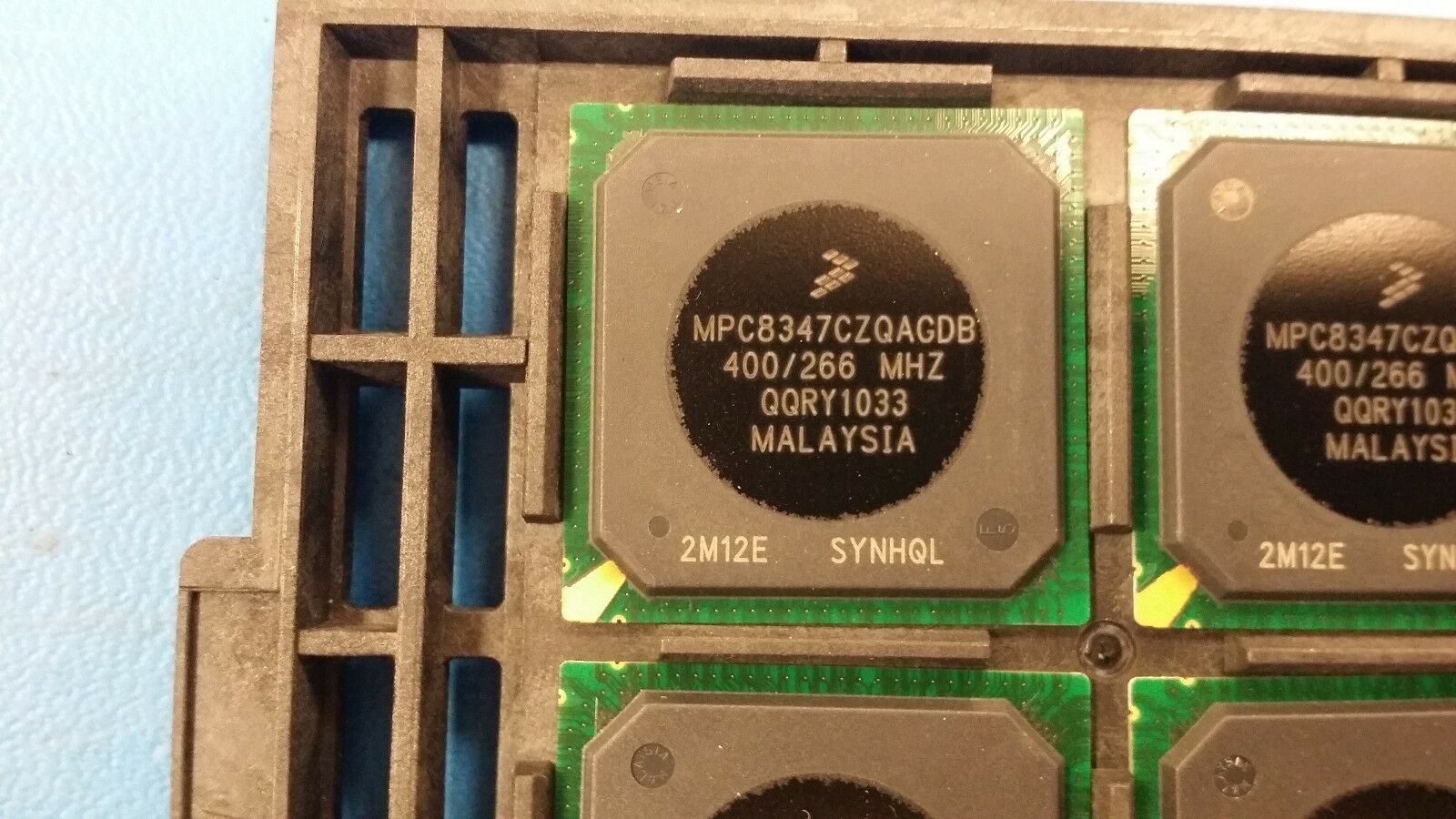

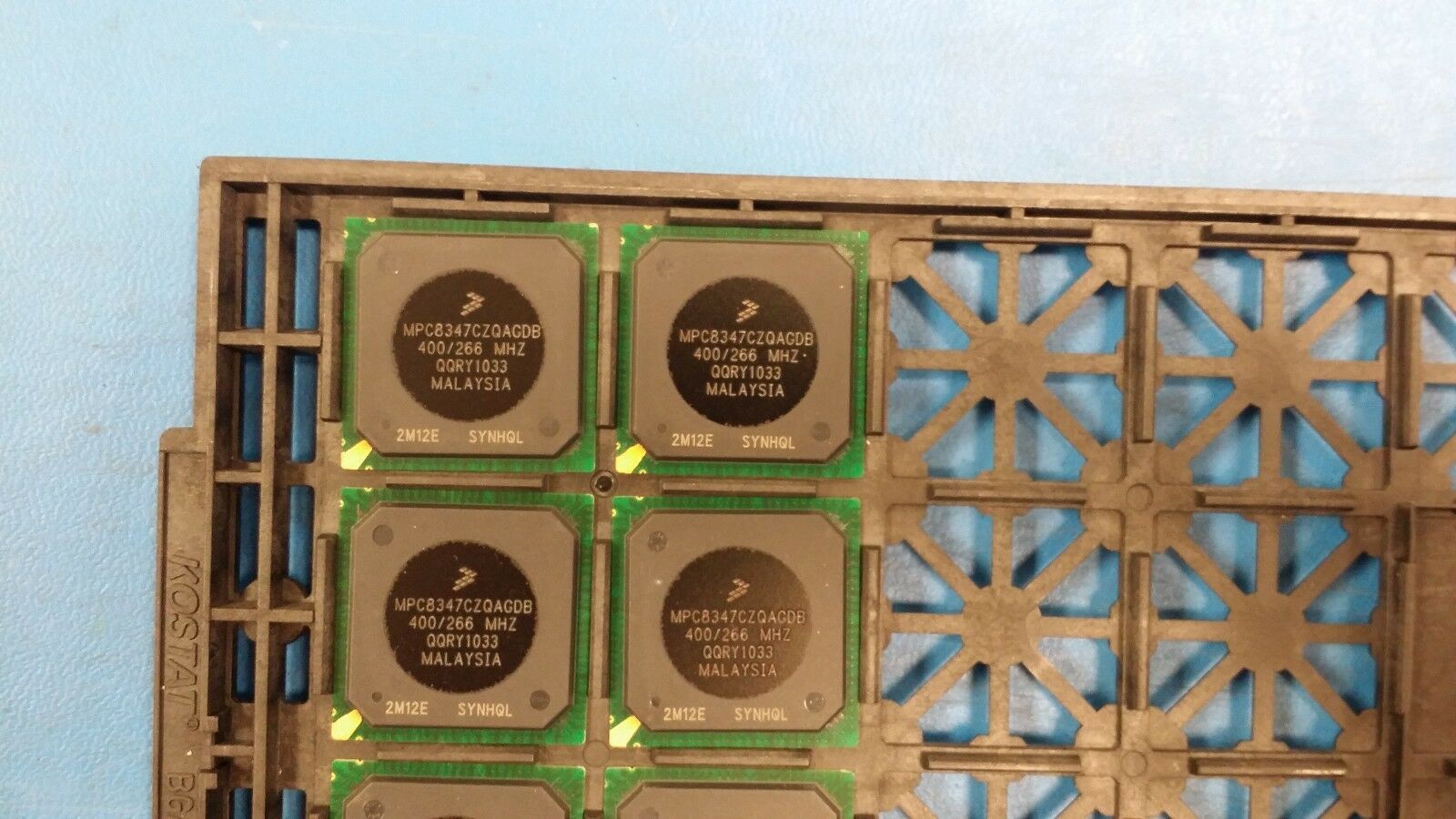

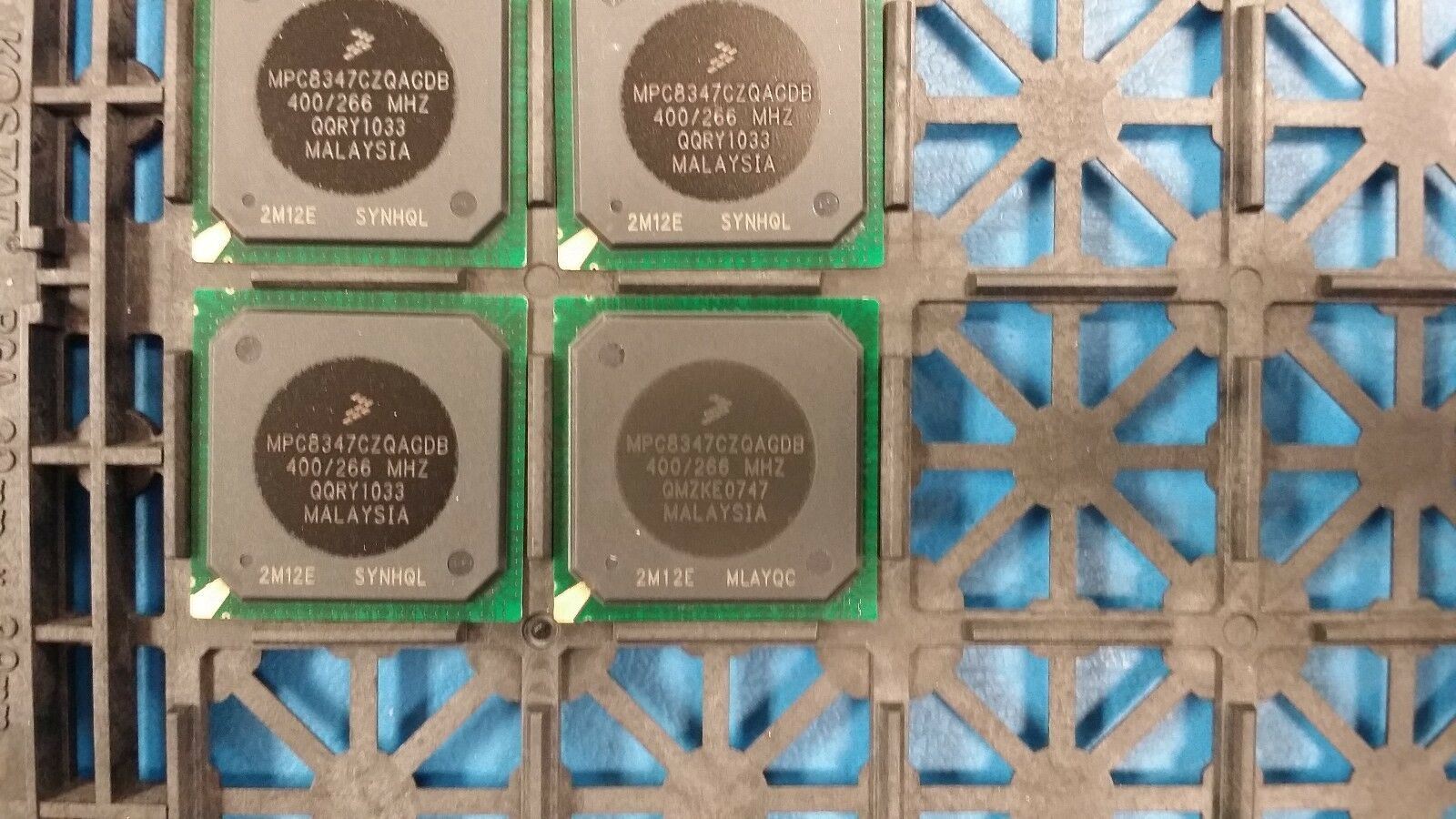

(1 PC) MPC8347CZQAGDB FREESCALE IC MPU MPC83XX 400MHZ 620BGA
Tax included.
THIS LISTING IS FOR (1 PC) OF MPC8347CZQAGDB BY FREESCALE
IC MPU MPC83XX 400MHZ 620BGA
Part #: MPC8347CZQAGDB
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Freescale Semiconductor, Inc.
Description: Microprocessor, 32-Bit, 400MHz, CMOS, PBGA620
Manufacturer: Freescale Semiconductor, Inc.
Description: Microprocessor, 32-Bit, 400MHz, CMOS, PBGA620
| Mfr Package Description | 29 X 29 MM, 2.46 MM HEIGHT, 1 MM PITCH, PLASTIC, BGA-620 |
| Status | Transferred |
| Address Bus Width | 32.0 |
| Bit Size | 32 |
| Boundary Scan | YES |
| Clock Frequency-Max | 66.0 MHz |
| External Data Bus Width | 32.0 |
| Format | FLOATING POINT |
| Integrated Cache | YES |
| JESD-30 Code | S-PBGA-B620 |
| JESD-609 Code | e0 |
| Low Power Mode | YES |
| Moisture Sensitivity Level | 3 |
| Number of Terminals | 620 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 105.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | BGA |
| Package Equivalence Code | BGA620,28X28,40 |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 1.2 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.46 mm |
| Speed | 400.0 MHz |
| Sub Category | Microprocessors |
| Supply Voltage-Nom | 1.2 V |
| Supply Voltage-Min | 1.14 V |
| Supply Voltage-Max | 1.26 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead/Silver (Sn/Pb/Ag) |
| Terminal Form | BALL |
| Terminal Pitch | 1.0 mm |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 29.0 mm |
| Width | 29.0 mm |
| Additional Feature | ALSO REQUIRES 2.5V AND 3.3V SUPPLY |
