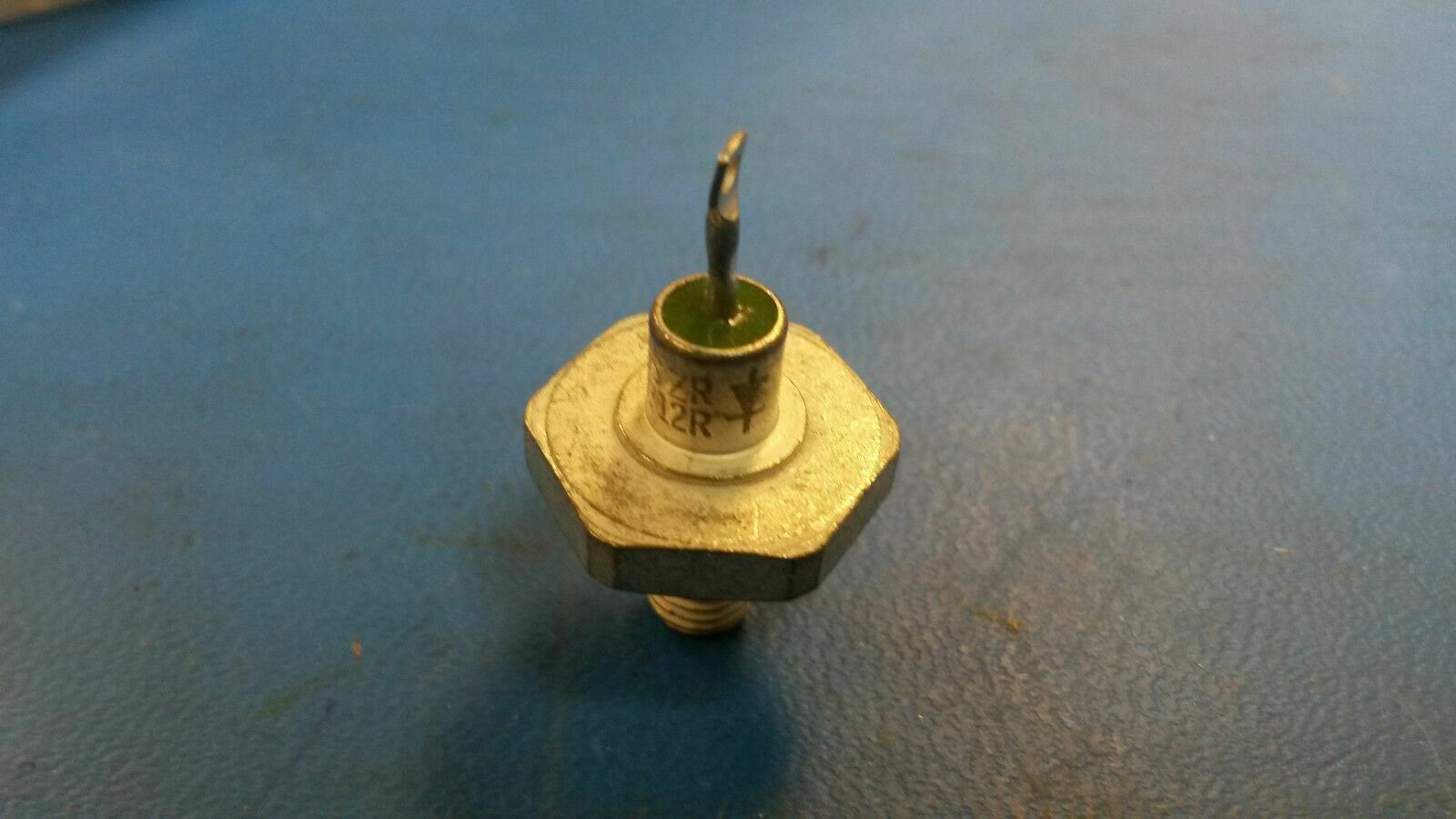

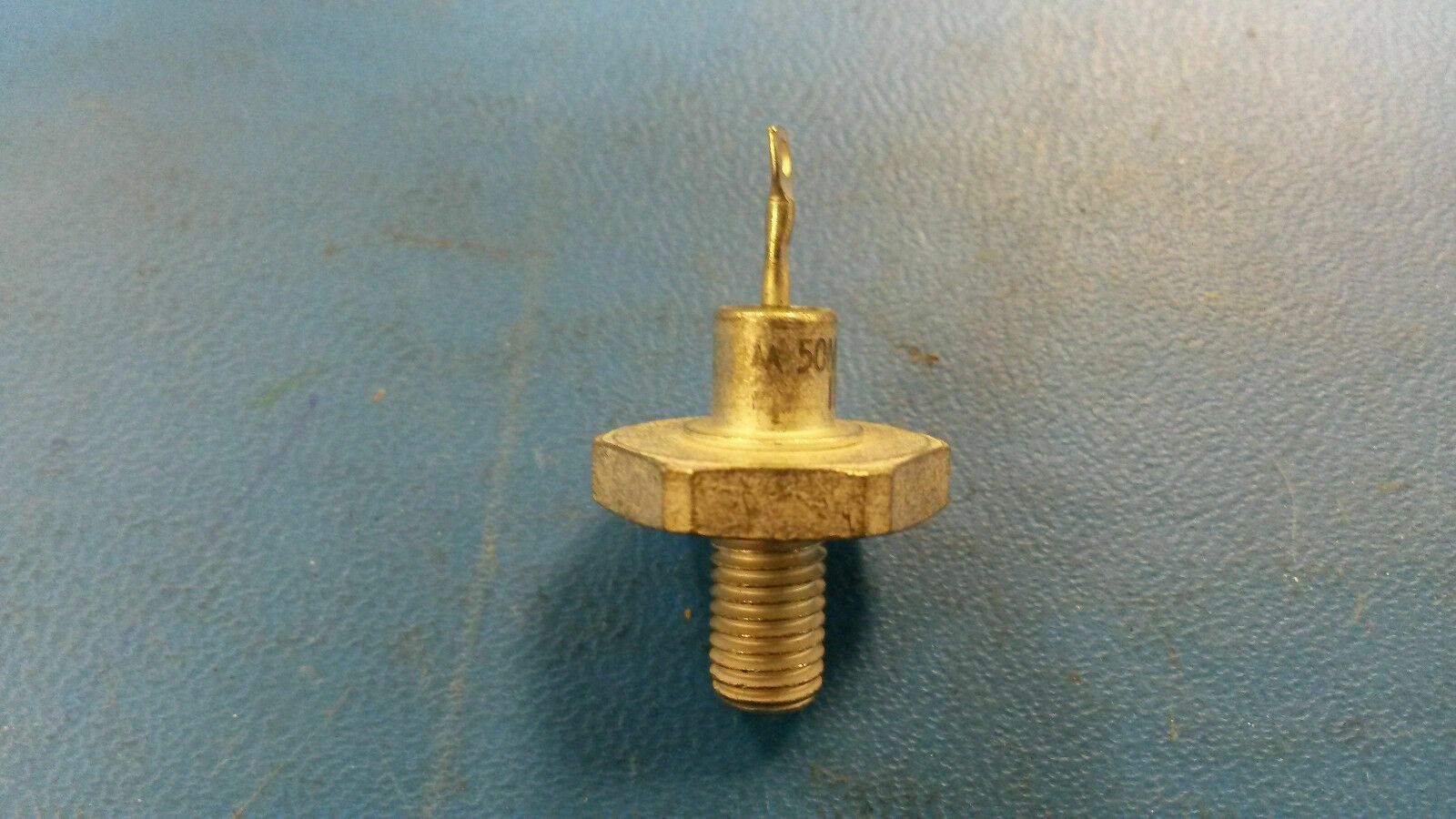

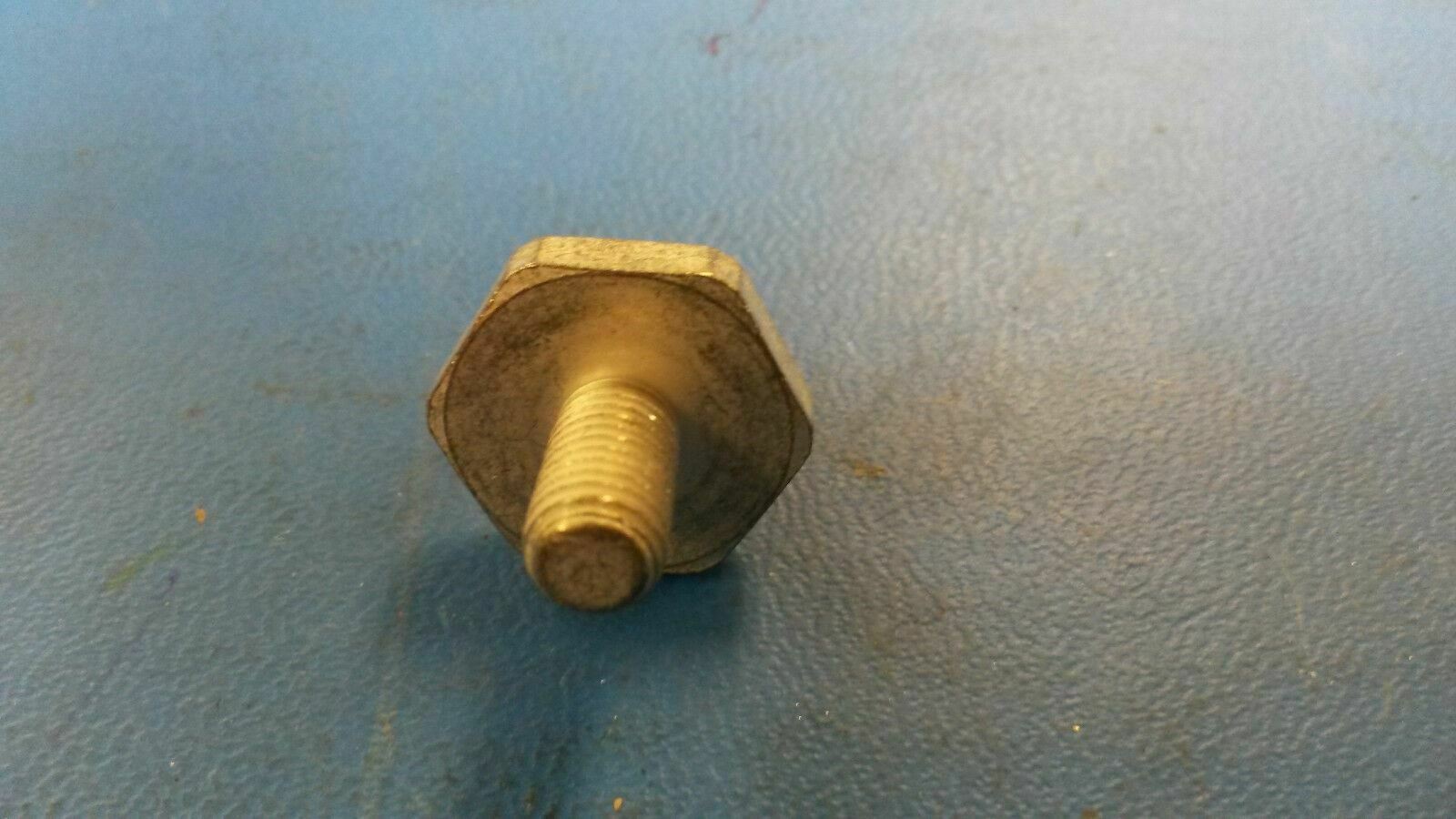

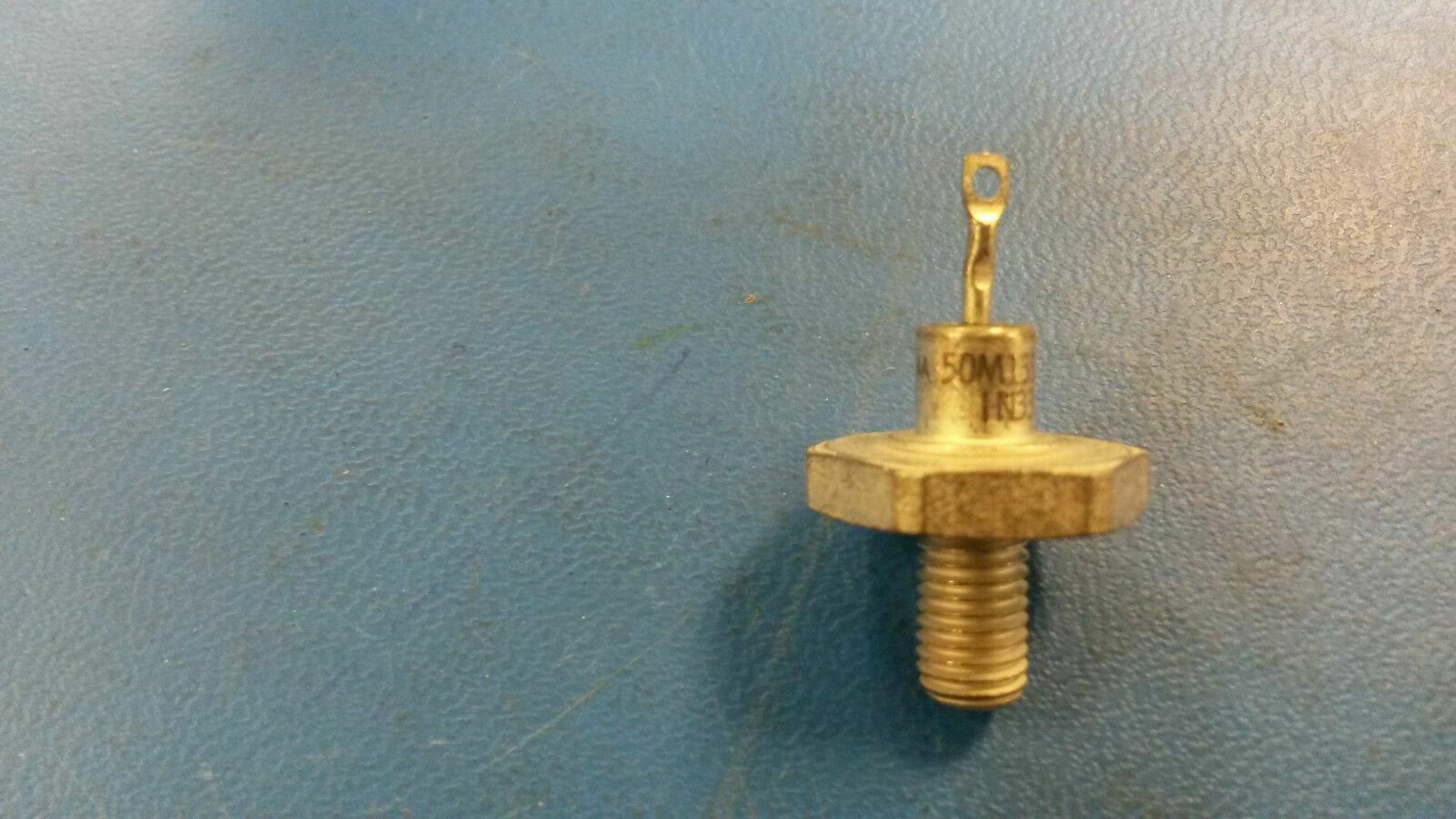

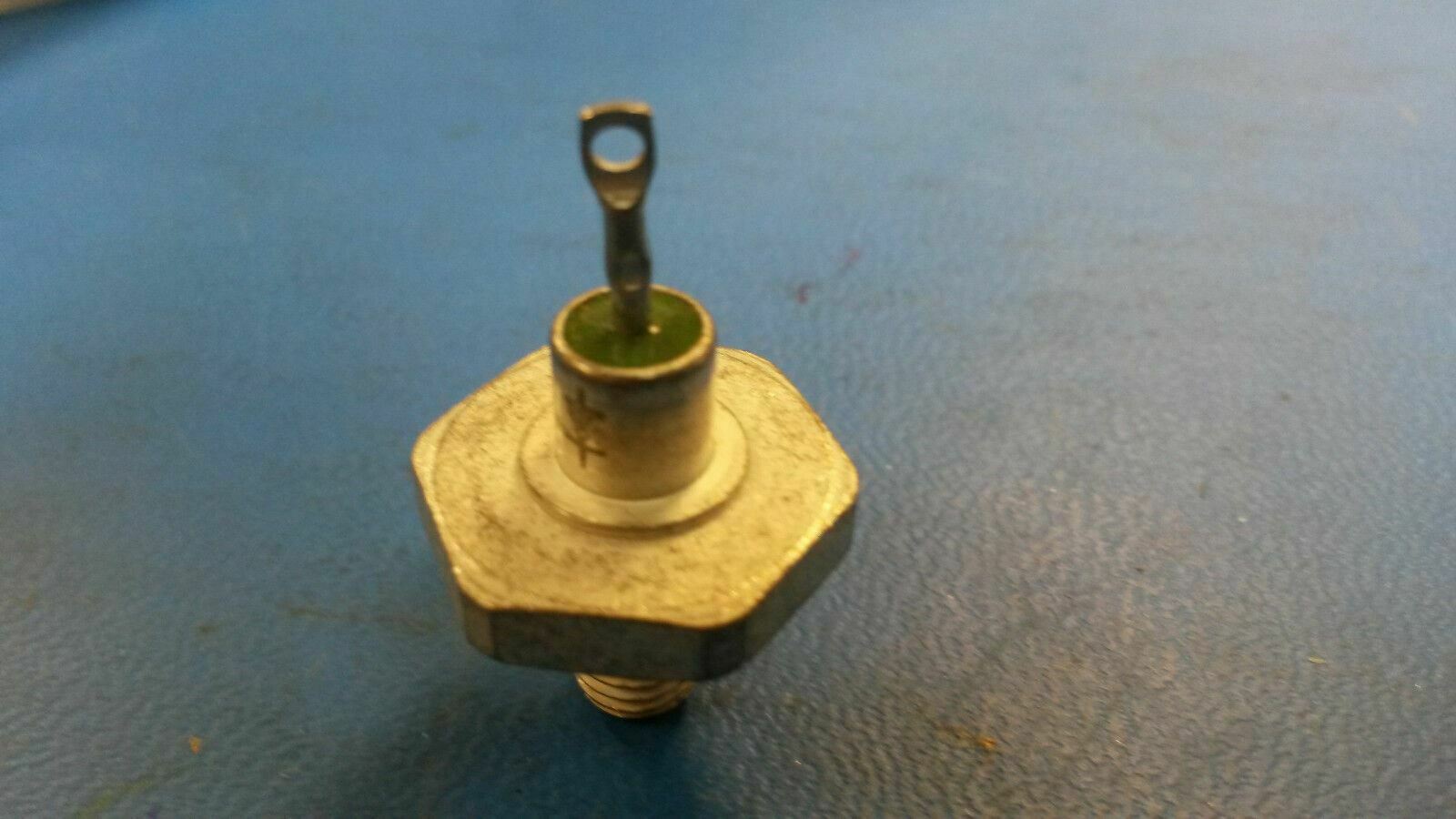

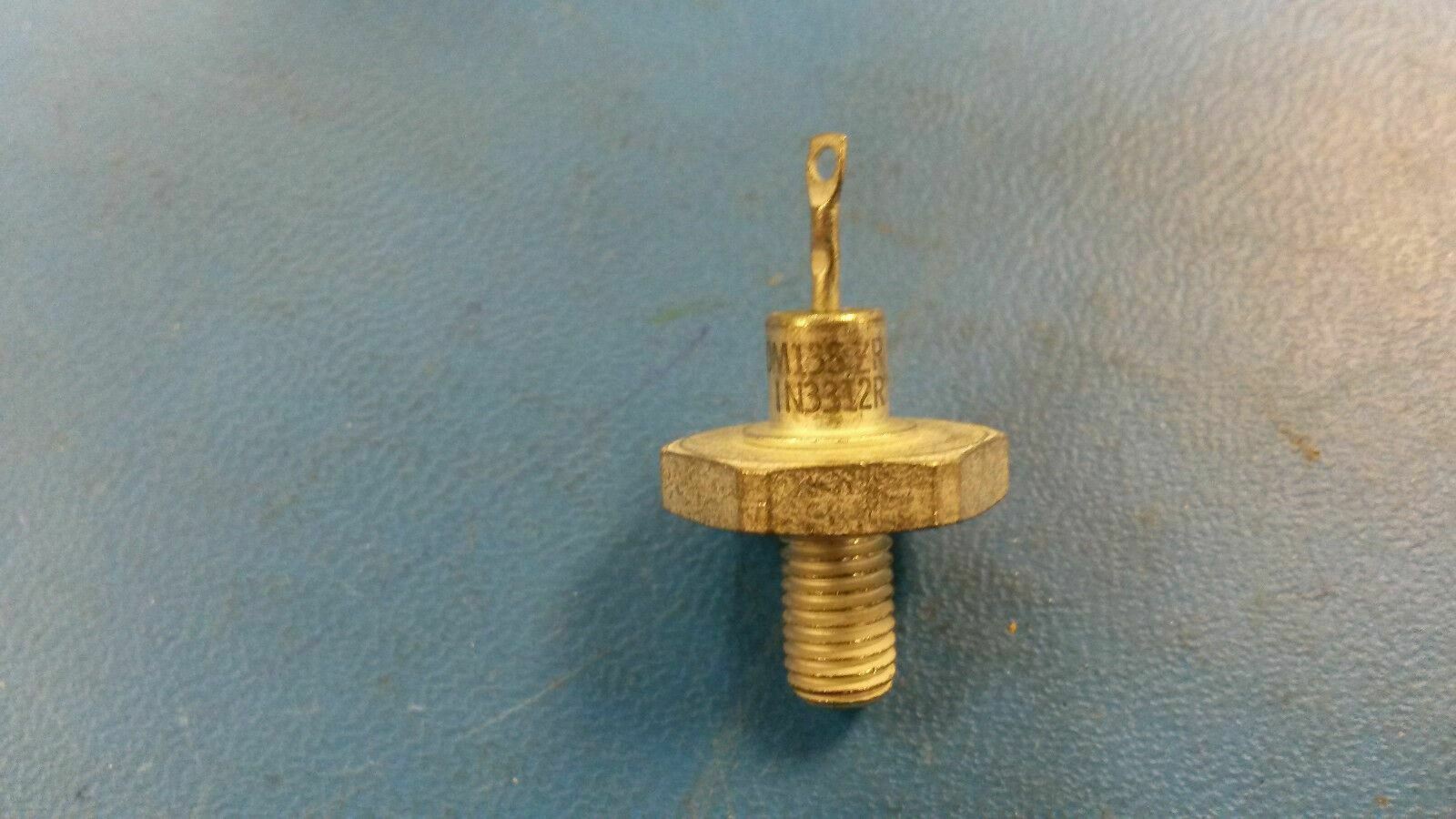

(1 PC) MOTOROLA 1N3312R DIODE ZENER 13V 50W DO-5
Tax included.
THIS LISTING IS FOR (1 PC) OF 1N3312R BY MOTOROLA
SPECIFICATIONS
| Status | Discontinued |
| Diode Type | ZENER DIODE |
| Case Connection | CATHODE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Dynamic Impedance-Max | 1.1 ohm |
| JESD-30 Code | O-MUPM-D1 |
| Knee Impedance-Max | 80.0 ohm |
| Number of Elements | 1.0 |
| Number of Terminals | 1 |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 175.0 Cel |
| Package Body Material | METAL |
| Package Shape | ROUND |
| Package Style | POST/STUD MOUNT |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 50.0 W |
| Qualification Status | Not Qualified |
| Reference Voltage-Nom | 13.0 V |
| Sub Category | Voltage Reference Diodes |
| Surface Mount | NO |
| Technology | ZENER |
| Terminal Form | SOLDER LUG |
| Terminal Position | UPPER |
| Voltage Temp Coeff-Max | 8.45 mV/Cel |
| Voltage Tol-Max | 20.0 % |
| Working Test Current | 960.0 mA |
