(1 PC) MM74HC175J, MC74HC175J, NSC D Flip-Flop,1-Func, 4-Bit, CMOS, CDIP16
Tax included.

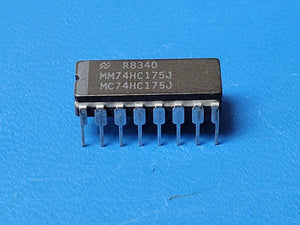

THIS IS FOR (1 PC) OF MM74HC175J, MC74HC175J, BY NSC
D Flip-Flop,1-Func, 4-Bit, CMOS, CDIP16
Mfr Package Description CERAMIC, DIP-16
Status Discontinued
Logic IC Type D FLIP-FLOP
Sub Category FF/Latches
Family HC/UH
fmax-Min 28.0 MHz
JESD-30 Code R-GDIP-T16
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Polarity COMPLEMENTARY
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Propagation Delay (tpd) 190.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 4.5
Supply Voltage-Min (Vsup) 2.0 V
Supply Voltage-Max (Vsup) 6.0 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Length 19.304 mm
Width 7.62 mm
