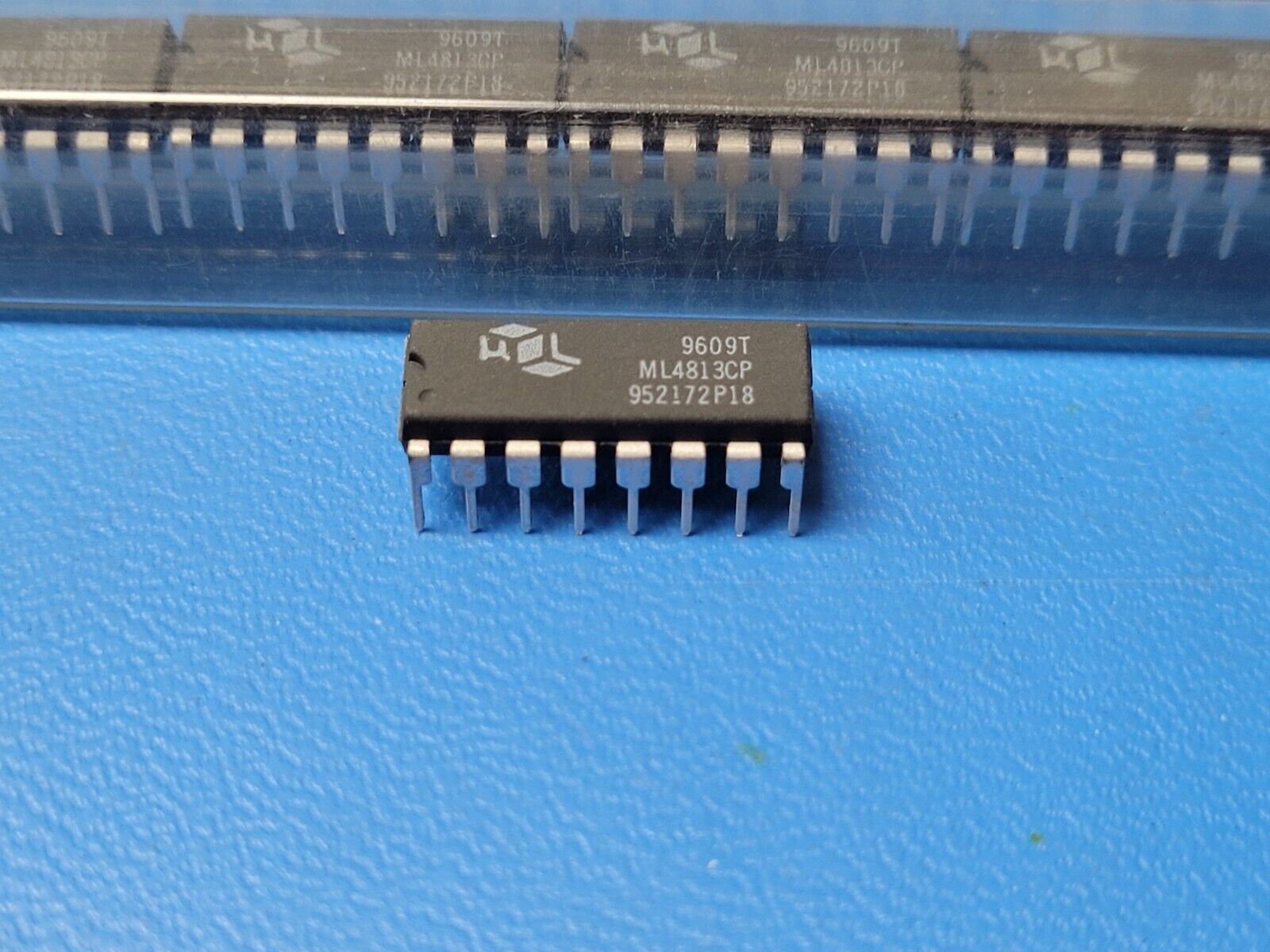

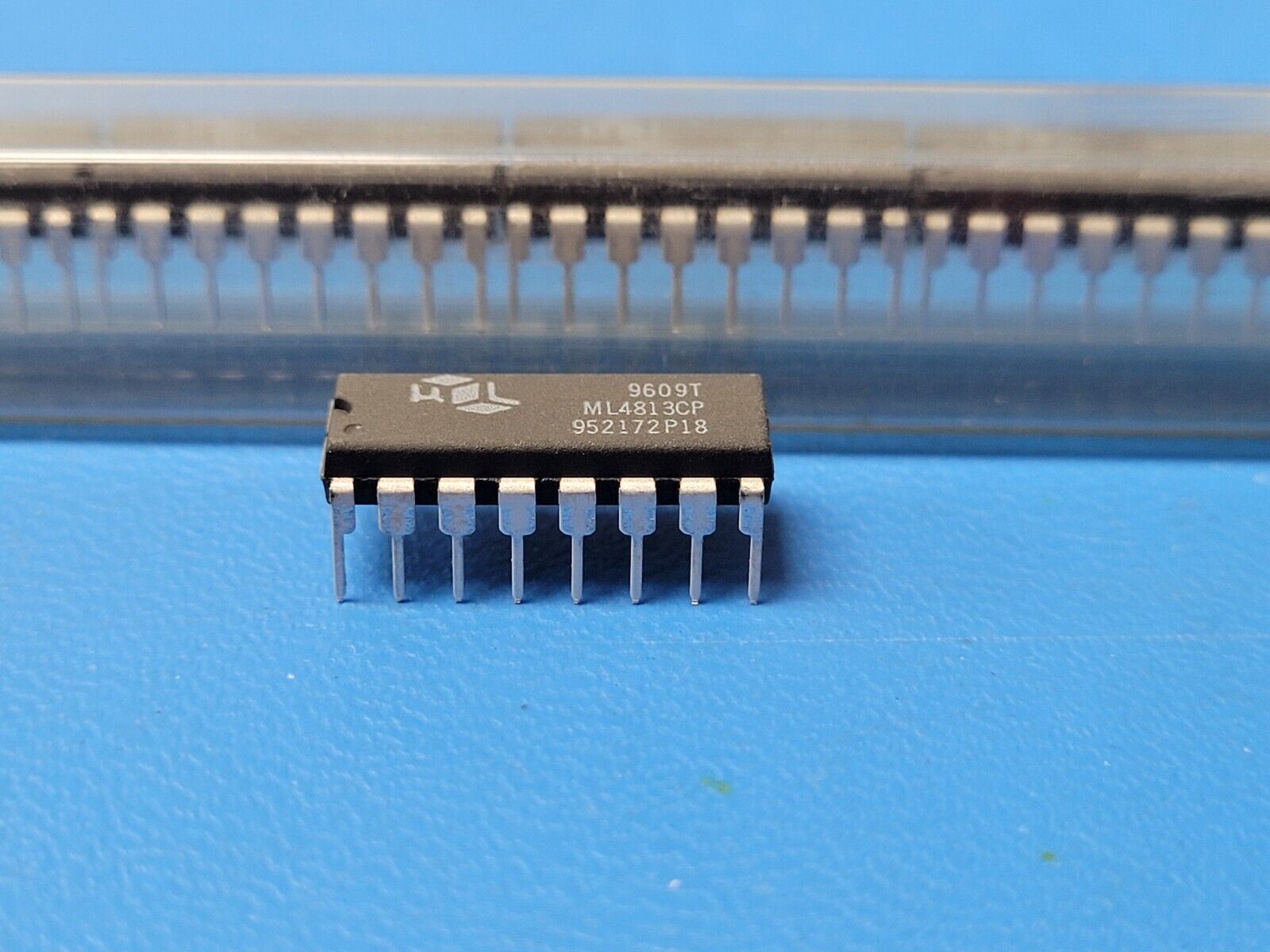

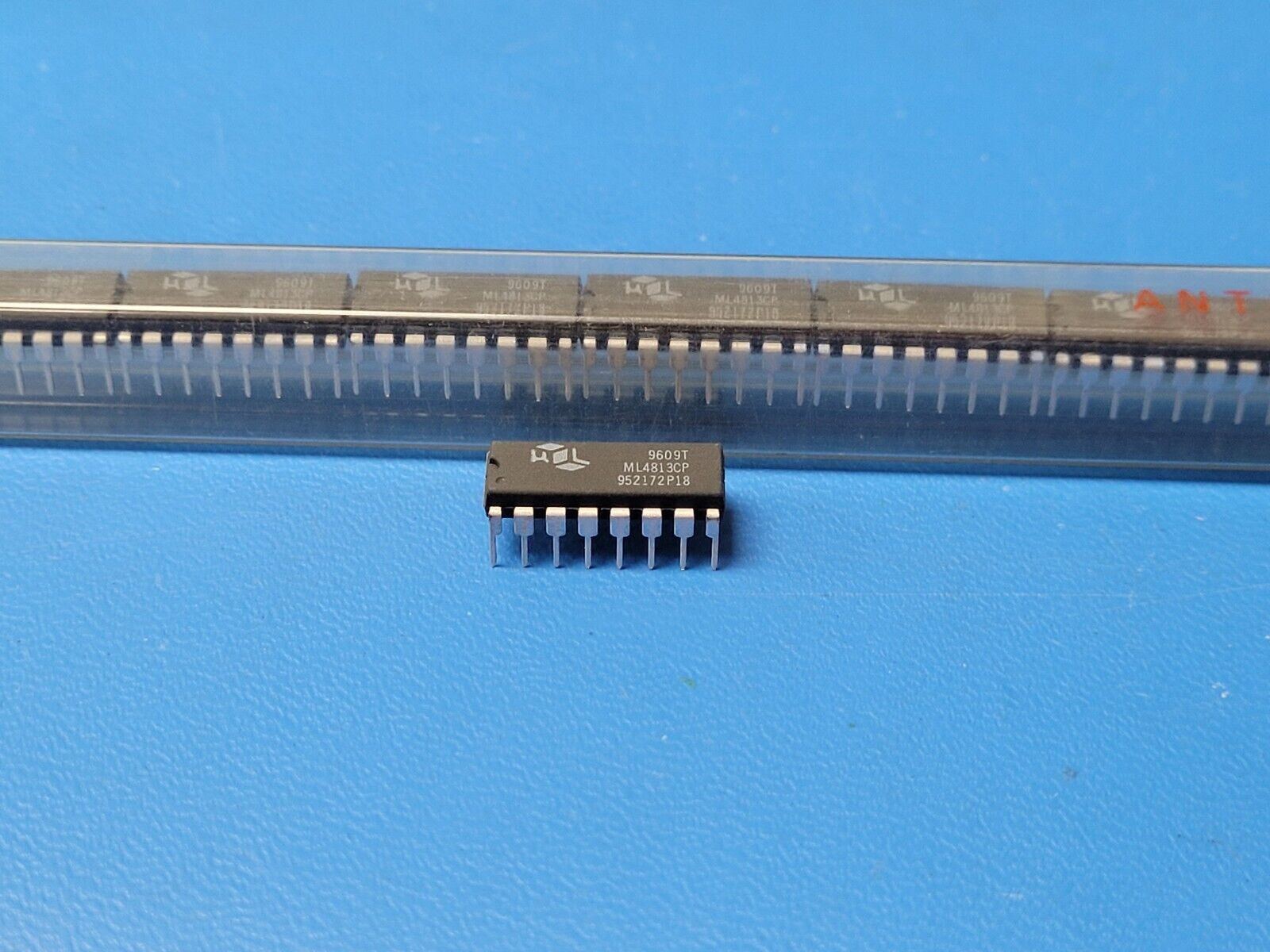

(1 PC) ML4813CP MICRO LINEAR POWER FACTOR CONTROLLER PDIP-16

$4.95
Unit price per

Tax included.

THIS IS FOR (1 PC) OF ML4813CP BY MICRO LINEAR

POWER FACTOR CONTROLLER PDIP-16

Part #: ML4813CP

Part Category: Other Semiconductors

Manufacturer: Micro Linear Corporation

Description: Power Factor Controller, Voltage-mode, 1A, 100kHz Switching Freq-Max, BIPolar, PDIP16

Mfr Package Description PLASTIC, DIP-16

Status Transferred

Analog IC - Other Type POWER FACTOR CONTROLLER

Control Mode VOLTAGE-MODE

Control Technique PULSE WIDTH MODULATION

Input Voltage-Nom 14.0 V

Input Voltage-Min 12.0 V

Input Voltage-Max 25.0 V

JESD-30 Code R-PDIP-T16

JESD-609 Code e0

Number of Functions 1

Number of Terminals 16

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Current-Max 1.0 A

Output Voltage-Nom 5.0 V

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Qualification Status Not Qualified

Seated Height-Max 4.32 mm

Sub Category Switching Regulator or Controllers

Supply Current-Max (Isup) 30.0 mA

Surface Mount NO

Switcher Configuration BUCK-BOOST

Switching Frequency-Max 100.0 kHz

Technology BIPOLAR

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Length 19.05 mm

Width 7.62 mm
