(1 PC) MJ2801 MOT Power Bipolar Transistor 15A 40V 1-Element NPN Silicon TO-3

$9.95
Unit price per

Tax included.

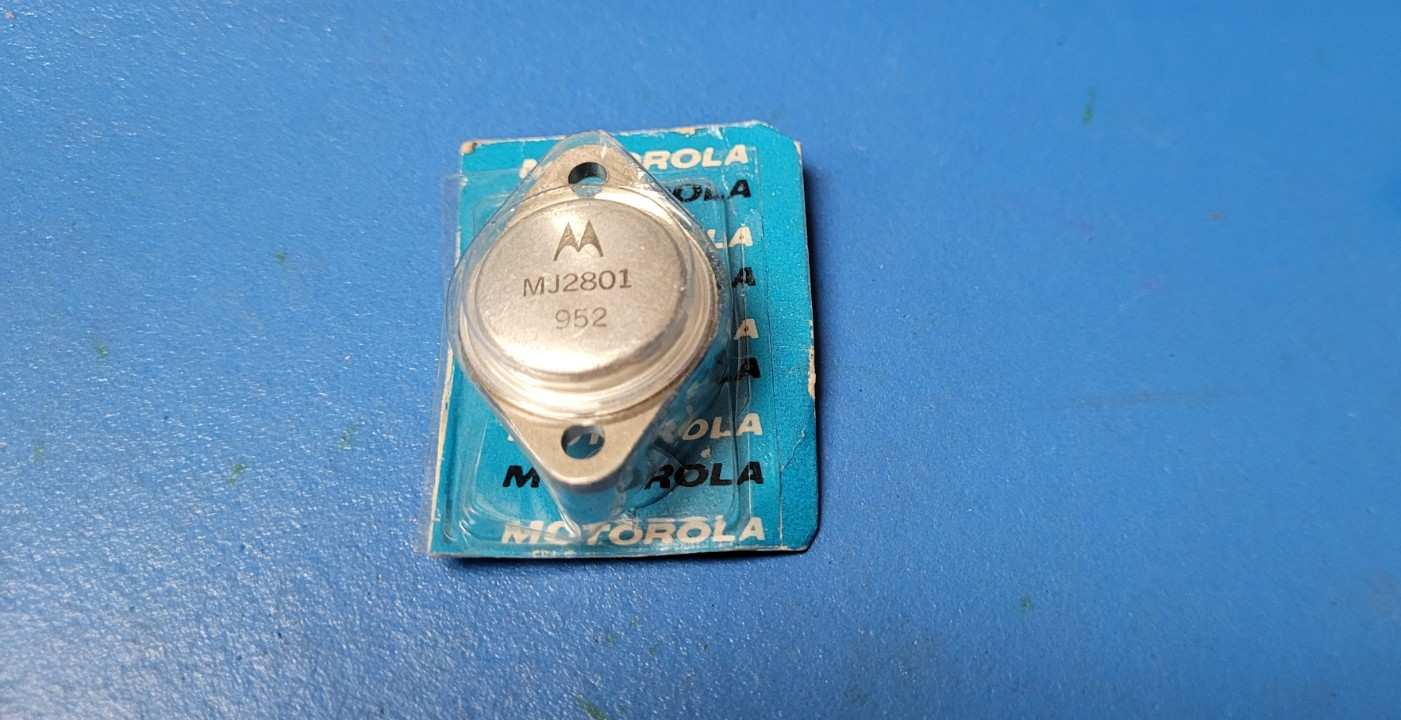

THIS IS FOR (1 PC) OF MJ2801 BY MOT

Power Bipolar Transistor 15A 40V 1-Element NPN Silicon TO-3

• Type / Polarity: NPN Silicon

• Package Type: TO-3 (2-pin metal canister, collector tied to case)

• Max Collector Current ($I_{C}$): 15 A

• Max Collector-Emitter Voltage ($V_{CEO}$): 40 V

• Max Collector-Base Voltage ($V_{CBO}$): 50 V

• Max Emitter-Base Voltage ($V_{EBO}$): 7 V

• Max Power Dissipation ($P_{C}$): 115 W

• Max Junction Temperature ($T_{j}$): 200 °C
