(1 PC) MET-31-T TRIAD MAGNETICS TRANSFORMER 600CT:600CT 3.0MADC ROHS
Tax included.

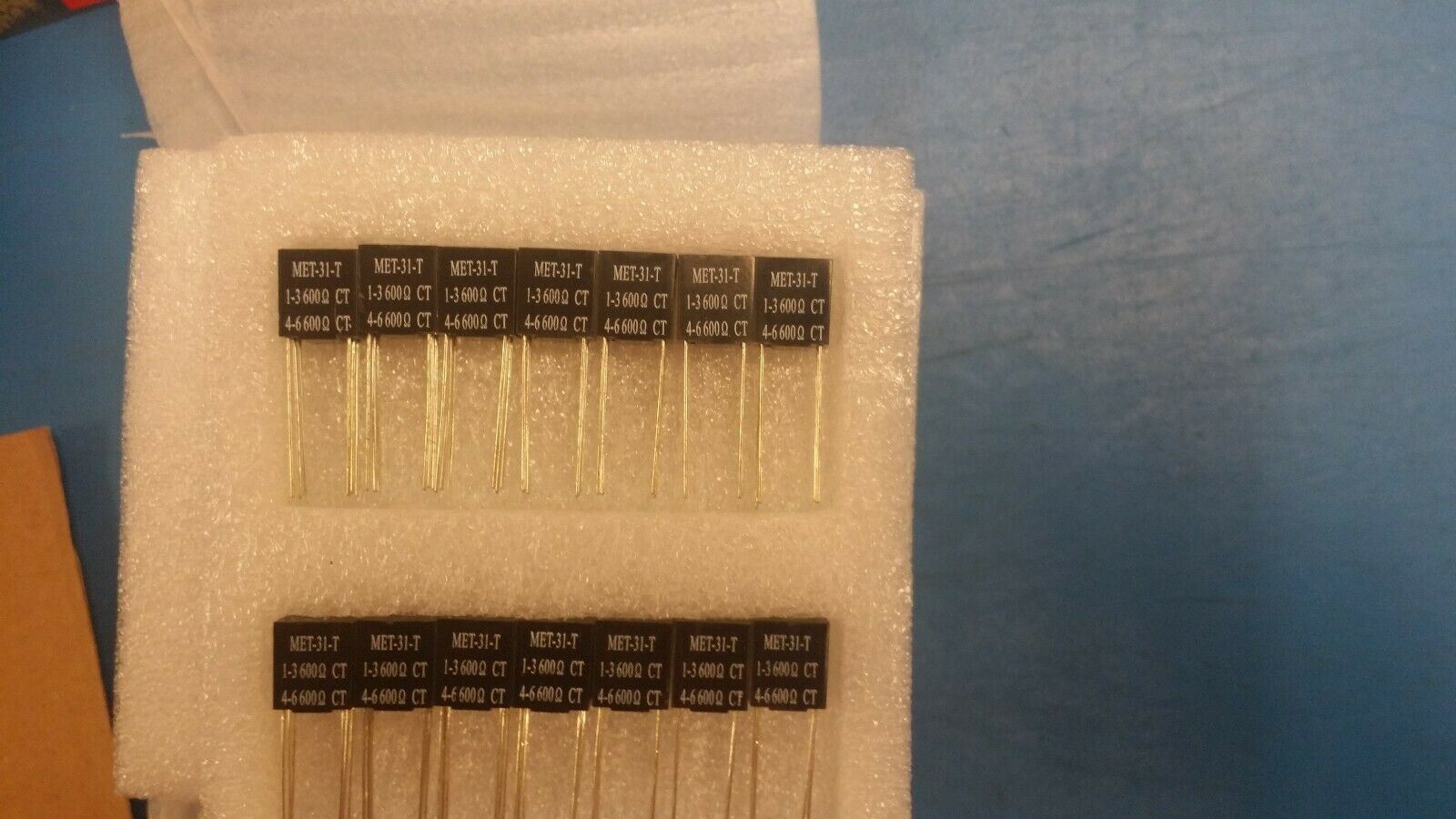

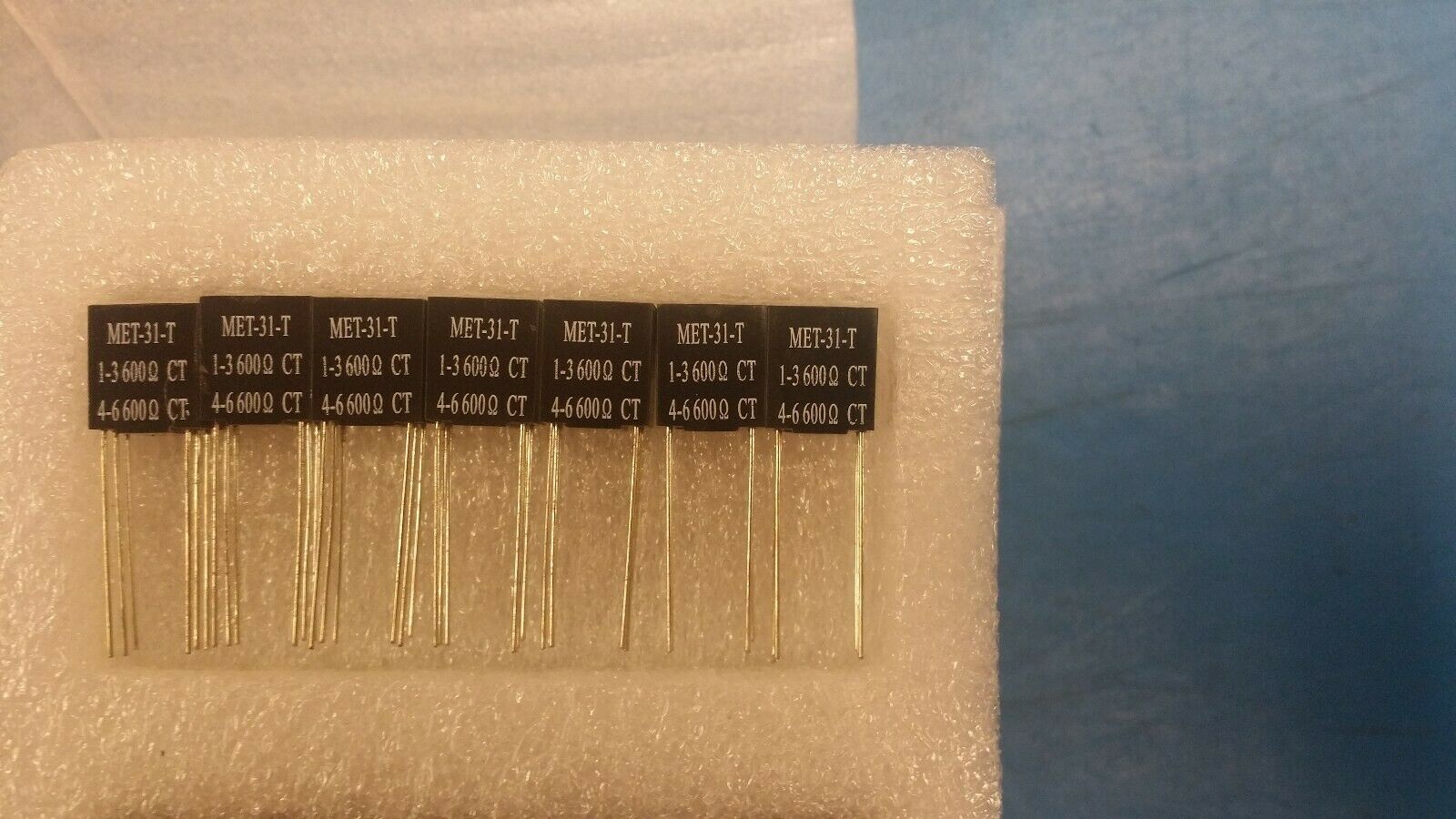

THIS LISTING IS FOR (1 PC) OF MET-31-T BY TRIAD MAGNETICS
TRANSFORMER 600CT:600CT 3.0MADC ROHS
Manufacturer: Triad Magnetics
Product Category: Audio Transformers / Signal Transformers
RoHS: Yes
Product: Audio
Termination Style: Radial
Frequency Range: 300 Hz to 100 kHz
Primary Impedance: 600 Ohms
Secondary Impedance: 600 Ohms
Application: Coupling Encapsulated
Length: 0.41 in
Width: 0.31 in
Height: 0.465 in
Series: MET
Maximum DC Current: 3 mA
Maximum DC Resistance: 95 Ohms
Power Rating: 50 mW (1/20 W)
Primary Resistance: 70 Ohms
Secondary Resistance: 95 Ohms
Shielding: Unshielded
Brand: Triad Magnetics
Product Type: Audio & Signal Transformers
Factory Pack Quantity: 84
Subcategory: Transformers
Unit Weight: 0.100000 oz
