(1 PC) MCM69R738AZP7 Late-Write SRAM, 128KX36, 3.5ns, BICMOS, PBGA119
Tax included.

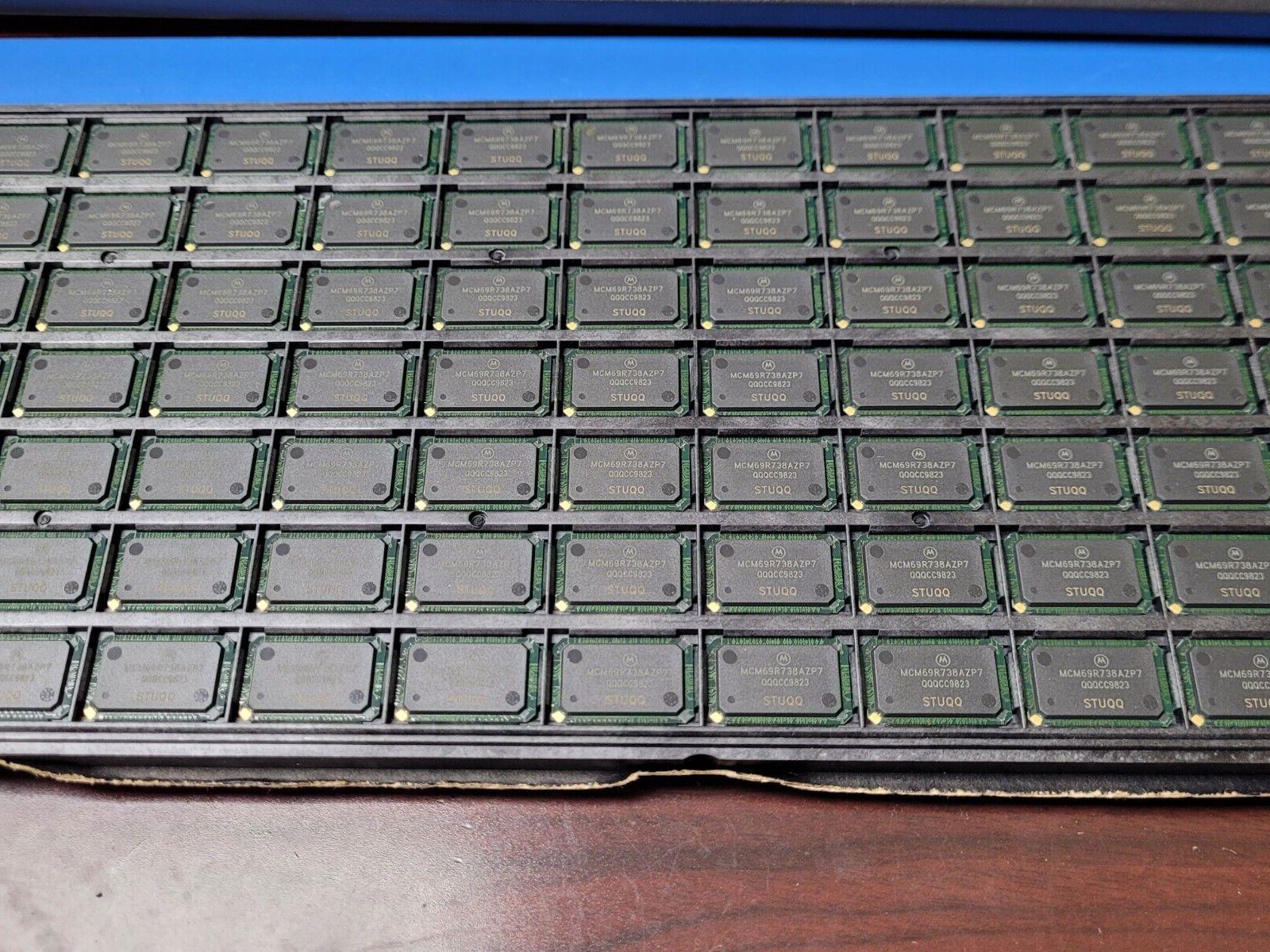

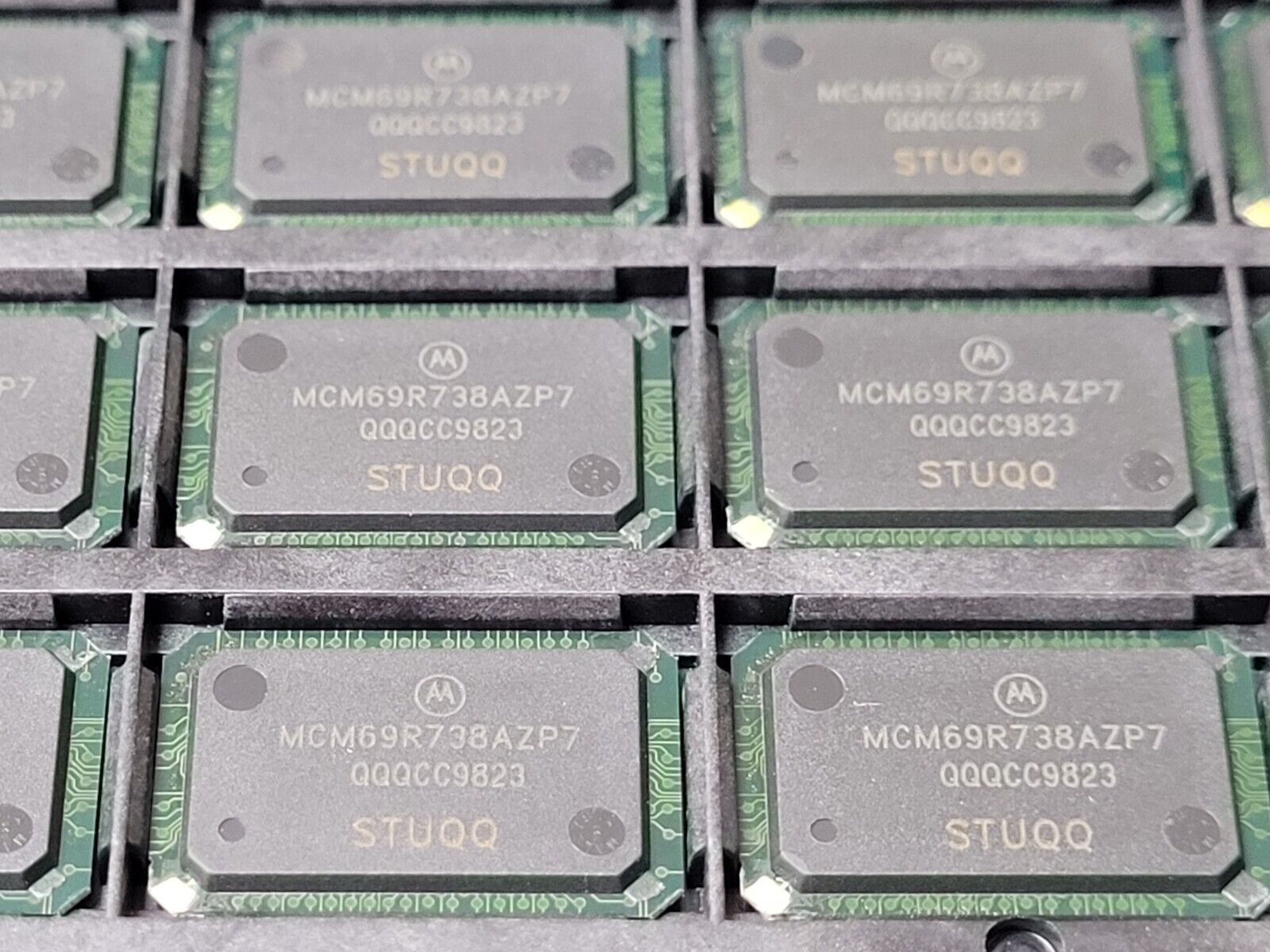

THIS IS FOR (1 PC) OF MCM69R738AZP7 BY MOT
Late-Write SRAM, 128KX36, 3.5ns, BICMOS, PBGA119
Part #: MCM69R738AZP7
Part Category: Memory ICs
Manufacturer: Motorola Solutions, Inc.
Description: Late-Write SRAM, 128KX36, 3.5ns, BICMOS, PBGA119
Mfr Package Description 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119
Status Discontinued
Access Time-Max 3.5 ns
JESD-30 Code R-PBGA-B119
JESD-609 Code e0
Memory Density 4718592.0 bit
Memory IC Type LATE-WRITE SRAM
Memory Width 36
Number of Functions 1
Number of Ports 1
Number of Terminals 119
Number of Words 131072.0 words
Number of Words Code 128K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 128KX36
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Shape RECTANGULAR
Package Style GRID ARRAY
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 2.4 mm
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.15 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Length 22.0 mm
Width 14.0 mm
