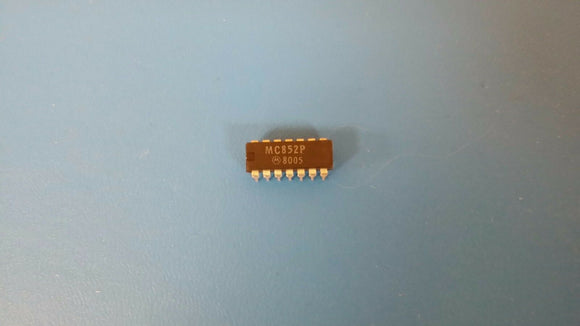

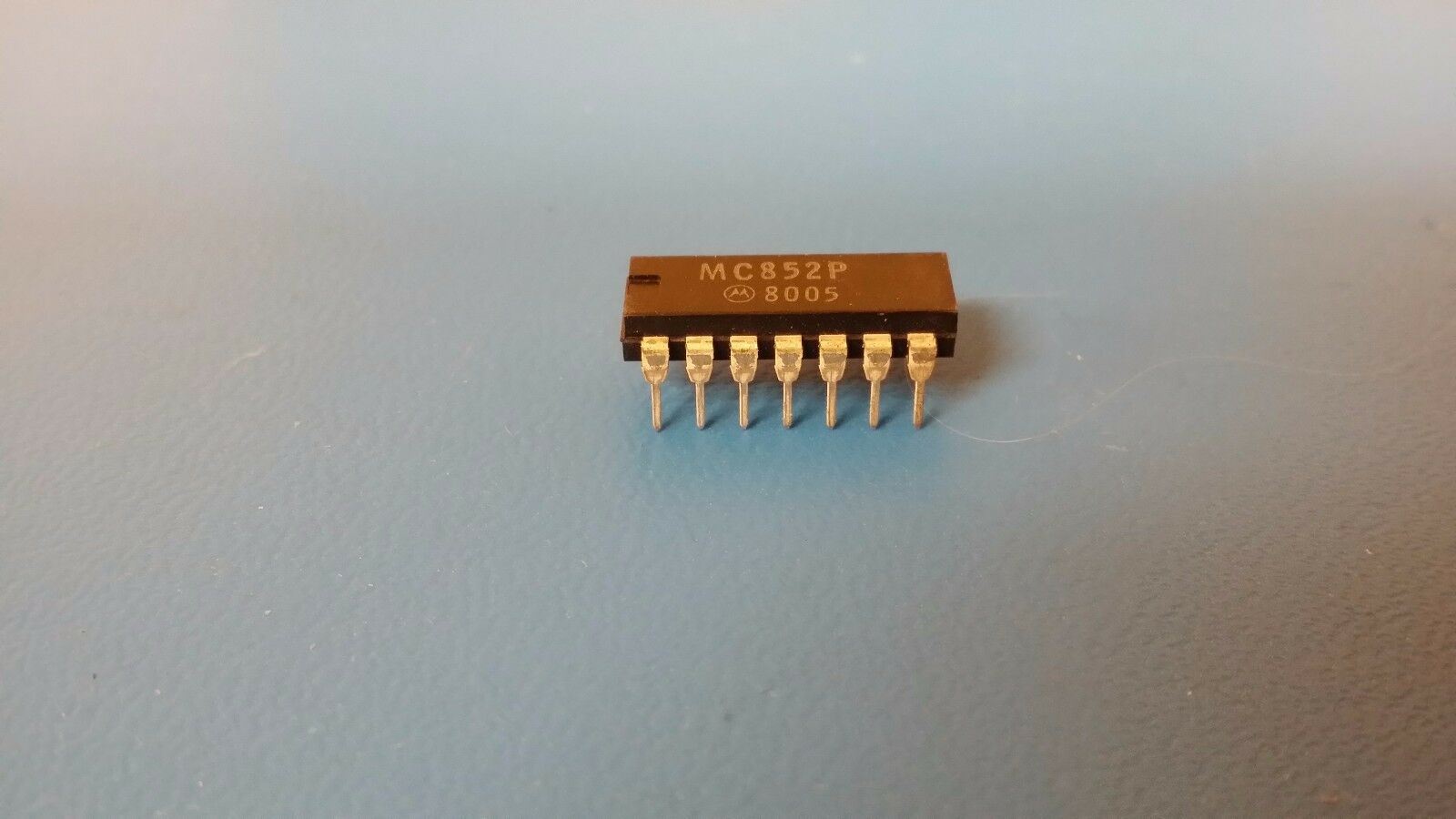

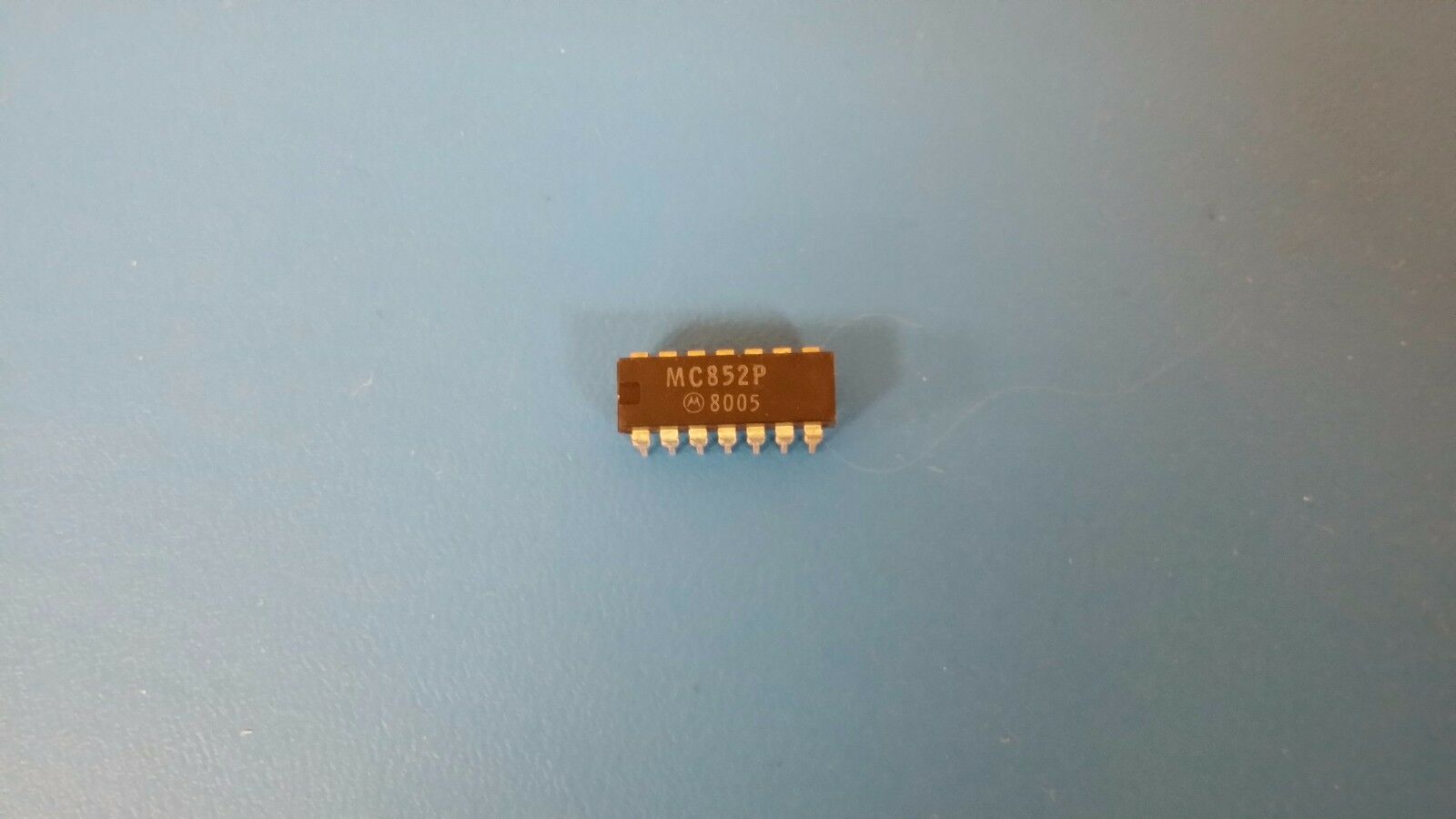

(1 PC) MC852P MOT J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP14
Tax included.
THIS LISTING IS FOR (1 PC) OF MC852P BY MOT
J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP14
Part #: MC852P
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: MC85 SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP14
Manufacturer: Motorola Solutions, Inc.
Description: MC85 SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP14
| Mfr Package Description | PLASTIC, DIP-14 |
| Status | Discontinued |
| Logic IC Type | J-K FLIP-FLOP |
| Sub Category | FF/Latches |
| Family | MC85 |
| JESD-30 Code | R-PDIP-T14 |
| JESD-609 Code | e0 |
| Number of Bits | 2 |
| Number of Functions | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 75.0 Cel |
| Output Polarity | COMPLEMENTARY |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Propagation Delay (tpd) | 40.0 ns |
| Qualification Status | Not Qualified |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | DTL |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trigger Type | NEGATIVE EDGE |
