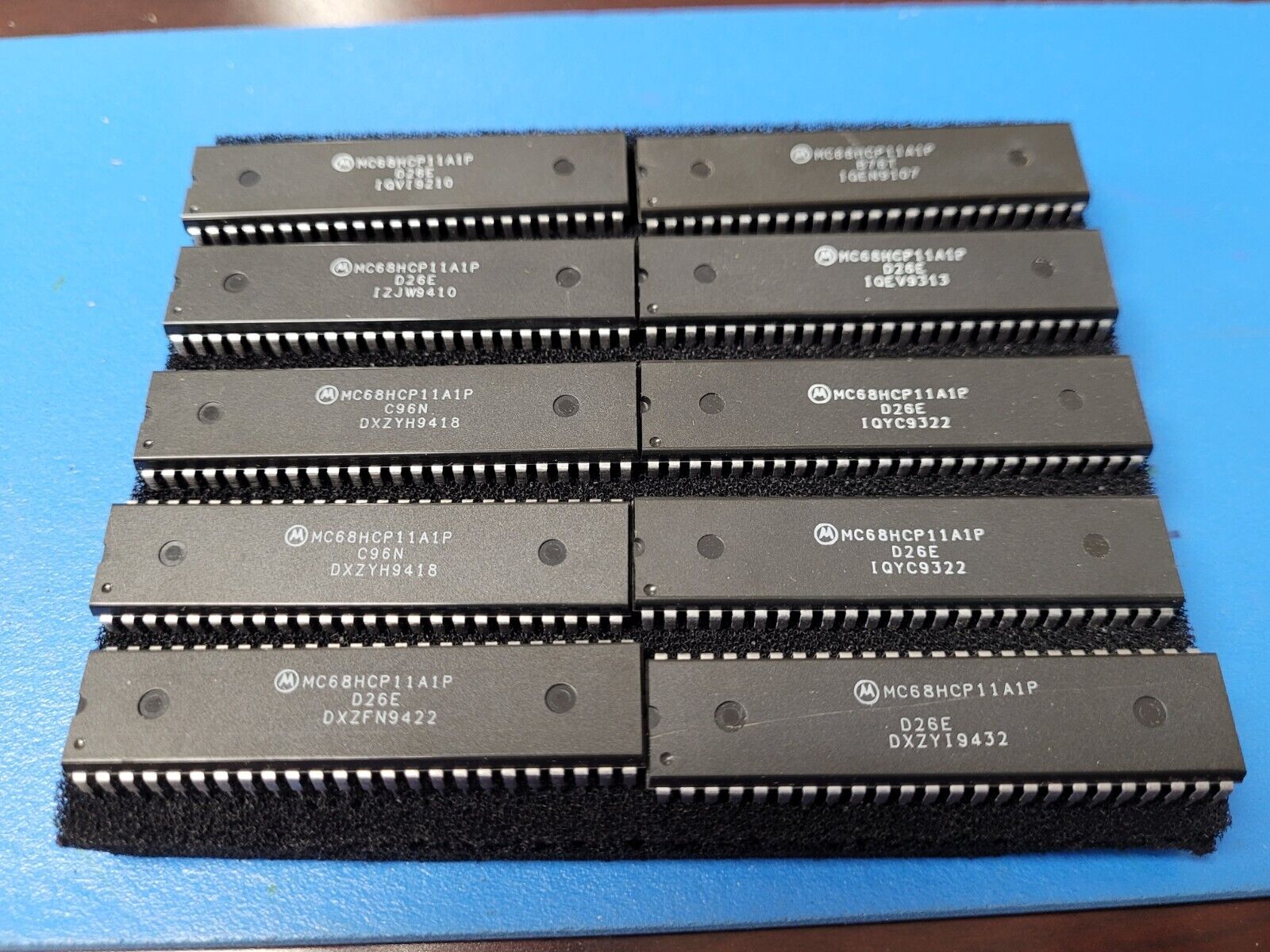

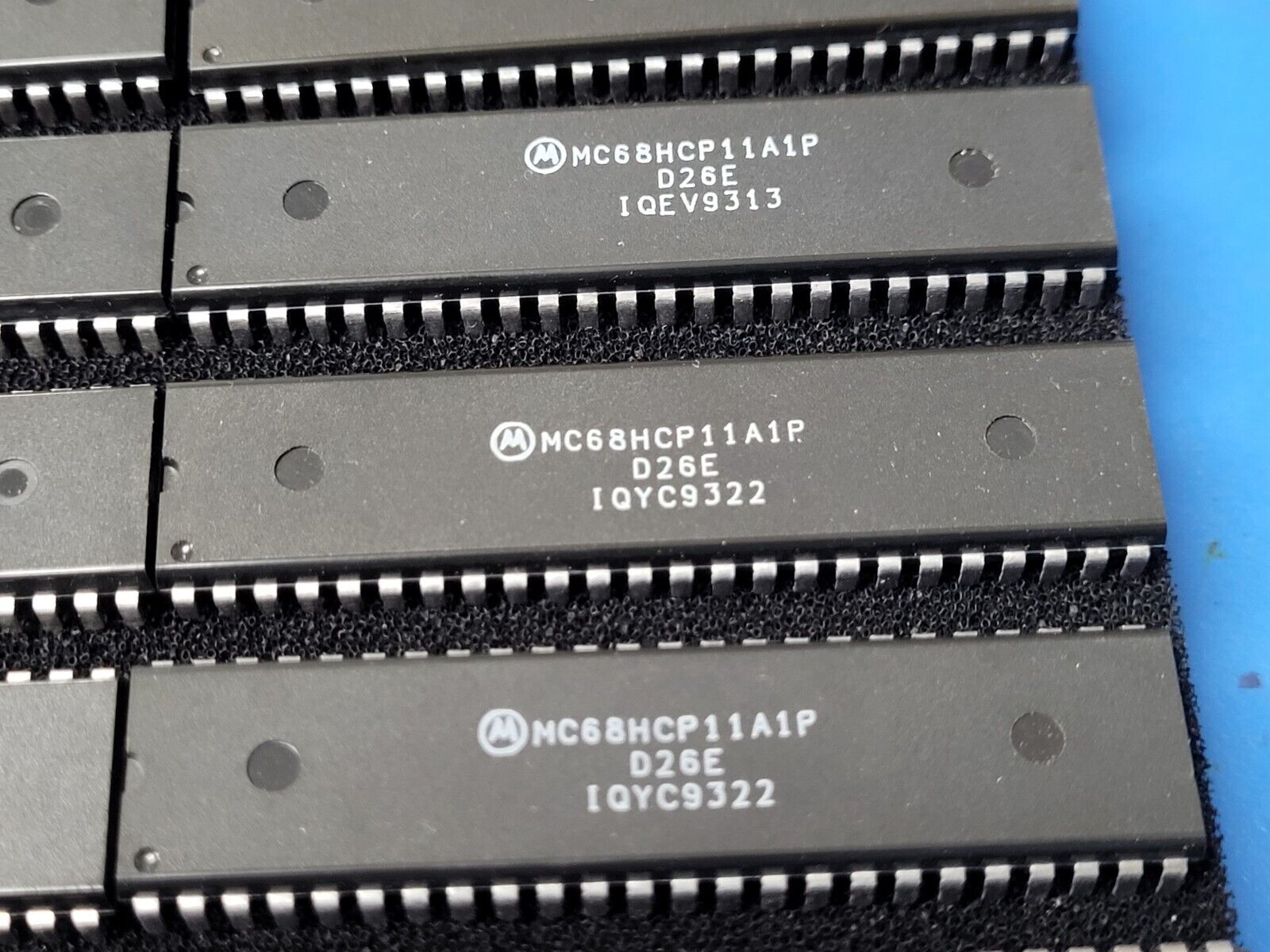

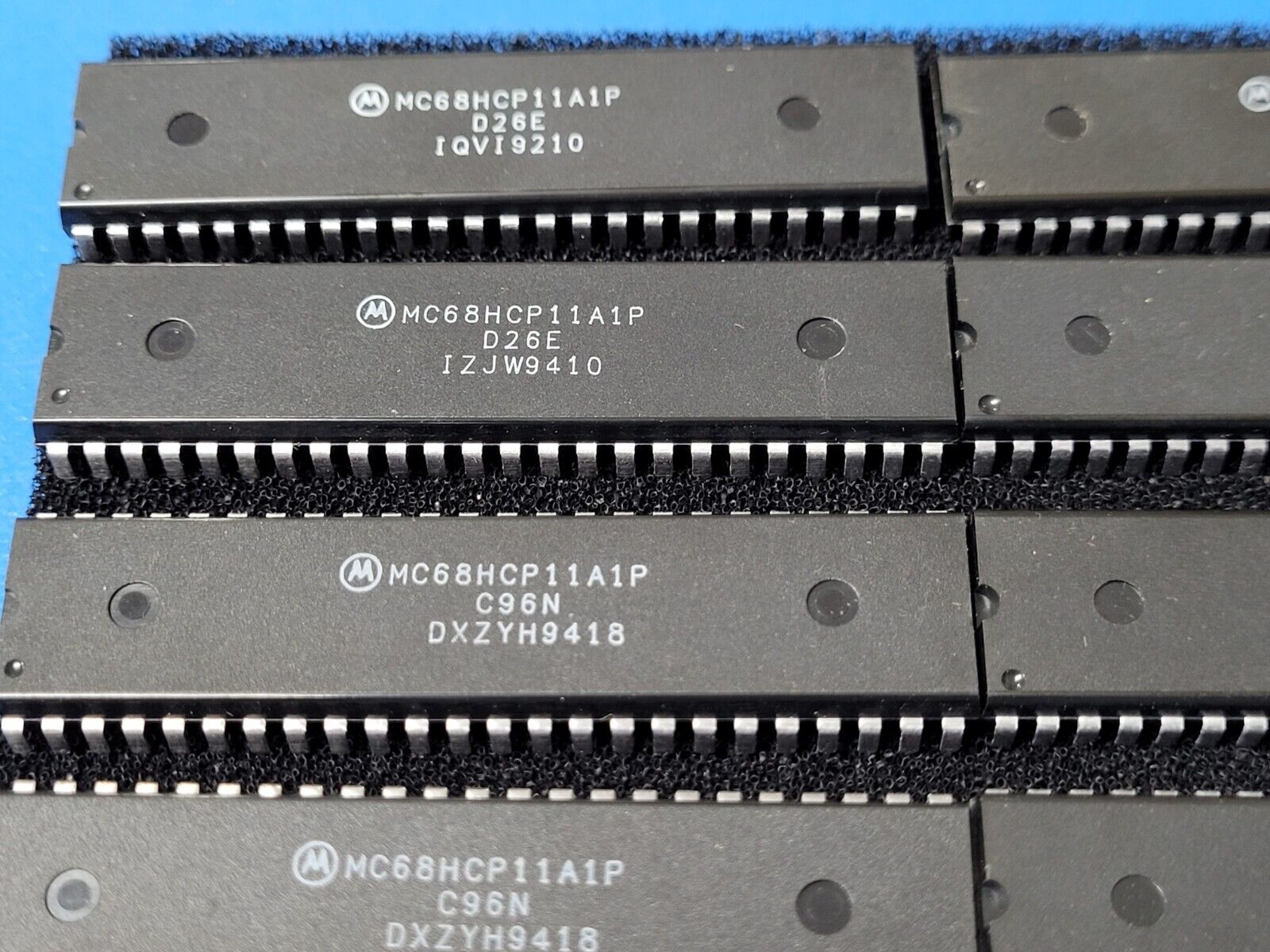

(1 PC) MC68HCP11A1P MOT Microcontroller 8-Bit EEPROM 6800 CPU 2MHz HCMOS PDIP48
Tax included.
THIS IS FOR (1 PC) OF MC68HCP11A1P BY MOT
Microcontroller 8-Bit EEPROM 6800 CPU 2MHz HCMOS PDIP48
Part #: MC68HCP11A1P
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Motorola Solutions, Inc.
Description: Microcontroller, 8-Bit, EEPROM, 6800 CPU, 2MHz, HCMOS, PDIP48
Mfr Package Description PLASTIC, DIP-48
Status Transferred
ADC Channels YES
Address Bus Width 16.0
Bit Size 8
Clock Frequency-Max 2.1 MHz
CPU Family 6800
DAC Channels NO
DMA Channels NO
External Data Bus Width 8.0
JESD-30 Code R-PDIP-T48
JESD-609 Code e0
Number of I/O Lines 34.0
Number of Terminals 48
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP48,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 5
PWM Channels NO
Qualification Status Not Qualified
RAM (bytes) 256.0
ROM Programmability EEPROM
Seated Height-Max 5.08 mm
Speed 2.0 MHz
Sub Category Microcontrollers
Supply Current-Max 27.0 mA
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology HCMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 61.72 mm
Width 15.24 mm
