(1 PC) MC68HC11KA1CFN3 Microcontroller 8-Bit EEPROM 6800 CPU 3MHz CMOS PLCC68
Tax included.

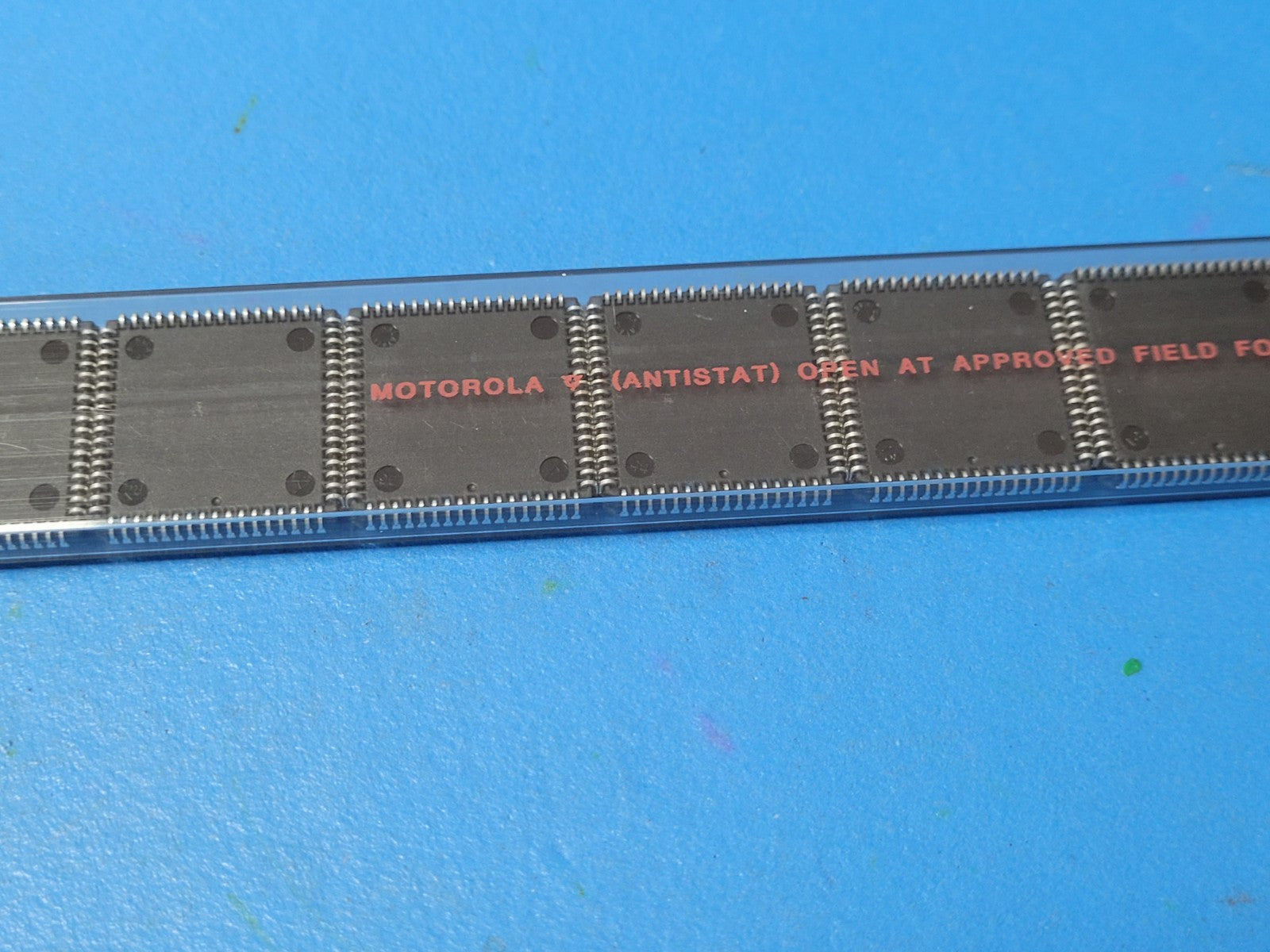

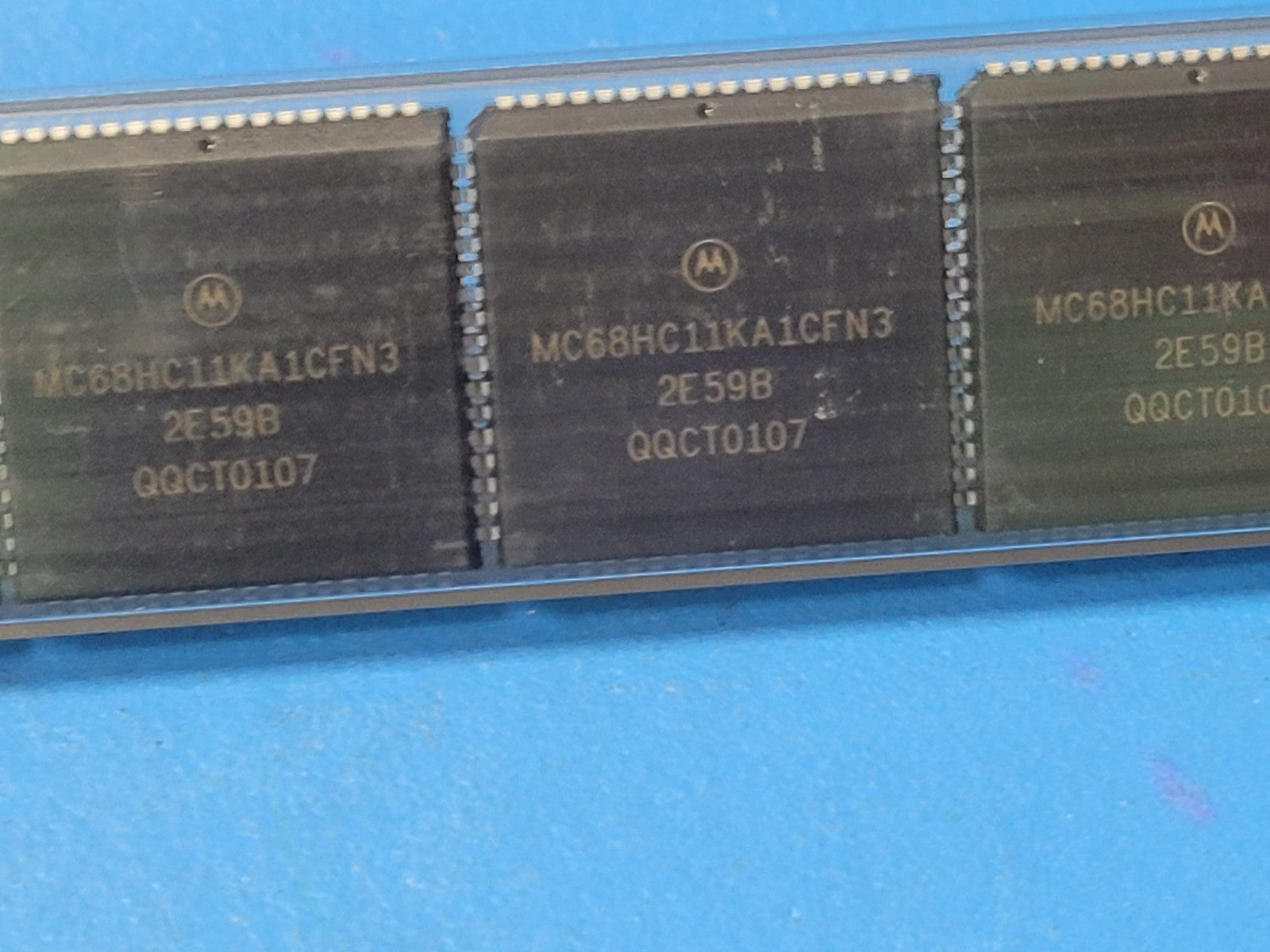

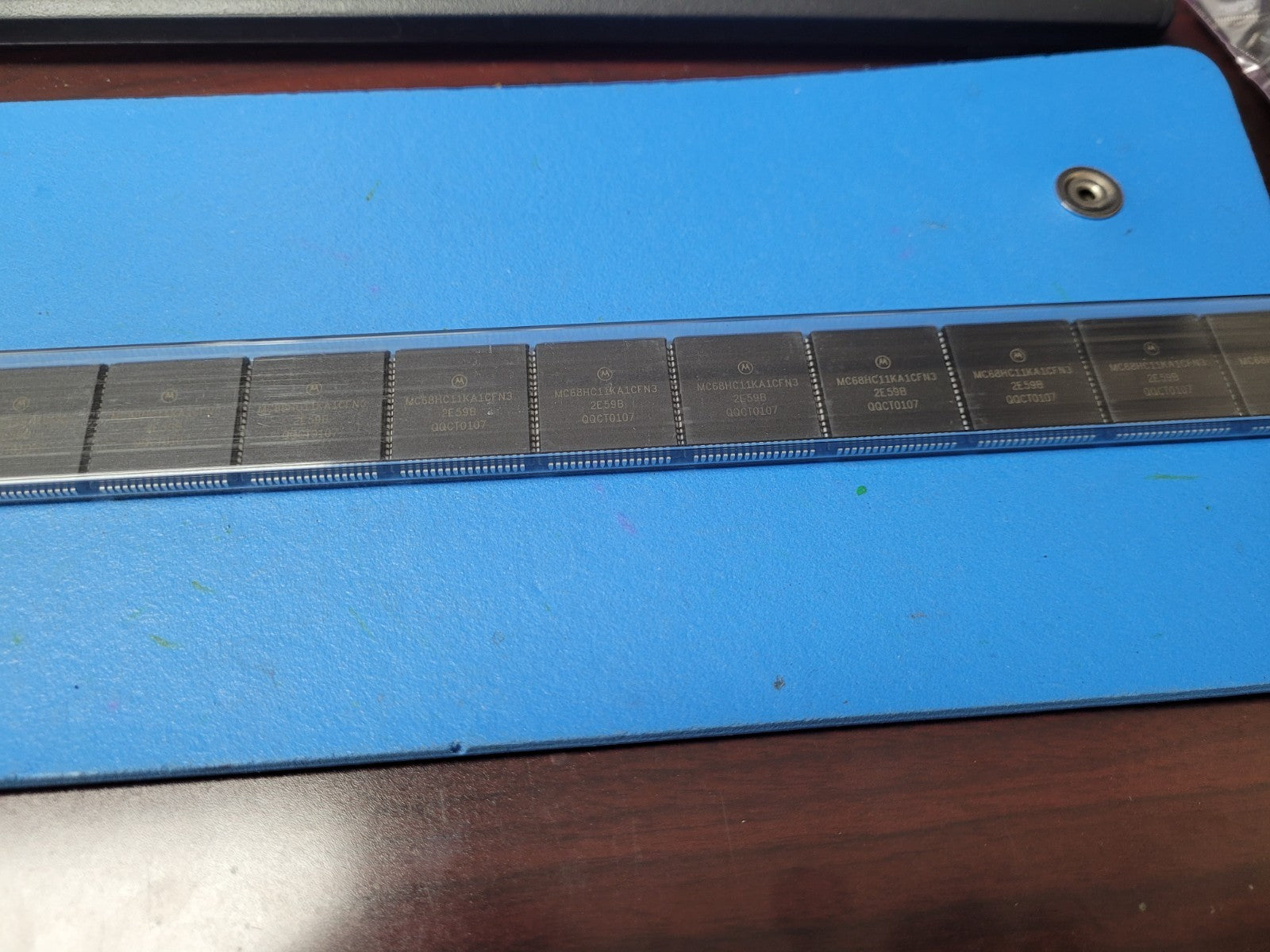

THIS IS FOR (1 PC) OF MC68HC11KA1CFN3 BY MOTOROLA
Microcontroller 8-Bit EEPROM 6800 CPU 3MHz CMOS PLCC68
Part #: MC68HC11KA1CFN3
Obsolete
Part Category: Microcontrollers
Manufacturer: MOTOROLA INC
Description: Microcontroller, 8-Bit, EEPROM, 6800 CPU, 3MHz, CMOS, PQCC68
Status Discontinued
ADC Channels YES
Address Bus Width 16
Bit Size 8
Boundary Scan NO
CPU Family 6800
Clock Frequency-Max (MHz) 12.0000000000000000
DAC Channels NO
DMA Channels NO
External Data Bus Width 8
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-J68
J-STD-609 Code e0
Length (mm) 24.2062
Low Power Mode YES
Number of DMA Channels 0
Number of External Interrupts 2
Number of I/O Lines 51
Number of Serial I/Os 2
Number of Terminals 68
Number of Timers 1
On Chip Data RAM Width 8
Program Memory Width (bits) 8
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC68,1.0SQ
Package Shape SQUARE
Package Style CHIP CARRIER
DLA Qualification Not Qualified
Data RAM Size (bytes) 768
RAM (words) 768
Program Memory Size (words) 640
Program Memory Type EEPROM
Seated Height-Max (mm) 4.5700
Speed (MHz) 3.00000000
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5.0000
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position QUAD
Width (mm) 24.2062
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
