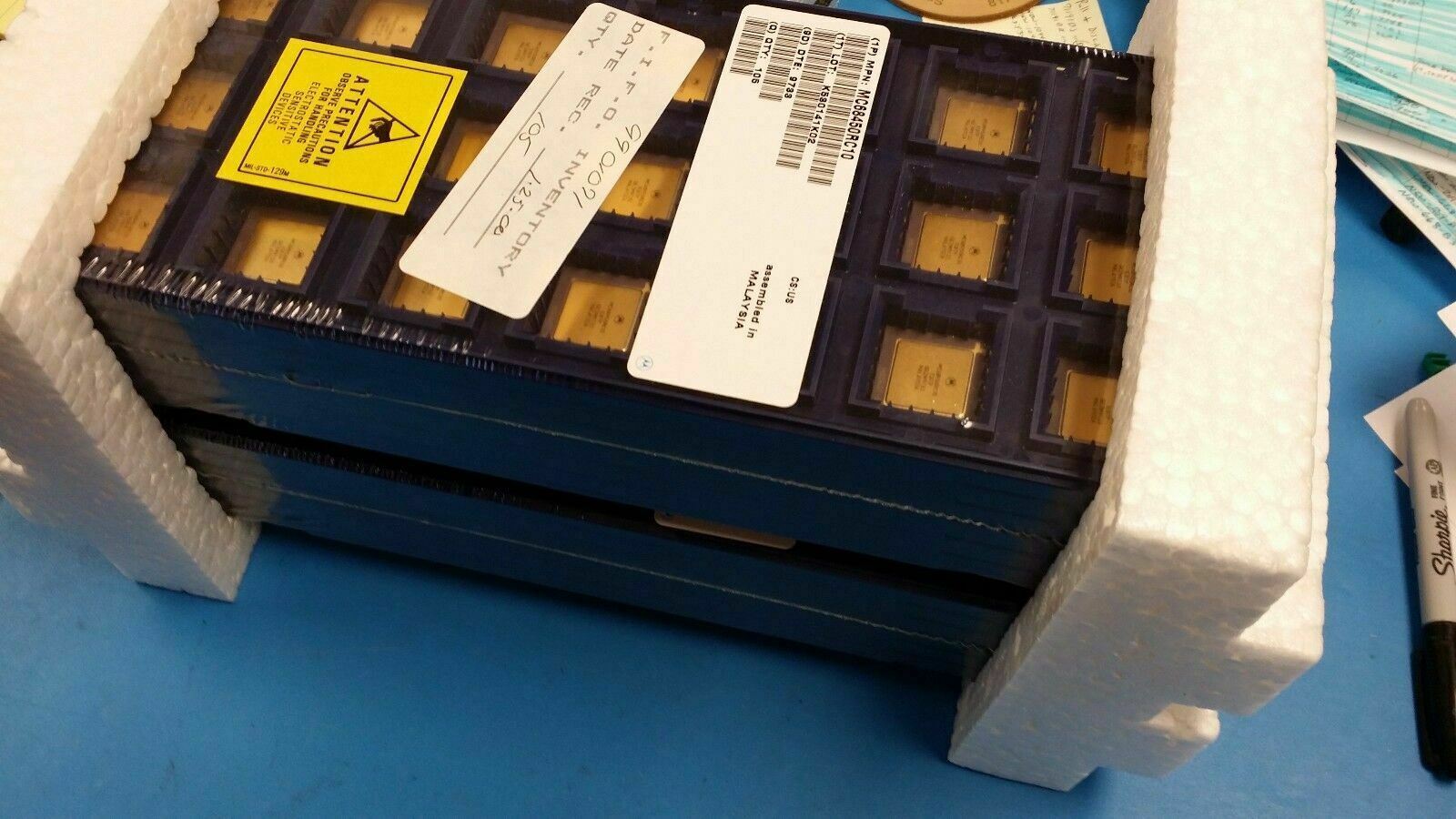

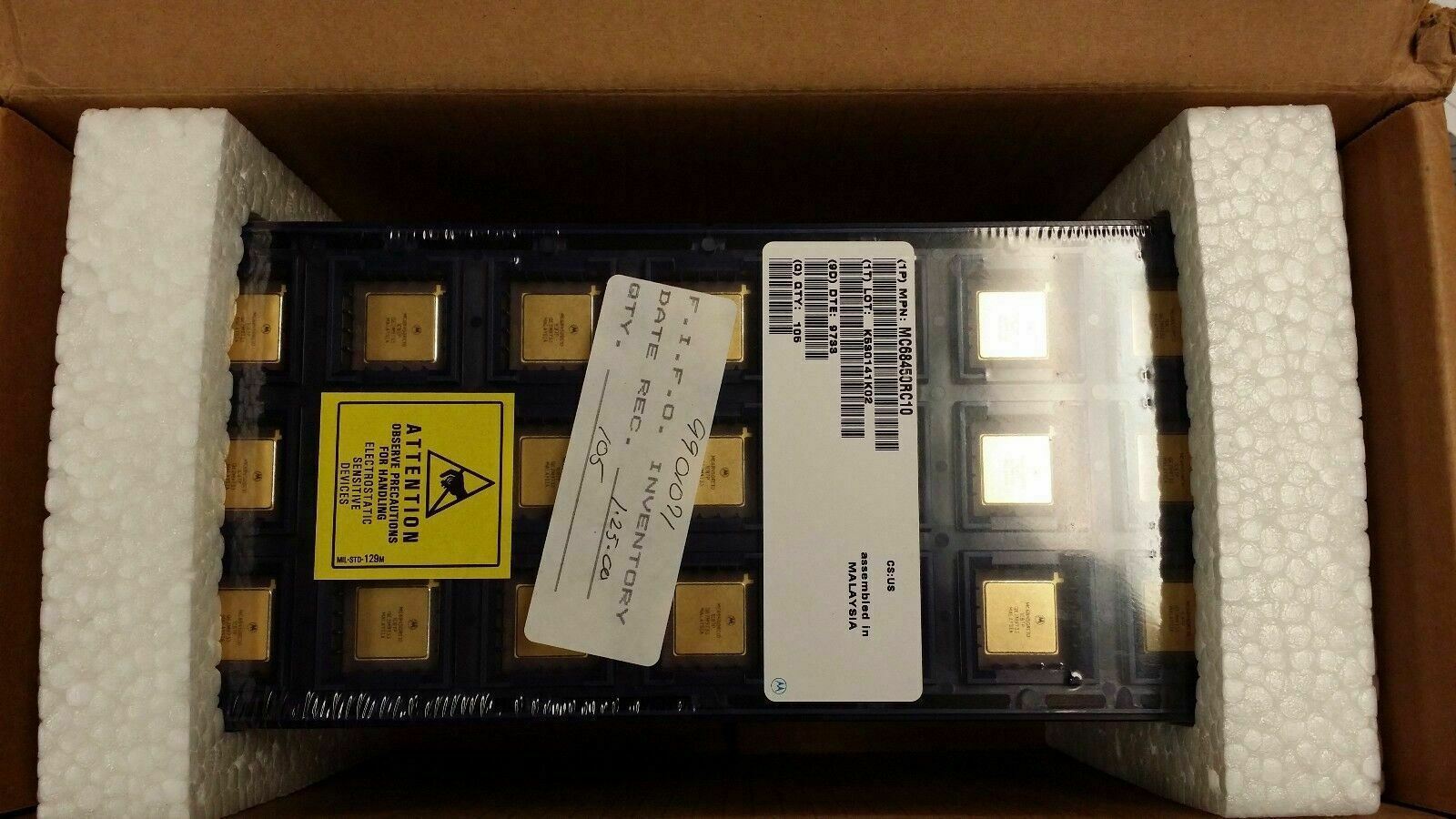

(1 PC) MC68450RC10 MOT DMA CONTROLLER CPGA68 GOLD PINS VINTAGE 1997 D/C
Tax included.
THIS LISTING IS FOR (1 PC) OF MC68450RC10 BY MOT
4 CHANNEL(S)10MHz DMA CONTROLLER CPGA68 GOLD PINS

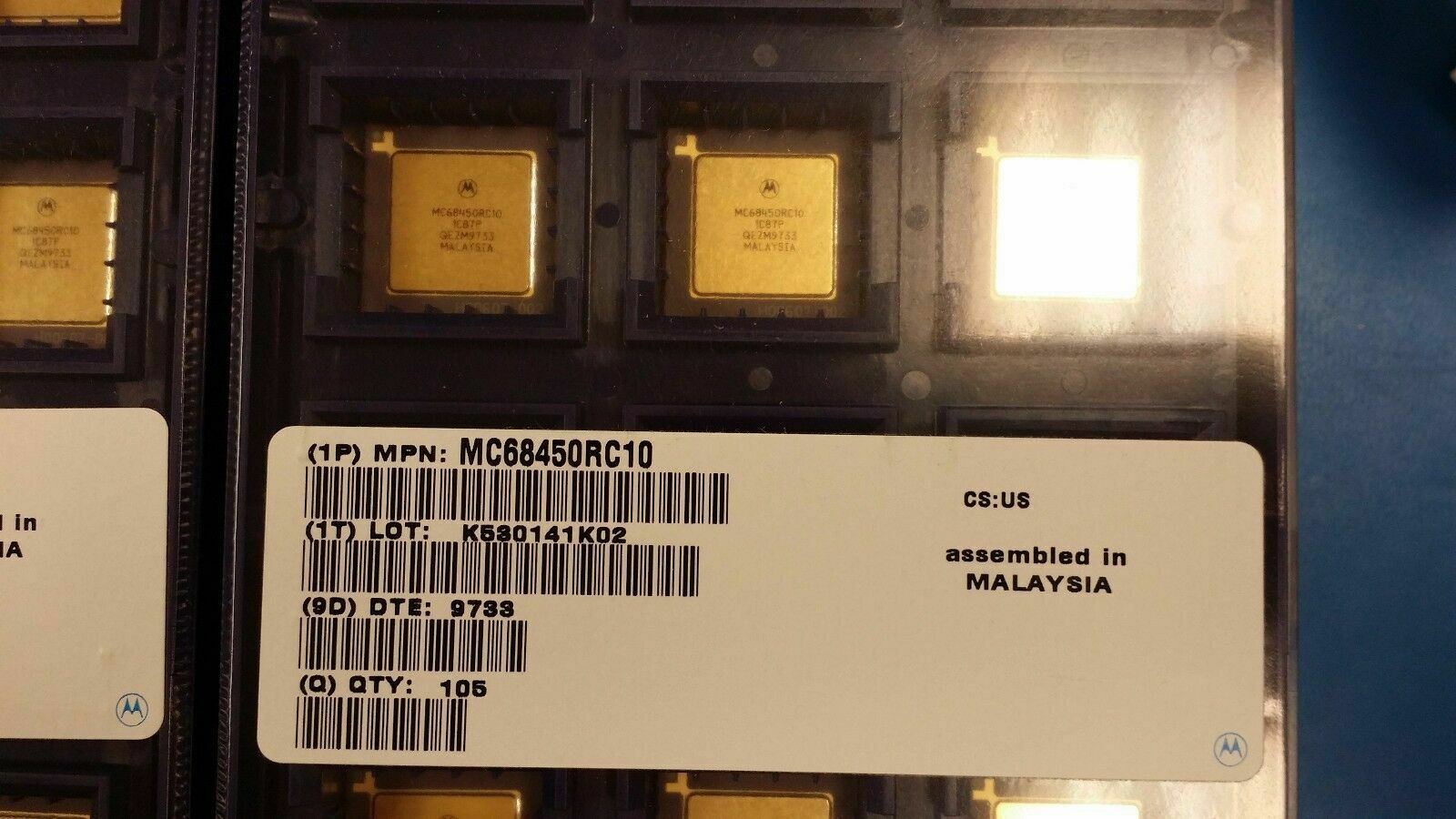

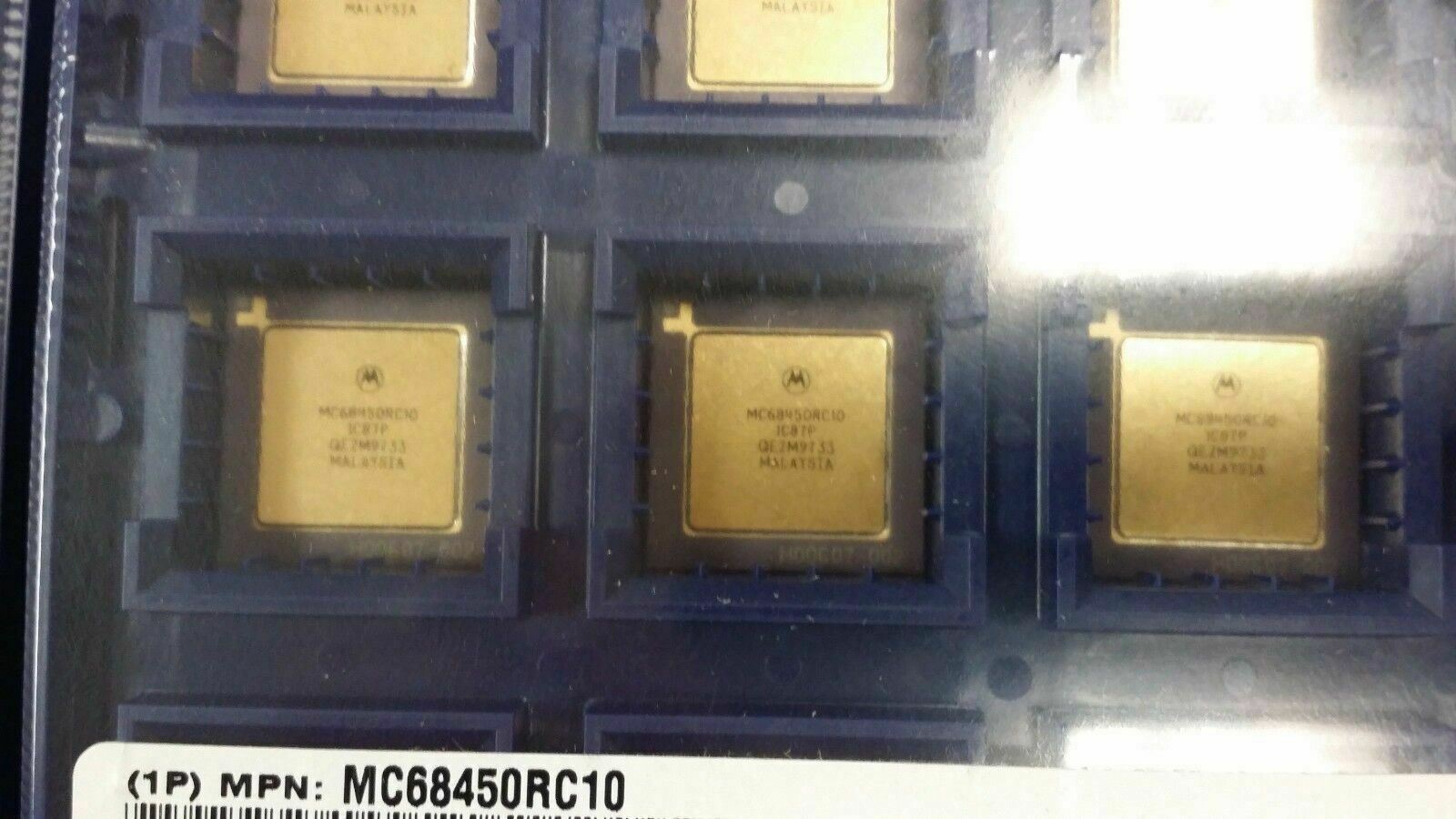

Part #: MC68450RC10
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Motorola Solutions, Inc.
Description: 4 CHANNEL(S), 10MHz, DMA CONTROLLER, CPGA68
Manufacturer: Motorola Solutions, Inc.
Description: 4 CHANNEL(S), 10MHz, DMA CONTROLLER, CPGA68
| Mfr Package Description | GOLD LEAD CONTACTS, PGA-68 |
| Status | Discontinued |
| Microprocessor/Microcontroller/Peripheral IC Type | DMA CONTROLLER |
| Address Bus Width | 24.0 |
| Bus Compatibility | M68000 |
| Clock Frequency-Max | 10.0 MHz |
| External Data Bus Width | 16.0 |
| JESD-30 Code | S-CPGA-P68 |
| JESD-609 Code | e0 |
| Number of DMA Channels | 4.0 |
| Number of Terminals | 68 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Code | PGA |
| Package Equivalence Code | PGA68,10X10 |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.59 mm |
| Sub Category | DMA Controllers |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | NO |
| Technology | MOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | PIN/PEG |
| Terminal Pitch | 2.54 mm |
| Terminal Position | PERPENDICULAR |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 26.92 mm |
| Width | 26.92 mm |
