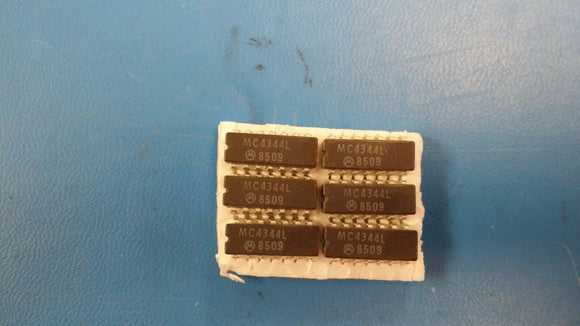

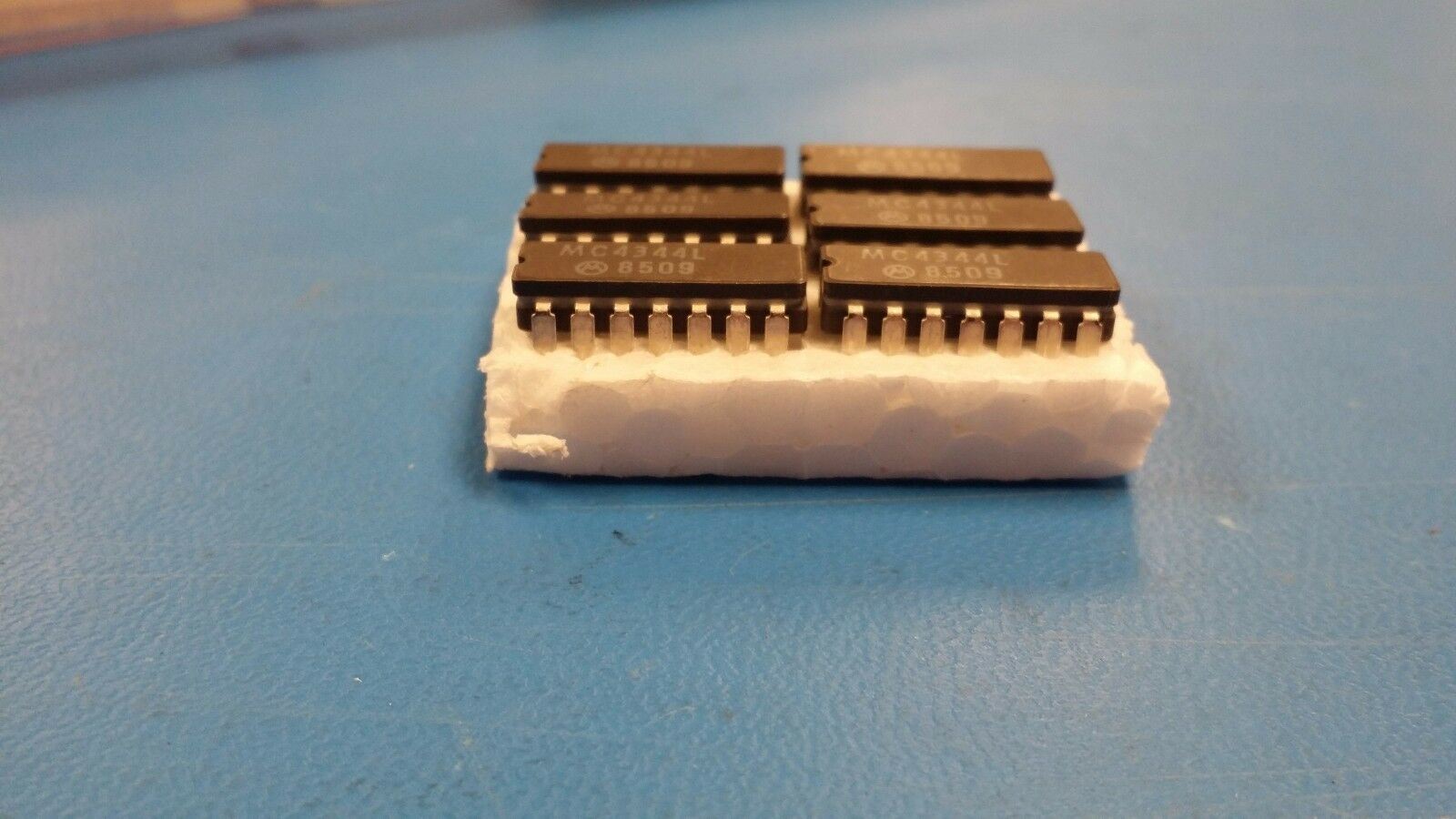

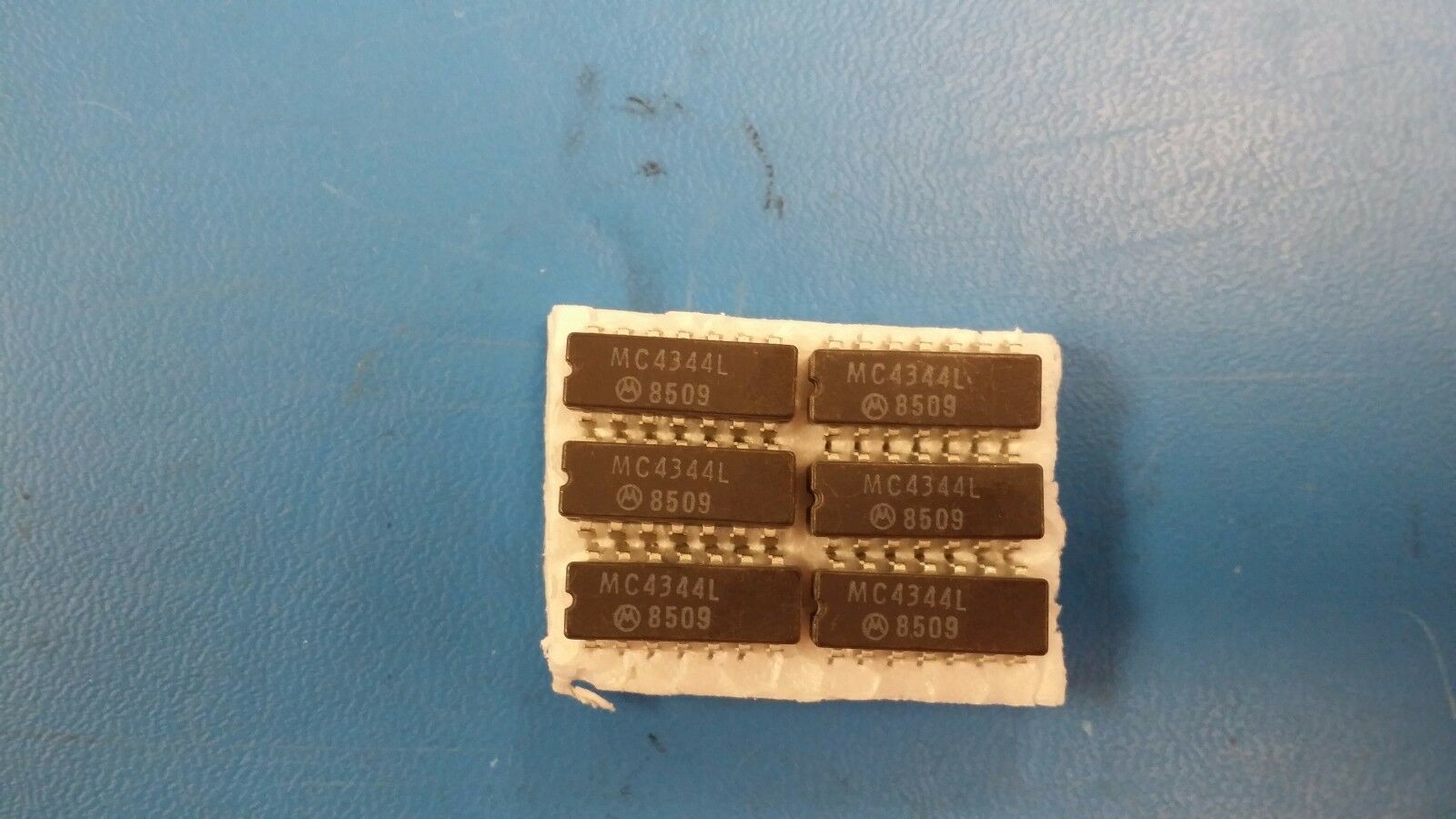

(1 PC) MC4344L TI PHASE DETECTOR, CDIP14
Tax included.
THIS LSITING IS FOR (1 PC) OF MC4344L BY TI
PHASE DETECTOR, CDIP14
Part #: MC4344L
Part Category: Other Semiconductors
Manufacturer: Motorola Solutions, Inc.
Description: PHASE DETECTOR, CDIP14
Manufacturer: Motorola Solutions, Inc.
Description: PHASE DETECTOR, CDIP14
| Mfr Package Description | 632-08 |
| Status | Discontinued |
| Analog IC - Other Type | PHASE DETECTOR |
| JESD-30 Code | R-GDIP-T14 |
| JESD-609 Code | e0 |
| Number of Functions | 1 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Sub Category | PLL or Frequency Synthesis Circuits |
| Supply Current-Max (Isup) | 40.0 mA |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 19.495 mm |
| Width | 7.62 mm |
