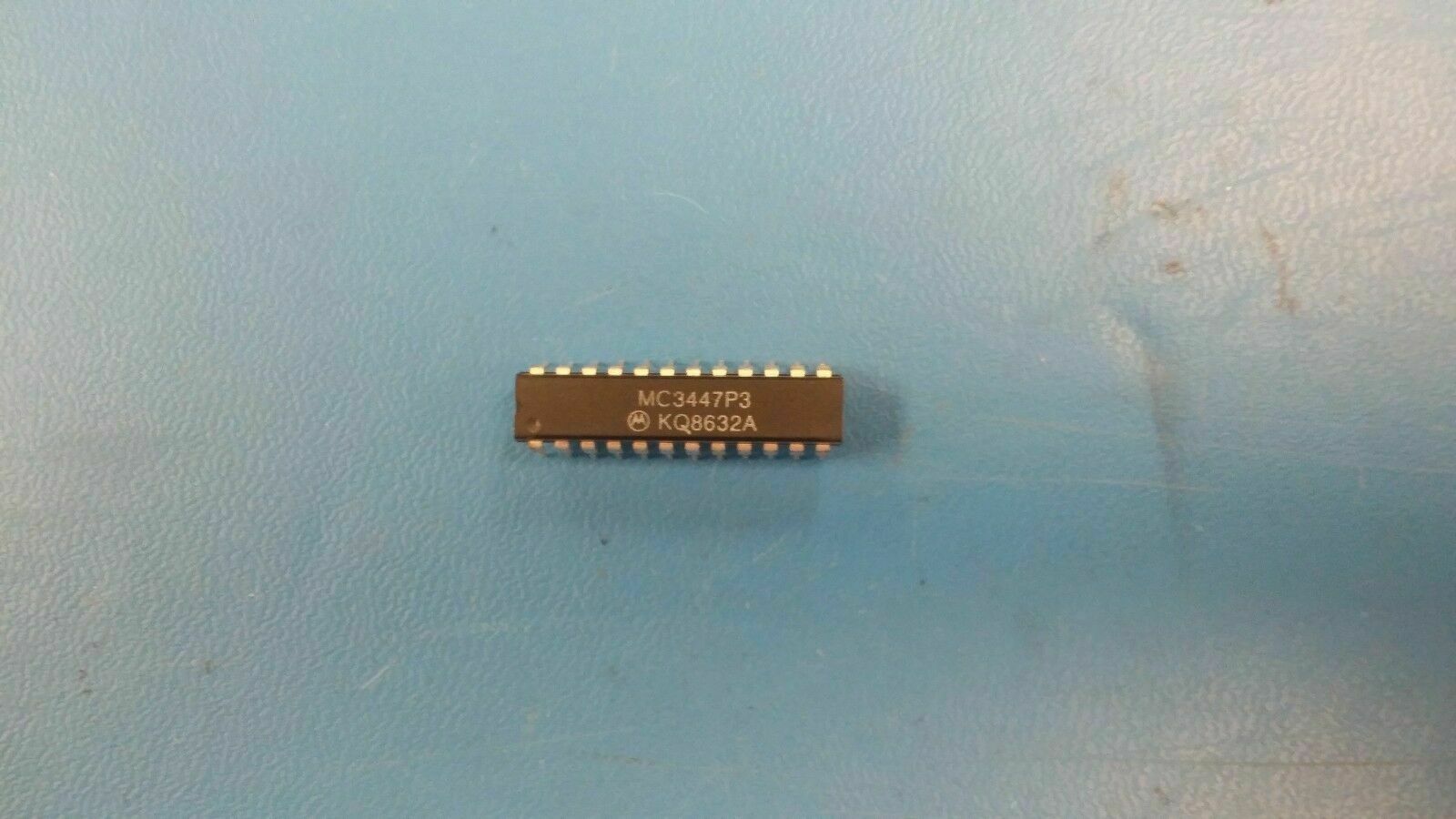

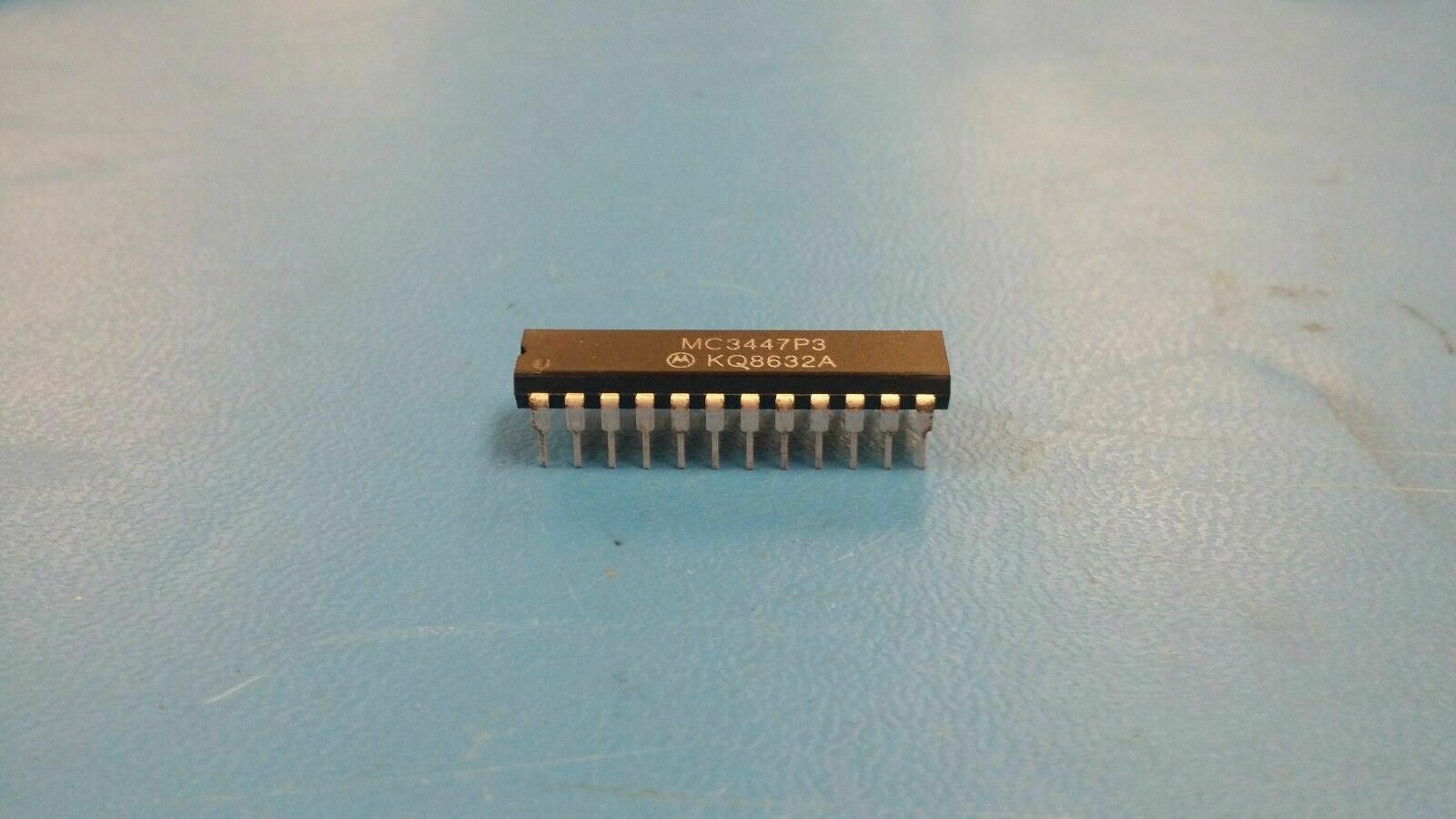

(1 PC) MC3447P3 MOT OCTAL LINE TRANSCEIVER, PDIP24
Tax included.
THIS LISTING IS FOR (1 PC) OF MC3447P3 BY MOT
OCTAL LINE TRANSCEIVER, PDIP24
Part #: MC3447P3
Part Category: Interface ICs
Manufacturer: Motorola Solutions, Inc.
Description: OCTAL LINE TRANSCEIVER, PDIP24
Manufacturer: Motorola Solutions, Inc.
Description: OCTAL LINE TRANSCEIVER, PDIP24
| Mfr Package Description | 724-03 |
| Status | Discontinued |
| Interface IC Type | LINE TRANSCEIVER |
| Differential Output | NO |
| Driver Number of Bits | 1.0 |
| Input Characteristics | STANDARD |
| Interface Standard | IEEE-488 |
| JESD-30 Code | R-PDIP-T24 |
| JESD-609 Code | e0 |
| Number of Functions | 8 |
| Number of Terminals | 24 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 30.0 ns |
| Receiver Number of Bits | 1.0 |
| Seated Height-Max | 4.44 mm |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Max | 5.5 V |
| Surface Mount | NO |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transmit Delay-Max | 30.0 ns |
