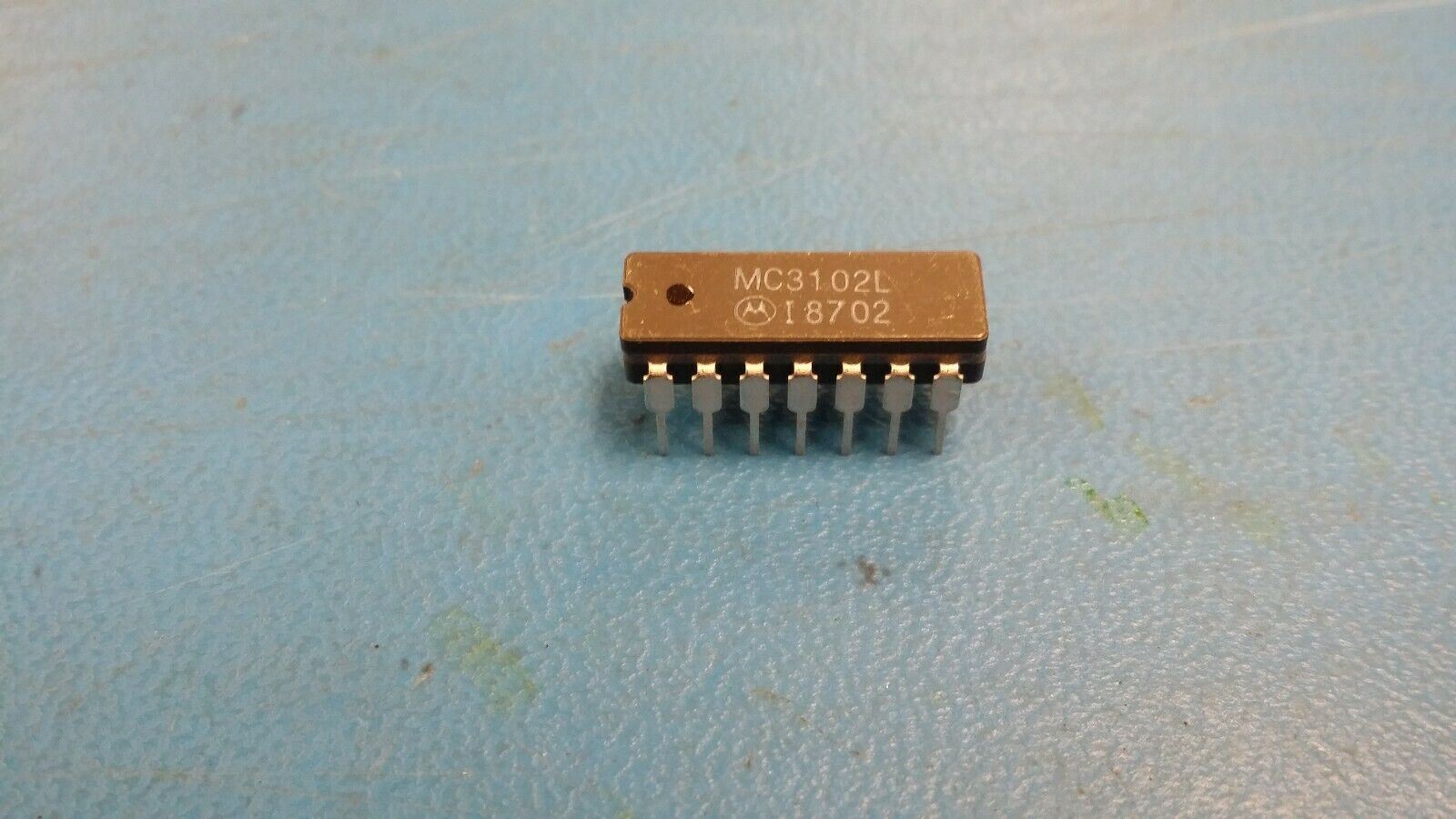

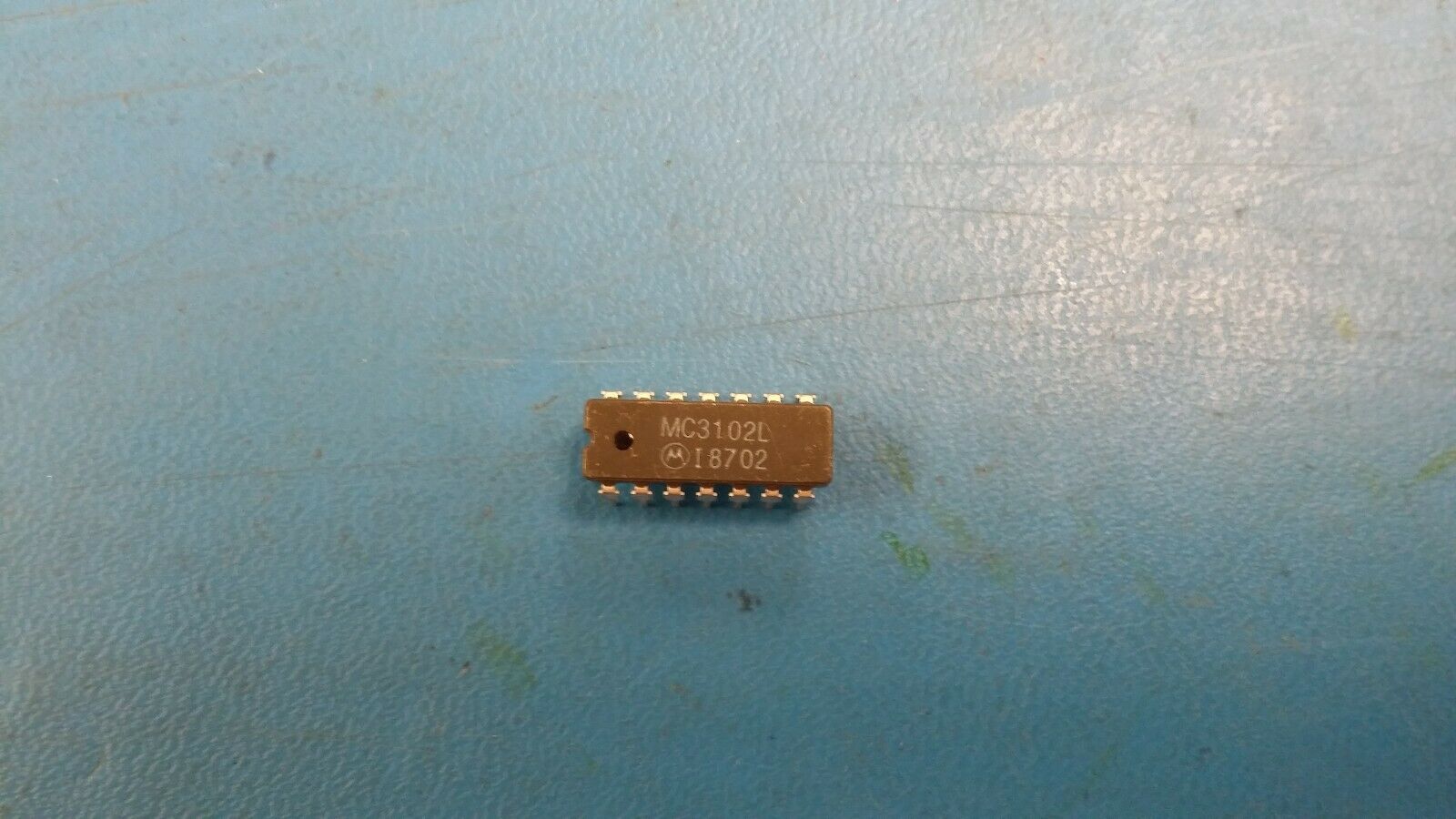

(1 PC) MC3102L MOT NOR Gate, 4-Func, 2-Input, CDIP14
Tax included.
THIS LISTING IS FOR (1 PC) OF MC3102L BY MOT
NOR Gate, 4-Func, 2-Input, CDIP14
Part #: MC3102L
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: NOR Gate, MC31 Series, 4-Func, 2-Input, CDIP14
Manufacturer: Motorola Solutions, Inc.
Description: NOR Gate, MC31 Series, 4-Func, 2-Input, CDIP14
| Mfr Package Description | DIP-14 |
| Status | Discontinued |
| Logic IC Type | NOR GATE |
| Family | MC31 |
| JESD-30 Code | R-GDIP-T14 |
| JESD-609 Code | e0 |
| Number of Functions | 4 |
| Number of Inputs | 2.0 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Propagation Delay (tpd) | 10.0 ns |
| Qualification Status | Not Qualified |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | DUAL |
