(1 PC) MC1458U MOT DUAL OP-AMP, 6000uV OFFSET-MAX, 1.1MHz BAND WIDTH, CDIP8
Tax included.

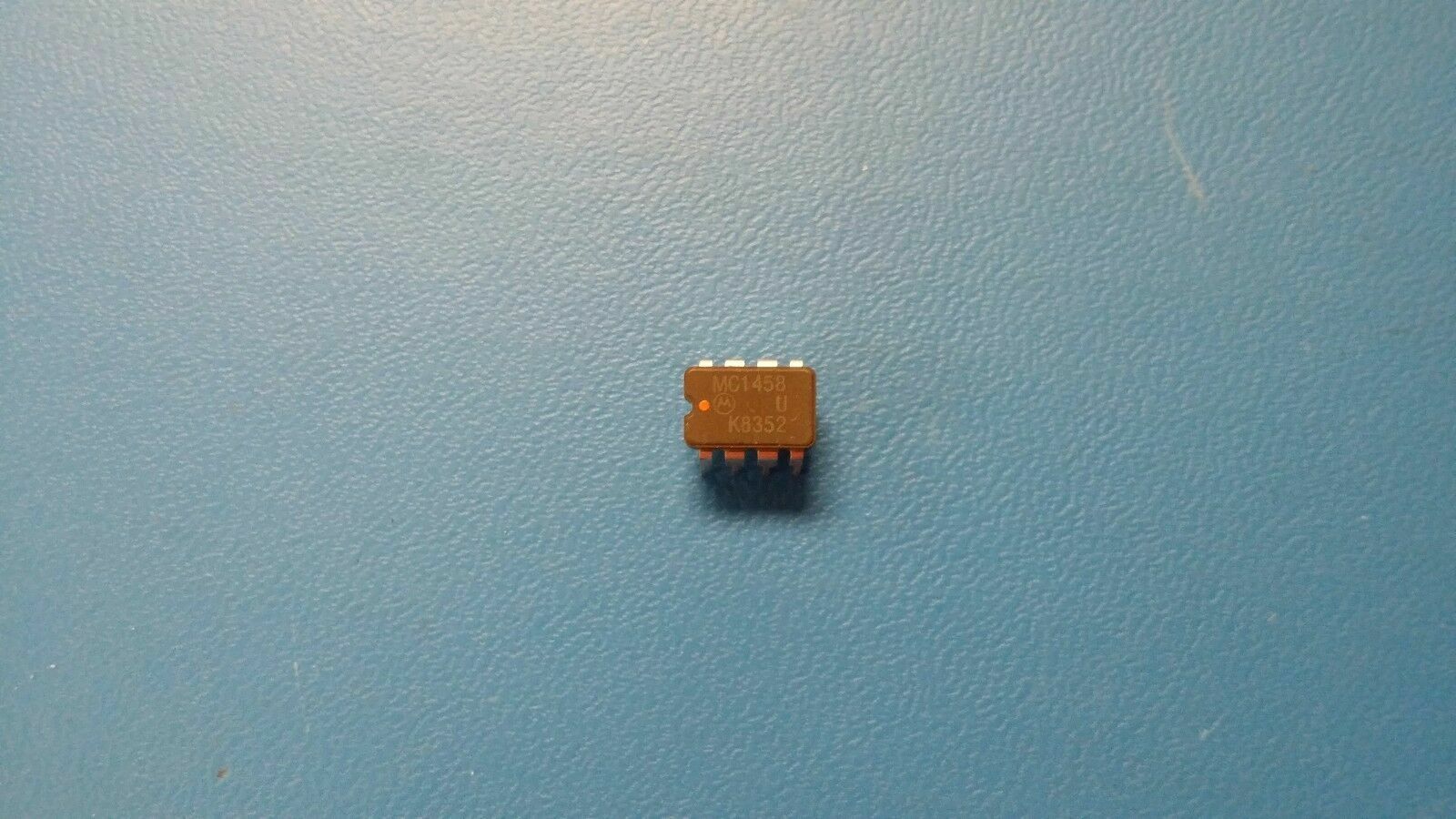

THIS LISTING IS FOR (1 PC) OF MC1458U BY MOTOROLA
DUAL MOT OP-AMP, 6000uV OFFSET-MAX, 1.1MHz BAND WIDTH, CDIP8
Part #: MC1458U
Part Category: Amplifiers
Manufacturer: Motorola Solutions, Inc.
Description: Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, CDIP8
Mfr Package Description CERAMIC, DIP-8
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.5 µA
Common-mode Reject Ratio-Nom 90.0 dB
Common-mode Reject Ratio-Min 70.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 6000.0 µV
JESD-30 Code R-GDIP-T8
JESD-609 Code e0
Low-Offset NO
Neg Supply Voltage Limit-Max -18.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Slew Rate-Nom 5.0 V/us
Sub Category Operational Amplifier
Supply Current-Max 5.6 mA
Supply Voltage Limit-Max 18.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 1100.0 kHz
Voltage Gain-Min 20000.0
Length 10.415 mm
Width 7.62 mm
