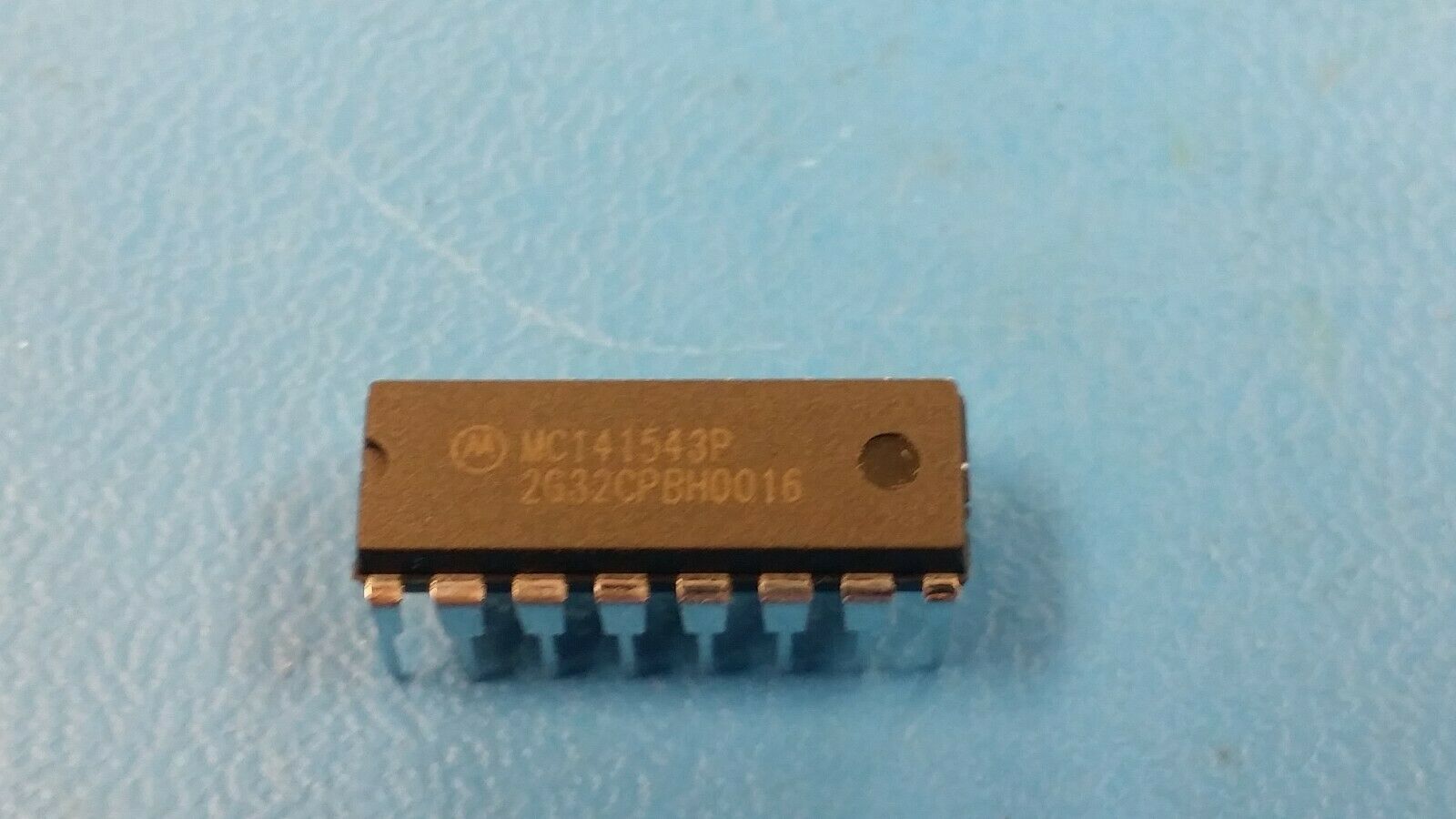

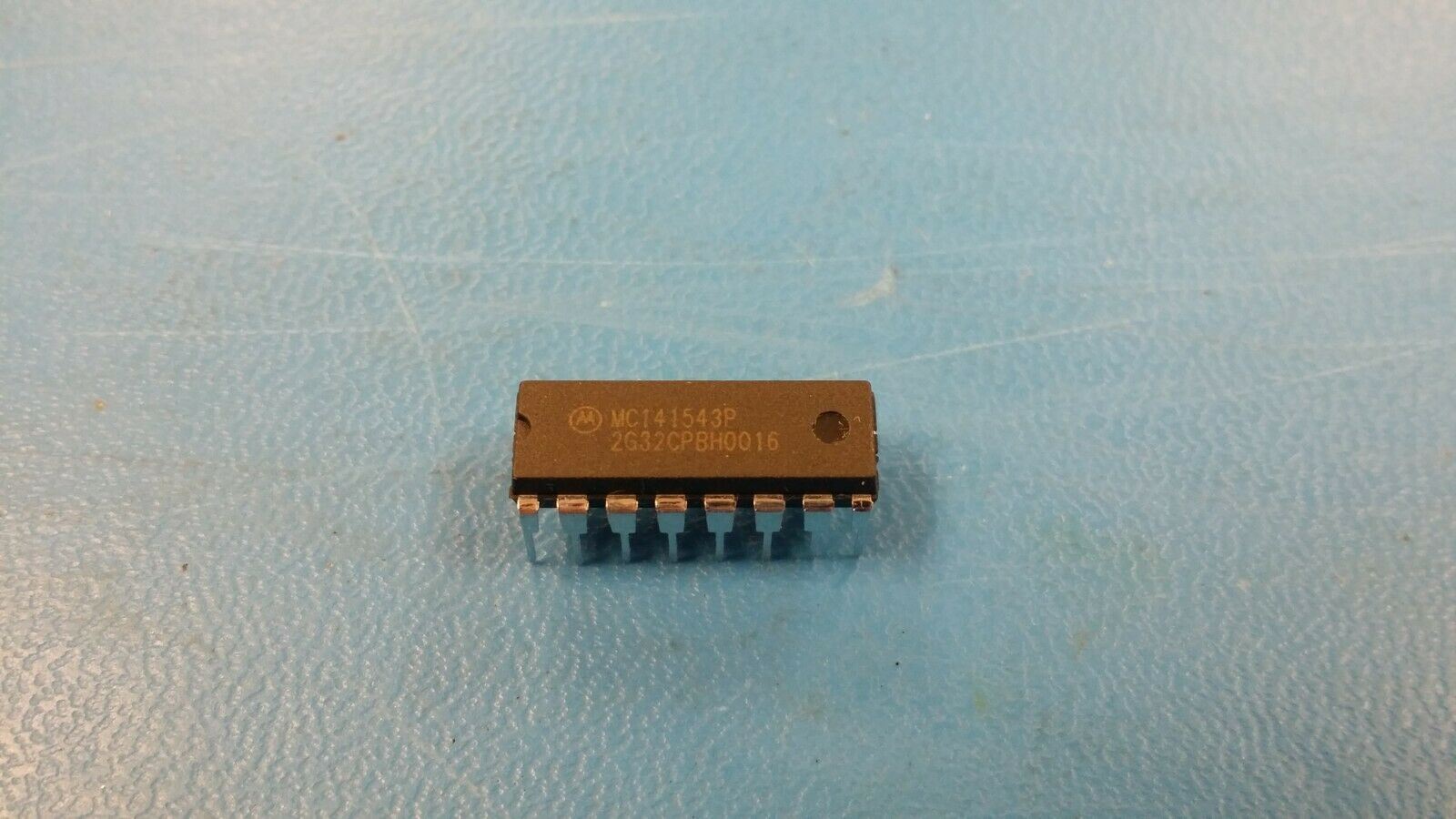

(1 PC) MC141543P MOT Advanced Monitor On-Screen Display IC, CMOS, PDIP16
Tax included.
THIS LISTING IS FOR (1 PC) OF MC141543P BY MOT
Advanced Monitor On-Screen Display IC, CMOS, PDIP16
Part #: MC141543P
Part Category: Consumer ICs
Manufacturer: Motorola Solutions, Inc.
Description: On-Screen Display IC, CMOS, PDIP16
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Consumer IC Type ON-SCREEN DISPLAY IC
Application MONITOR
Character Array Size 10 X 16
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 4.44 mm
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 19.175 mm
Width 7.62 mm
