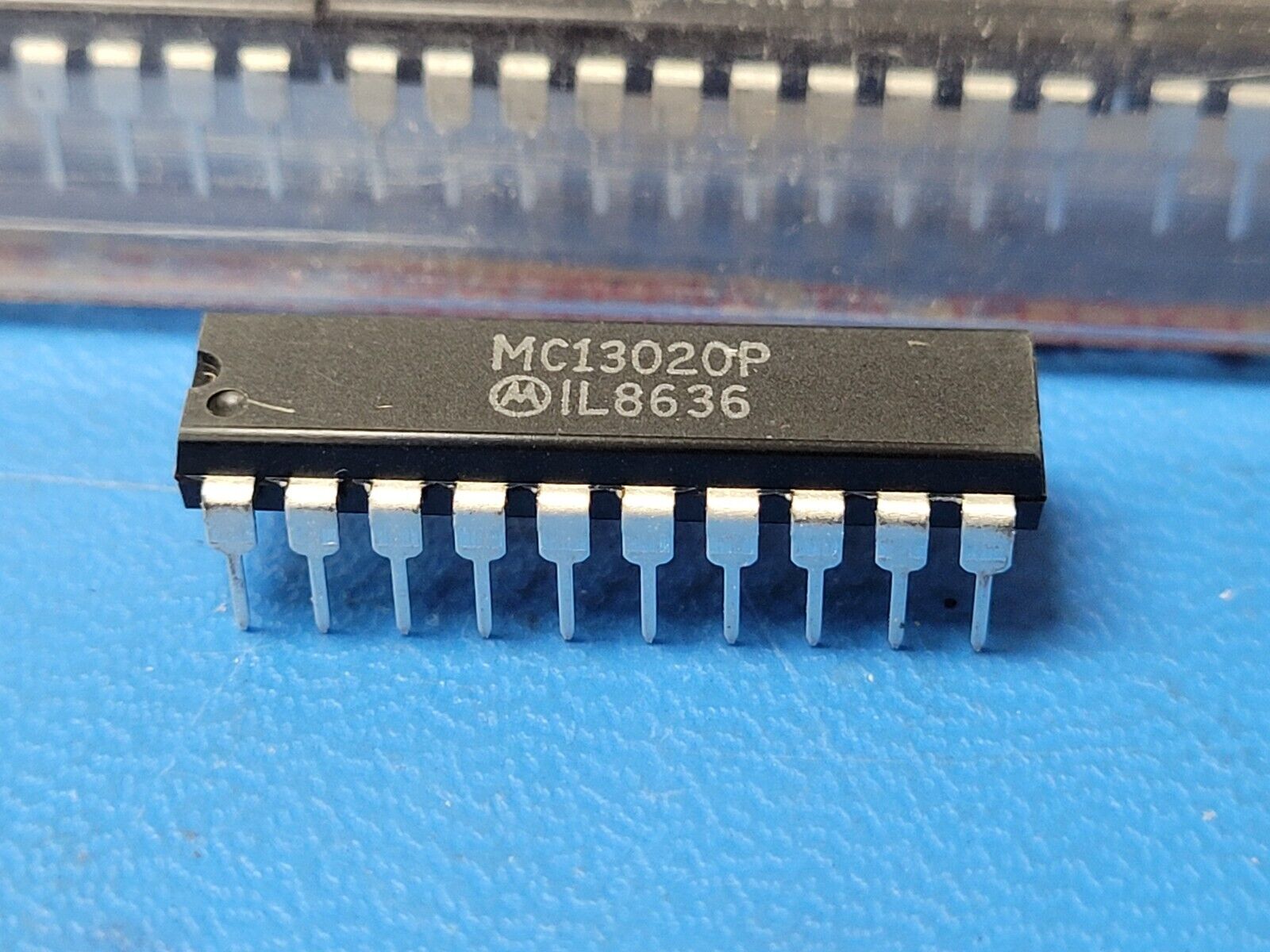

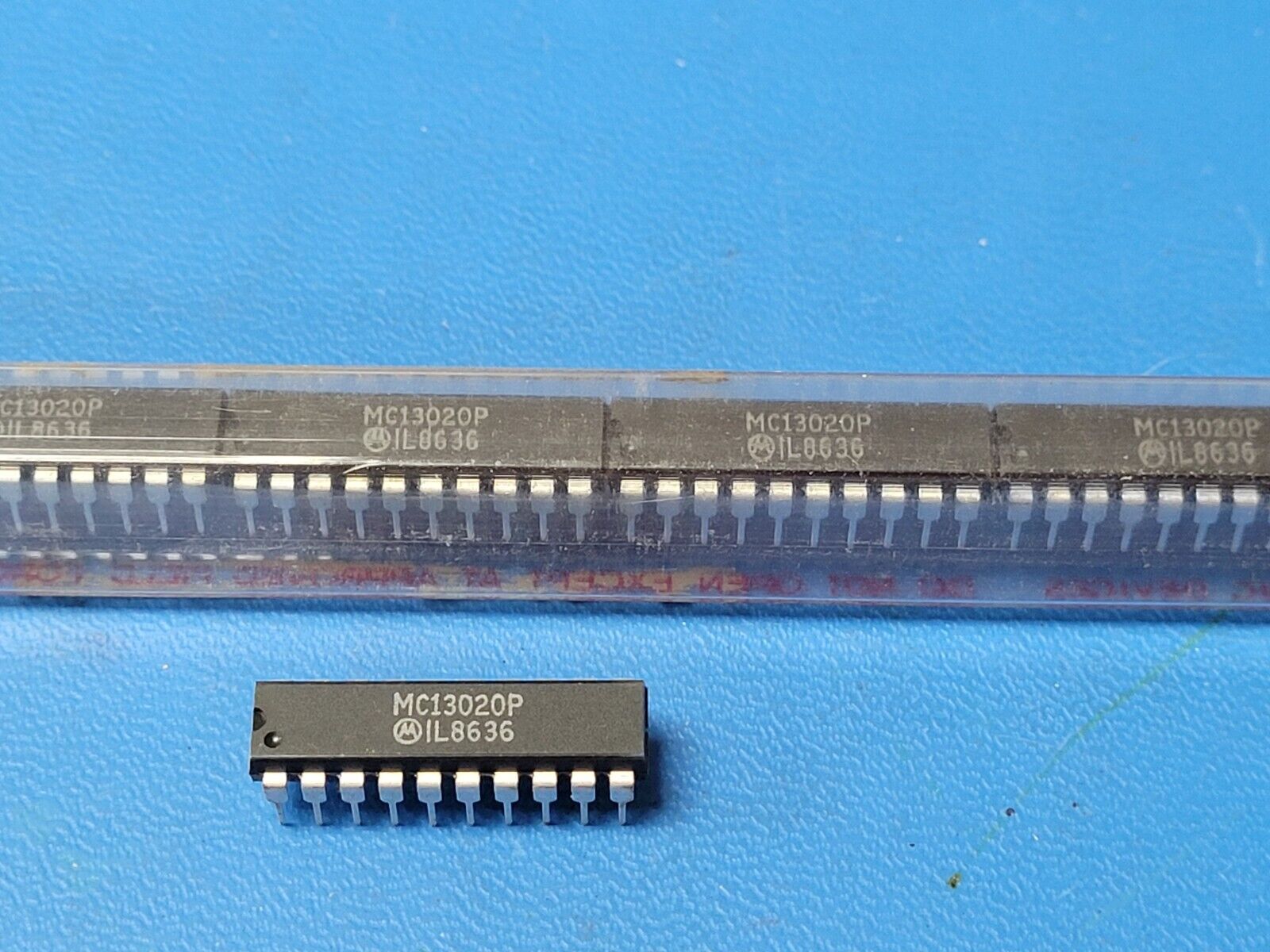

(1 PC) MC13020P MOT Audio Demodulator, AM, PDIP20 VINTAGE
Tax included.
THIS IS FOR (1 PC) OF MC13020P BY MOT
Audio Demodulator, AM, PDIP20 VINTAGE
Part #: MC13020P
Part Category: Consumer ICs
Manufacturer: Motorola Solutions, Inc.
Description: Audio Demodulator, AM, PDIP20
Mfr Package Description PLASTIC, DIP-20
Status Discontinued
Consumer IC Type AUDIO DEMODULATOR
Demodulation Type AM
Harmonic Distortion 1.0 %
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Number of Functions 1
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Voltage-Nom (AM) 220.0 mV
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Supply Voltage-Min (Vsup) 6.0 V
Supply Voltage-Max (Vsup) 10.0 V
Surface Mount NO
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 26.415 mm
Width 7.62 mm
