(1 PC) M5LV-320/160-10HC LATTICE/AMD EE PLD, 16ns, 320-Cell, CMOS, PQFP208

$12.95
Unit price per

Tax included.

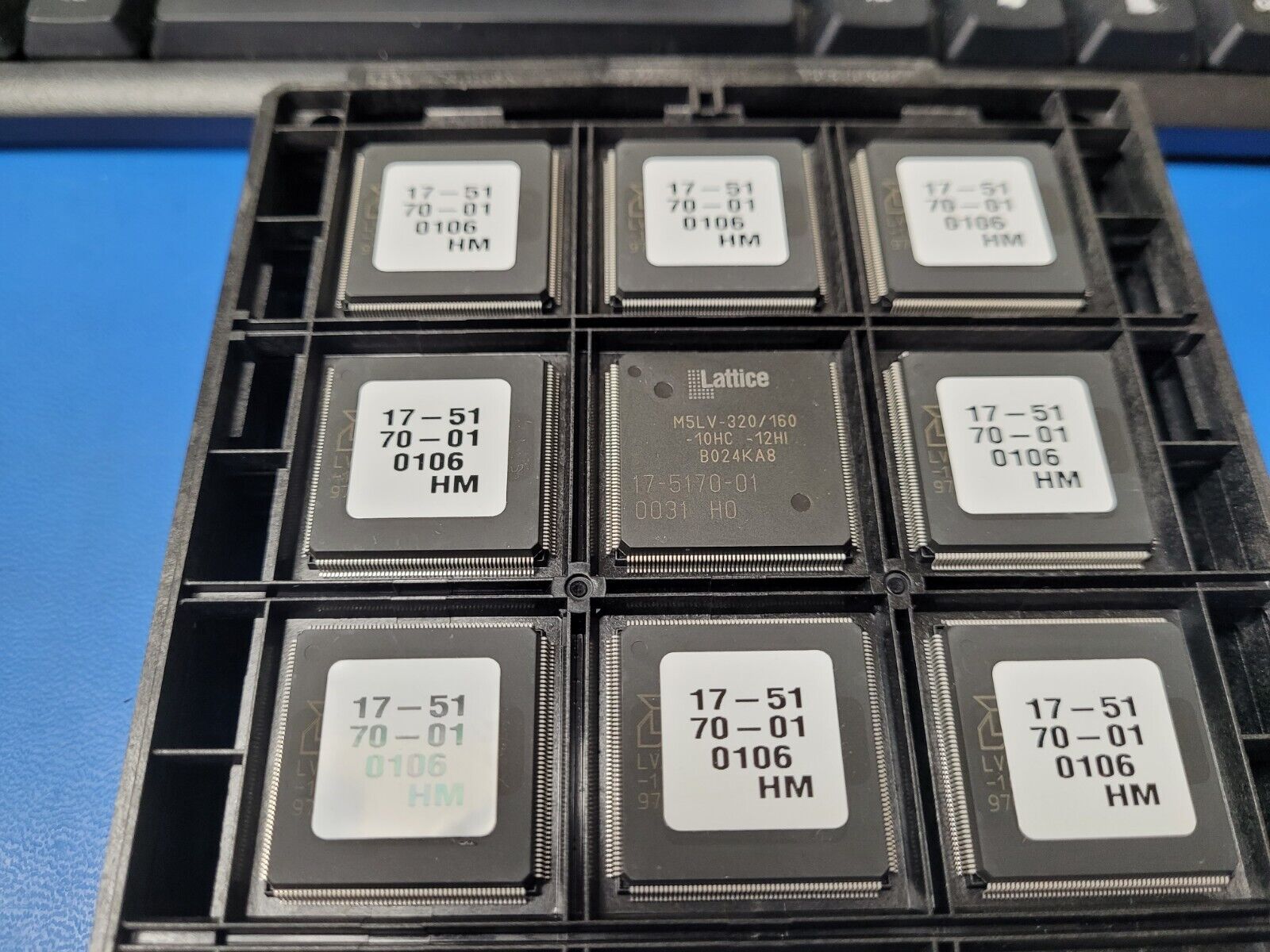

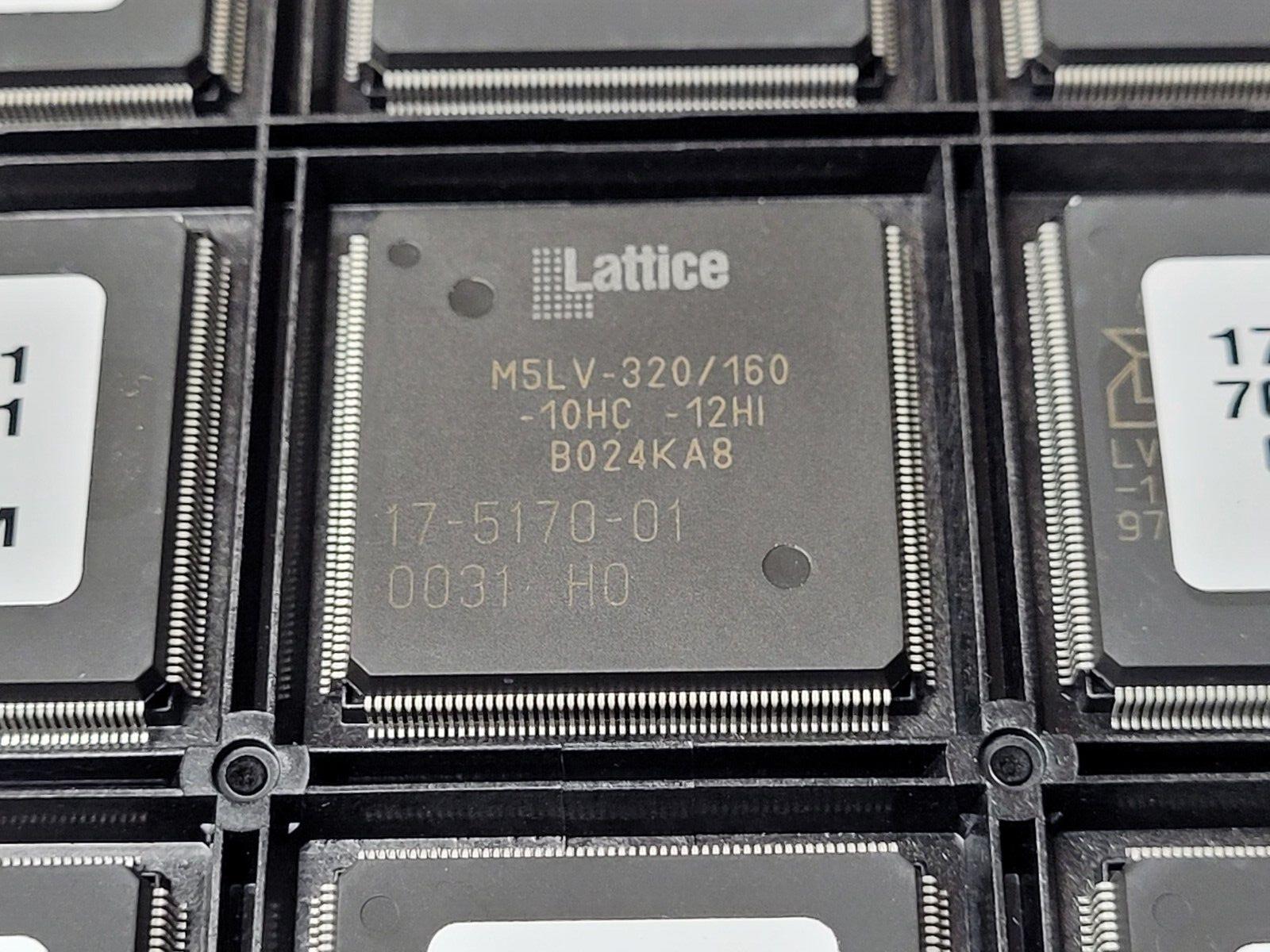

THIS IS FOR (1 PC) OF M5LV-320/160-10HC BY LATTICE

EE PLD, 16ns, 320-Cell, CMOS, PQFP208

Part #: M5LV-320/160-10HC

Part Category: Programmable Logic ICs

Manufacturer: Lattice Semiconductor Corporation

Description: EE PLD, 16ns, 320-Cell, CMOS, PQFP208

Status Transferred

Programmable Logic Type EE PLD

Clock Frequency-Max 83.0 MHz

In-System Programmable YES

JESD-30 Code S-PQFP-G208

JESD-609 Code e0

JTAG BST YES

Number of Dedicated Inputs 0.0

Number of I/O Lines 160.0

Number of Macro Cells 320.0

Number of Terminals 208

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Organization 0 DEDICATED INPUTS, 160 I/O

Output Function MACROCELL

Package Body Material PLASTIC/EPOXY

Package Code HLFQFP

Package Equivalence Code HQFP208,1.2SQ,20

Package Shape SQUARE

Package Style FLATPACK

Power Supplies 3.3

Propagation Delay 16.0 ns

Qualification Status Not Qualified

Sub Category Programmable Logic Devices

Supply Voltage-Nom 3.3 V

Supply Voltage-Min 3.0 V

Supply Voltage-Max 3.6 V

Surface Mount YES

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 0.5 mm

Terminal Position QUAD

Additional Feature YES
