(1 PC) M51849L MITSUBISHI 1 Func, BIPolar, PSIP8
Tax included.

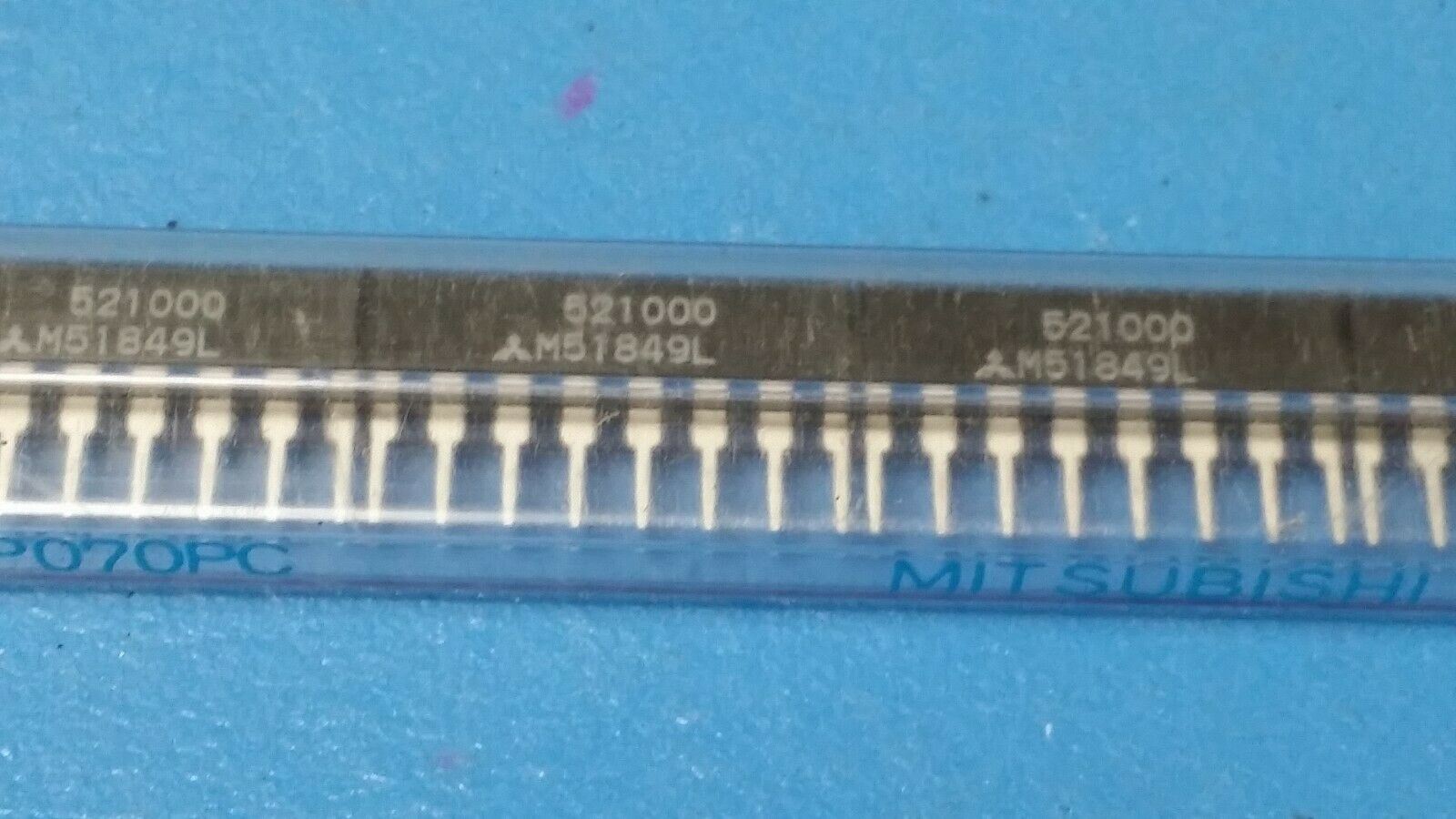

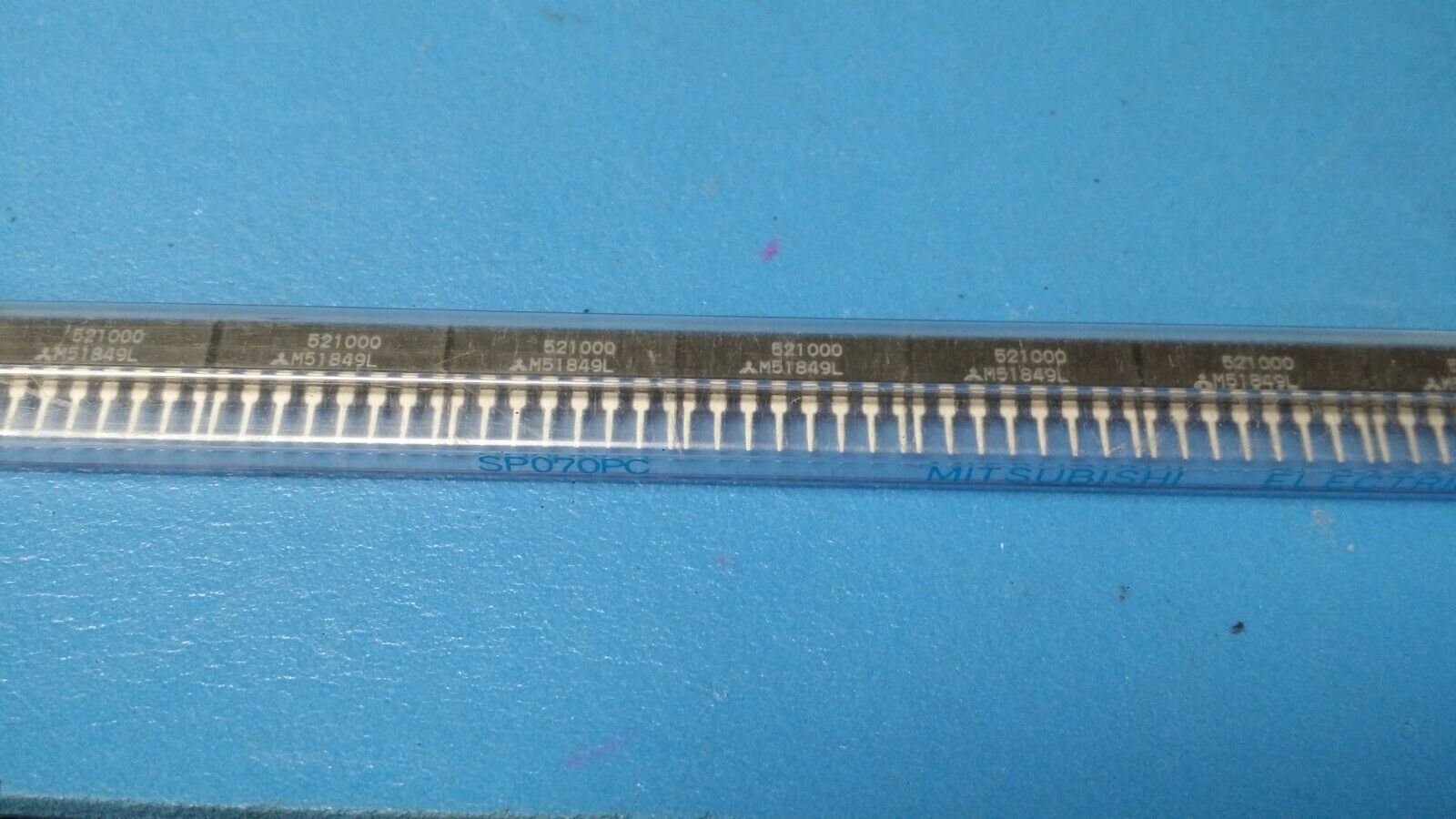

THIS IS FOR (1 PC) OF M51849L BY MITSUBISHI
1 Func, BIPolar, PSIP8
Part #: M51849L
Part Category: Other Semiconductors
Manufacturer: Mitsubishi Electric & Electronics USA, Inc.
Description: 1 Func, BIPolar, PSIP8
Mfr Package Description 8P5
Status Discontinued
Analog IC - Other Type RECTANGULAR
JESD-30 Code R-PSIP-T8
JESD-609 Code e0
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 60.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SIP
Package Equivalence Code SIP8,.06
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 8.3 mm
Sub Category Analog Waveform Generation Functions
Supply Voltage-Nom (Vsup) 6.0 V
Supply Voltage-Min (Vsup) 5.0 V
Supply Voltage-Max (Vsup) 6.4 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 19.0 mm
Width 2.8 mm
