(1 PC) M4LV-64/32-7JC VANTIS/LATTICE EE PLD, 7.5ns, 64-Cell, CMOS, PLCC44
Tax included.

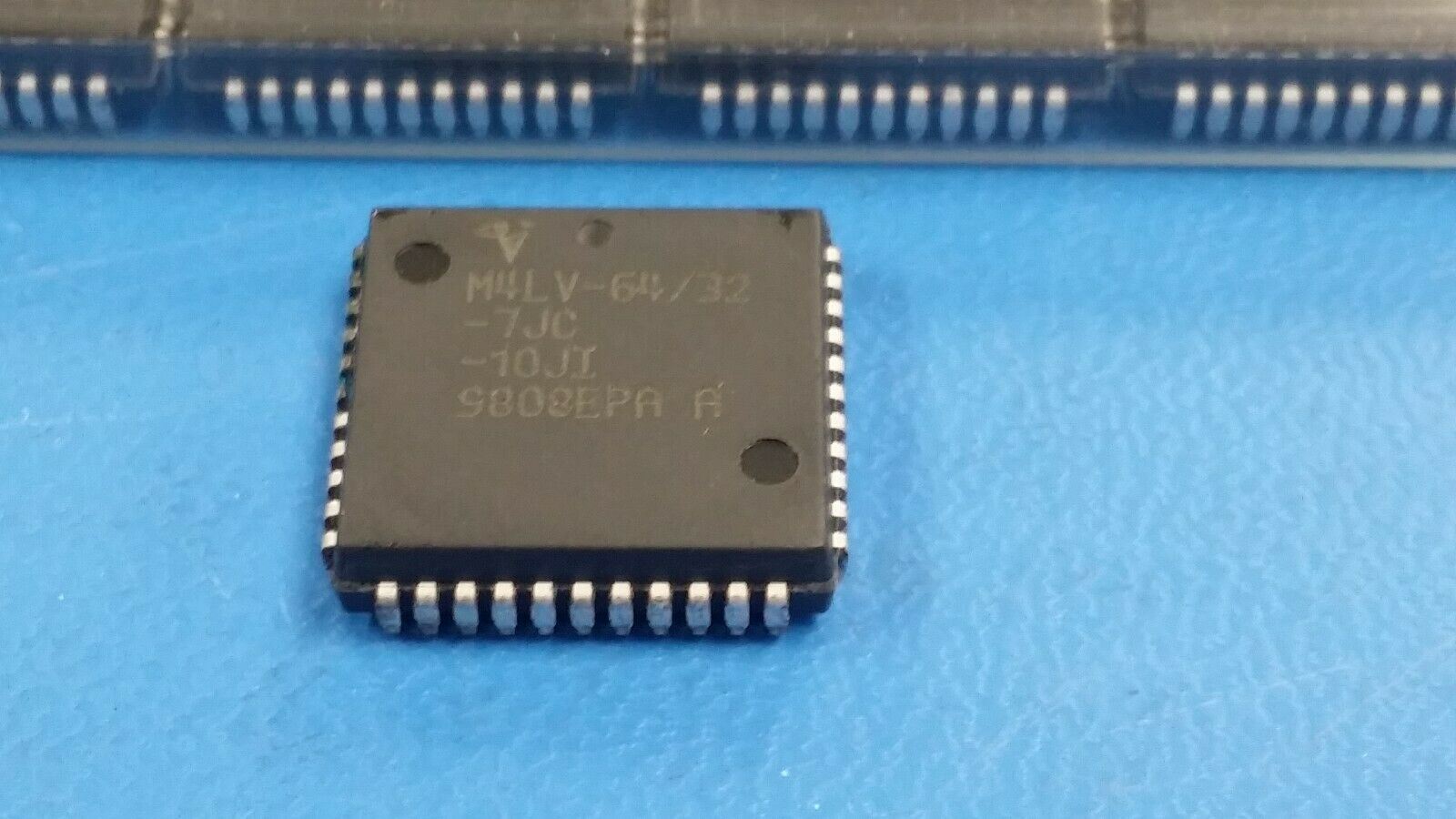

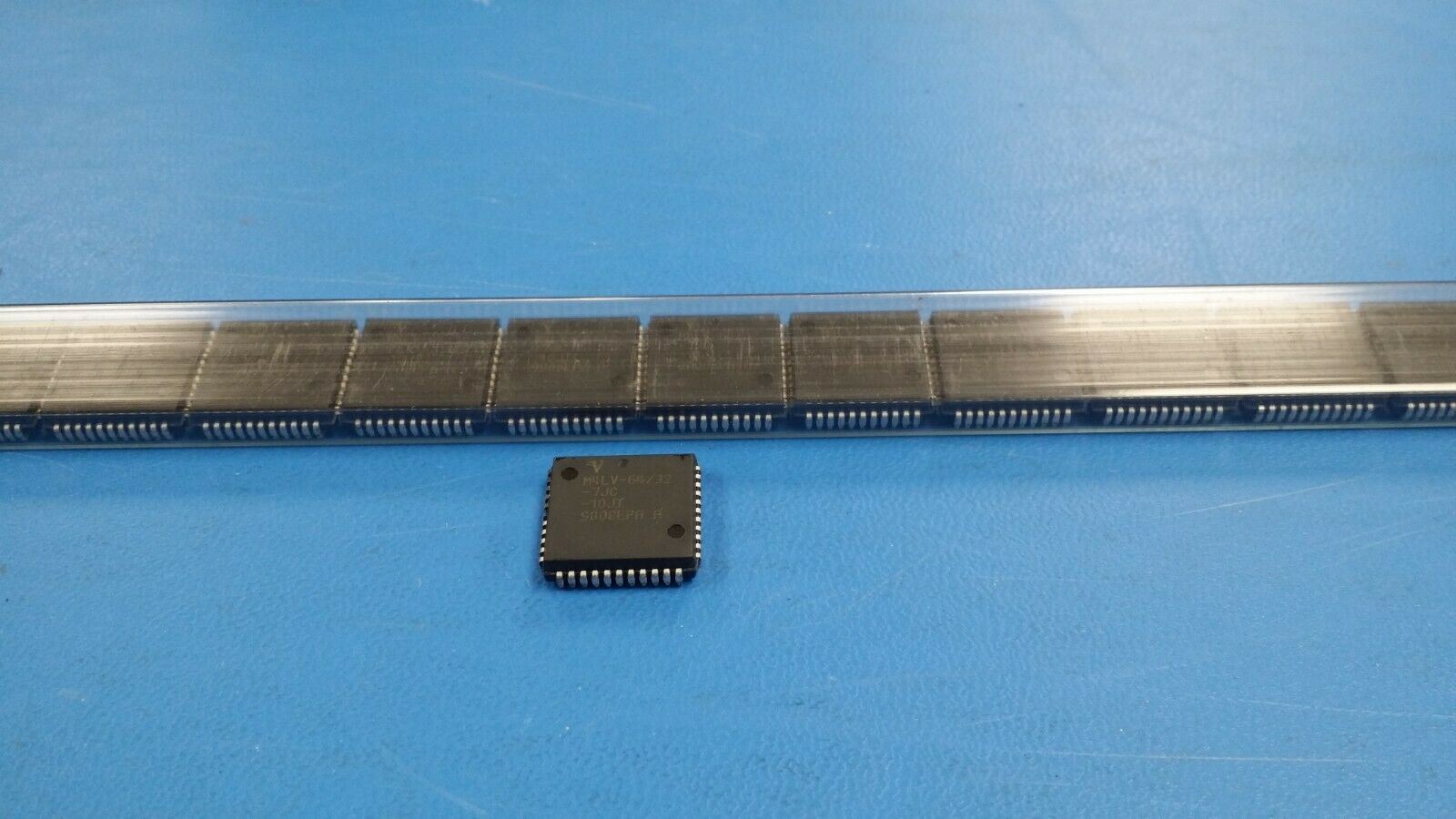

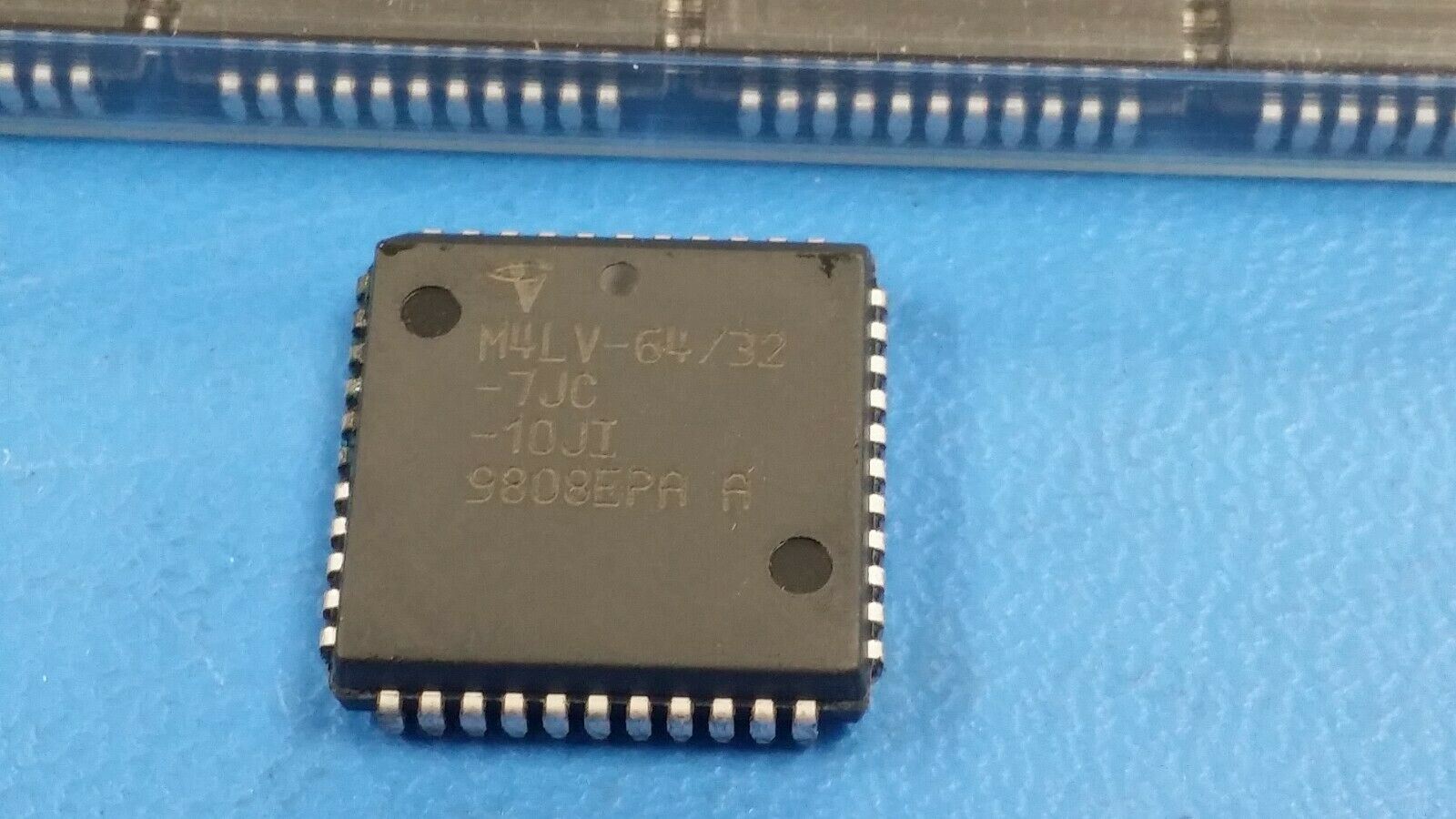

THIS LISTING IS FOR (1 PC) OF M4LV-64/32-7JC BY VANTIS/LATTICE
EE PLD, 7.5ns, 64-Cell, CMOS, PLCC44
Part #: M4LV-64/32-7JC
Part Category: Programmable Logic ICs
Manufacturer: Lattice Semiconductor Corporation
Description: EE PLD, 7.5ns, 64-Cell, CMOS, PQCC44
Status Transferred
Programmable Logic Type EE PLD
Clock Frequency-Max 133.0 MHz
In-System Programmable YES
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
JTAG BST YES
Number of Dedicated Inputs 2.0
Number of I/O Lines 32.0
Number of Macro Cells 64.0
Number of Terminals 44
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 2 DEDICATED INPUTS, 32 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 3.3
Propagation Delay 7.5 ns
Qualification Status Not Qualified
Sub Category Programmable Logic Devices
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Additional Feature YES
