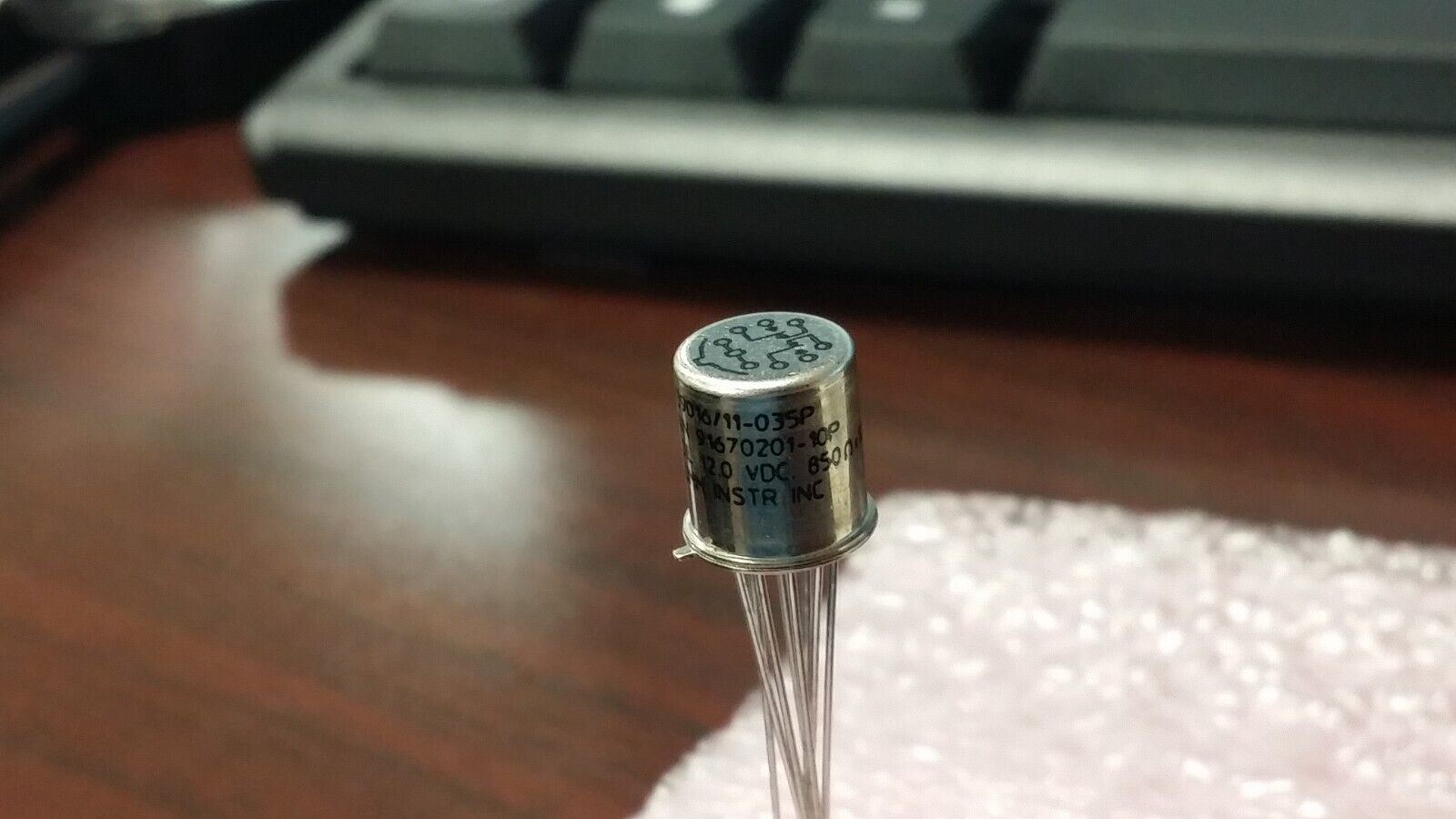

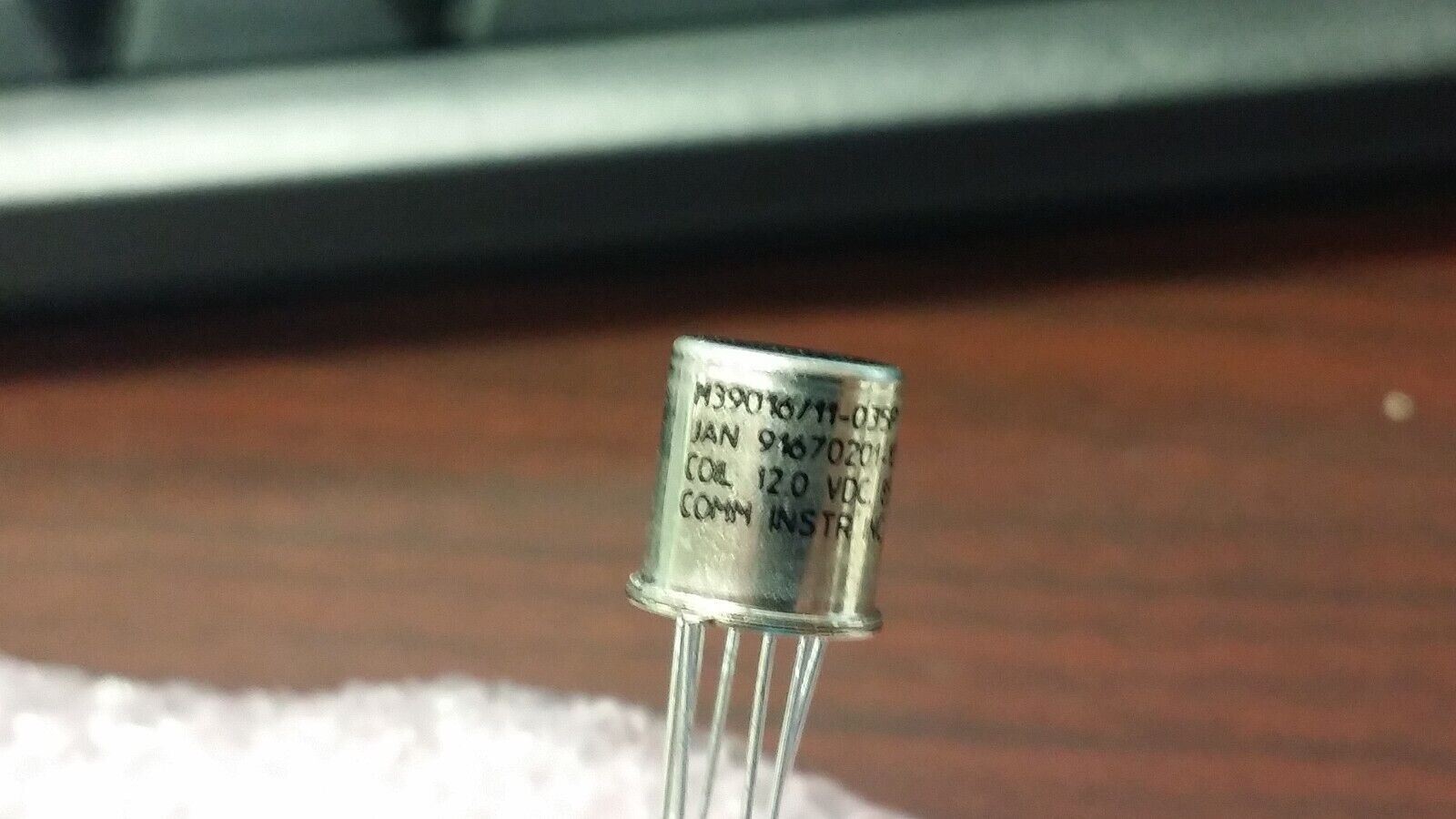

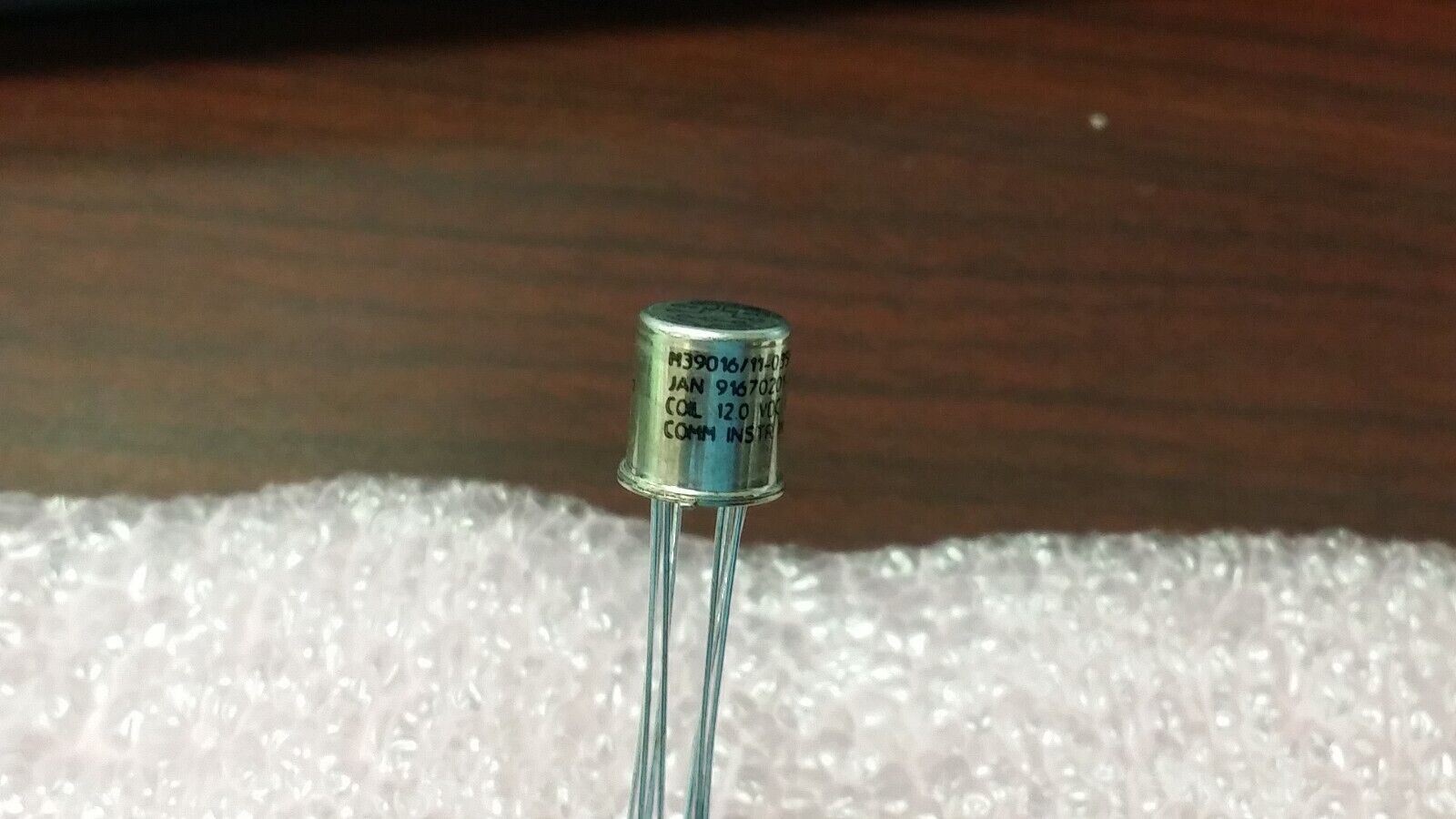

(1 PC) JMSC-12XP=M39016/11-035P Electromechanical Relay 12VDC 850Ohm 1A DPDT
Tax included.
THIS IS FOR (1 PC) OF M39016/11-035P BY CCI
Electromechanical Relay 12VDC 850Ohm 1A DPDT
Status Discontinued
Relay Type POWER/SIGNAL RELAY
Body Breadth 8.51 mm
Body Height 12.52 mm
Body Length or Diameter 9.4 mm
Coil Current(DC)-Max 0.014 A
Coil/Input Supply Type DC
Coil Operate Voltage(DC) 7.0 V
Coil Release Voltage(DC) 0.64 V
Coil Resistance 850.0 ohm
Coil Voltage(DC)-Max 12.0 V
Contact AC Max Rating R Load .1A@115VAC
Contact Current(AC)-Max 0.1 A
Contact Current(DC)-Max 1.0 A
Contact DC Max Rating R Load 1A@28VDC
Contact/Output Supply Type AC/DC
Contact Voltage(AC)-Max 115.0 V
Contact Voltage(DC)-Max 28.0 V
Electrical Life 100000.0 Cycle(s)
Mounting Feature PANEL MOUNT
Operate Time 4.0 ms
Operating Temperature-Min -65.0 Cel
Operating Temperature-Max 125.0 Cel
Physical Dimension 9.4mm x 8.51mm x 12.52mm
Reference Standard MIL-PRF-39016/11
Relay Action MOMENTARY
Relay Function DPDT
Release Time 2.0 ms
Sealing HERMETICALLY SEALED
Termination Type WIRE WRAP
