(1 PC) M38039FFHP Microcontroller 8-Bit FLASH MELPS740 CPU 8.4MHz CMOS PQFP64
Tax included.

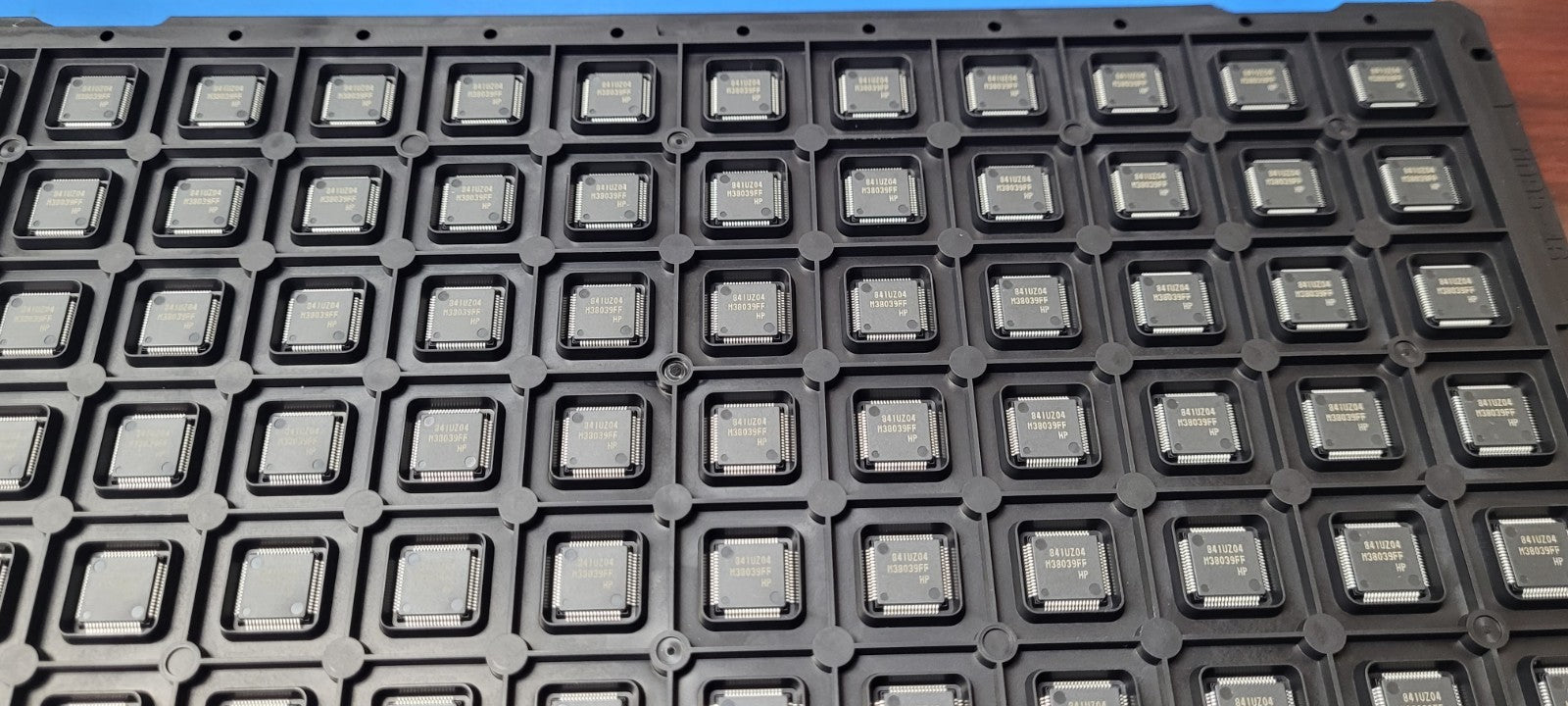

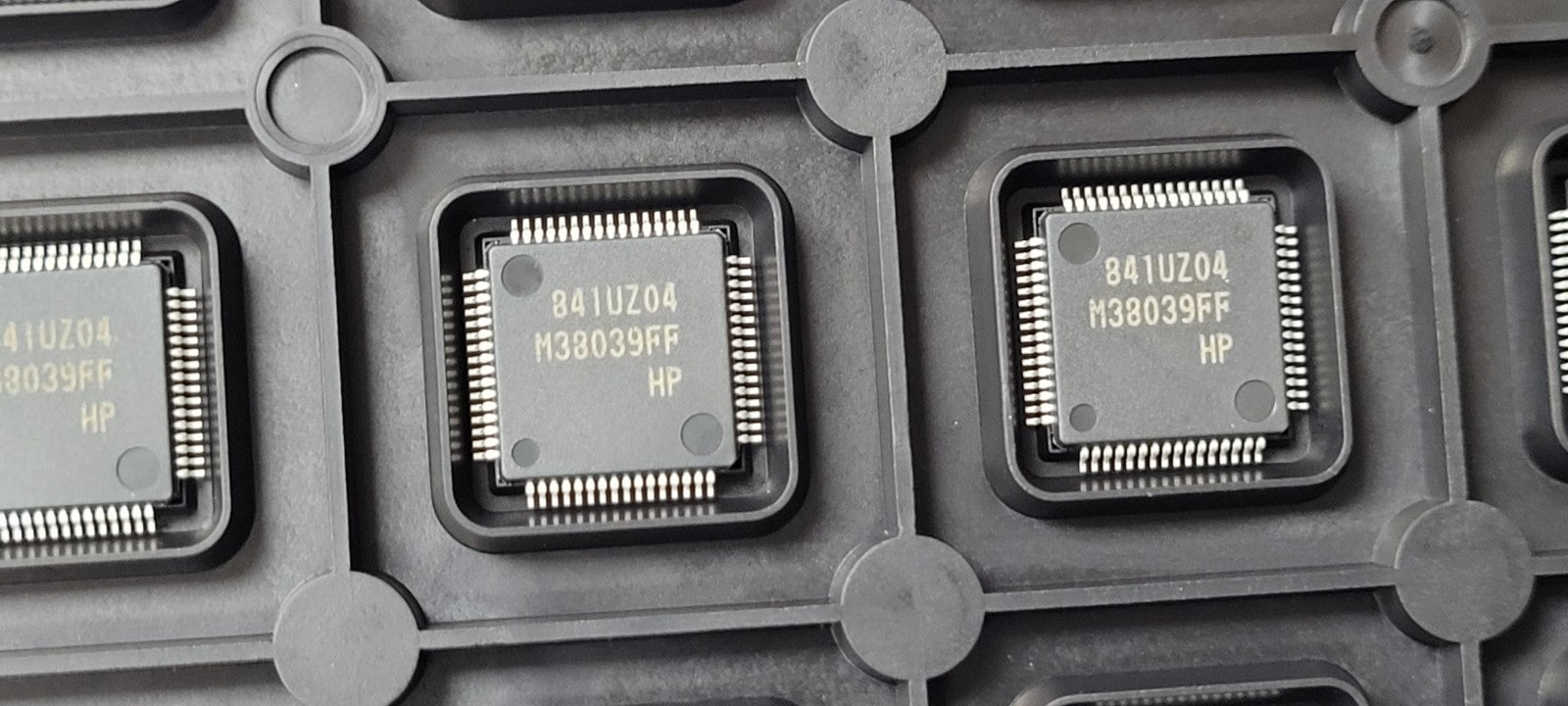

THIS IS FOR (1 PC) OF M38039FFHP BY REN
Microcontroller 8-Bit FLASH MELPS740 CPU 8.4MHz CMOS PQFP64
Part #: M38039FFHP
Obsolete
Part Category: Microcontrollers
Manufacturer: RENESAS TECHNOLOGY CORP
Description: Microcontroller, 8-Bit, FLASH, MELPS740 CPU, 8.4MHz, CMOS, PQFP64
Status Discontinued
ADC Channels YES
Additional Feature ALSO OPERATES AT 1.8V SUPPLY
Address Bus Width 0
Bit Size 8
Boundary Scan NO
CPU Family MELPS740
Clock Frequency-Max (MHz) 16.8000000000000000
DAC Channels NO
DMA Channels NO
External Data Bus Width 0
JESD-30 Code S-PQFP-G64
J-STD-609 Code e2
Length (mm) 10.0000
Moisture Sensitivity Level 3
Number of I/O Lines 56
Number of Terminals 64
Program Memory Width (bits) 8
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -20.0000
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
DLA Qualification Not Qualified
Data RAM Size (bytes) 2048
Program Memory Size (words) 61440
Program Memory Type FLASH
Seated Height-Max (mm) 1.7000
Speed (MHz) 8.40000000
Supply Current-Max (mA) 22.00000000
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 5.0000
Supply Voltage-Nom (V) 5.0000
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Copper (Sn/Cu)
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Width (mm) 10.0000
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
