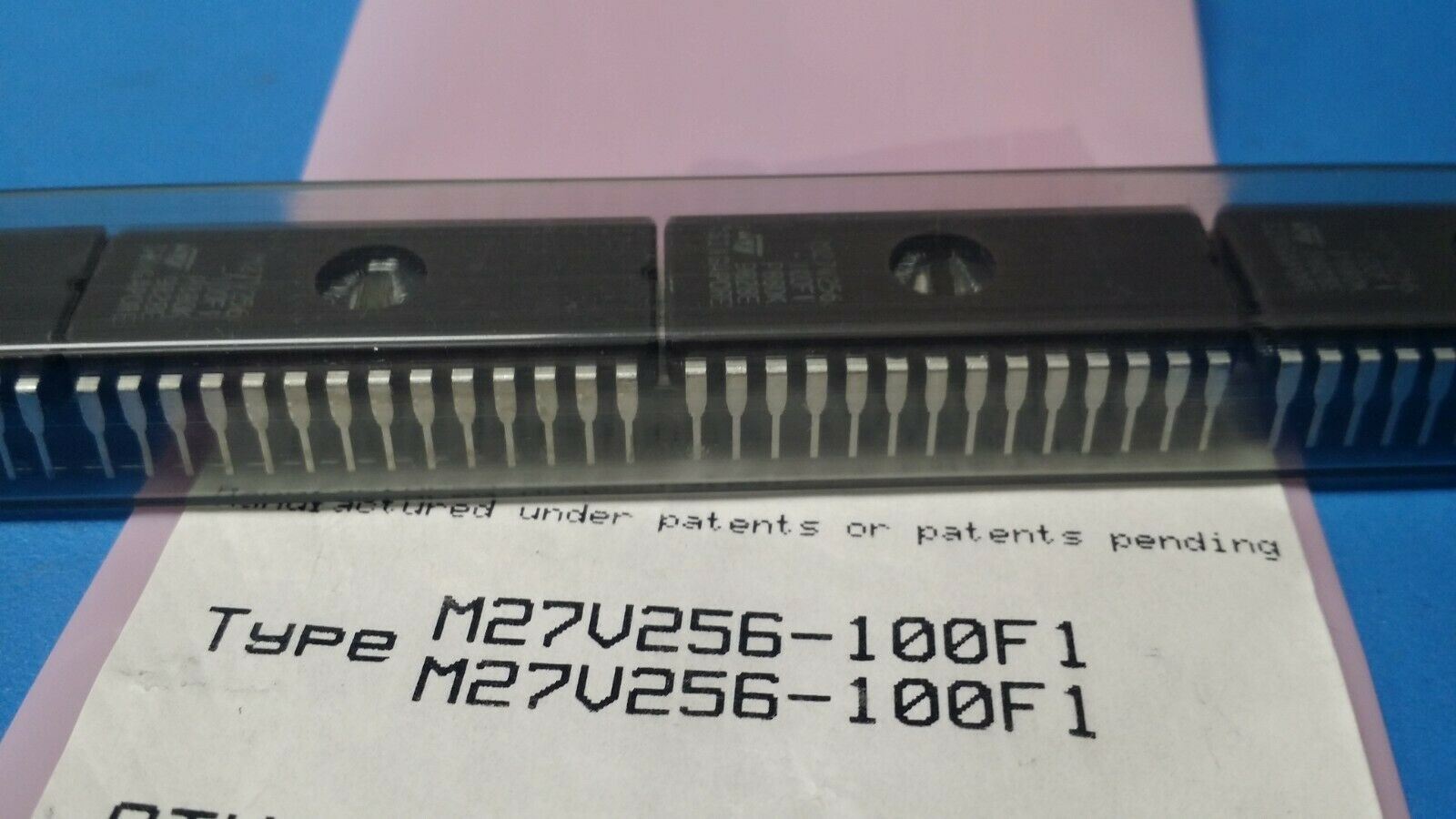

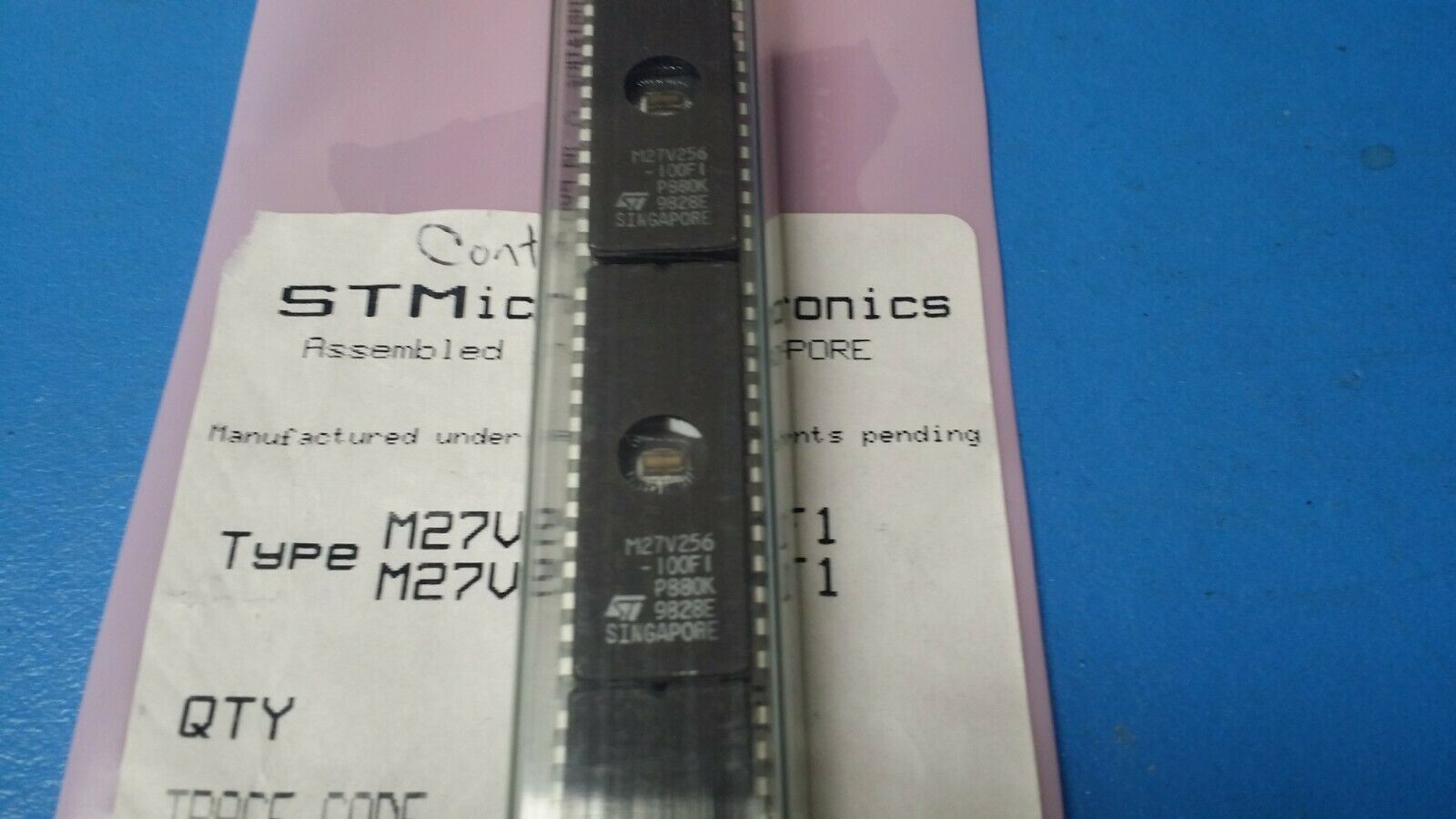

(1 PC) M27V256-100F1 STMICRO UVPROM, 32KX8, 100ns, CMOS, CDIP28
Tax included.
THIS IS FOR (1 PC) OF M27V256-100F1 BY STMICRO
UVPROM, 32KX8, 100ns, CMOS, CDIP28
Part #: M27V256-100F1
Part Category: Memory ICs
Manufacturer: STMicroelectronics, Inc.
Description: UVPROM, 32KX8, 100ns, CMOS, CDIP28
Mfr Package Description FRIT SEALED, WINDOWED, CERAMIC, DIP-28
Status Discontinued
Sub Category EPROMs
Access Time-Max 100.0 ns
I/O Type COMMON
JESD-30 Code R-GDIP-T28
JESD-609 Code e0
Memory Density 262144.0 bit
Memory IC Type UVPROM
Memory Width 8
Number of Functions 1
Number of Terminals 28
Number of Words 32768.0 words
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 32KX8
Output Characteristics 3-STATE
Package Body Material CERAMIC, GLASS-SEALED
Package Code WDIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE, WINDOW
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 5.97 mm
Standby Current-Max 1.0E-5 Amp
Supply Current-Max 0.01 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 36.92 mm
Width 15.24 mm
