(1 PC) LM760H/883C NSC Comparator 1 Func 6000uV Offset-Max 16ns BIPolar TO-99
Tax included.

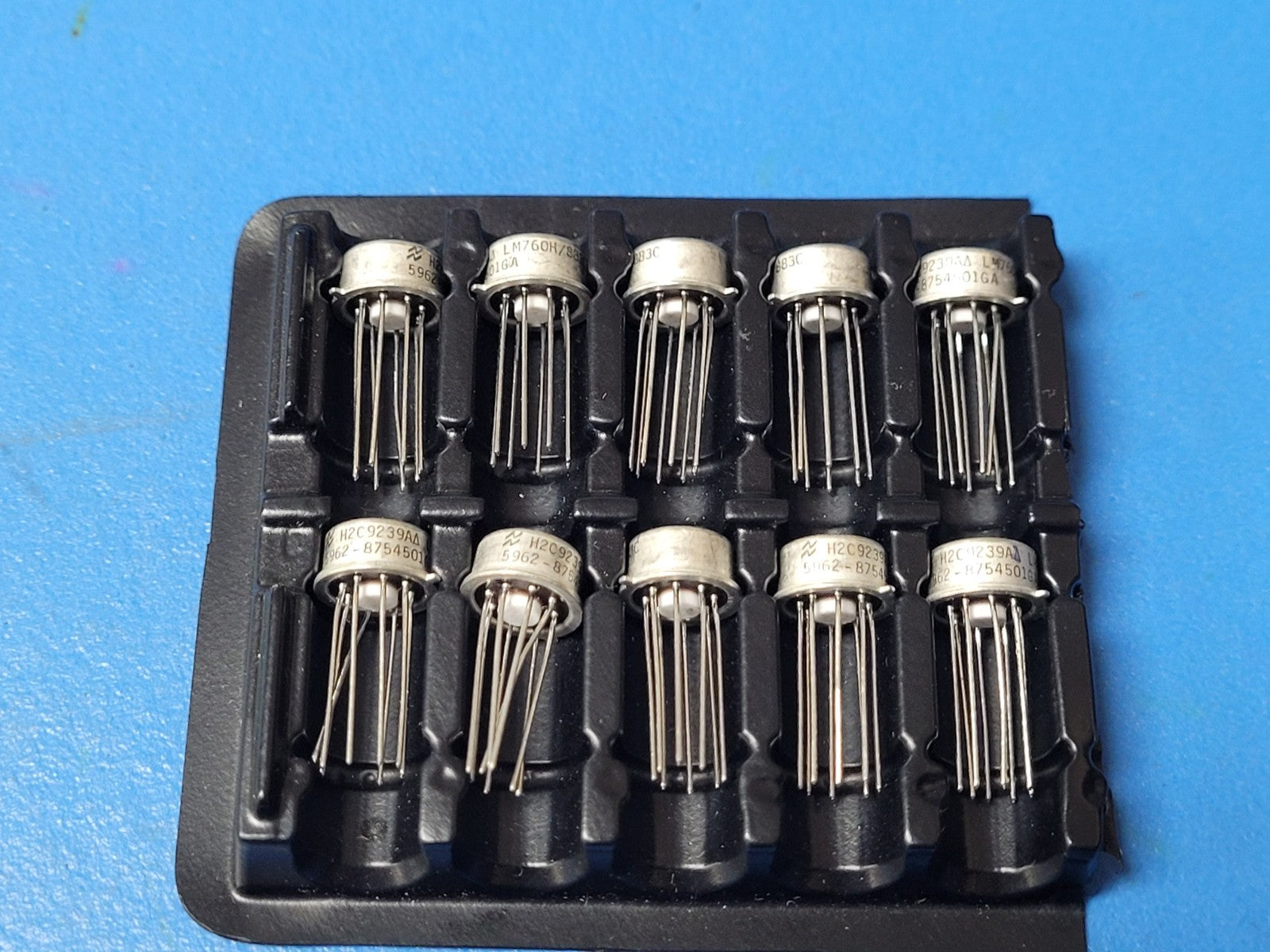

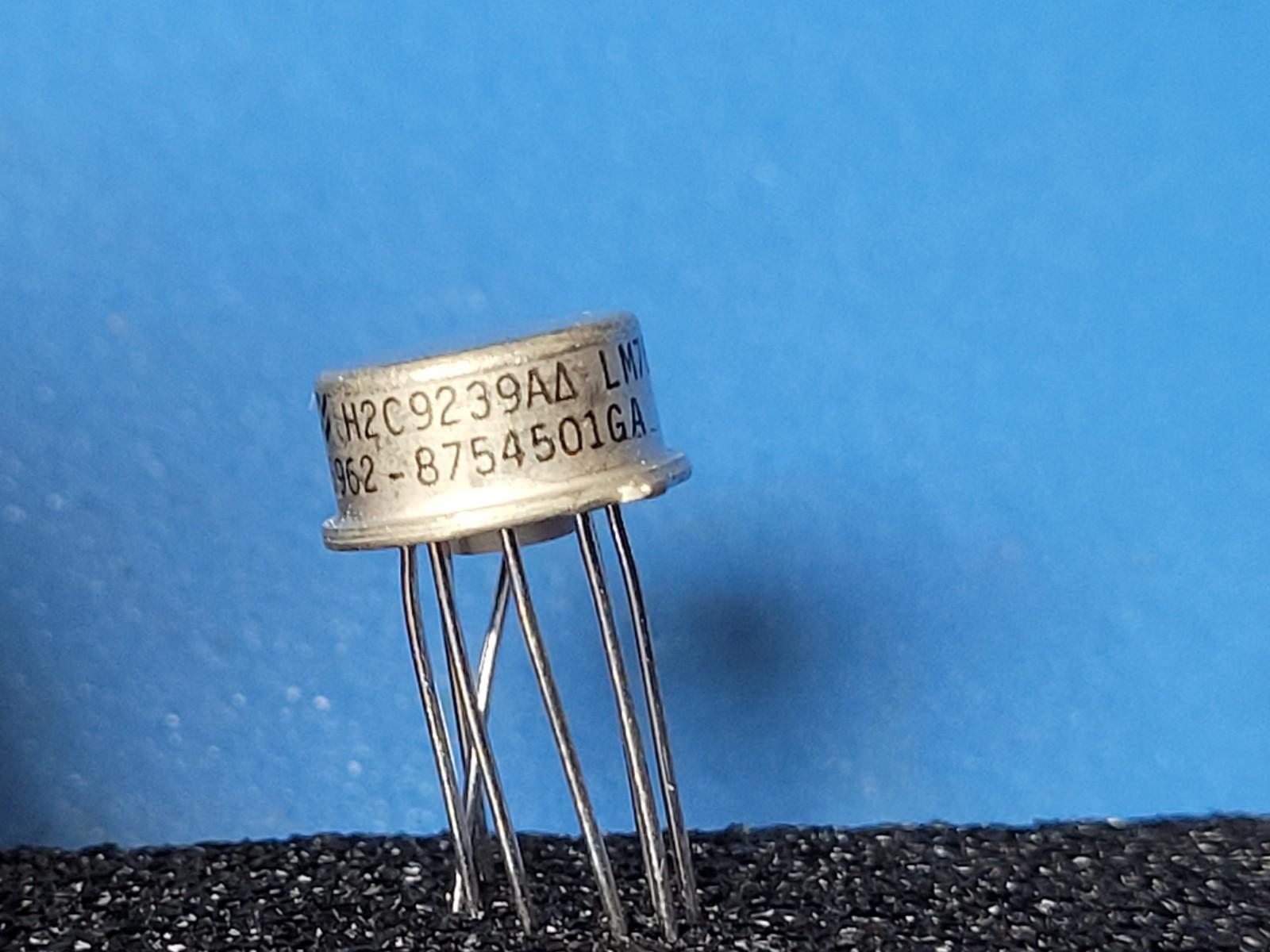

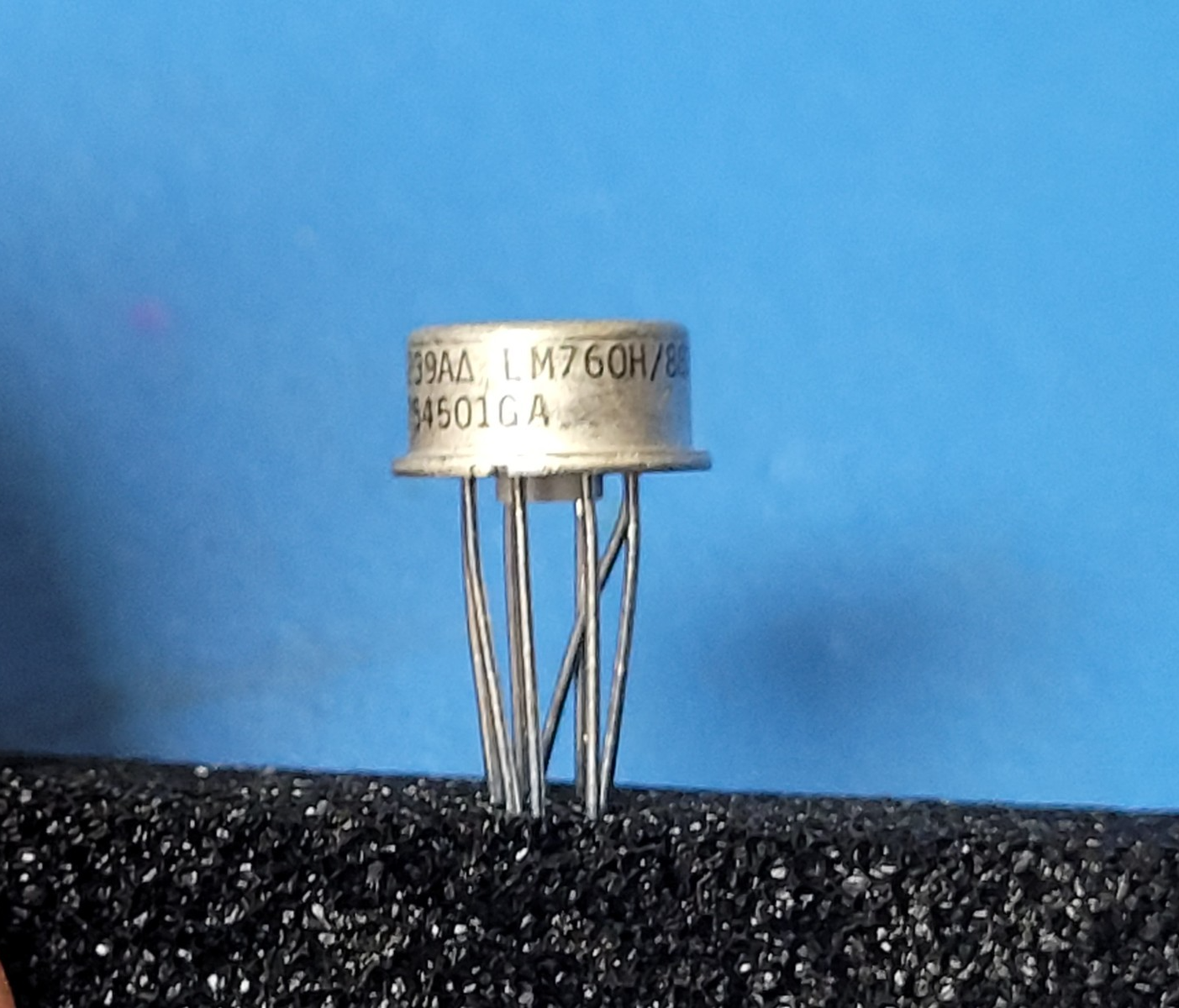

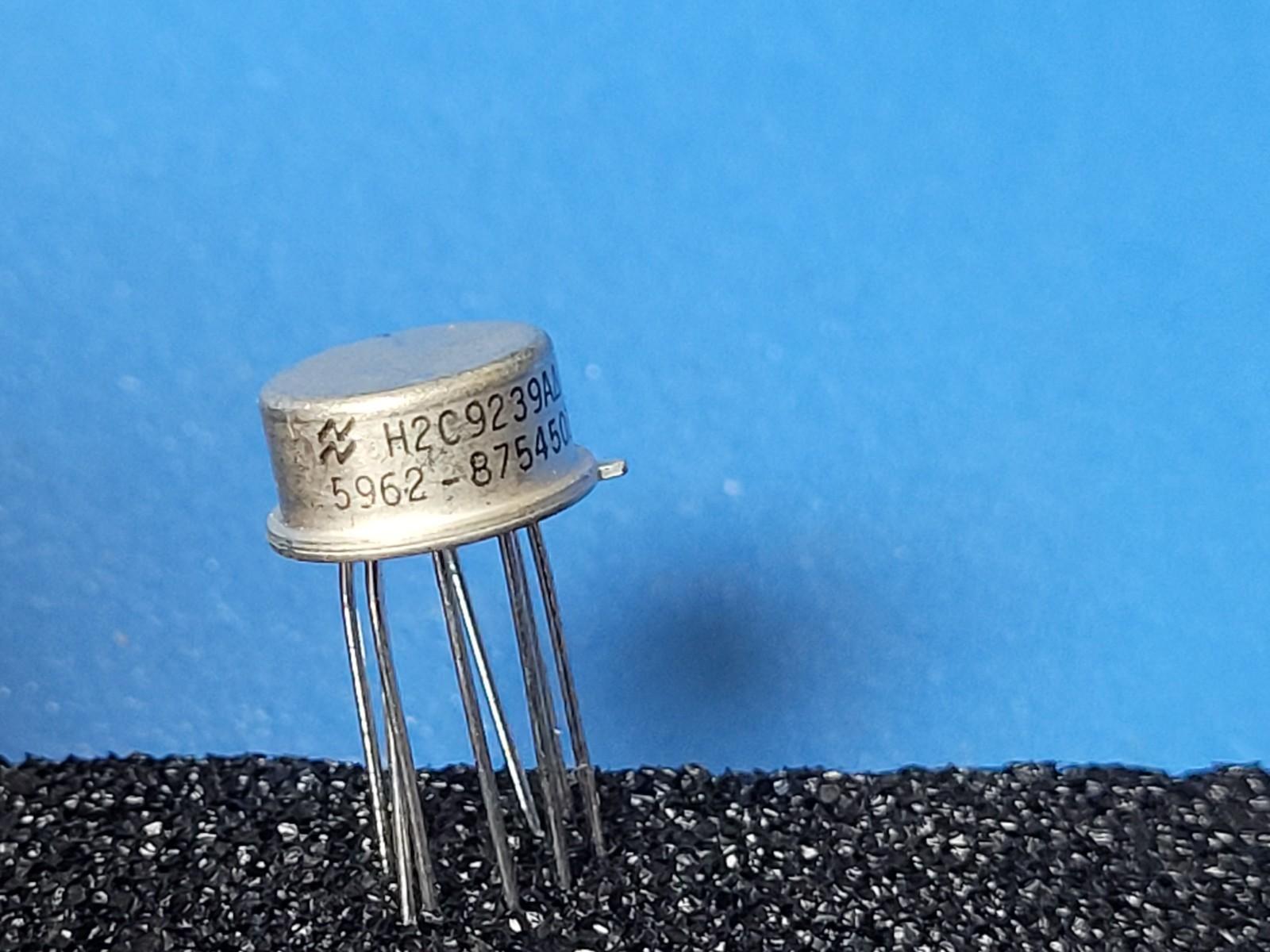

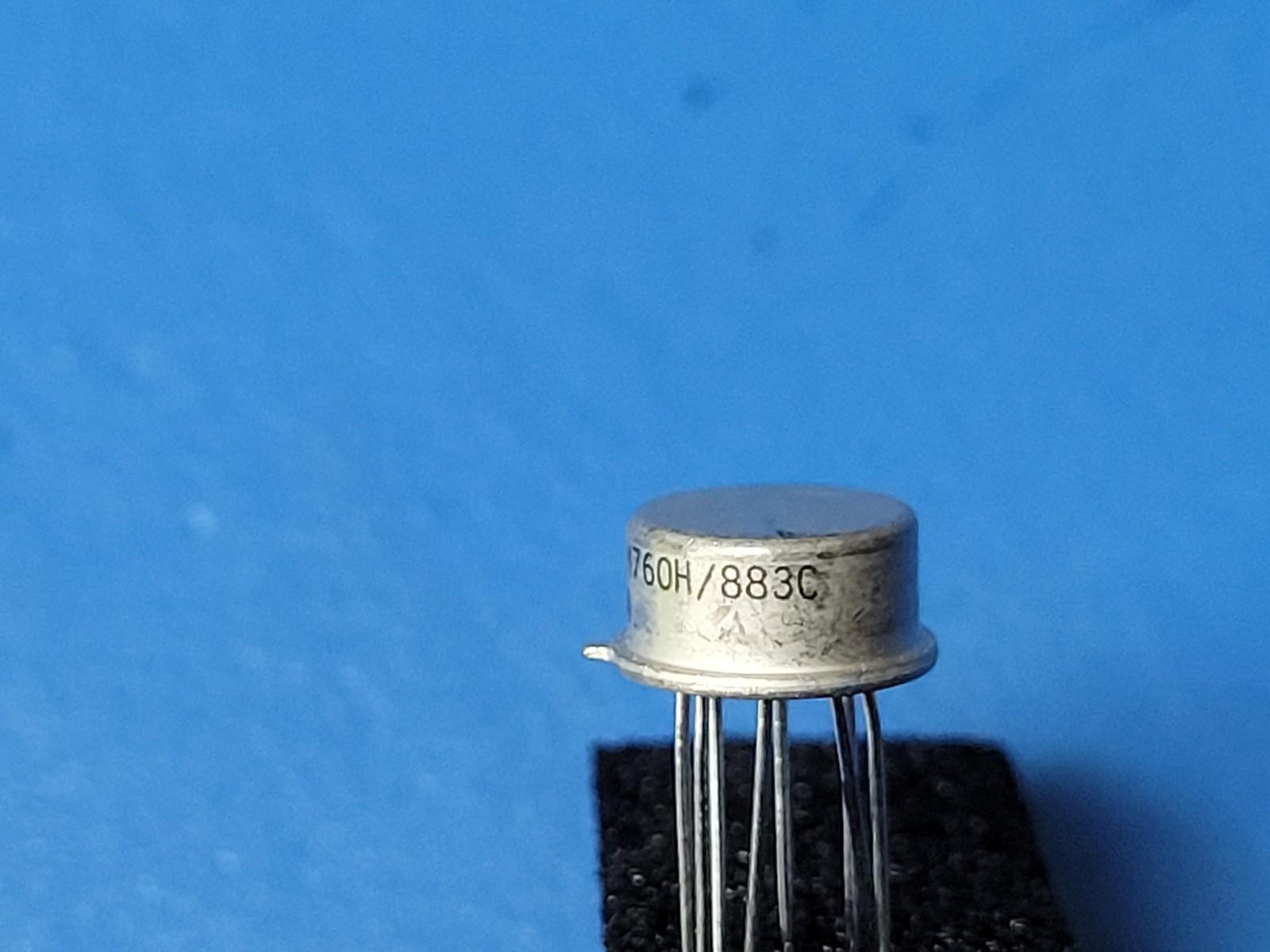

THIS IS FOR (1 PC) OF LM760H/883C BY NSC
Comparator 1 Func 6000uV Offset-Max 16ns BIPolar TO-99
Part #: LM760H/883
Obsolete
Part Category: Comparators
Manufacturer: NATIONAL SEMICONDUCTOR CORP
Description: Comparator, 1 Func, 6000uV Offset-Max, 16ns Response Time, BIPolar, MBCY8
Status Discontinued
Amplifier Type COMPARATOR
Average Bias Current-Max (IIB) (uA) 60.0000000000000000
Bias Current-Max (IIB) @25C (uA) 60.0000000000000000
Input Offset Voltage-Max (uV) 6000.00000000
JESD-30 Code O-MBCY-W8
J-STD-609 Code e0
Neg Supply Voltage Limit-Max (V) -8.0000
Negative Supply Voltage-Nom (V) -6.5000
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55.0000
Output Type TOTEM POLE
Package Body Material METAL
Package Equivalence Code CAN8,.23
Package Shape ROUND
Package Style CYLINDRICAL
DLA Qualification Not Qualified
Response Time-Nom (ns) 16.00000000
Screening Level / Reference Standard 38535Q/M;38534H;883B
Supply Current-Max (mA) 32.00000000
Supply Voltage Limit-Max (V) 8.0000
Supply Voltage-Nom (V) 6.5
Surface Mount NO
Technology BIPOLAR
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Position BOTTOM
