(1 PC) LM302H NSC Buffer Amplifier, 1 Func, BIPolar, MBCY8 TO-99
Tax included.

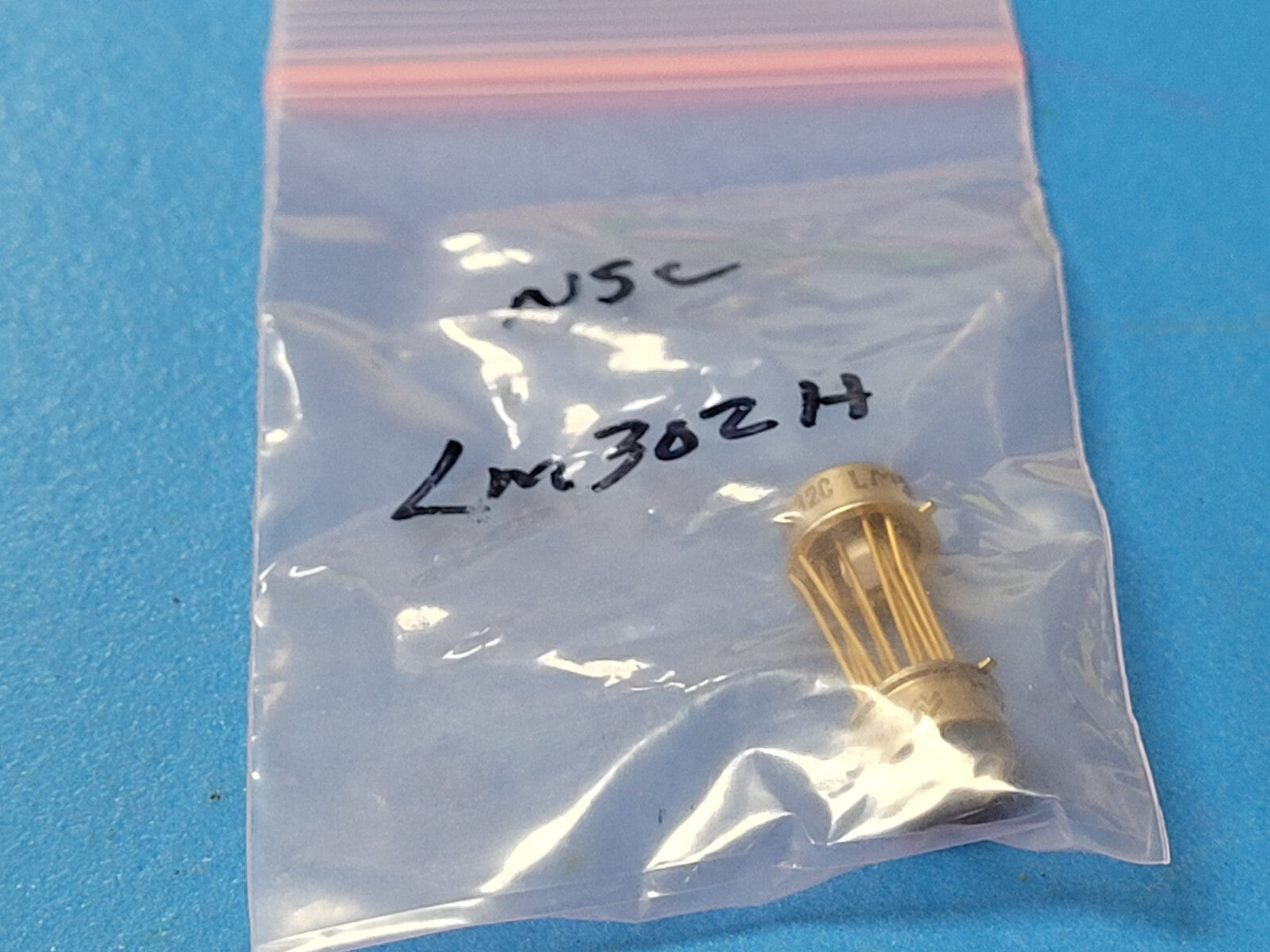

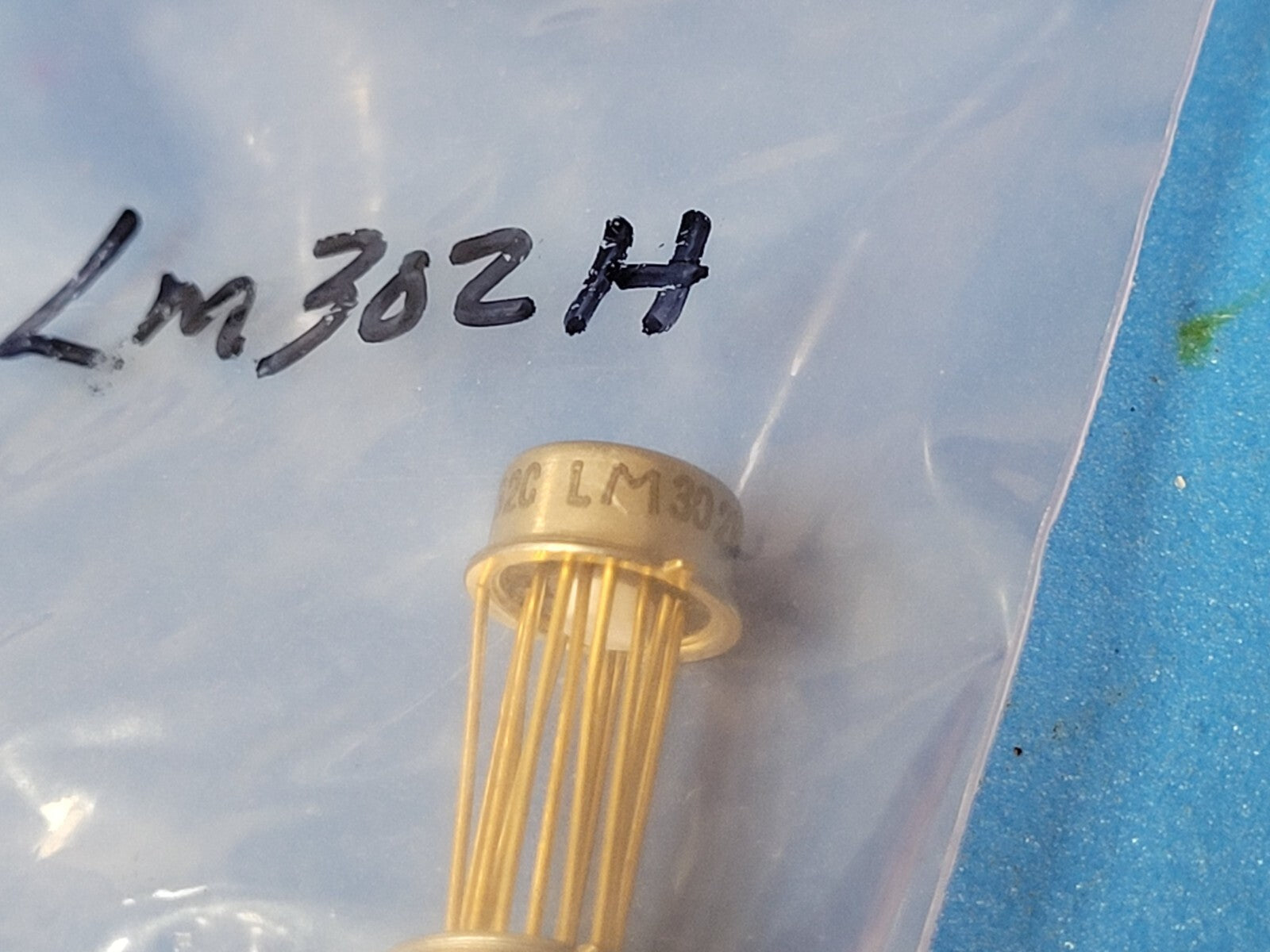

THIS IS FOR (1 PC) OF LM302H BY NSC
Buffer Amplifier, 1 Func, BIPolar, MBCY8 TO-99
Mfr Package Description METAL CAN, TO-99, 8 PIN
Status Discontinued
Amplifier Type BUFFER
Average Bias Current-Max (IIB) 0.03 µA
Bias Current-Max (IIB) @25C 0.03 µA
Input Offset Voltage-Max 20000.0 µV
JESD-30 Code O-MBCY-W8
JESD-609 Code e0
Neg Supply Voltage Limit-Max -18.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material METAL
Package Code TO-99
Package Equivalence Code CAN8,.2
Package Shape ROUND
Package Style CYLINDRICAL
Qualification Status Not Qualified
Slew Rate-Nom 10.0 V/us
Sub Category Buffer Amplifier
Supply Current-Max 5.5 mA
Supply Voltage Limit-Max 18.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Position BOTTOM
