(1 PC) LH2308AD NSC Op Amp, 2 Func, 730uV Offset-Max, BIPolar, CDIP16

$19.95
Unit price per

Tax included.

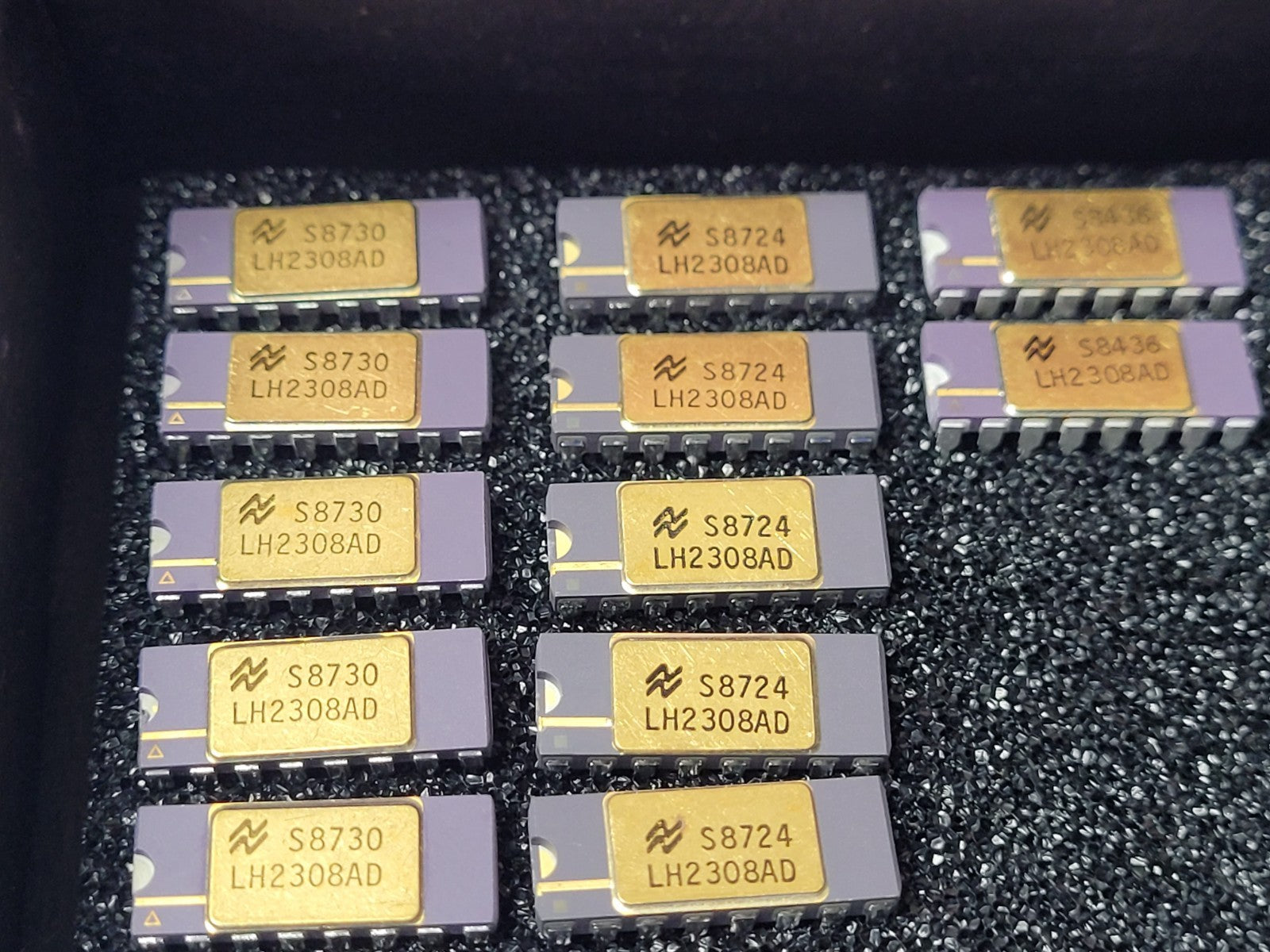

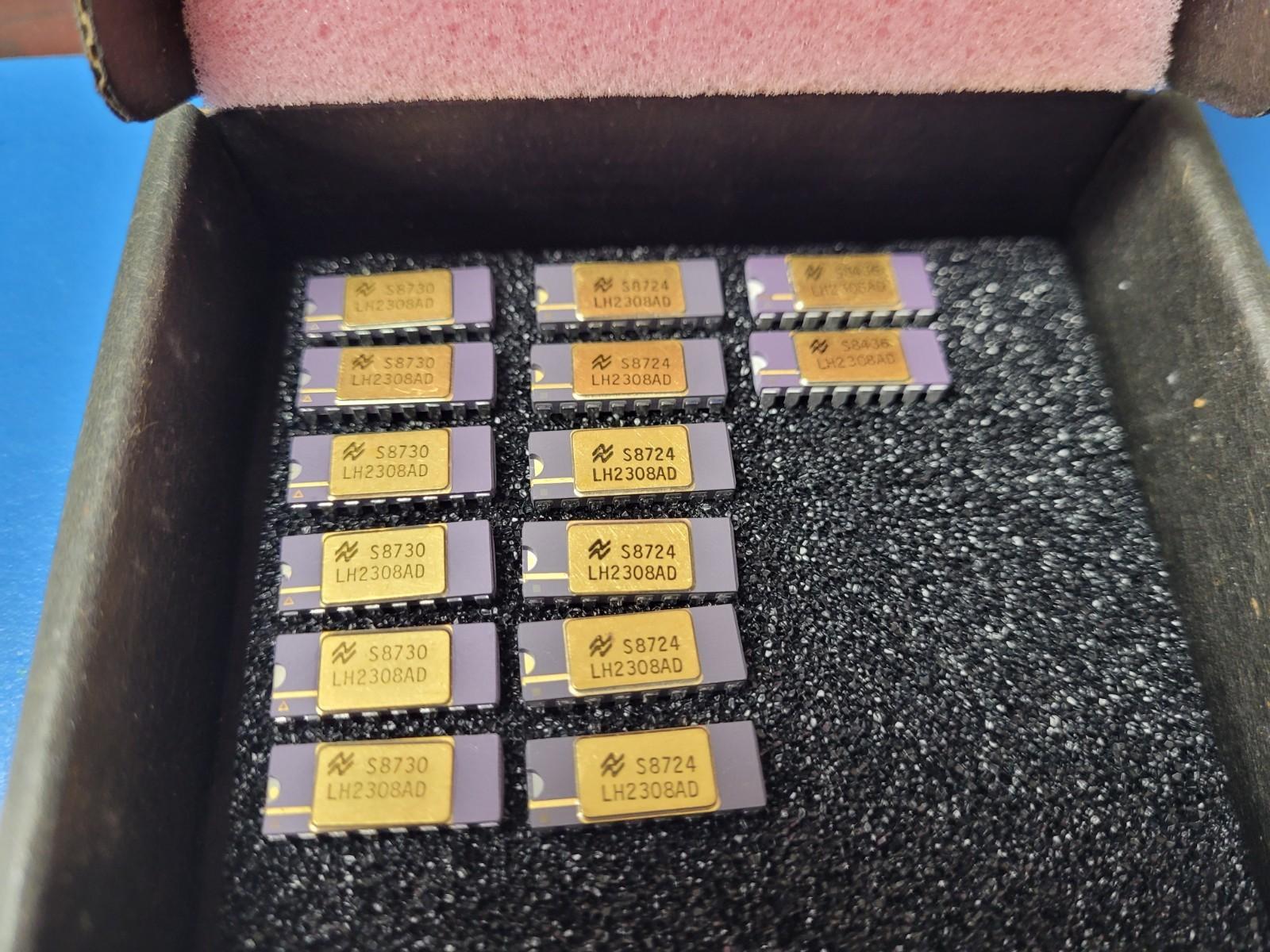

THIS IS FOR (1 PC) OF LH2308AD BY NSC

Op Amp, 2 Func, 730uV Offset-Max, BIPolar, CDIP16

Part #: LH2308AD

Obsolete

Part Category: Operational Amplifiers

Manufacturer: NATIONAL SEMICONDUCTOR CORP

Description: Operational Amplifier, 2 Func, 730uV Offset-Max, BIPolar, CDIP16

Status Discontinued

Amplifier Type OPERATIONAL AMPLIFIER

Amp Architecture VOLTAGE-FEEDBACK

Average Bias Current-Max (IIB) (uA) 0.0100000000000000

Bias Current-Max (IIB) @25C (uA) 0.0070000000000000

Common-mode Reject Ratio-Nom (dB) 96

Frequency Compensation NO

Input Offset Voltage-Max (uV) 730.00000000

JESD-30 Code R-CDIP-T16

J-STD-609 Code e0

Low-Bias NO

Low-Offset YES

Micropower YES

Negative Supply Voltage-Nom (V) -15.0000

Number of Functions 2

Number of Terminals 16

Operating Temperature-Max (Cel) 70

Operating Temperature-Min (Cel) 0.0000

Package Body Material CERAMIC, METAL-SEALED COFIRED

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Power NO

Programmable Power NO

DLA Qualification Not Qualified

Seated Height-Max (mm) 4.5720

Supply Current-Max (mA) 0.80000000

Supply Voltage Limit-Max (V) 20.0000

Supply Voltage-Nom (V) 15

Surface Mount NO

Technology BIPOLAR

Temperature Grade COMMERCIAL

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE

Terminal Pitch (mm) 2.540

Terminal Position DUAL

Voltage Gain-Min 60000.0000000000000000

Wideband NO

Width (mm) 7.6200
