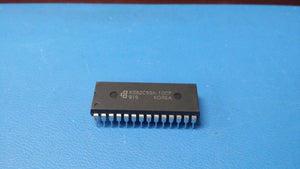

(1 PC) KS82C59A-10CP SAMSUNG Interrupt Controller, CMOS, PDIP28

Part #: KS82C59A-10CP

Part Category: Microprocessors/Microcontrollers/Peripheral ICs

Manufacturer: Samsung Semiconductor Division

Description: Interrupt Controller, 8080; 8085; 8086; 8088; 80286; 80386; 68000 Compatible, CMOS, PDIP28

Mfr Package Description PLASTIC, DIP-28

Status Discontinued

Bus Compatibility 8080; 8085; 8086; 8088; 80286; 80386; 68000

External Data Bus Width 8.0

JESD-30 Code R-PDIP-T28

JESD-609 Code e0

Number of External Interrupts 8.0

Number of Terminals 28

Operating Temperature-Min 0.0  Cel

Operating Temperature-Max 70.0  Cel

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP28,.6

Package Shape RECTANGULAR

Package Style IN-LINE

Power Supplies 5

Qualification Status Not Qualified

Seated Height-Max 6.096  mm

Sub Category Interrupt Controllers

Supply Current-Max 10.0  mA

Supply Voltage-Nom 5.0  V

Supply Voltage-Min 4.0  V

Supply Voltage-Max 6.0  V

Surface Mount NO

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54  mm

Terminal Position DUAL

Length 36.322  mm

Width 15.24  mm
