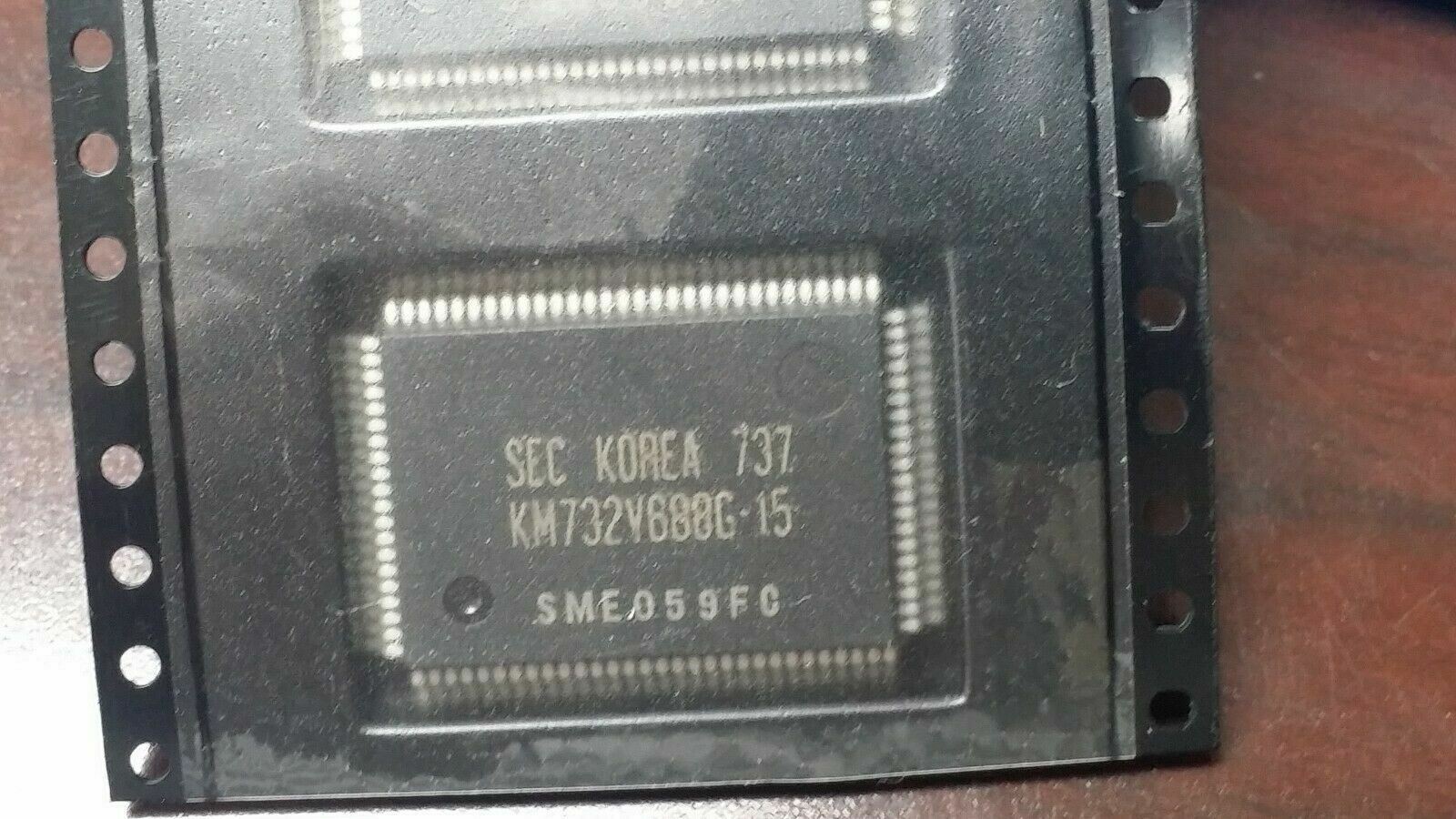

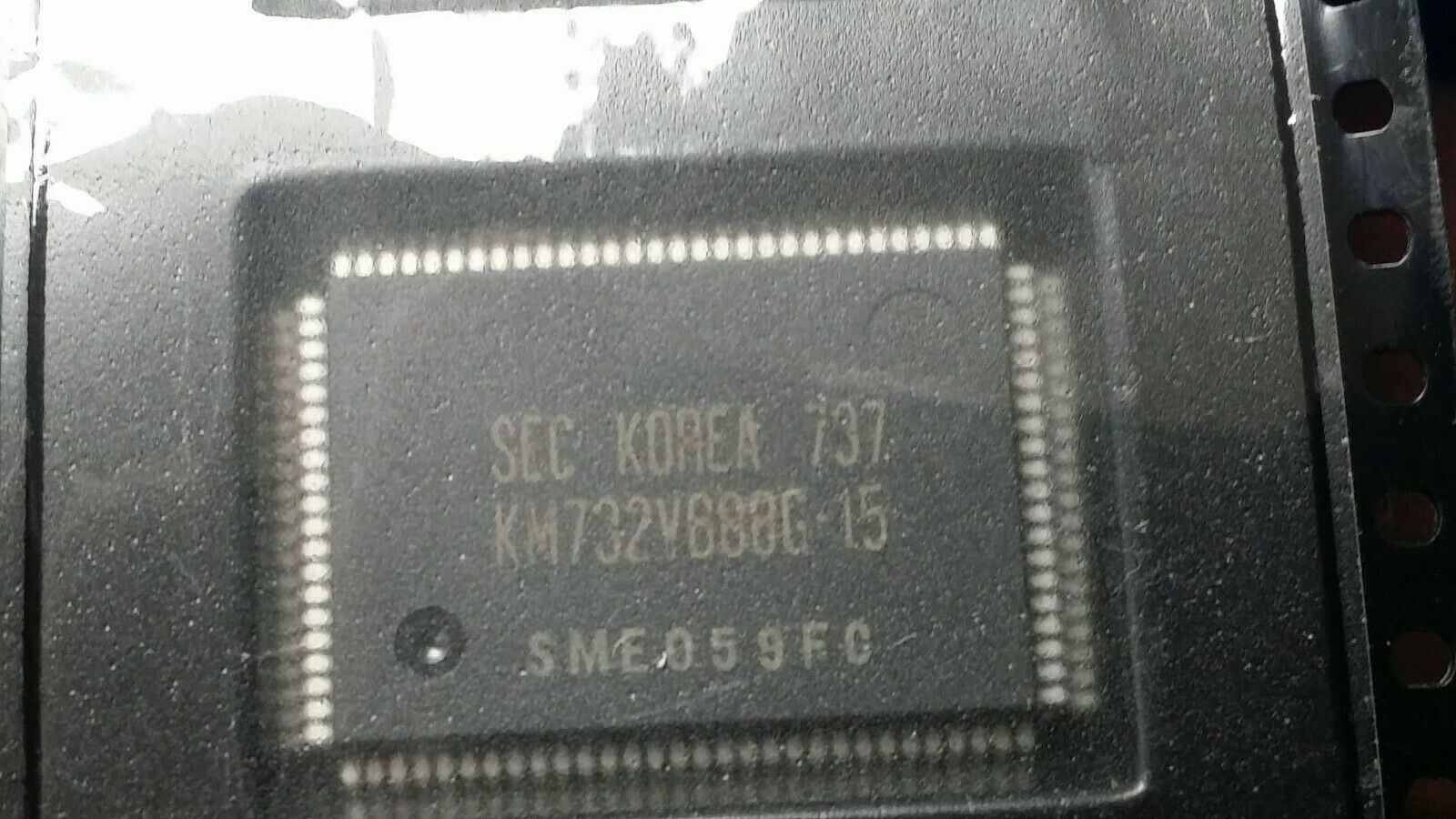

(1 PC) KM732V688G-15 SAMSUNG Cache SRAM, 64KX32, 15ns, CMOS, PQFP100
Tax included.
THIS IS FOR (1 PC) OF KM732V688G-15 BY SAMSUNG
Cache SRAM, 64KX32, 15ns, CMOS, PQFP100
Part #: KM732V688G-15
Part Category: Memory ICs
Manufacturer: Samsung Semiconductor Division
Description: Cache SRAM, 64KX32, 15ns, CMOS, PQFP100
Mfr Package Description 14 X 20 MM, QFP-100
Status Discontinued
Sub Category SRAMs
Access Time-Max 15.0 ns
Clock Frequency-Max (fCLK) 66.0 MHz
I/O Type COMMON
JESD-30 Code R-PQFP-G100
JESD-609 Code e0
Memory Density 2097152.0 bit
Memory IC Type CACHE SRAM
Memory Width 32
Number of Functions 1
Number of Ports 1
Number of Terminals 100
Number of Words 65536.0 words
Number of Words Code 64K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 64KX32
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP100,.7X.9
Package Shape RECTANGULAR
Package Style FLATPACK
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.0 mm
Standby Current-Max 0.01 Amp
Standby Voltage-Min 3.14 V
Supply Current-Max 0.22 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.13 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Length 20.0 mm
Width 14.0 mm
