(1 PC) K6R1008V1C-TC12 SAMSUNG Standard SRAM 128KX8 12ns CMOS TSOP2-32
Tax included.

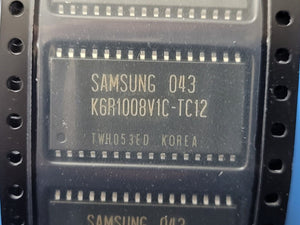

THIS IS FOR (1 PC) OF K6R1008V1C-TC12 BY SAMSUNG
Standard SRAM 128KX8 12ns CMOS TSOP2-32
Part #: K6R1008V1C-TC12
Part Category: Memory ICs
Manufacturer: Samsung Semiconductor Division
Description: Standard SRAM, 128KX8, 12ns, CMOS, PDSO32
Mfr Package Description 0.400 INCH, TSOP2-32
Status Discontinued
Sub Category SRAMs
Access Time-Max 12.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 1048576.0 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 131072.0 words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 128KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Equivalence Code TSOP32,.46
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Current-Max 0.005 Amp
Standby Voltage-Min 3.0 V
Supply Current-Max 0.075 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 20.95 mm
Width 10.16 mm
