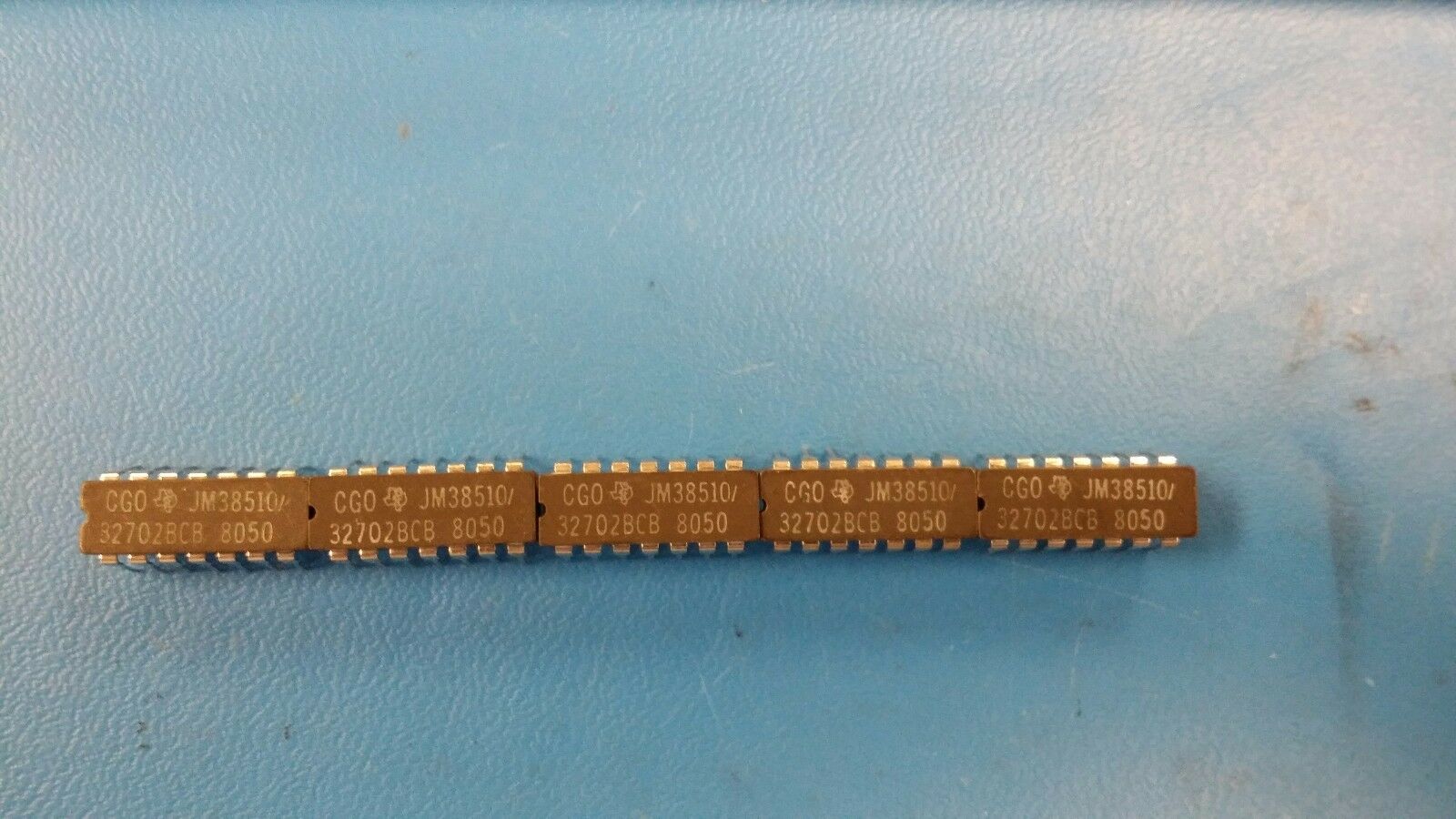

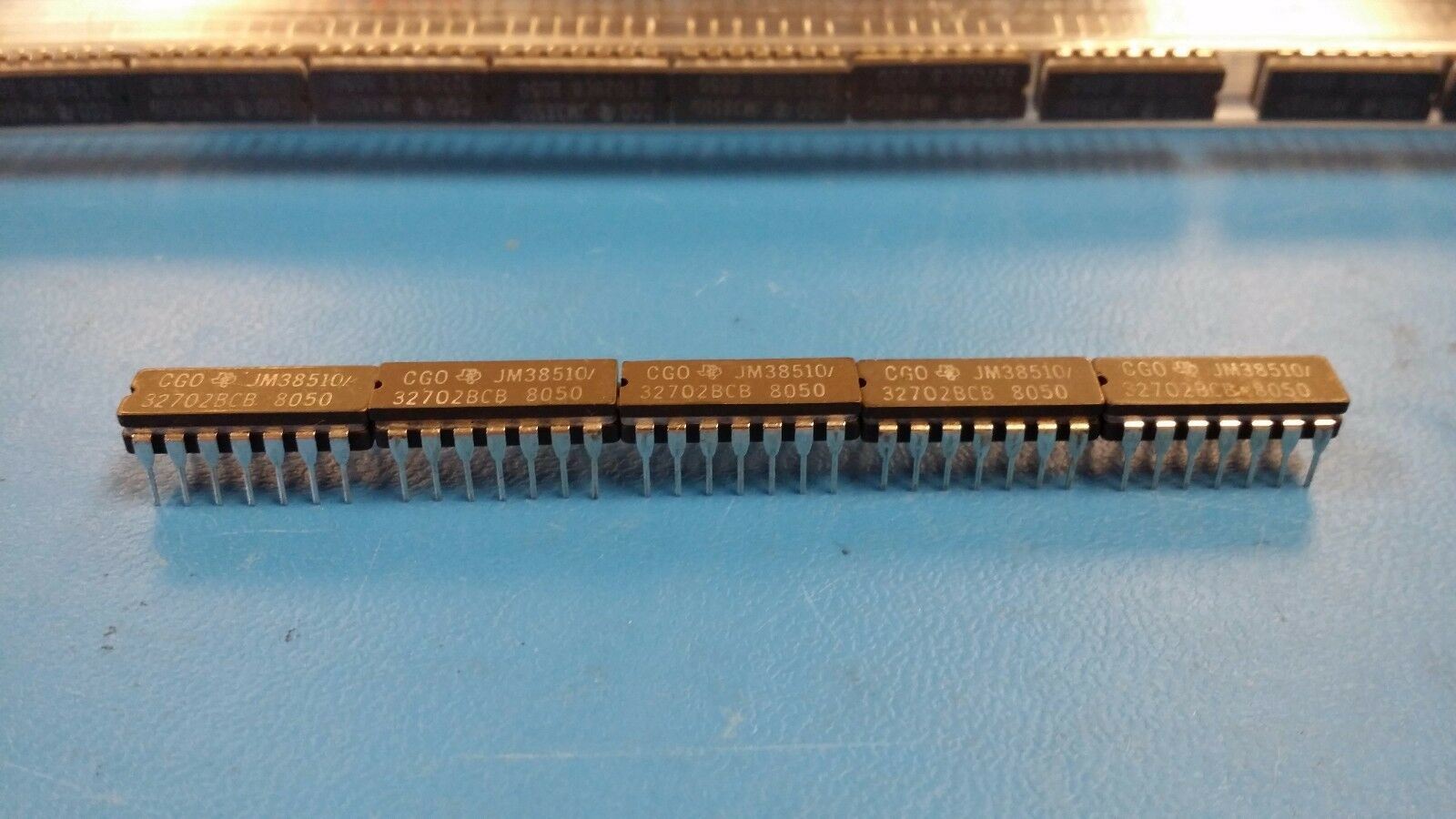

(1 PC) JM38510/32702BCB TI Counter/Divider Dual 4-Bit Binary UP 14-Pin CDIP
Tax included.
THIS LISTING IS FOR (1 PC) OF JM38510/32702BCB BY TI
Counter/Divider Dual 4-Bit Binary UP 14-Pin CDIP
Part #: JM38510/32702BCB
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, CDIP14
Manufacturer: Texas Instruments High-Performance Analog
Description: LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, CDIP14
| Mfr Package Description | CERAMIC, DIP-14 |
| REACH Compliant | Yes |
| Status | Active |
| Logic IC Type | BINARY COUNTER |
| Count Direction | UP |
| Family | LS |
| fmax-Min | 25.0 MHz |
| JESD-30 Code | R-GDIP-T14 |
| Load/Preset Input | YES |
| Mode of Operation | ASYNCHRONOUS |
| Number of Bits | 3 |
| Number of Functions | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Propagation Delay (tpd) | 60.0 ns |
| Qualification Status | Not Qualified |
| Screening Level | MIL-M-38510 |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trigger Type | NEGATIVE EDGE |
| Length | 19.56 mm |
| Width | 7.62 mm |
| Additional Feature | DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS |
