(1 PC) JM38510/32401BRA SIGNETICS 54LS240 OCTAL BUFFERS AND LINE DRIVER 20-CDIP
Tax included.

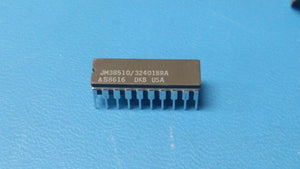

THIS IS FOR (1 PC) OF JM38510/32401BRA BY SIGNETICS
54LS240 OCTAL BUFFERS AND LINE DRIVER 20-CDIP
Manufacturer: Signetics
Product Category: Buffers & Line Drivers
Number of Input Lines: 8 Input
Number of Output Lines: 8 Output
Polarity: Inverting
High Level Output Current: - 12 mA
Low Level Output Current: 12 mA
Quiescent Current: 26 mA
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: CDIP-20
Packaging: Tube
Brand: Signetics
Function: Buffer/Line Driver
Height: 4.57 mm
Input Signal Type: Single-Ended
Length: 24.2 mm
Logic Family: LS
Logic Type: Bipolar
Number of Channels: 8
Operating Supply Voltage: 4.5 V to 5.5 V
Operating Temperature Range: - 55 C to + 125 C
Output Type: 3-State
Product Type: Buffers & Line Drivers
Propagation Delay Time: 18 ns at 5 V
Series: SN54LS240
1
Subcategory: Logic ICs
Supply Current - Max: 44 mA
Technology: Bipolar
Width: 6.92 mm
Unit Weight: 0.007760 oz
