(1 PC) JM38510/07906BEA Quadruple 2-Line To 1-Line Data Selectors/Multiplexers
Tax included.

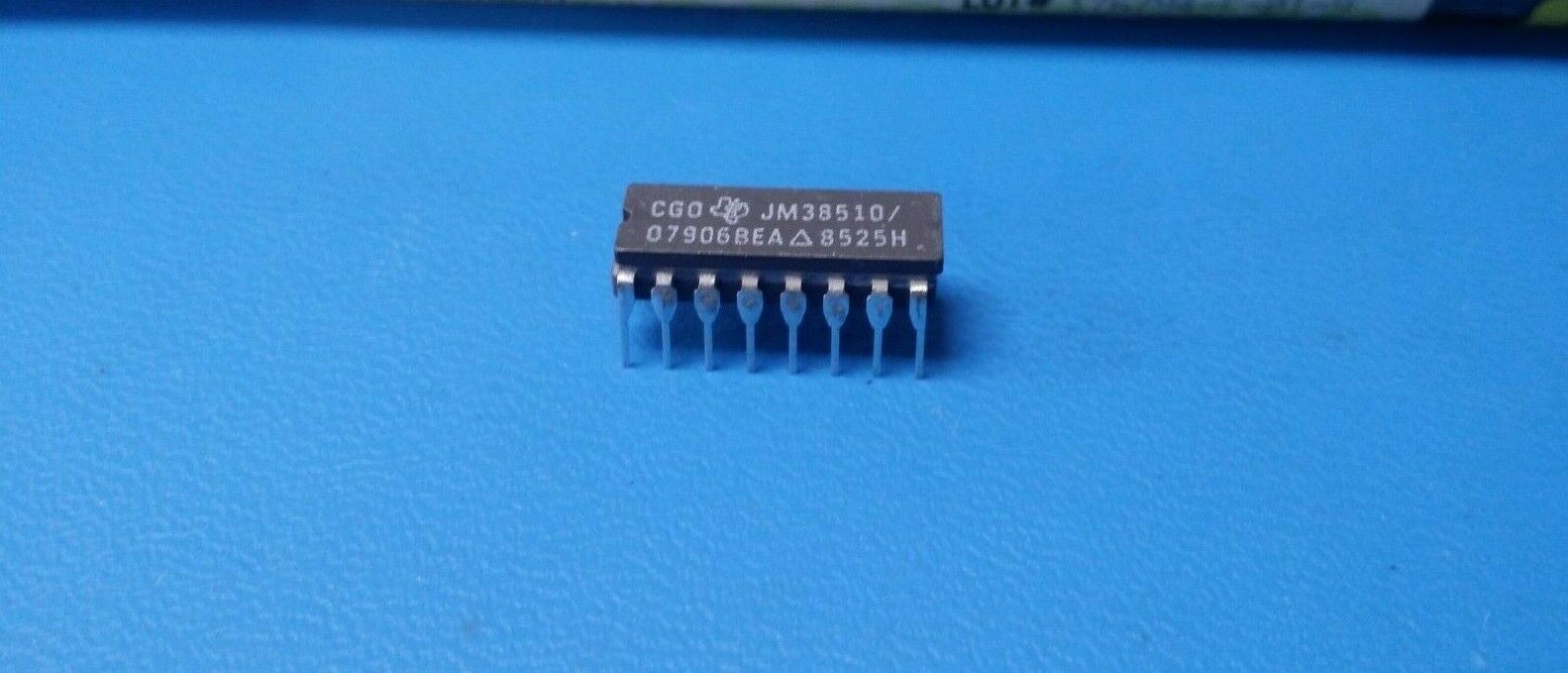

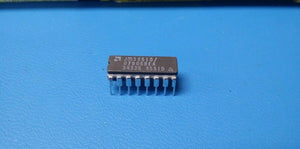

THIS IS FOR (1 PC) OF JM38510/07906BEA BY AMD / TI
Encoders, Decoders, Multiplexers & Demultiplexers Quadruple 2-Line To 1-Line Data Selectors/Multiplexers 16-CDIP -55 to 125
Manufacturer: AMD/TI
Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
Product: Selectors / Multiplexers
Logic Family: S
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
Propagation Delay Time: 7.5 ns at 5 V
Supply Voltage - Min: 4.5 V
Supply Voltage - Max: 5.5 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: CDIP-16
Packaging: Tube
Brand: AMD/TI
Function: Multiplexer
Height: 4.57 mm
High Level Output Current: - 2 mA
Length: 19.56 mm
Logic Type: Data Selectors/Multiplexers
Low Level Output Current: 20 mA
Number of Circuits: Quad
Operating Supply Voltage: 5 V
Operating Temperature Range: - 55 C to + 125 C
Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
Series: SN54S257
1
Subcategory: Logic ICs
Technology: Bipolar
Width: 6.92 mm
