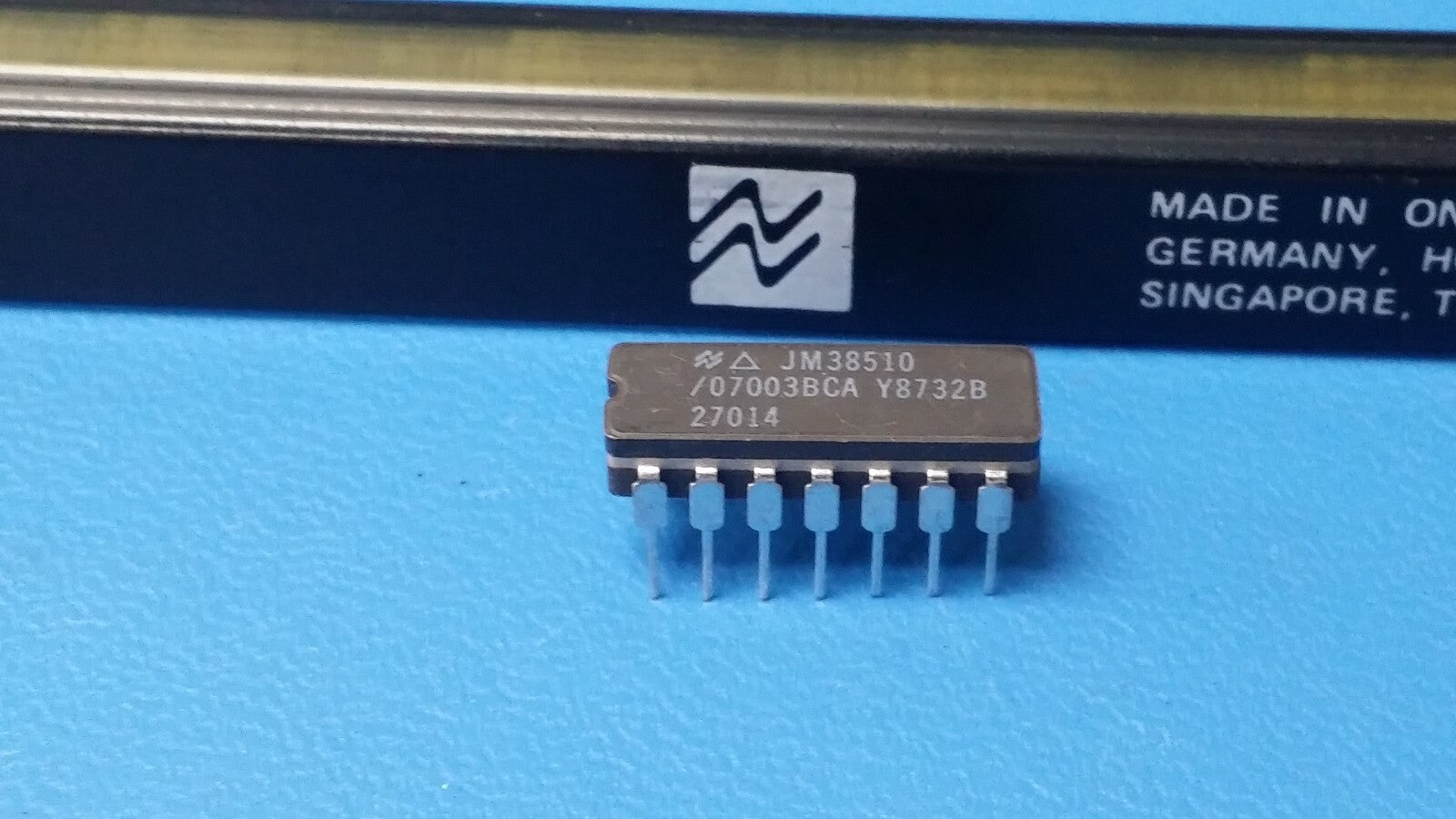

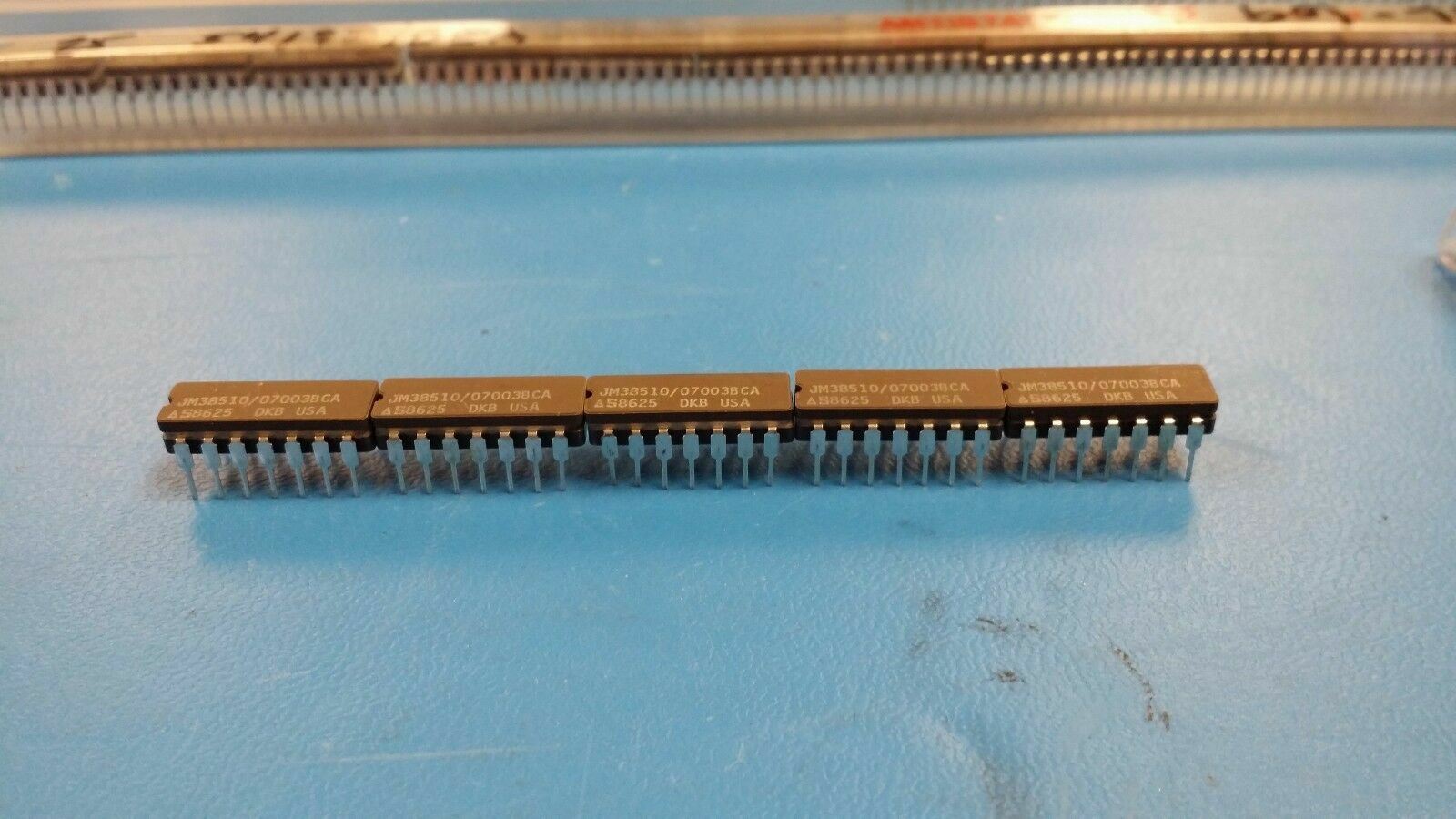

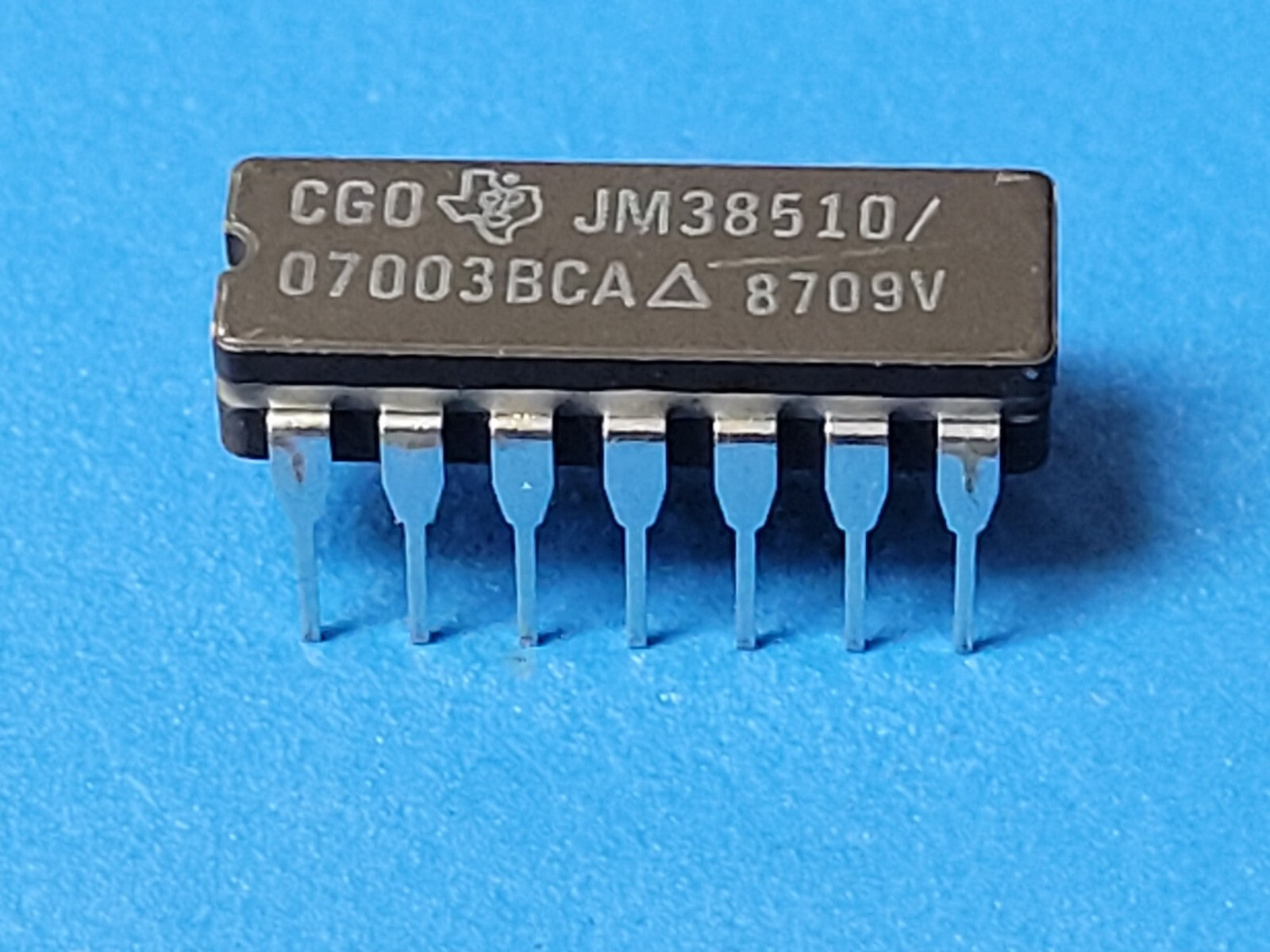

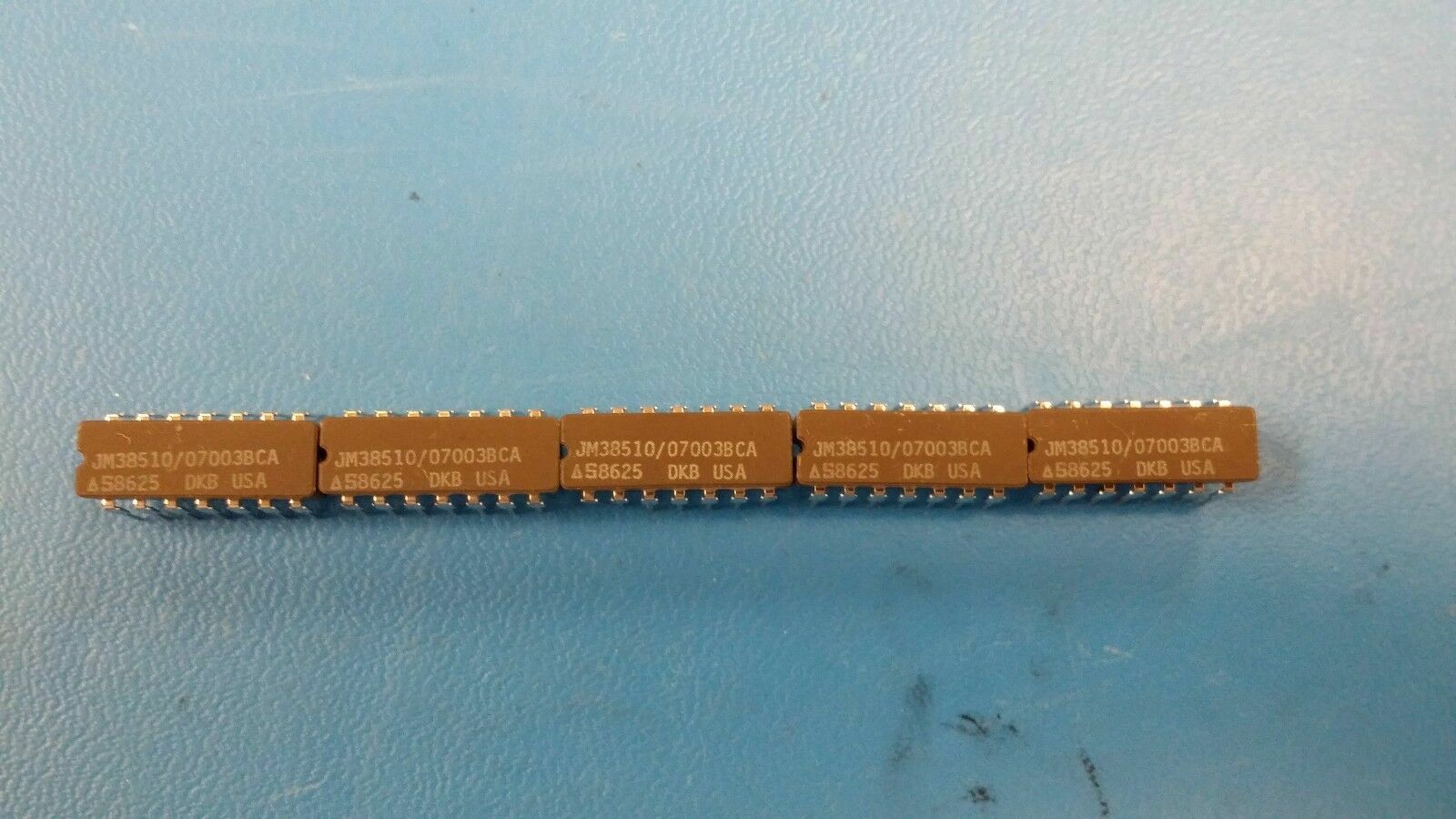

(1 PC) JM38510/07003BCA SIGNETICS / NSC / TI Inverter 6-Element Bipolar 14-CDIP
Tax included.
THIS LISTING IS FOR (1 PC) OF JM38510/07003BCA BY SIGNETICS / NSC / TI
Inverter 6-Element Bipolar 14-Pin CDIP
Product Category: Inverters
Number of Circuits: 6 Circuit
Logic Family: S
Logic Type: Bipolar
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: CDIP-16
Packaging: Tube
Brand: SIGNETICS /NSC/TI
Function: Inverter
High Level Output Current: - 1 mA
Input Type: TTL
Low Level Output Current: 20 mA
Number of Output Lines: 6 Output
Operating Supply Voltage: 5 V
Operating Temperature Range: - 55 C to + 125 C
Output Type: TTL
Product Type: Inverters
Series: SN54S04
1
Subcategory: Logic ICs
Unit Weight: 0.042329 oz
