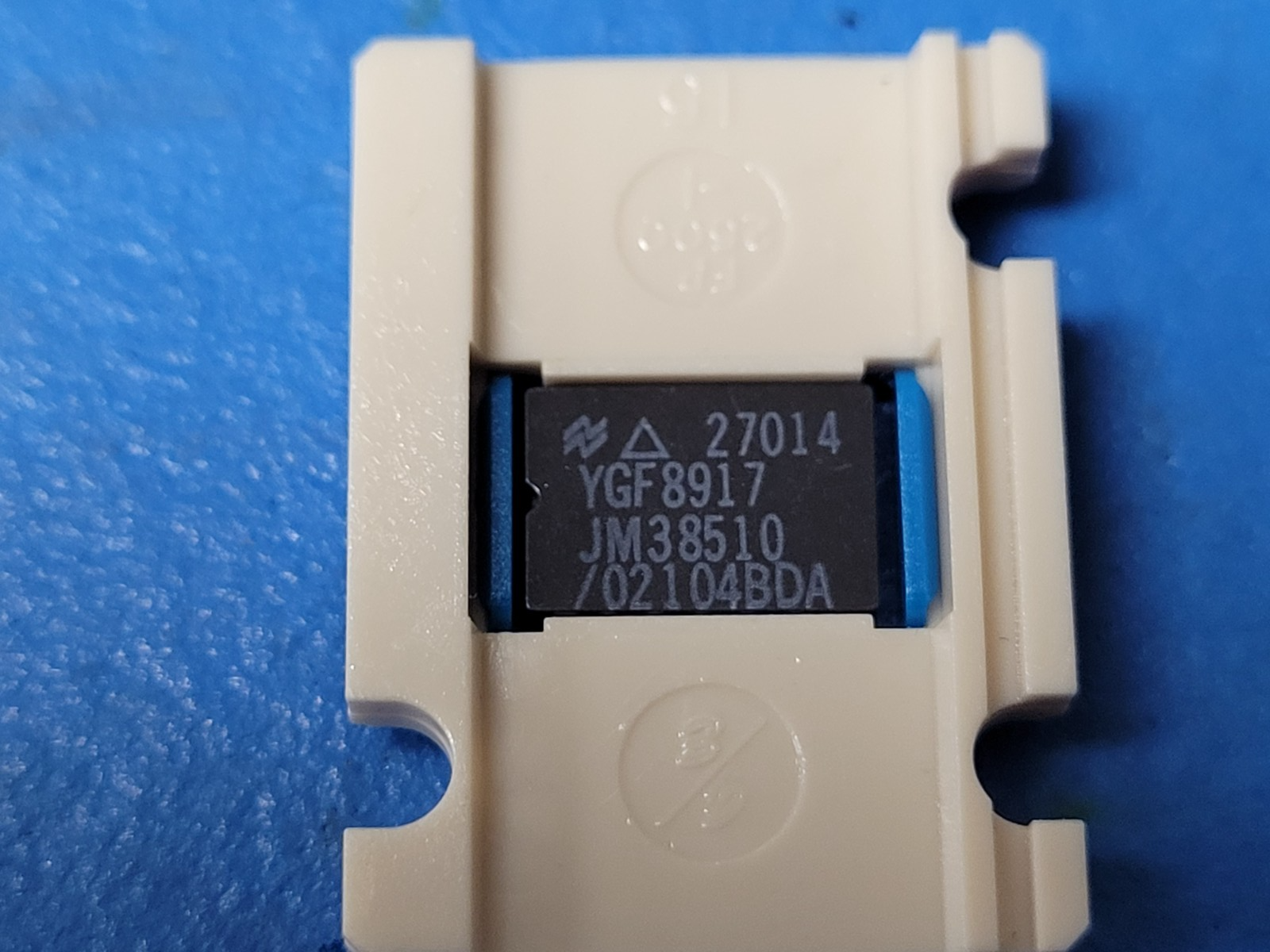

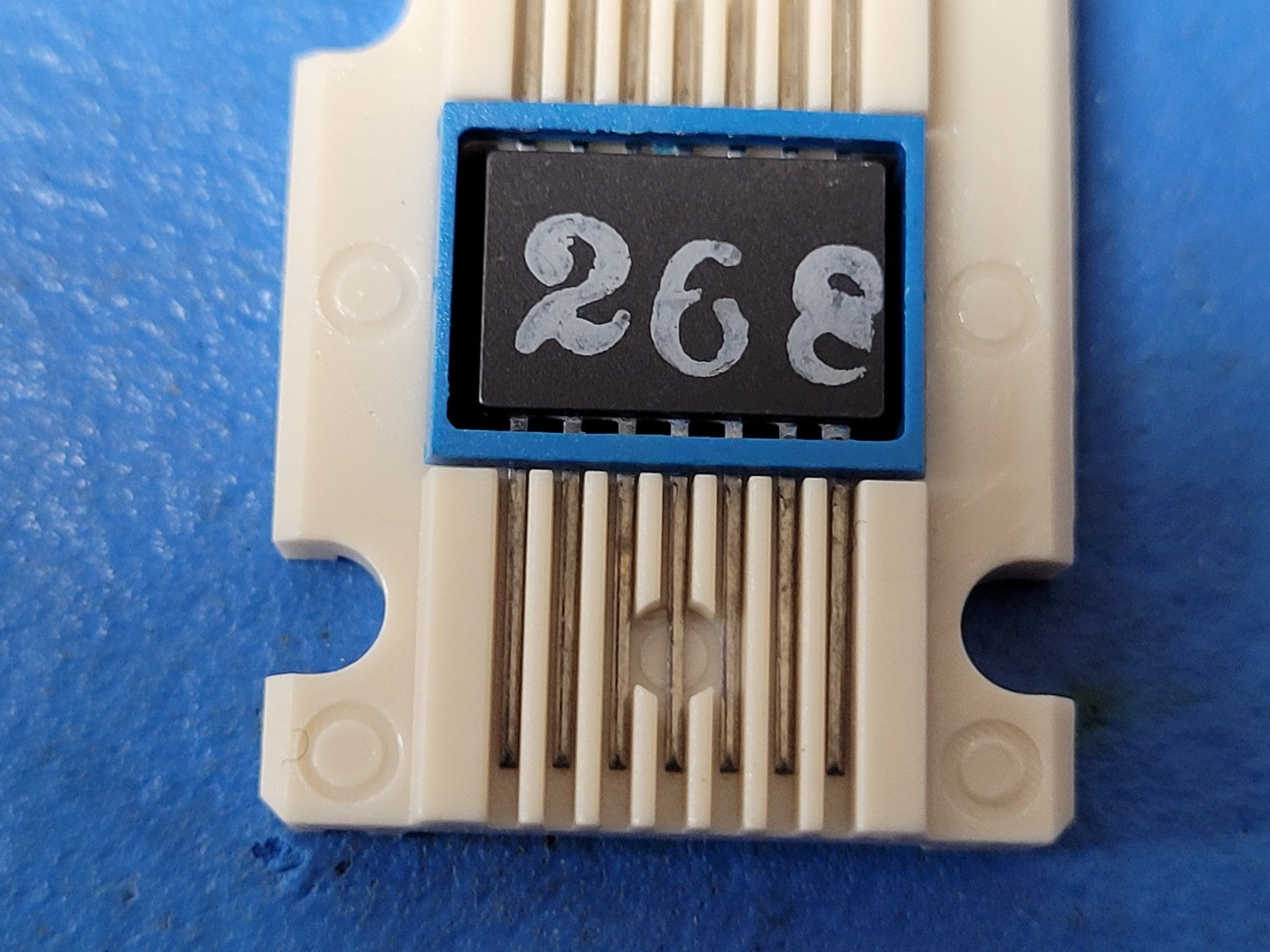

(1 PC) JM38510/02104BDA NSC 5962/01/037/4521 MICROCIRCUIT DIGITAL

Techincal Specification:

BODY HEIGHT 0.045 INCHES MINIMUM AND 0.085 INCHES MAXIMUM

BODY LENGTH 0.390 INCHES MAXIMUM

BODY WIDTH 0.235 INCHES MINIMUM AND 0.260 INCHES MAXIMUM

CASE OUTLINE SOURCE AND DESIGNATOR F-2 MIL-M-38510

DESIGN FUNCTION AND QUANTITY 2 FLIP-FLOP, J-K, CLOCKED

FEATURES PROVIDED HERMETICALLY SEALED AND MONOLITHIC AND POSITIVE OUTPUTS AND LOW POWER AND W/CLEAR

INCLOSURE CONFIGURATION FLAT PACK

INCLOSURE MATERIAL CERAMIC AND GLASS

INPUT CIRCUIT PATTERN 8 INPUT

OPERATING TEMP RANGE -55.0 TO 125.0 CELSIUS

OUTPUT LOGIC FORM TRANSISTOR-TRANSISTOR LOGIC

MAXIMUM POWER DISSIPATION RATING 22.0 MILLIWATTS

TIME RATING PER CHACTERISTIC 10.00 NANOSECONDS MINIMUM PROPAGATION DELAY TIME, LOW TO HIGH LEVEL OUTPUT AND 125.00 NANOSECONDS MAXIMUM PROPAGATION DELAY TIME, LOW TO HIGH LEVEL OUTPUT

VOLTAGE RATING AND TYPE PER CHARACTERISTIC 7.0 VOLTS MAXIMUM POWER SOURCE

SPECIFICATION/STANDARD DATA 81349-MIL-M-38510/21 GOVERNMENT SPECIFICATION

STORAGE TEMP RANGE -65.0 TO 150.0 CELSIUS

TERMINAL SURFACE TREATMENT SOLDER

TERMINAL TYPE AND QUANTITY 14 FLAT LEADS

TEST DATA DOCUMENT 81349-MIL-M-38510 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
