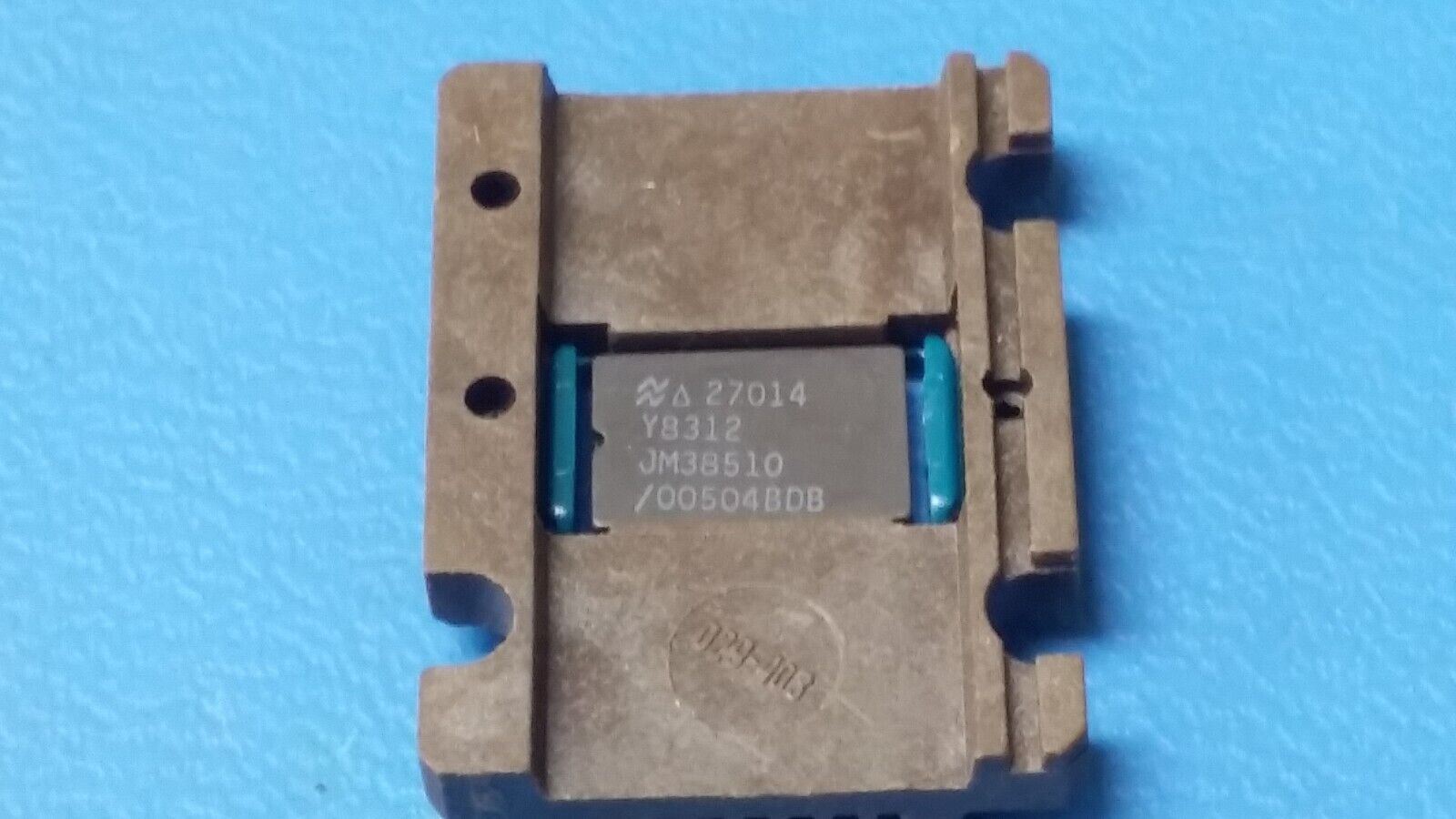

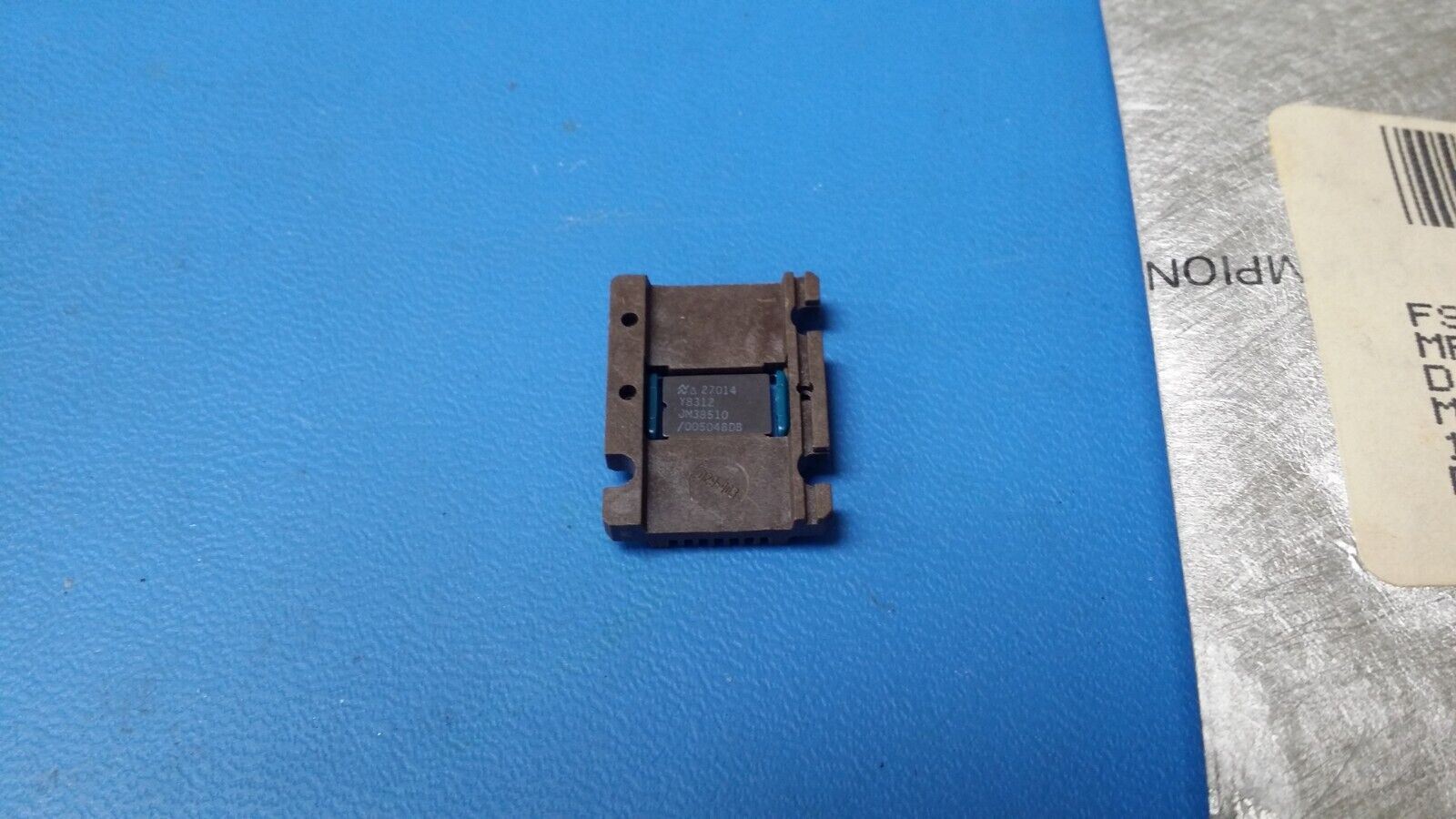

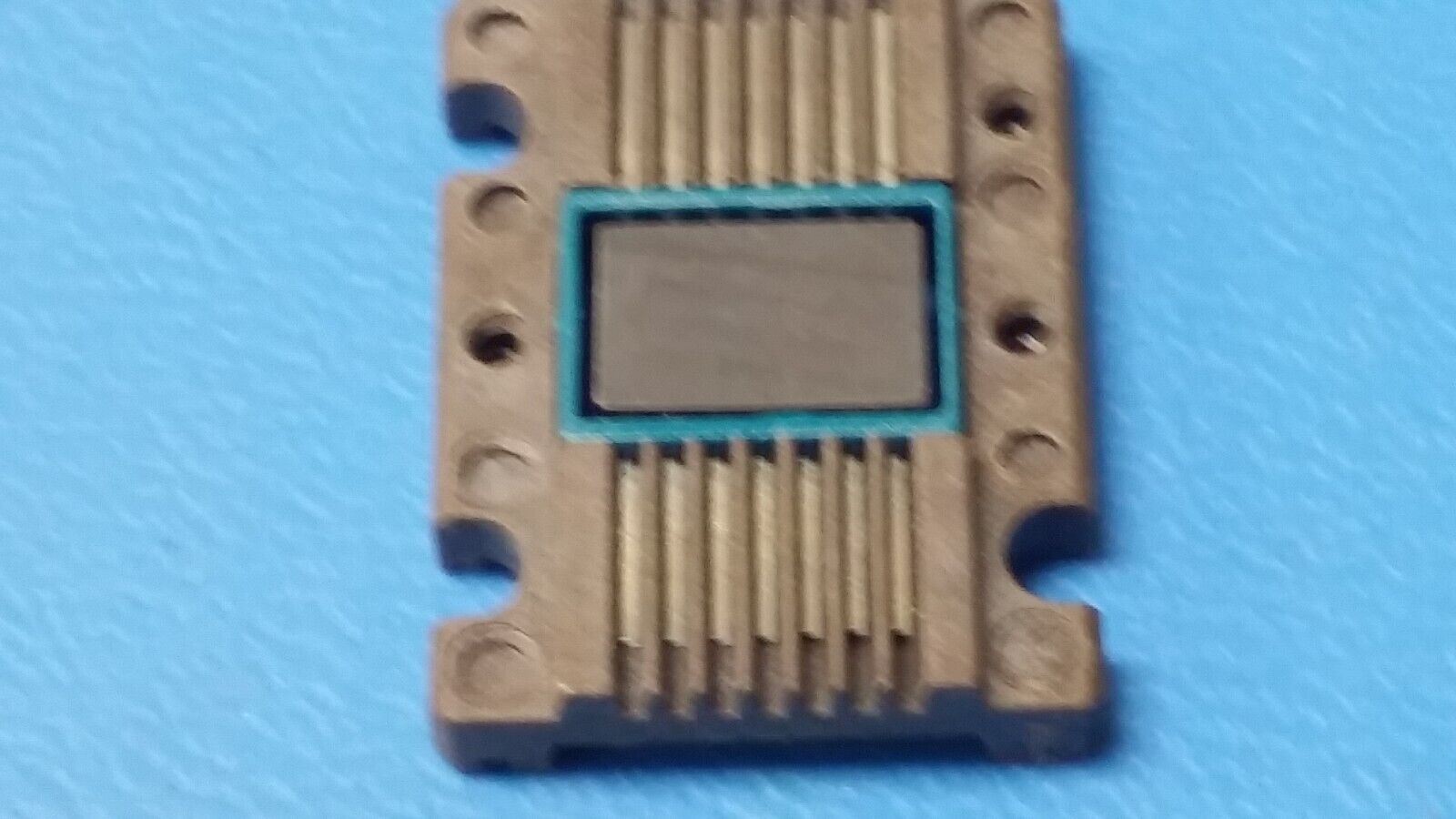

(1 PC) JM38510/00504BDB NSC AND-OR-Invert Gate, 1-Func, 8-Input, TTL, CDFP14
Tax included.
THIS IS FOR (1 PC) OF JM38510/00504BDB BY NSC
AND-OR-Invert Gate, 1-Func, 8-Input, TTL, CDFP14
Part #: JM38510/00504BDB
Part Category: Logic ICs
Description: AND-OR-Invert Gate, TTL/H/L Series, 1-Func, 8-Input, TTL, CDFP14
Status Discontinued
Logic IC Type AND-OR-INVERT GATE
Family TTL/H/L
JESD-30 Code R-CDFP-F14
Load Capacitance (CL) 15.0 pF
Number of Functions 1
Number of Inputs 8.0
Number of Terminals 14
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Shape RECTANGULAR
Package Style FLATPACK
Power Supply Current-Max (ICC) 9.5 mA
Propagation Delay (tpd) 15.0 ns
Qualification Status Not Qualified
Supply Voltage-Nom (Vsup) 5
Surface Mount YES
Technology TTL
Temperature Grade MILITARY
Terminal Form FLAT
Terminal Position DUAL
