(1 PC) JM38510/00203BCB NSC, TI, MOT J-K Flip-Flop, TTL/H/L SeriesCDIP14
Tax included.

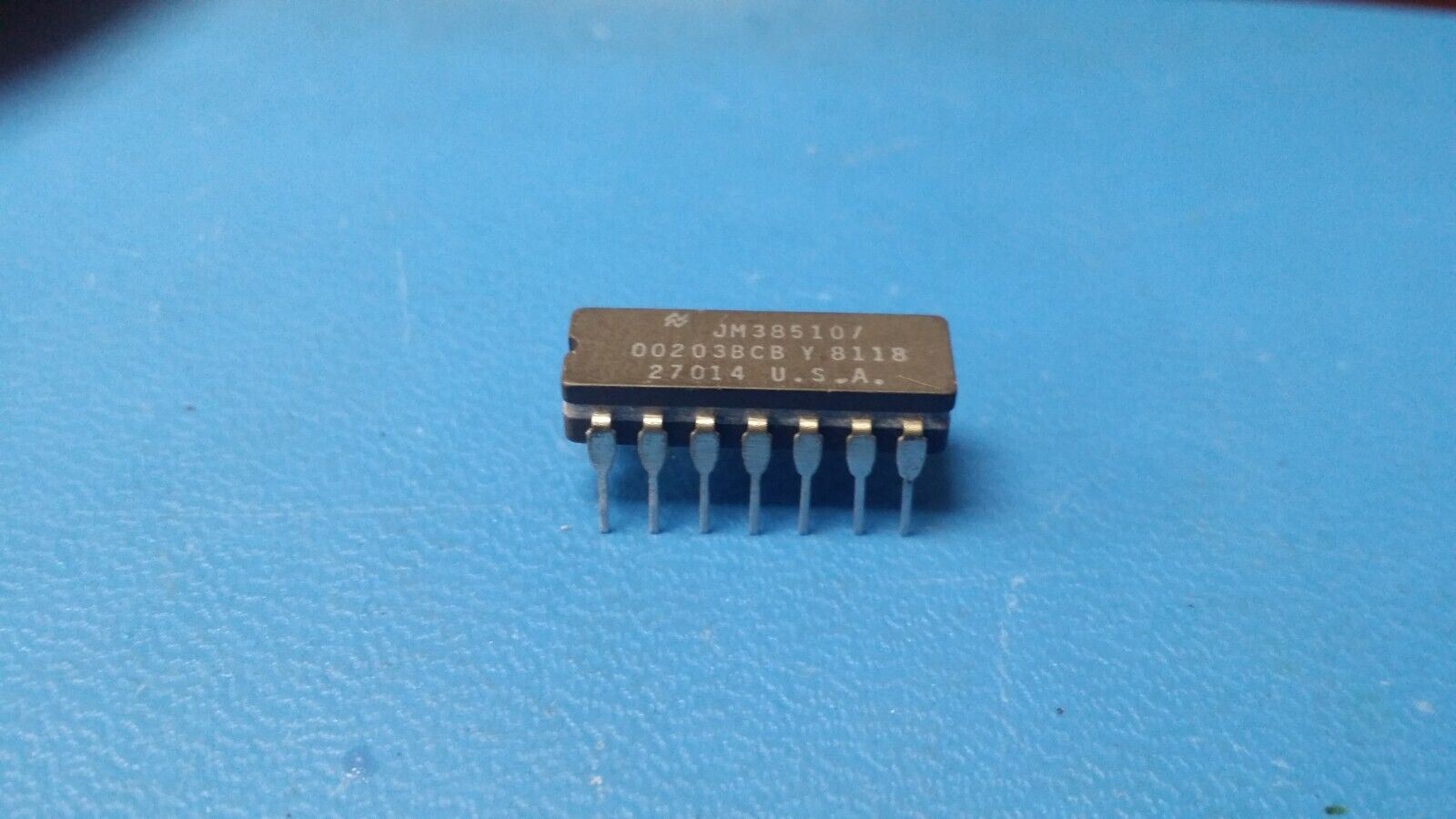

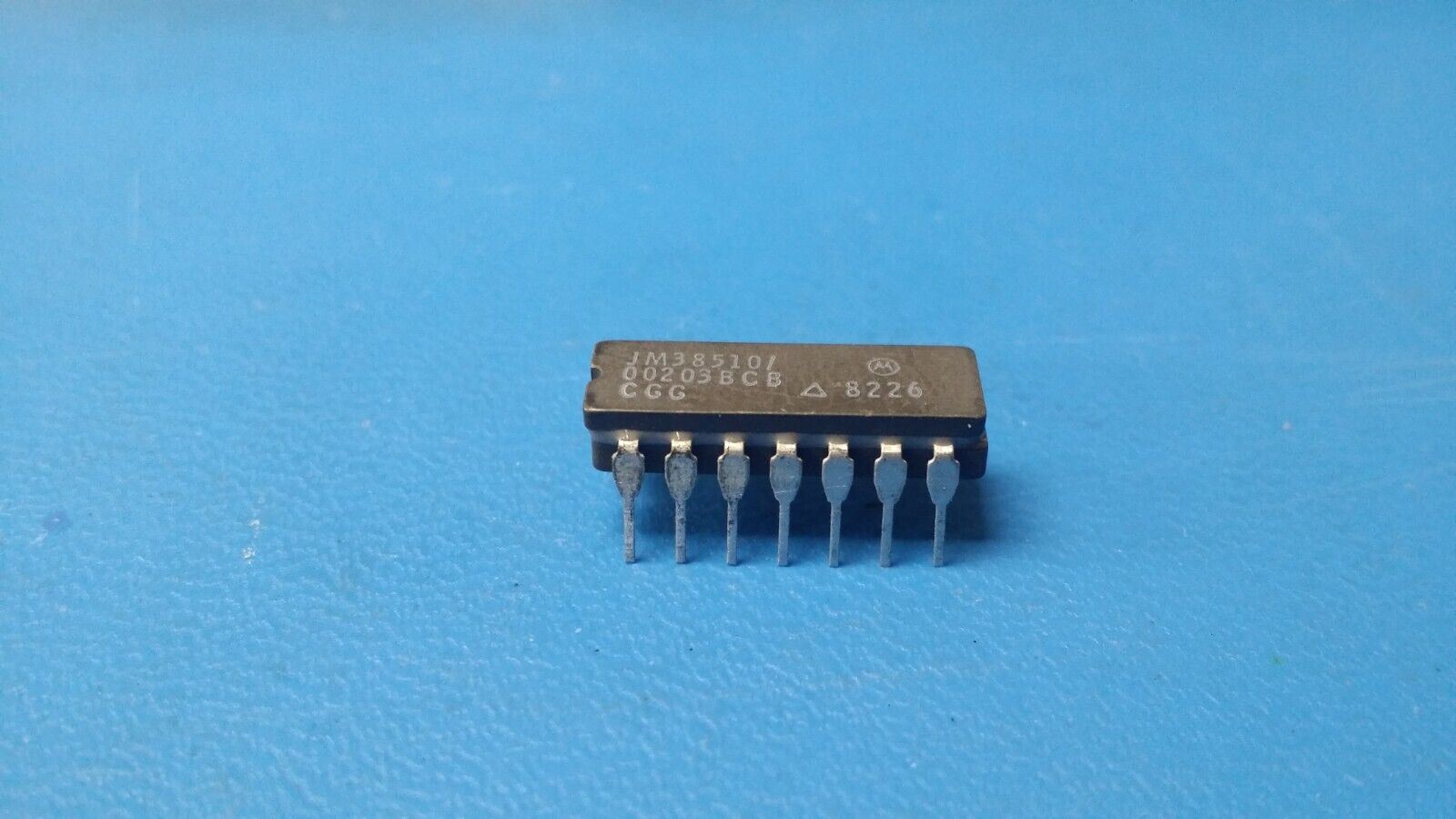

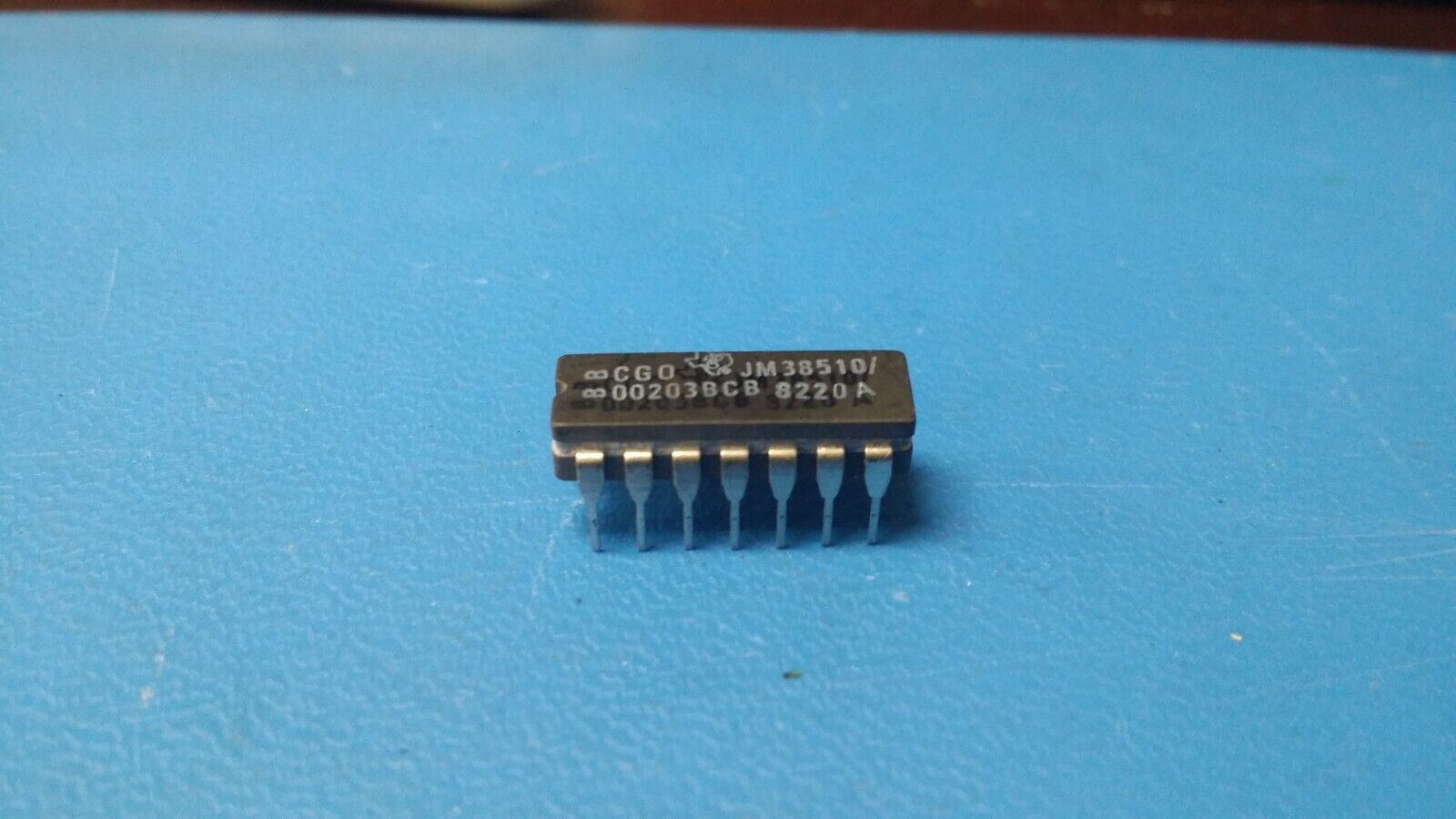

THIS IS FOR (1 PC) OF JM38510/00203BCB BY ONE OF THESE BRANDS: NSC, TI, MOT
J-K Flip-Flop, TTL/H/L Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, CDIP14
Status Discontinued
Logic IC Type J-K FLIP-FLOP
Family TTL/H/L
fmax-Min 15.0 MHz
JESD-30 Code R-GDIP-T14
Load Capacitance (CL) 15.0 pF
Number of Bits 2
Number of Functions 2
Number of Terminals 14
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Polarity COMPLEMENTARY
Package Body Material CERAMIC, GLASS-SEALED
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supply Current-Max (ICC) 40.0 mA
Propagation Delay (tpd) 40.0 ns
Qualification Status Not Qualified
Supply Voltage-Nom (Vsup) 5
Surface Mount NO
Technology TTL
Temperature Grade MILITARY
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Trigger Type NEGATIVE EDGE
