(1 PC) JANTXV2N7224 IRFM N-Channel 100V 0.07 Ohm 50 150W Power MOSFET TO-254AA
Tax included.

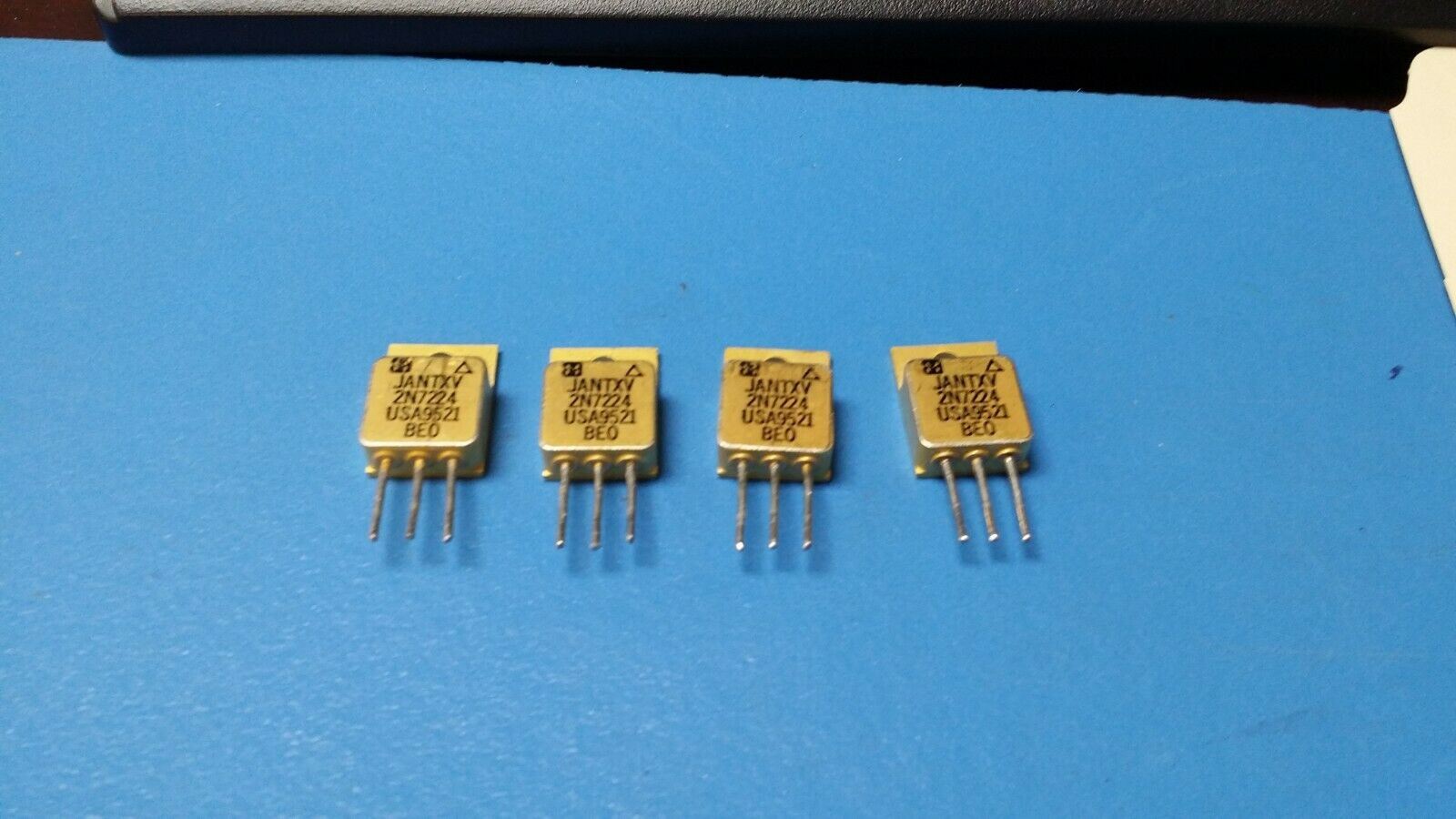

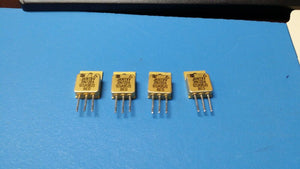

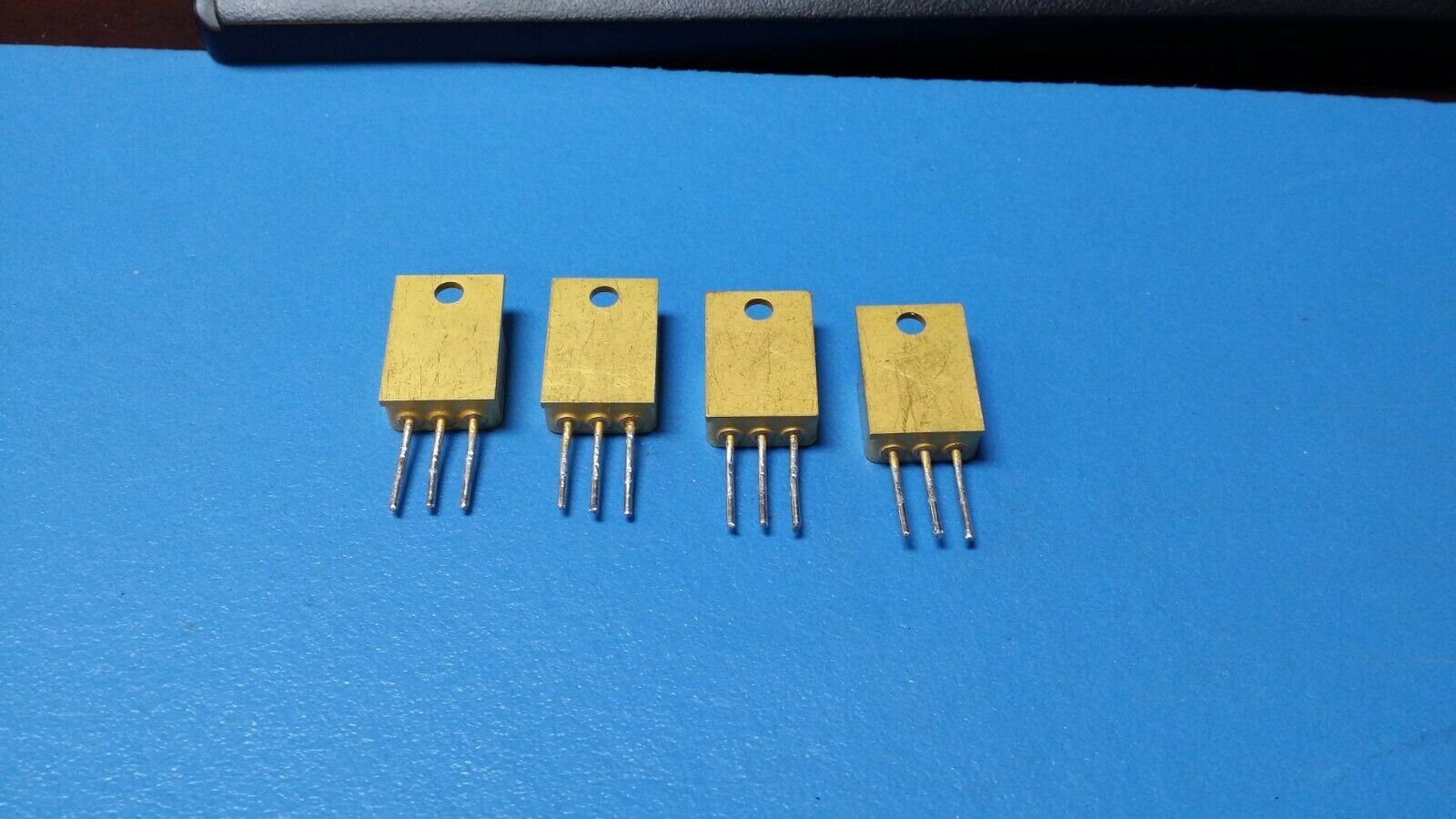

THIS LISTING IS FOR (1 PC) OF JANTXV2N7224 BY HARRIS
IRFM N-Channel 100V 0.07 Ohm 50 150W Power MOSFET TO-254AA
Mfr Package Description HERMETIC SEALED, TO-254AA, 3 PIN
REACH Compliant Yes
Avalanche Energy Rating (Eas) 150.0 mJ
Case Connection ISOLATED
Configuration SINGLE WITH BUILT-IN DIODE
Drain Current-Max (Abs) (ID) 34.0 A
Drain Current-Max (ID) 34.0 A
Drain-source On Resistance-Max 0.081 ohm
DS Breakdown Voltage-Min 100.0 V
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-254AA
JESD-30 Code S-MSFM-P3
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150.0 Cel
Package Body Material METAL
Package Shape SQUARE
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 150.0 W
Pulsed Drain Current-Max (IDM) 136.0 A
Qualification Status Qualified
Reference Standard MIL-19500/592
Sub Category FET General Purpose Power
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form PIN/PEG
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Additional Feature HIGH RELIABILITY
