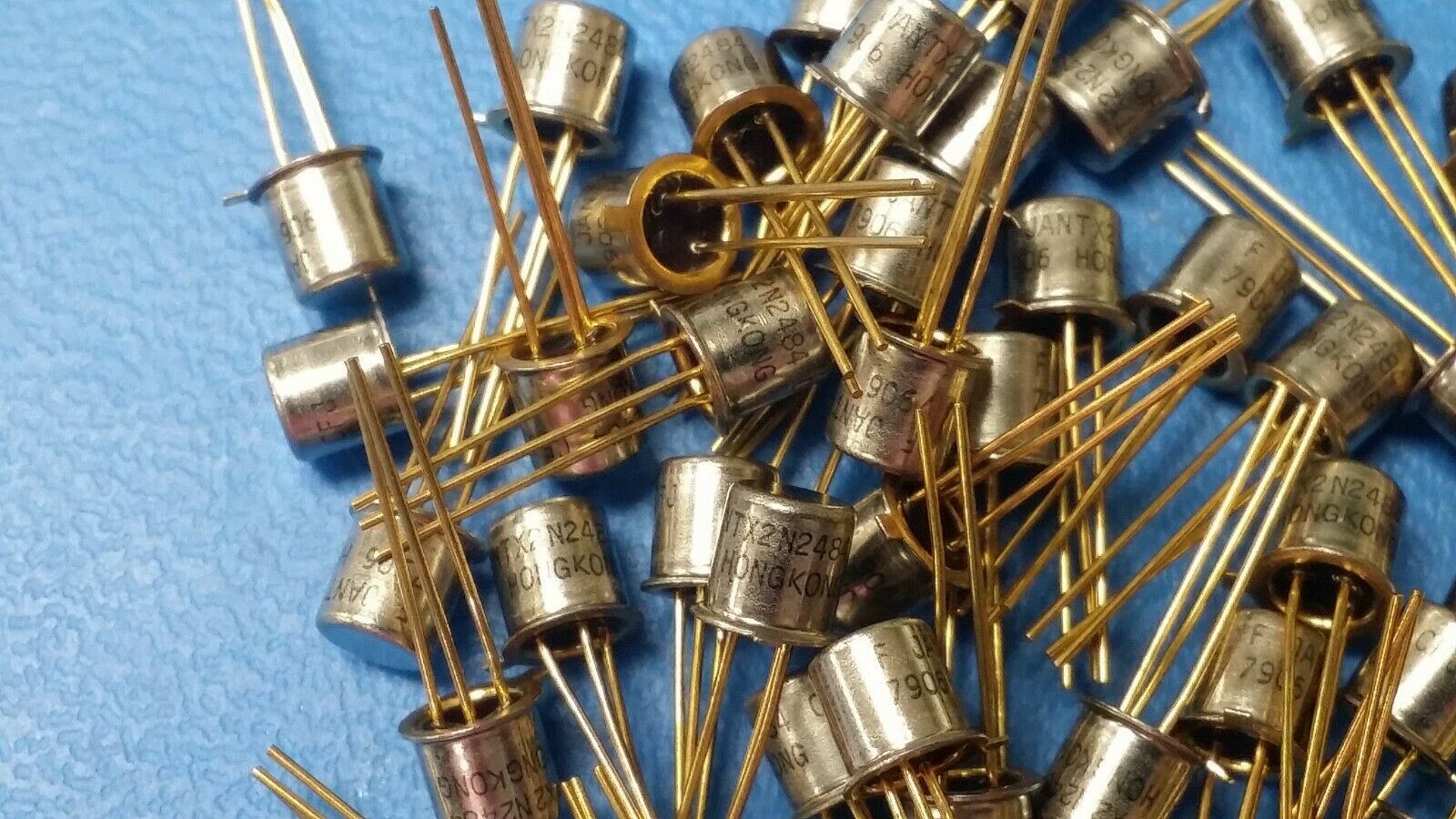

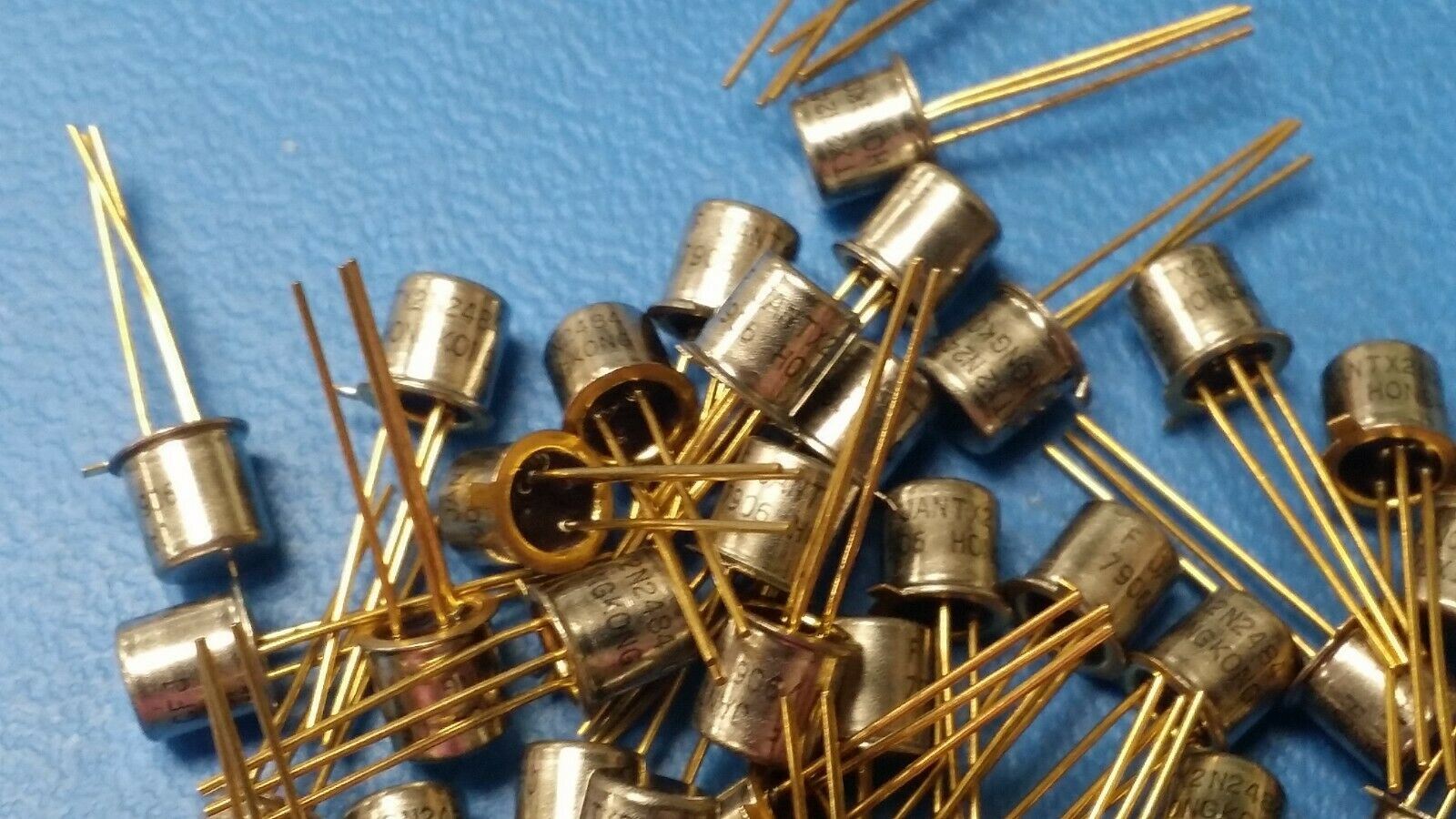

(1 PC) JANTX2N2484 FSC Trans GP BJT NPN 60V 0.05A 3-Pin TO-18
Tax included.
THIS IS FOR (1 PC) OF JANTX2N2484 BY FSC
Trans GP BJT NPN 60V 0.05A 3-Pin TO-18
Manufacturer: Fairchild Semiconductor
Product Category: Bipolar Transistors - BJT
RoHS: N
Mounting Style: Through Hole
Package / Case: TO-18-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 60 V
Collector- Base Voltage VCBO: 60 V
Emitter- Base Voltage VEBO: 6 V
Collector-Emitter Saturation Voltage: 300 mV
Maximum DC Collector Current: 50 mA
Pd - Power Dissipation: 360 mW
Gain Bandwidth Product fT: -
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 200 C
Packaging: Bulk
DC Collector/Base Gain hfe Min: 200 at 10 uA, 5 VDC
DC Current Gain hFE Max: 500 at 10 uA, 5 VDC
Product Type: BJTs - Bipolar Transistors
1
Subcategory: Transistors
Technology: Si
