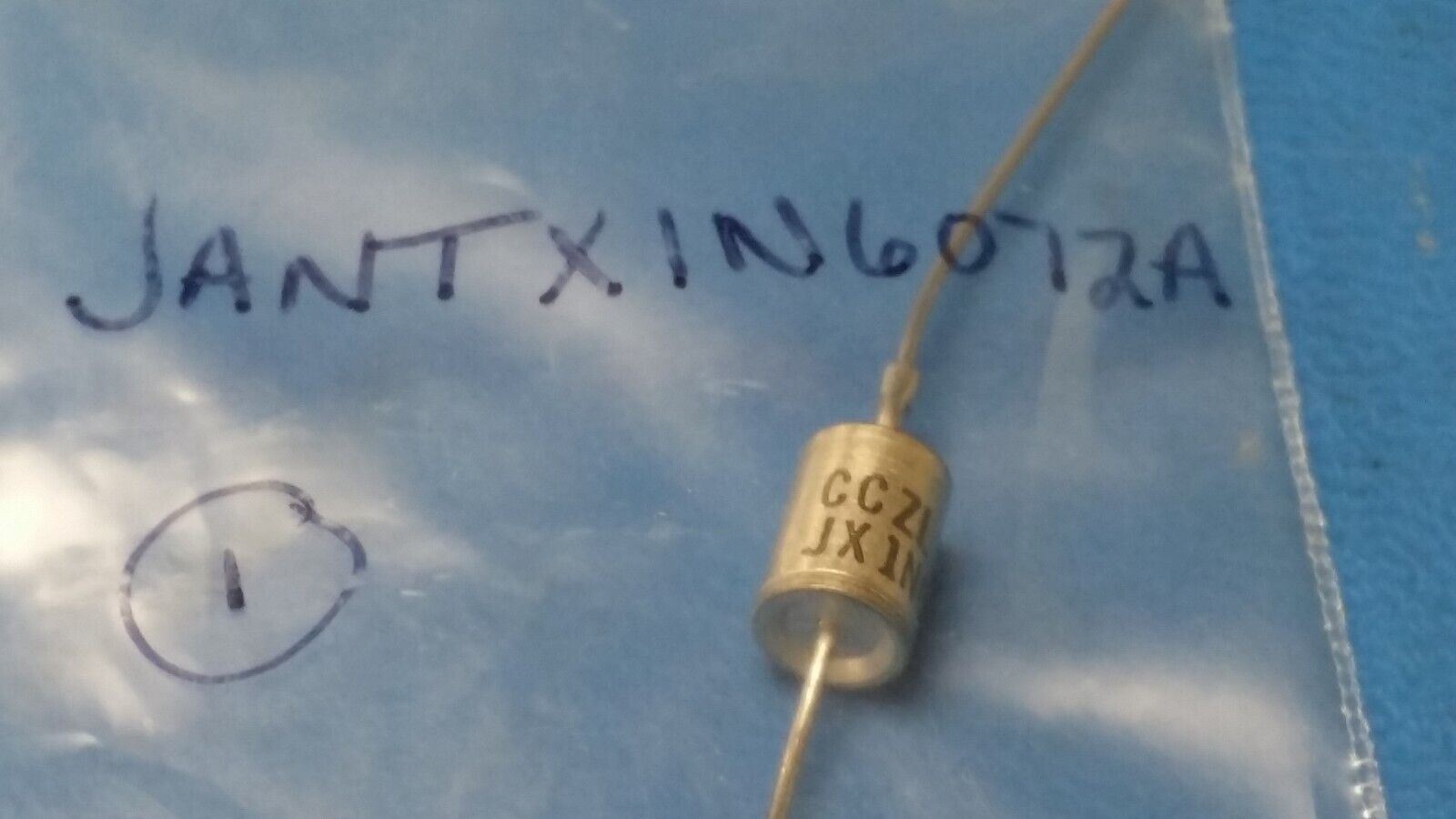

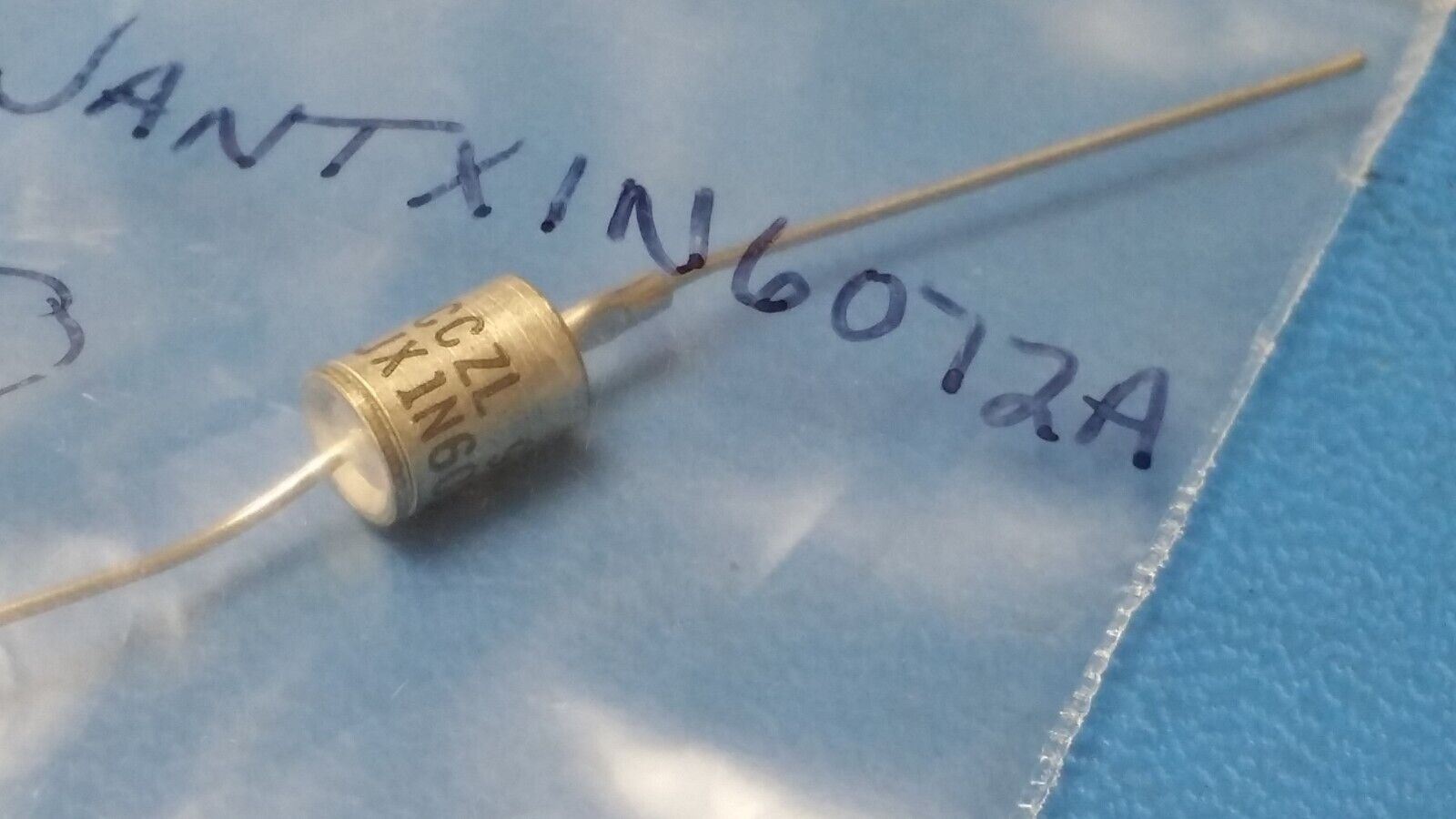

(1 PC) JANTX1N6072A TRANS VOLTAGE SUPPRESSOR DIODE
Tax included.
THIS IS FOR (1 PC) OF JANTX1N6072A
Trans Voltage Suppressor Diode, 1500W, 185V V(RWM), Bidirectional, 1 Element, Silicon, DO-13, DO-202AA
Mfr Package Description HERMETIC SEALED, METAL GLASS, DO-13, 2 PIN
Status Transferred
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Min 209.0 V
Breakdown Voltage-Max 231.0 V
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-202AA
JESD-30 Code O-MALF-W2
JESD-609 Code e0
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500.0 W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 175.0 Cel
Package Body Material METAL
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity BIDIRECTIONAL
Power Dissipation-Max 1.0 W
Qualification Status Qualified
Reference Standard MIL-19500
Rep Pk Reverse Voltage-Max 185.0 V
Surface Mount NO
Technology AVALANCHE
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
